| Category | Items | Specifications (ZE215G) |
|---|---|---|
| Basic Technical Data | Operating Weight | 21500 kg |
| Standard bucket capacity | 1.1 m³ | |
| Slewing Speed | 12 r/min | |
| Traveling Speed (high/low) | 5.4/3.3 km/h | |
| Max. Drawbar Pull | 192 kN | |
| Digging Force of Bucket | 157 kN | |
| Digging Force of Stick | 110 kN | |

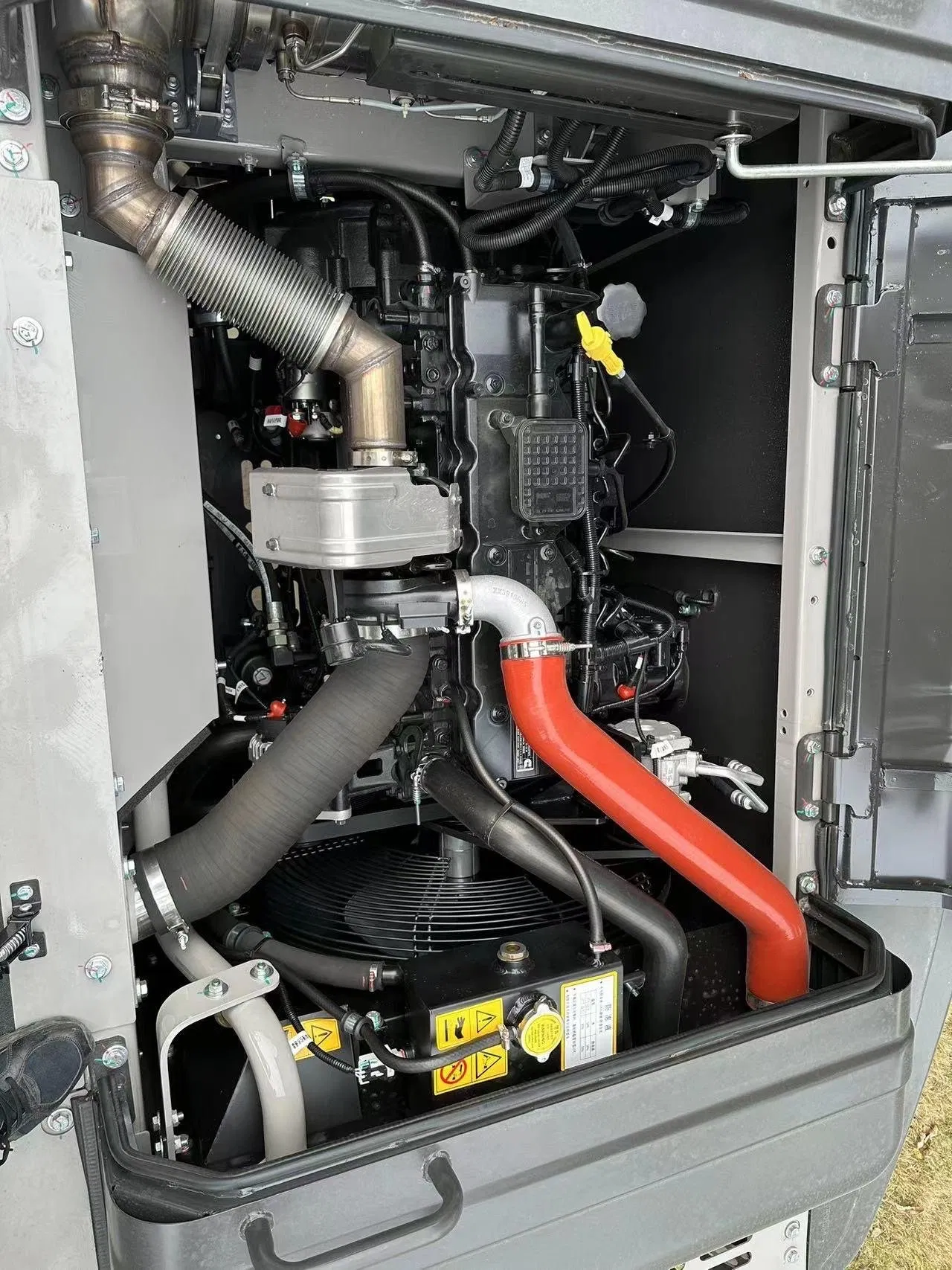

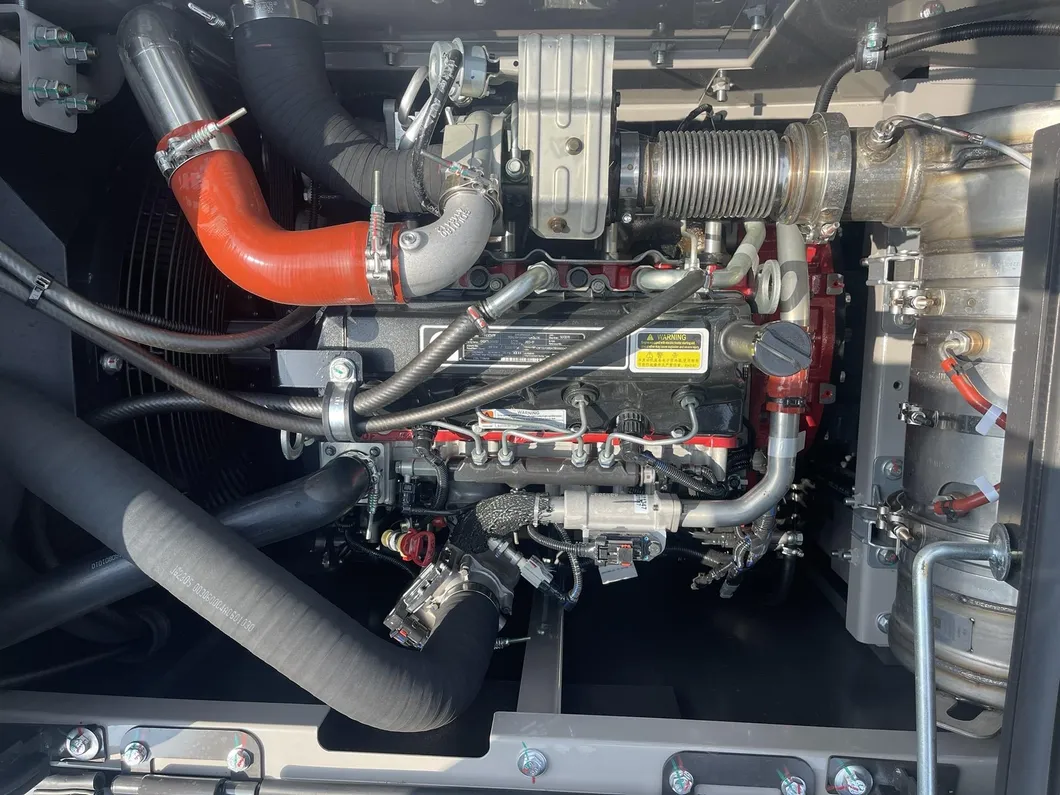

| Engine | Engine Manufacturer | Famous brand |
| Engine Model | 6BTAA5.9 | |
| Rated Power | 112 kW / 1950 rpm | |
| Displacement | 5.9 L | |

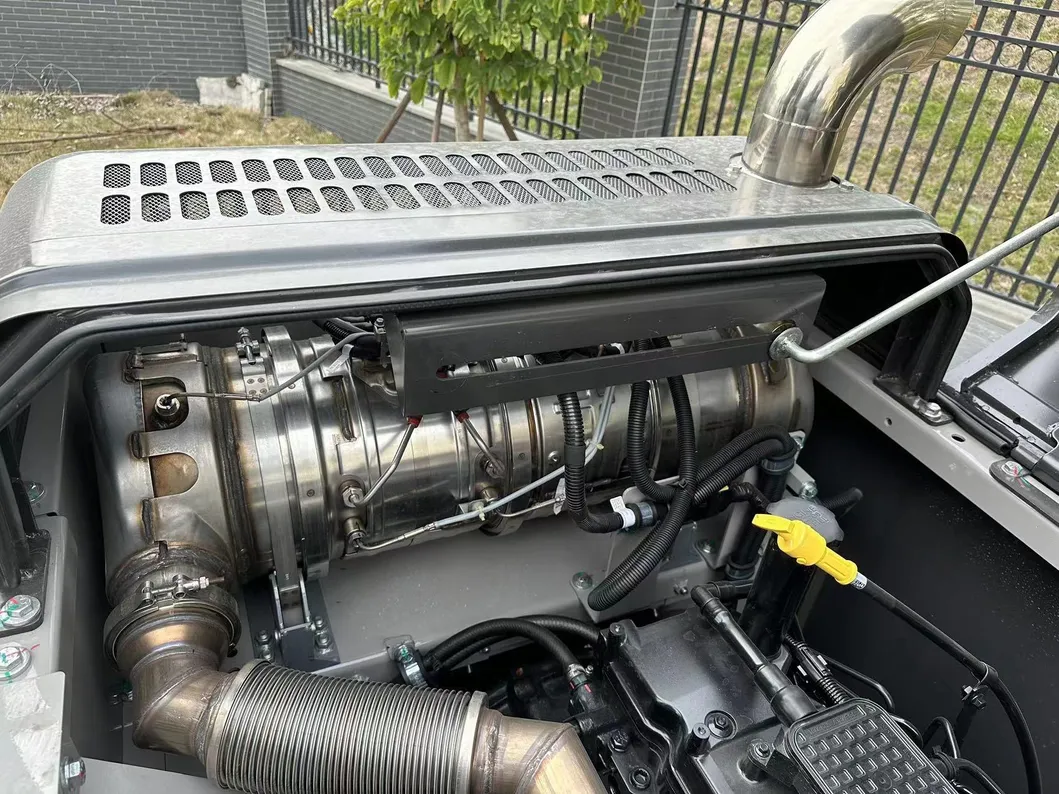

| Emission Standard | EU Stage IIIA | |
| Dimensions | Length | 9670 mm |
| Width | 2800 mm | |
| Height | 3085 mm | |
| Tail Slewing Radius | 2920 mm | |

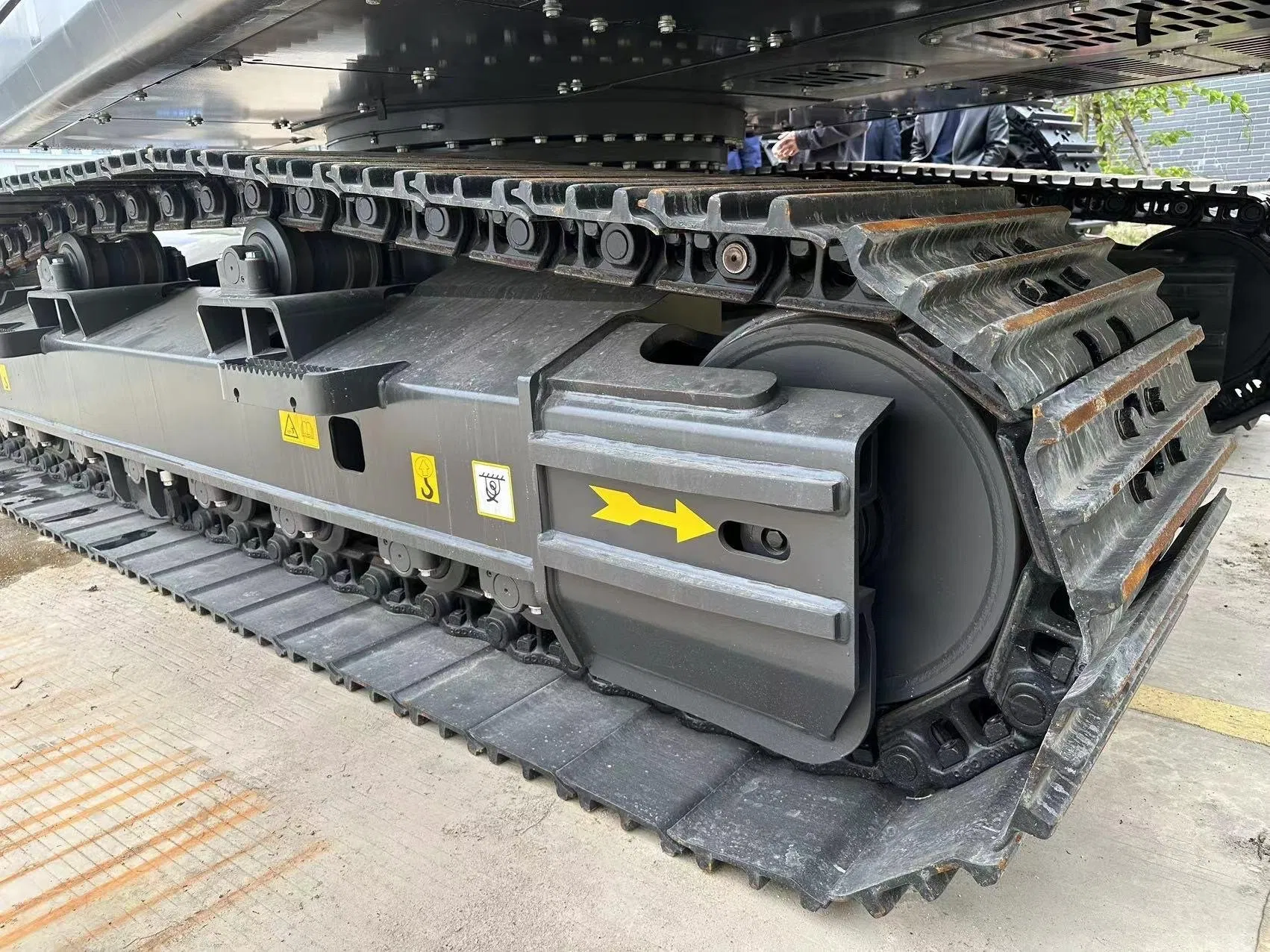

| Track Gauge | 2200 mm | |
| Track On Ground Length | 3380 mm | |
| Operating Range | Max. Digging Reach | 9830 mm |
| Max. Digging Reach (Ground) | 9650 mm | |
| Max. Digging Depth | 6610 mm | |
| Max. Digging Height | 9615 mm | |
| Max. Dumping Height | 6785 mm |
