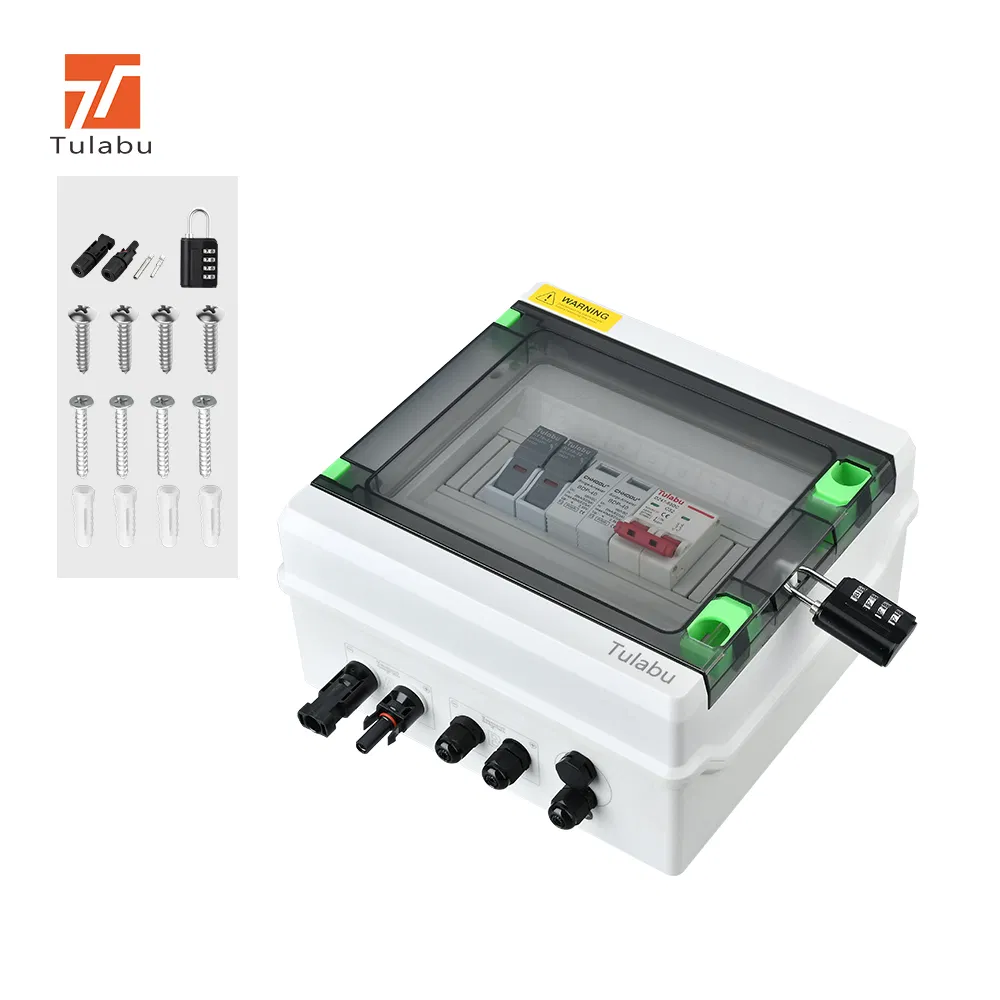

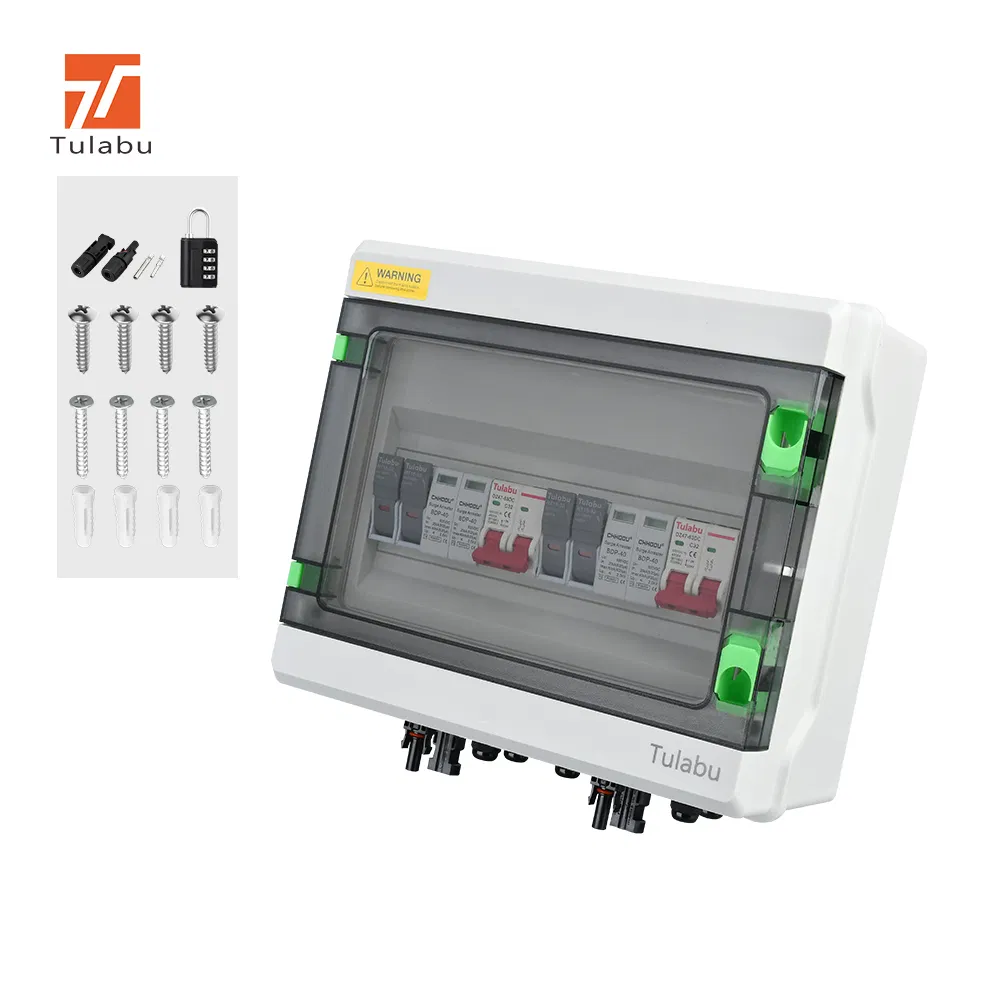

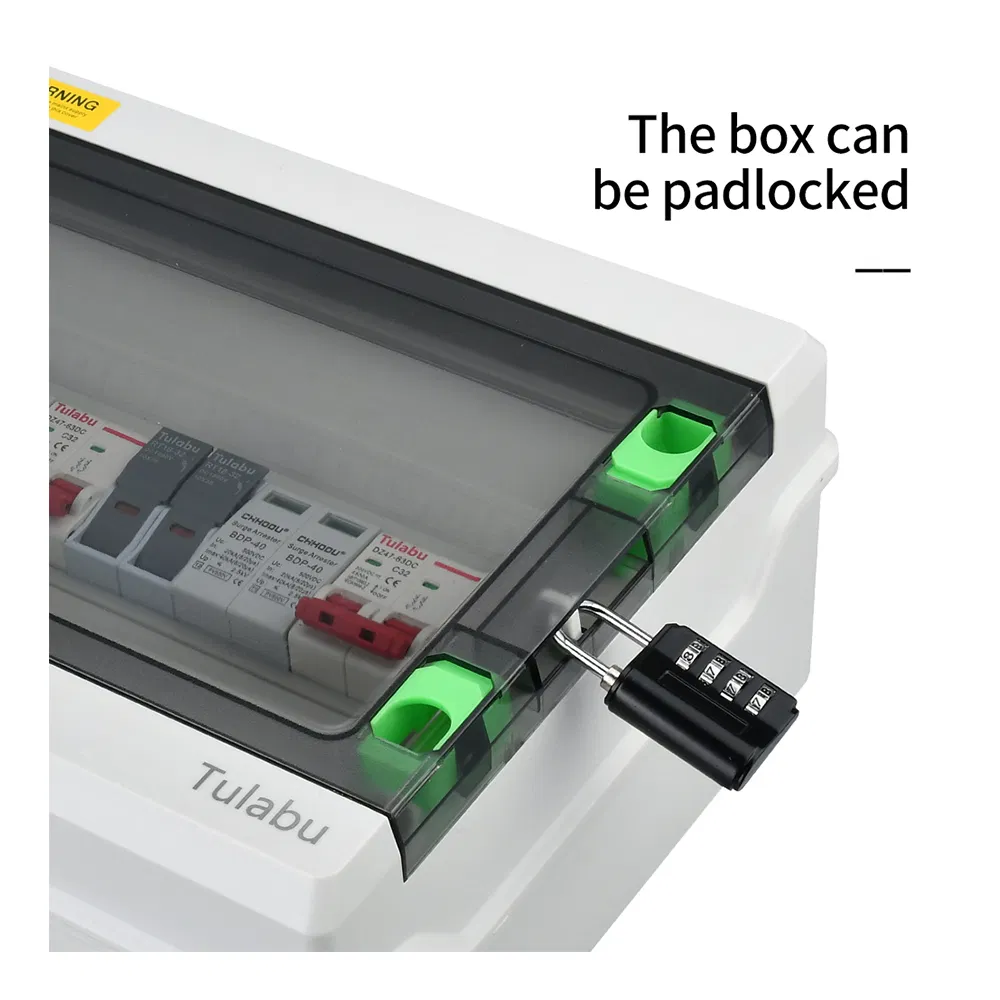

Tulabu PV 1/1 IP65 1 in 1out 1/2/3/4 Strings Array 16A 500V 1000V DC Solar PV Combiner Box for Solar System
Tulabu PV 1/1 IP65 1 in 1out 1/2/3/4 Strings Array 16A 500V 1000V DC Solar PV Combiner Box for Solar System
Tulabu PV 1/1 IP65 1 in 1out 1/2/3/4 Strings Array 16A 500V 1000V DC Solar PV Combiner Box for Solar System
Tulabu PV 1/1 IP65 1 in 1out 1/2/3/4 Strings Array 16A 500V 1000V DC Solar PV Combiner Box for Solar System
Tulabu PV 1/1 IP65 1 in 1out 1/2/3/4 Strings Array 16A 500V 1000V DC Solar PV Combiner Box for Solar System
1 / 5
Tulabu PV 1/1 IP65 1 in 1out 1/2/3/4 Strings Array 16A 500V 1000V DC Solar PV Combiner Box for Solar System
Tulabu PV 1/1 IP65 1 in 1out 1/2/3/4 Strings Array 16A 500V 1000V DC Solar PV Combiner Box for Solar System
Tulabu PV 1/1 IP65 1 in 1out 1/2/3/4 Strings Array 16A 500V 1000V DC Solar PV Combiner Box for Solar System
Tulabu PV 1/1 IP65 1 in 1out 1/2/3/4 Strings Array 16A 500V 1000V DC Solar PV Combiner Box for Solar System
Tulabu PV 1/1 IP65 1 in 1out 1/2/3/4 Strings Array 16A 500V 1000V DC Solar PV Combiner Box for Solar System

Tulabu PV 1/1 IP65 1 in 1out 1/2/3/4 Strings Array 16A 500V 1000V DC Solar PV Combiner Box for Solar System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

CertificationCCC
FormPartly-welded Type
Operation VoltageLow Voltage
Shell ProtectionIP65
ApplicationPower Plants
Shell MaterialABS
Rated Current80A, 15A, 16A, 50A, 63A, 55A, 20A, 60A, 100A, 32A, 30A, 12A
Number of Sockets6

Detailed Description

Product NamePhotovoltaic combiner box
Product ModelTLB-DC500V1 IN 1OUT
Voltage RatingDC 500V
Input Current per String15A 20A 32A 40A 50A 63A 80A 100A 125A optional
Max Input StringsIN 1-2-3-4-5-6 optional
Output String CountOUT 1-2-3-4-5-6 optional
Max Output Switch Current125A
Lightning ProtectionYES
Protection RatingIP65

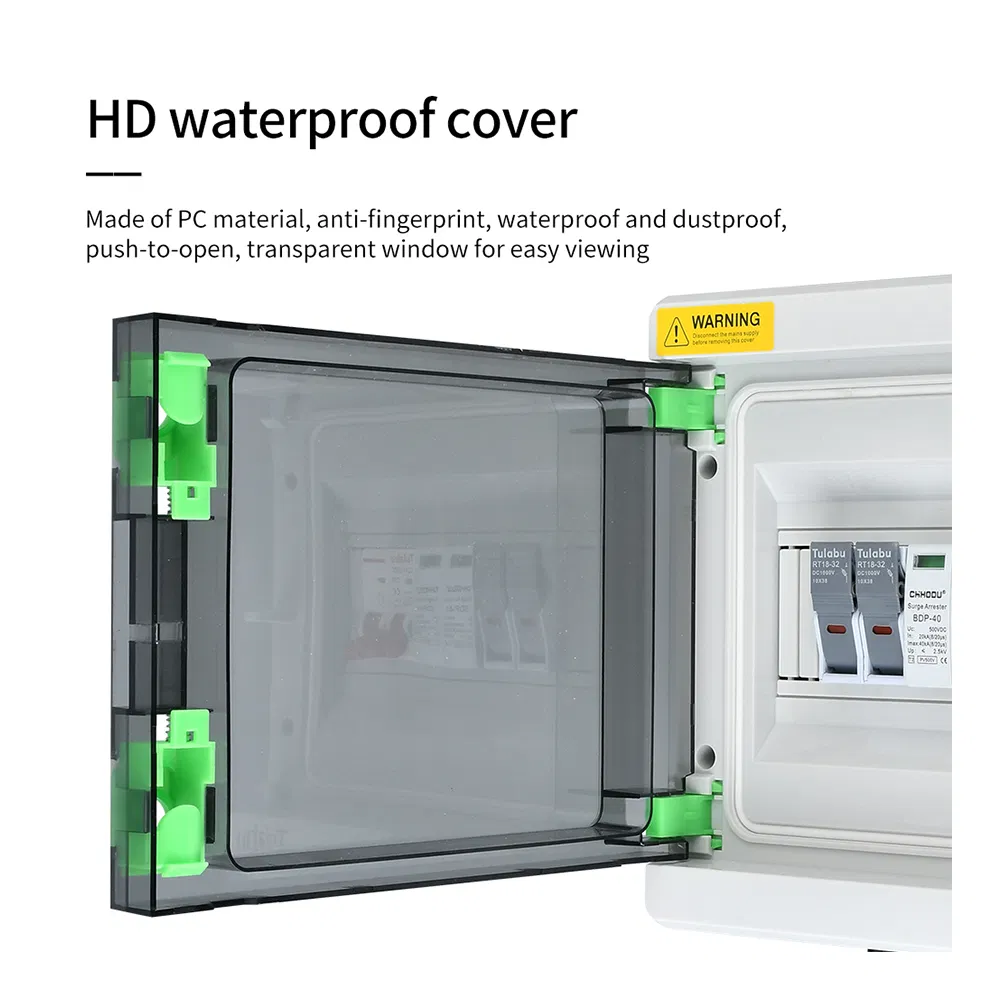

MaterialBox: ABS; Transparent window: PC
Operating Temperature-25°C to +55°C
UV ResistantYES

Product Showcase

PV Combiner Box
Solar PV Combiner Box Interior

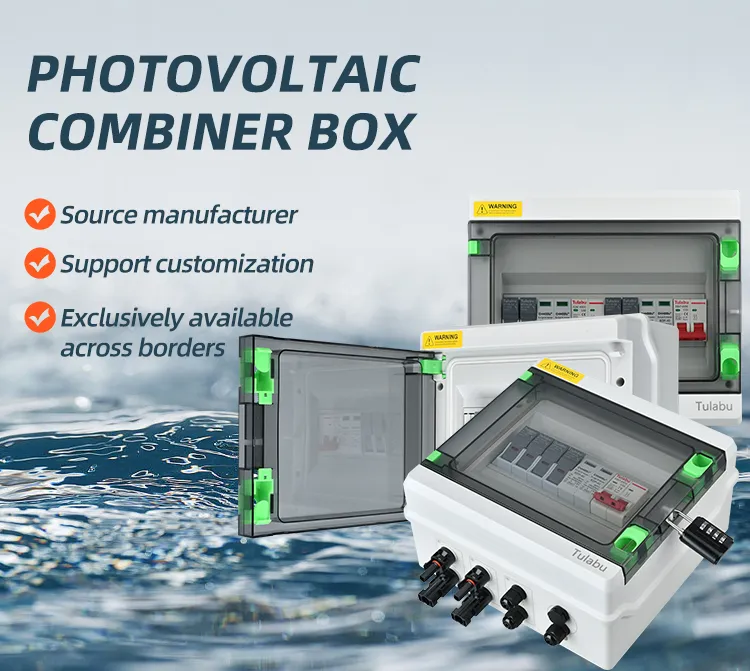

IP65 Combiner Box Detail

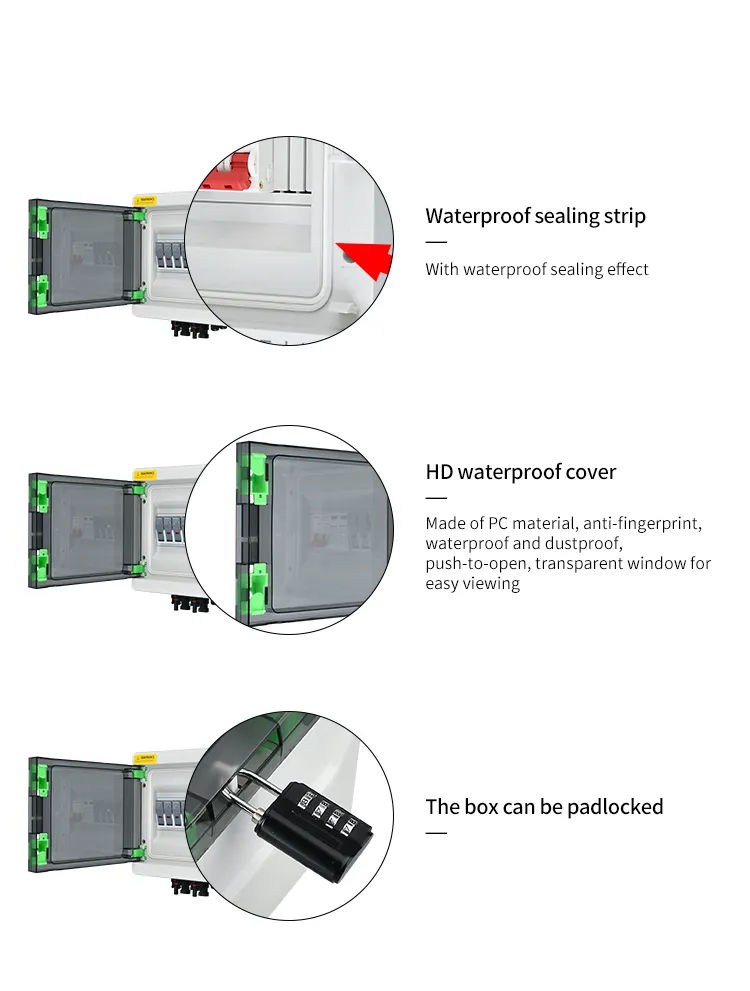

Solar Combiner Box Components
DC Solar Combiner Box
PV Protection Box
Detailed Dimensions

Logistics Information

Package Size28.00cm * 26.00cm * 14.00cm
Gross Weight1.800kg
Selling UnitsSingle Item
Transport PackagePlastic Bag & Heat Shrinkable Film

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a factory and provide professional ODM/OEM services for photovoltaic components.
How do you ensure product quality?
Quality is our core focus. We conduct 100% testing on all products from the beginning to the end of the production process.
Can I request samples for testing?
Yes, we provide samples. In many cases, the sample can be provided free of charge, though shipping costs are the responsibility of the requester.
What is the typical delivery timeframe?
Standard delivery usually takes 7-10 days, depending on the order quantity and specific requirements.
What payment terms do you accept?
We accept 30% T/T in advance with the balance due before shipment. We also support Trade Assurance, PayPal, and Western Union.
What material is used for the enclosure?
The main box is constructed from high-quality ABS material with a PC transparent window, ensuring IP65 protection and UV resistance.
