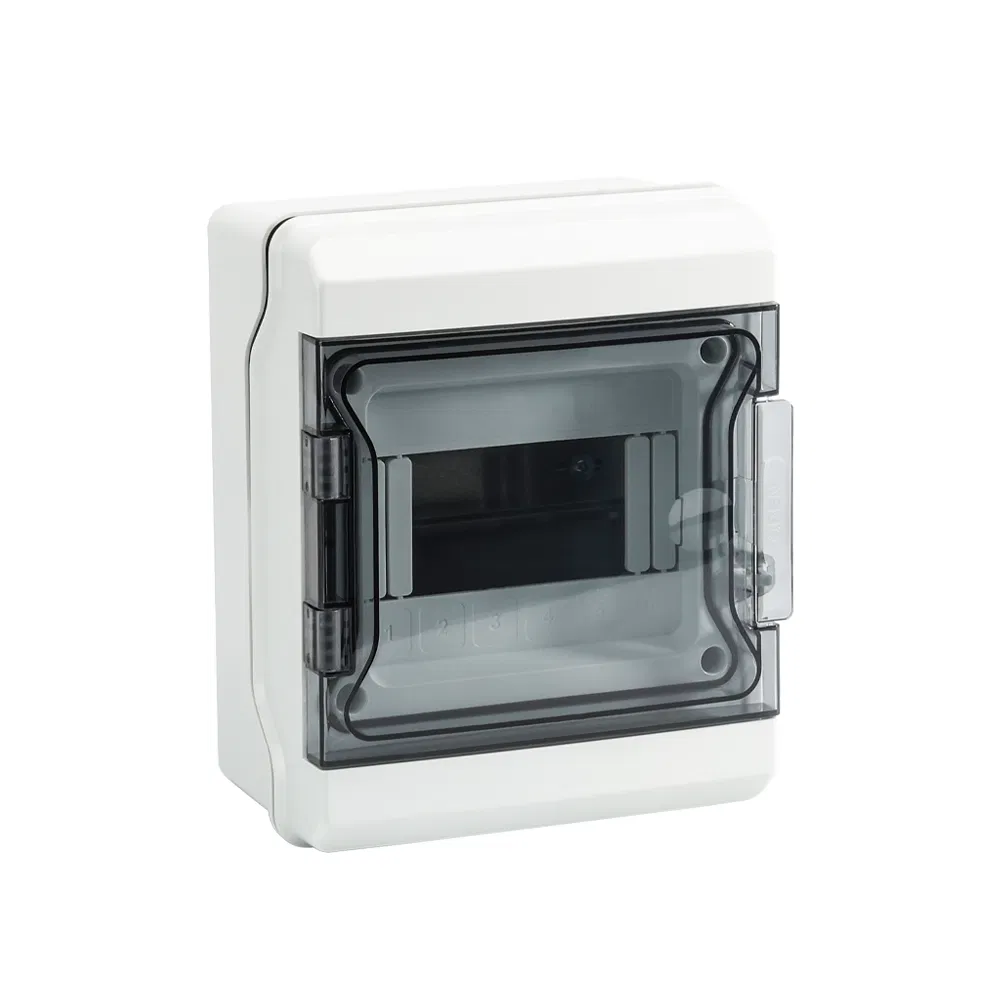

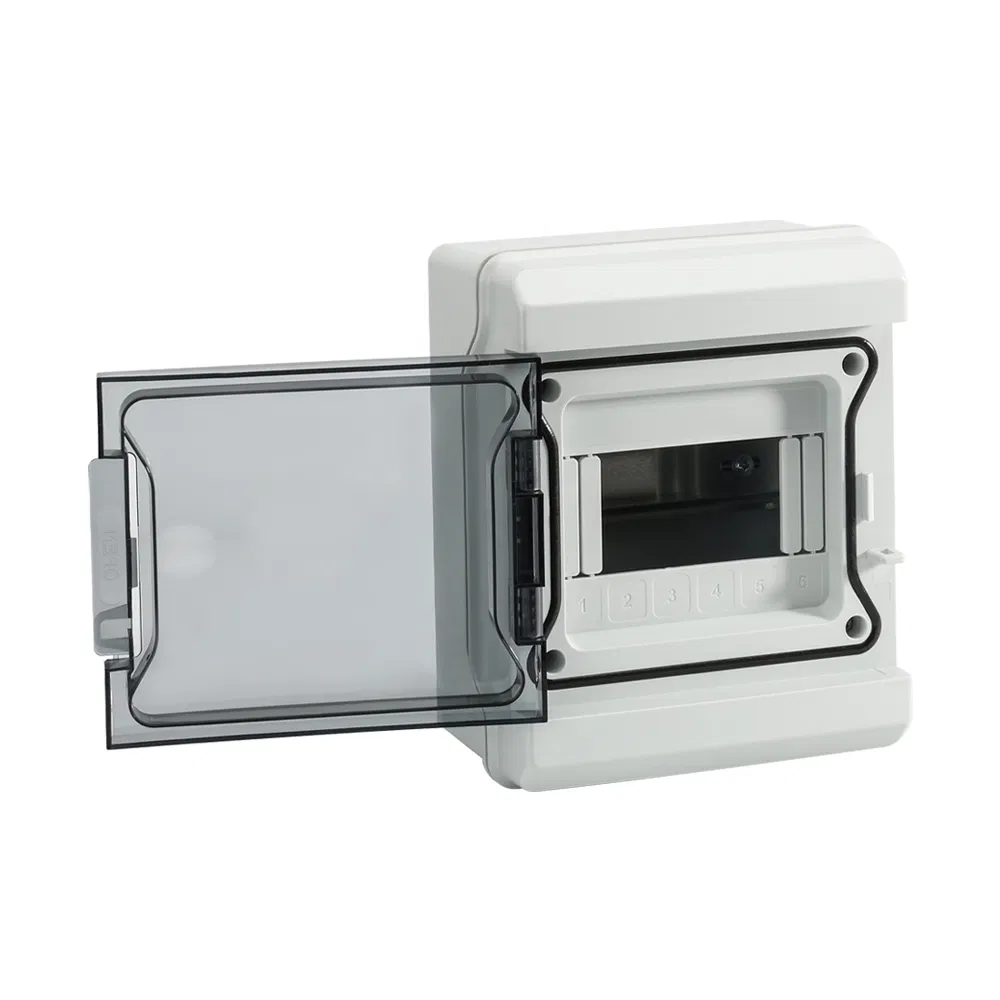

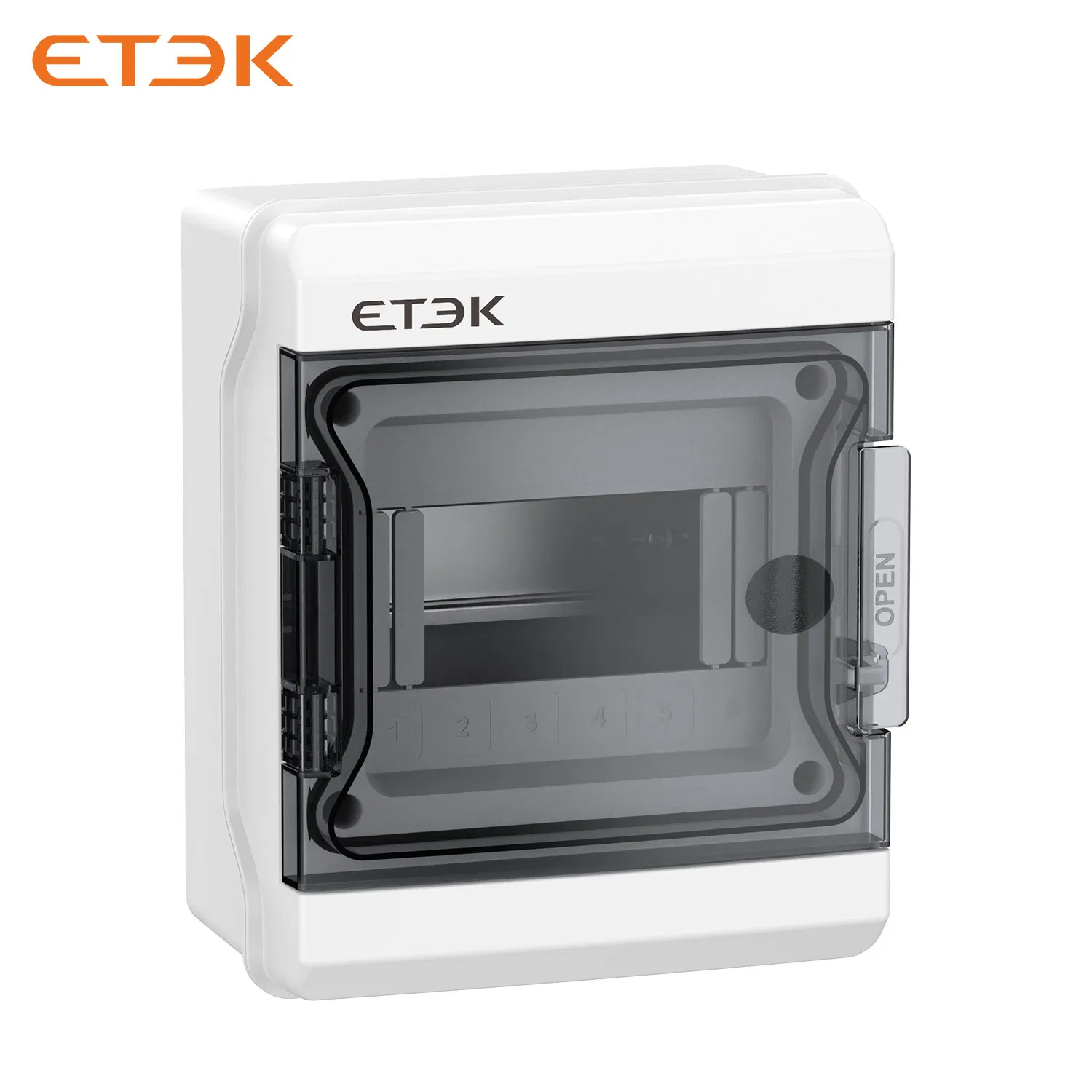

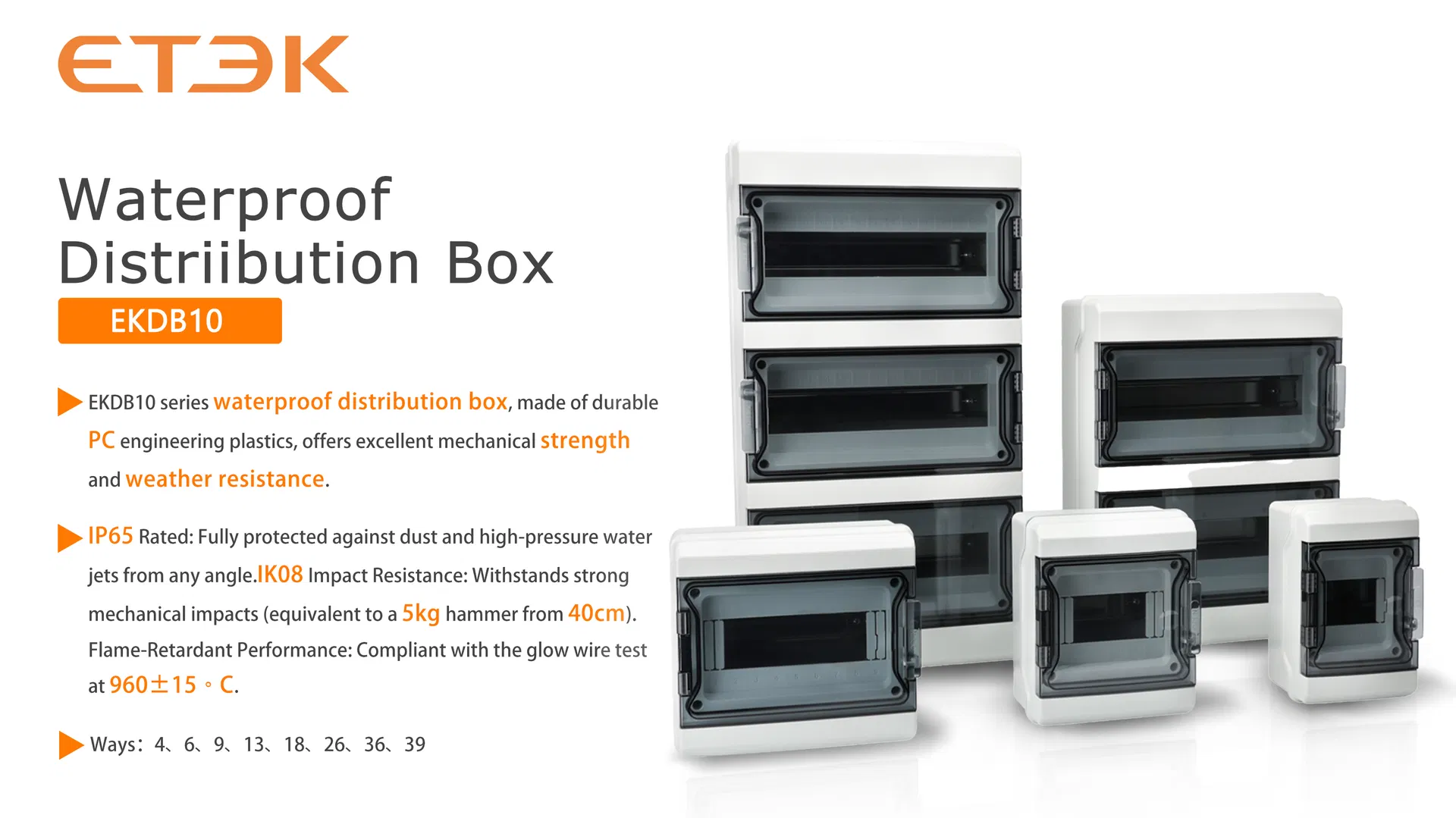

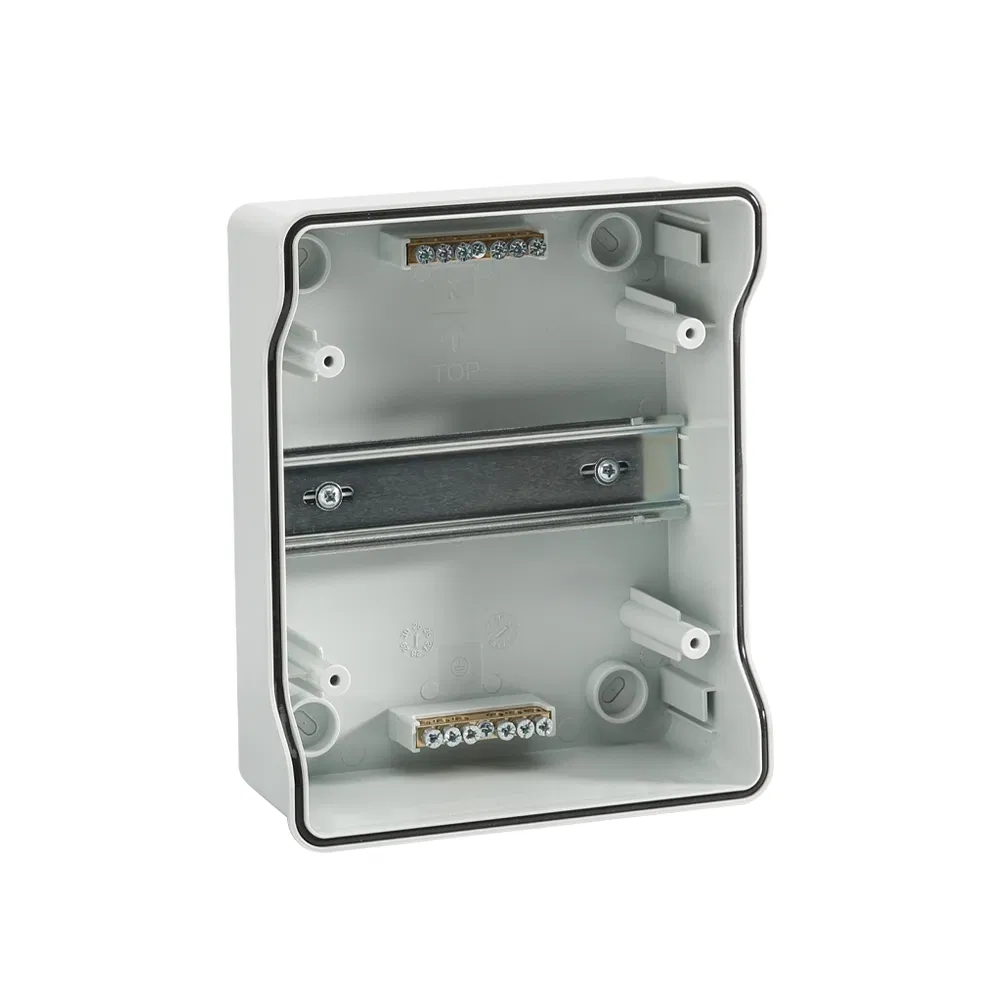

| Model NO. | EKDB10-6T |
| Certification | CE, Ukca |
| Form | All-packaged Type |
| Operation Voltage | Low Voltage |
| Size | 6 Modules |
| Application Range | High-rise Buildings |

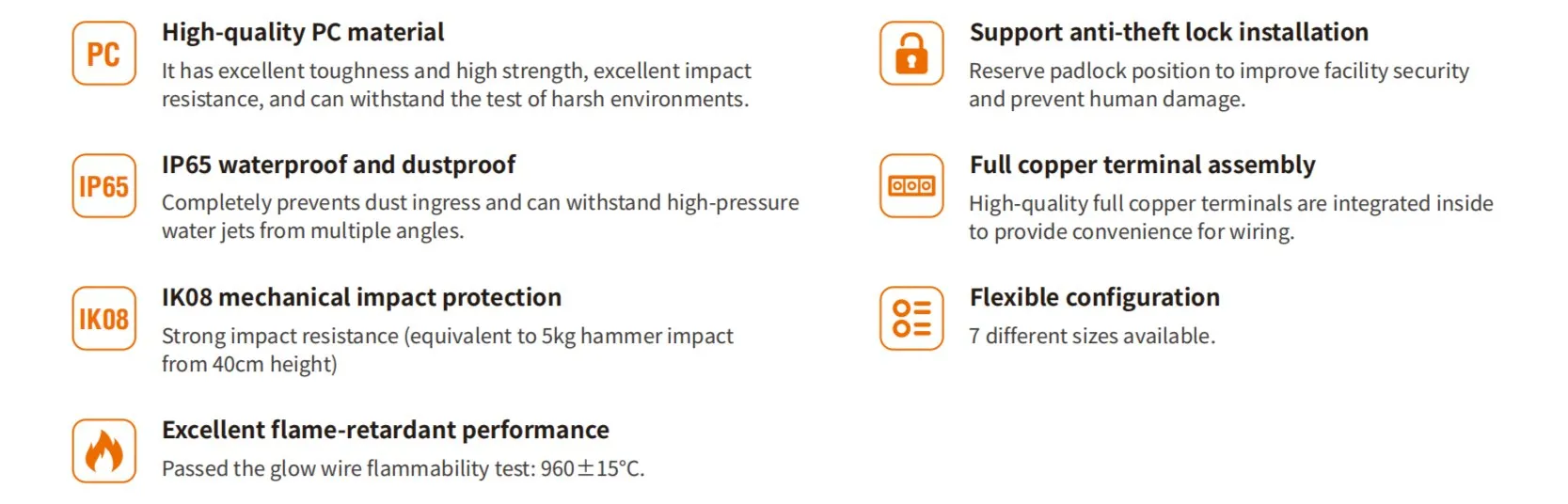

| Shell Material | PC / ABS |
| Shell Protection Grade | IP65 |
| Origin | Zhejiang, Prc |
| General Data | |
|---|---|
| No. of modules | 6 |
| No. of layers | 1 |
| Degree of protection | IP65 |
| Mechanical impacts protection | IK08 |
| Rated insulation voltage (Ui) | 690VAC, 1500VDC |

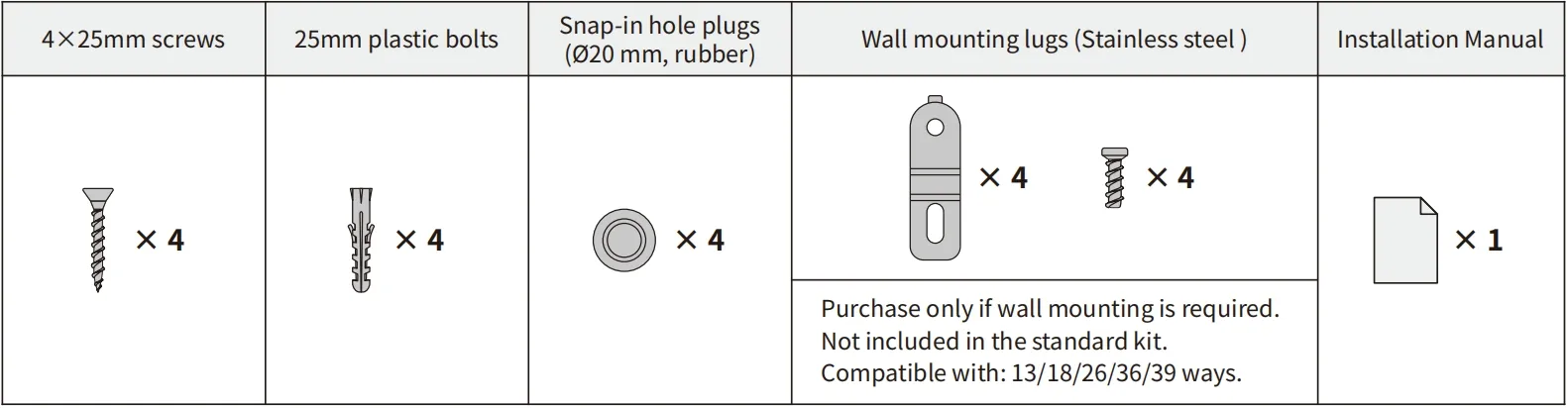

| Method of fixing | Wall mounting |
| Intended location | Outdoor |

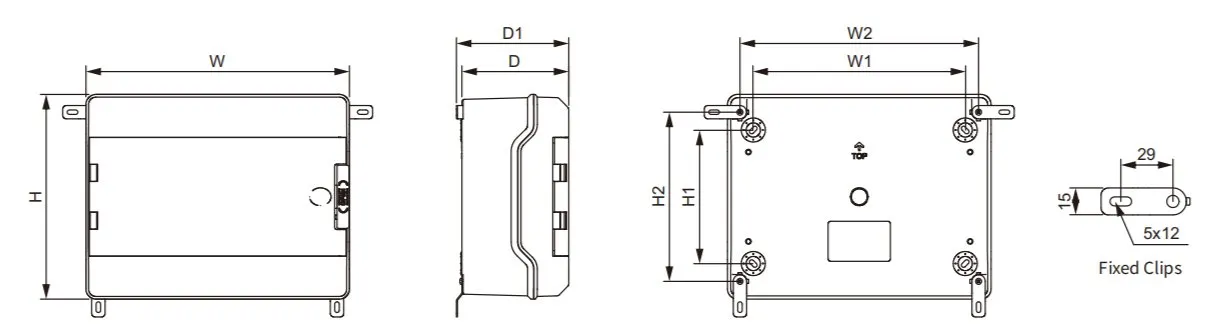

| Dimensions | |
|---|---|
| Width (W) | 164mm |
| Height (H) | 200mm |
| Depth (D) | 103.5mm |
| W1 / H1 | 108mm / 150mm |

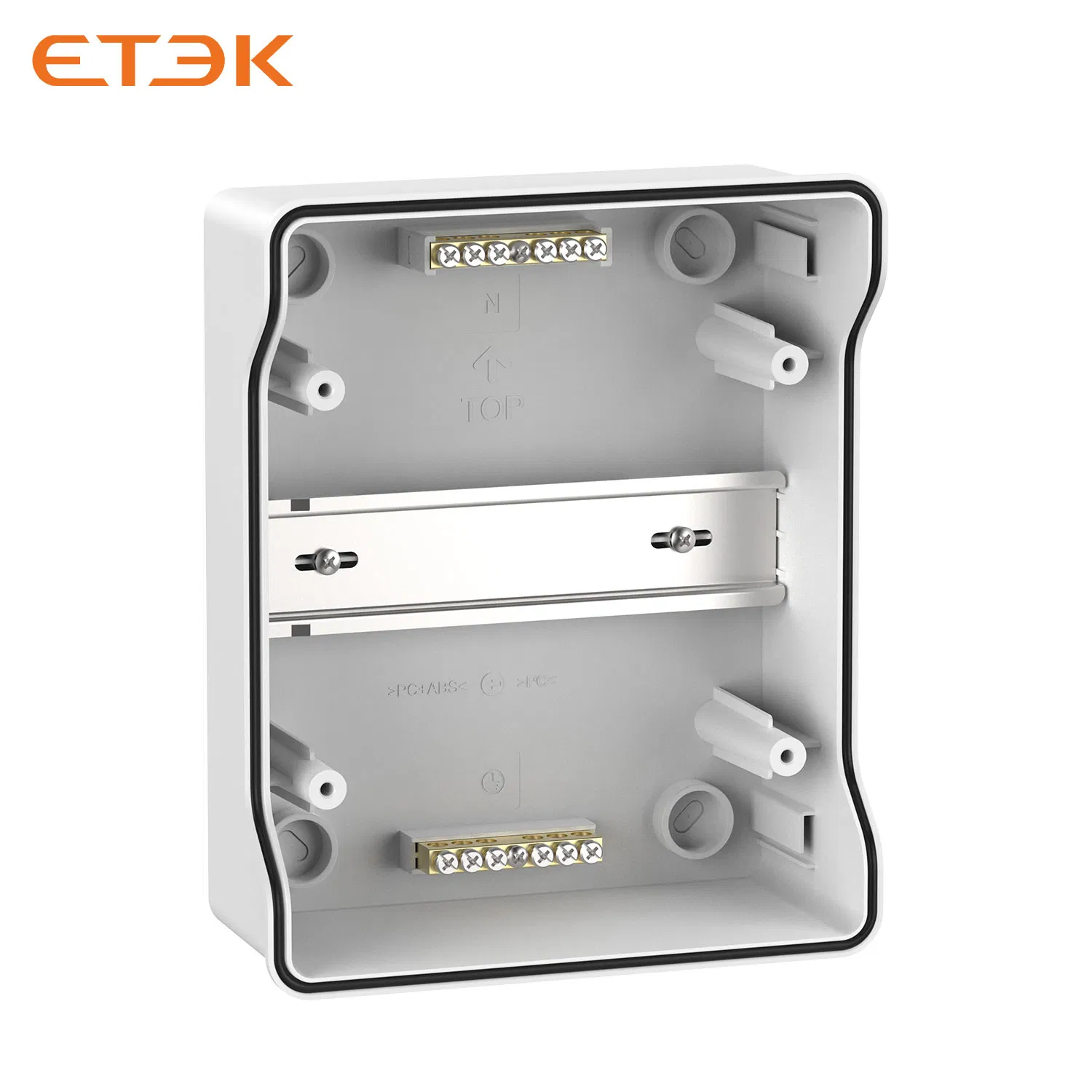

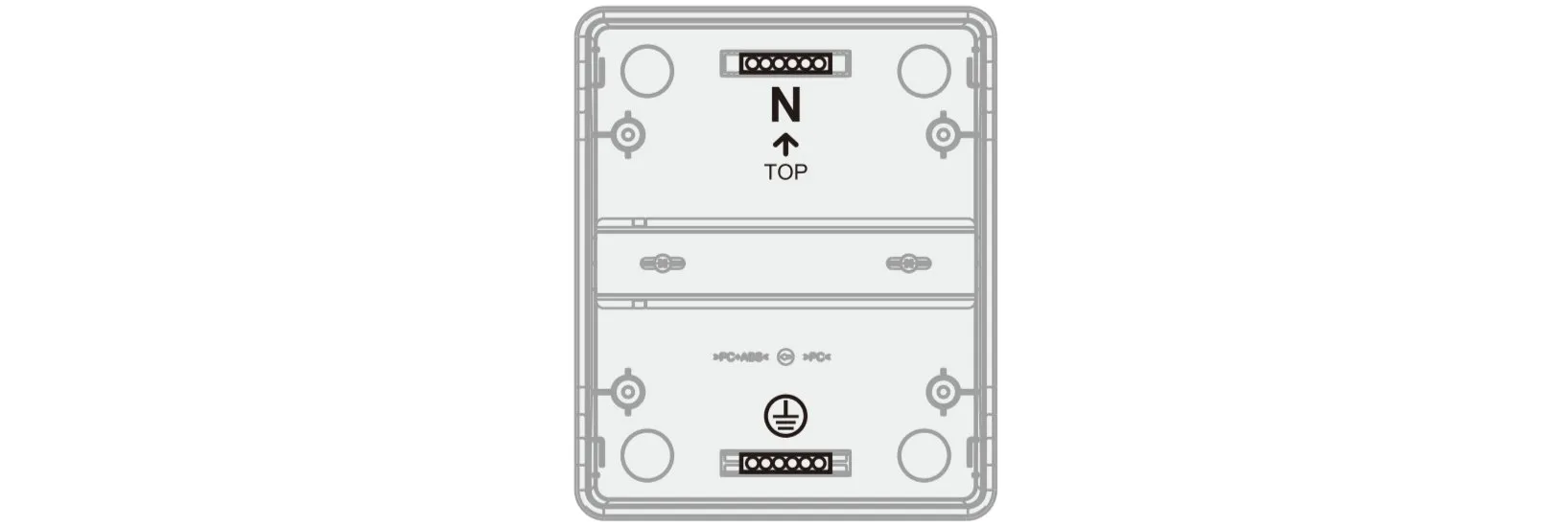

| Neutral and Earth Busbar Configuration | |
|---|---|
| Standard Neutral Busbar (bars x holes) | 1×6 |
| Standard Earth Busbar (bars x holes) | 1×6 |
| Layout Notes | N at top-center, PE at bottom-center |
We offer a three-year replacement warranty to safeguard your rights for the products purchased.
Our after-sales team will respond promptly to provide you with support for any product issues.
Professional technical teams are available to offer assistance and advice for complex problems.

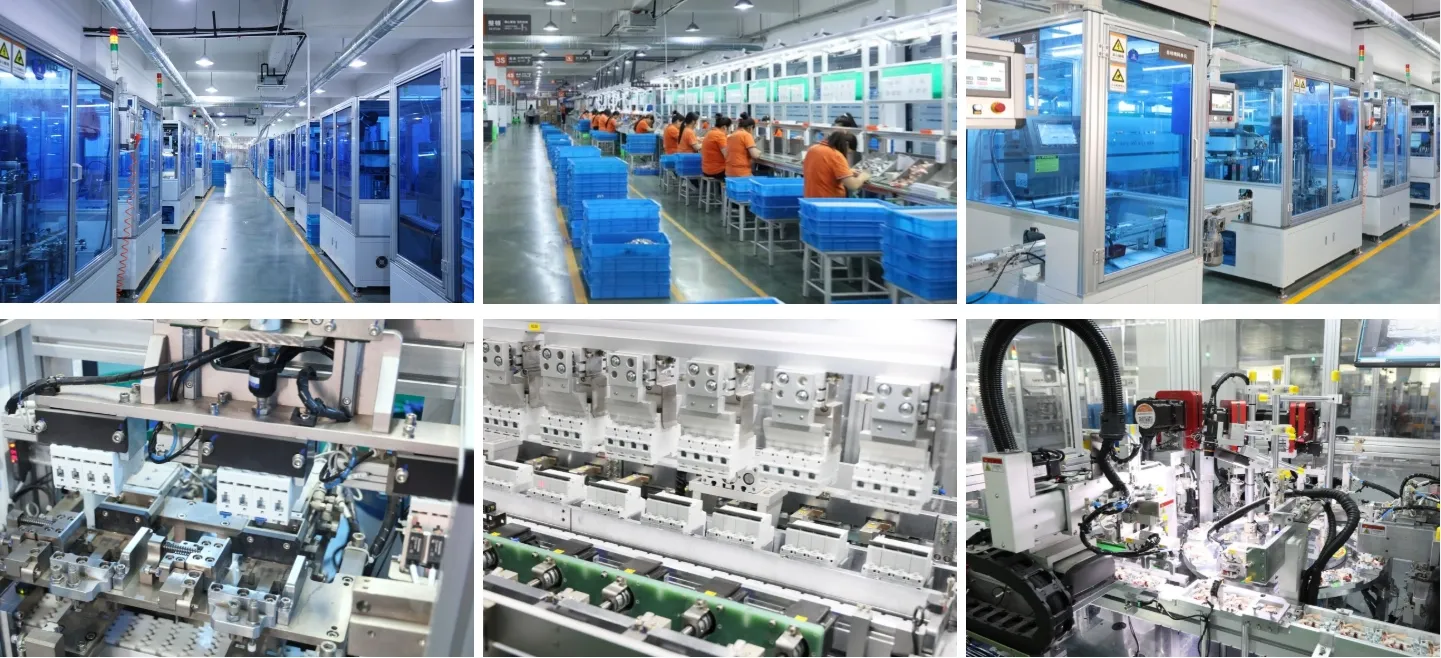

Our production facility specializes in the manufacturing of low-voltage electrical appliances, spanning an area of 10,000 square meters, with an annual output exceeding 8 million poles of MCBs.
Bringing over 14 years of industry experience, we achieved automation across multiple production lines in 2018. Our facility holds ISO9001, ISO14001, and ISO45001 certifications.

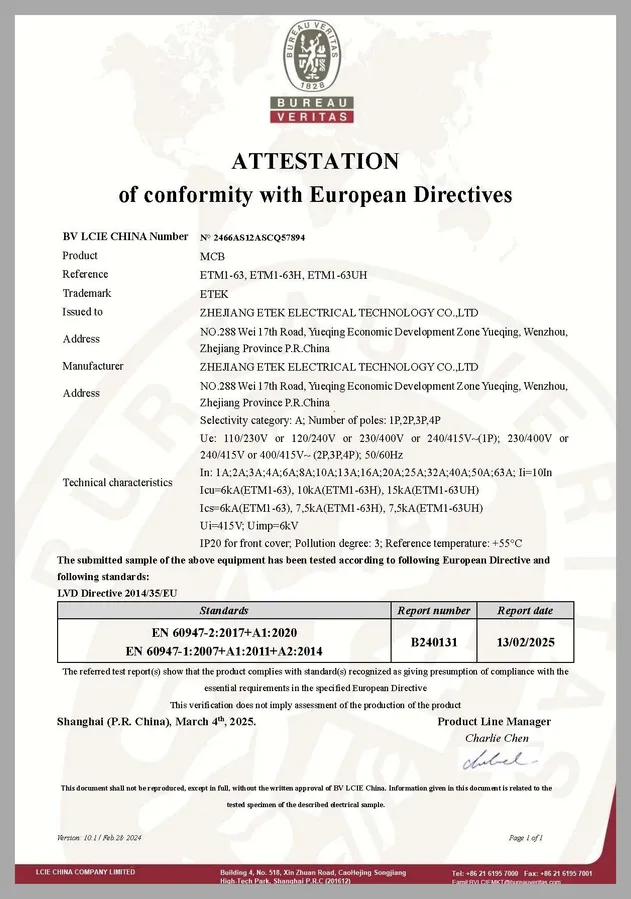

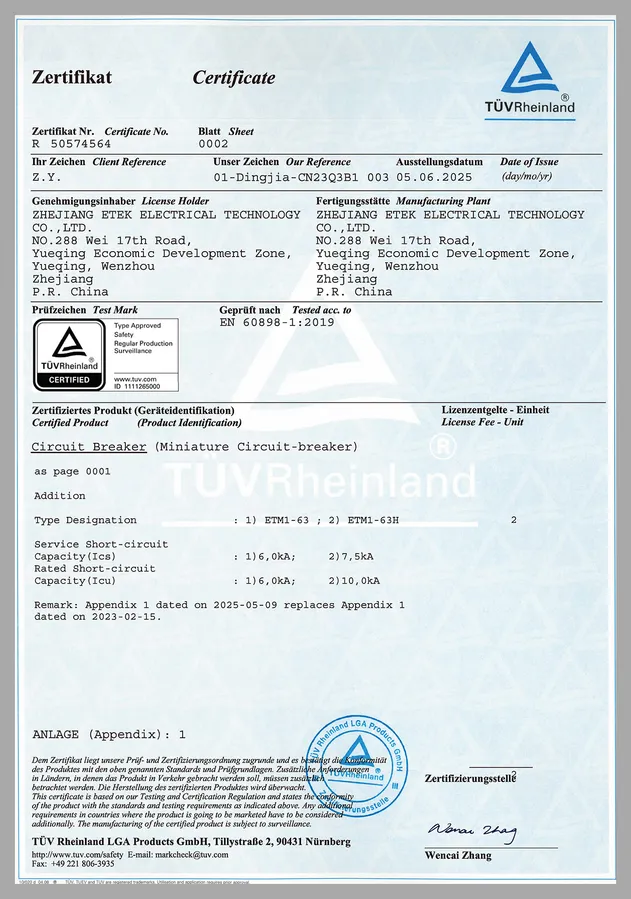

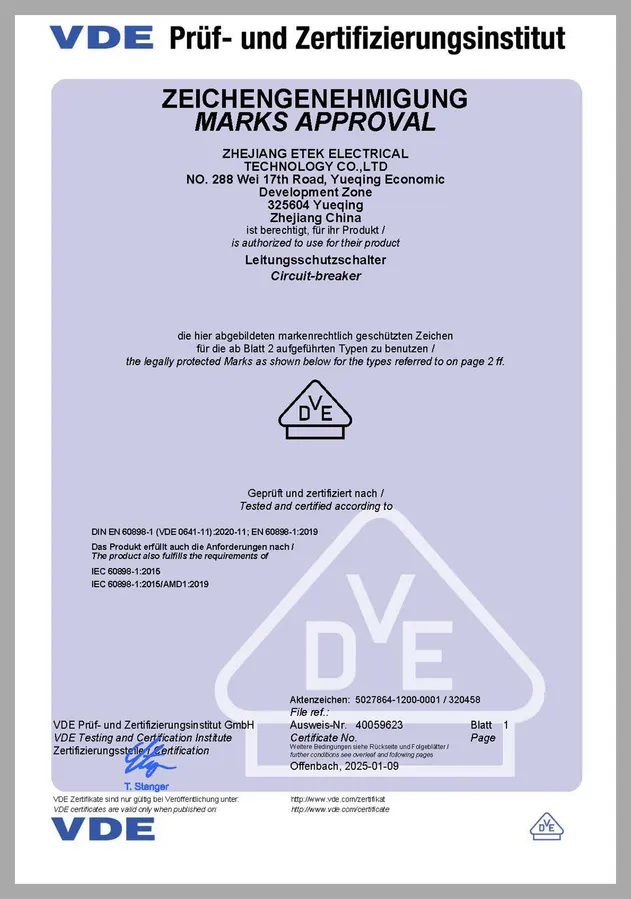

Products are certified with CE, CB, TUV, UKCA, SEMKO, VDE, SAA, and are exported to more than 100 countries and regions globally.
