Product Overview

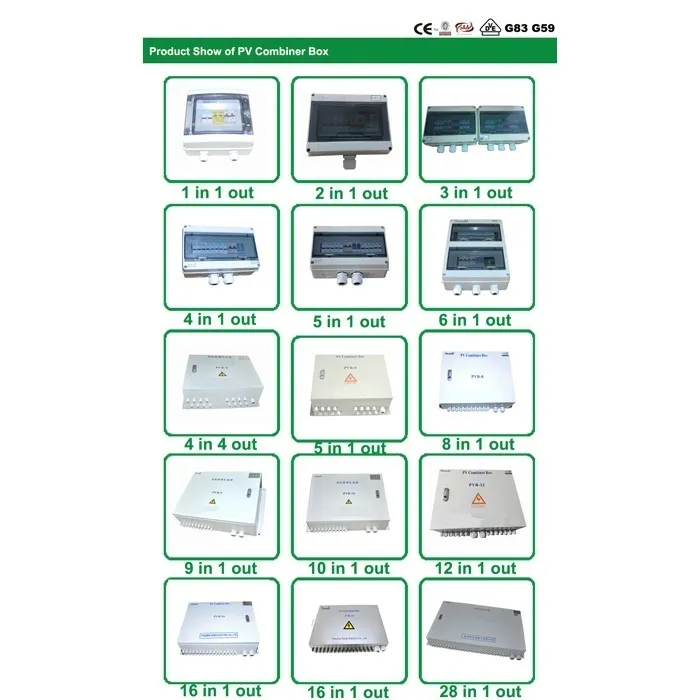

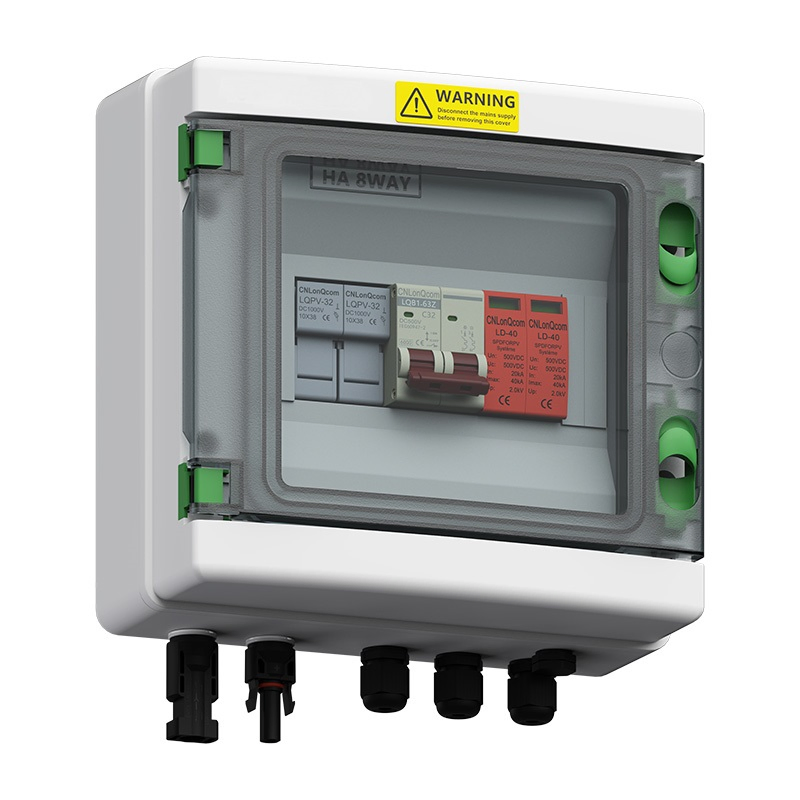

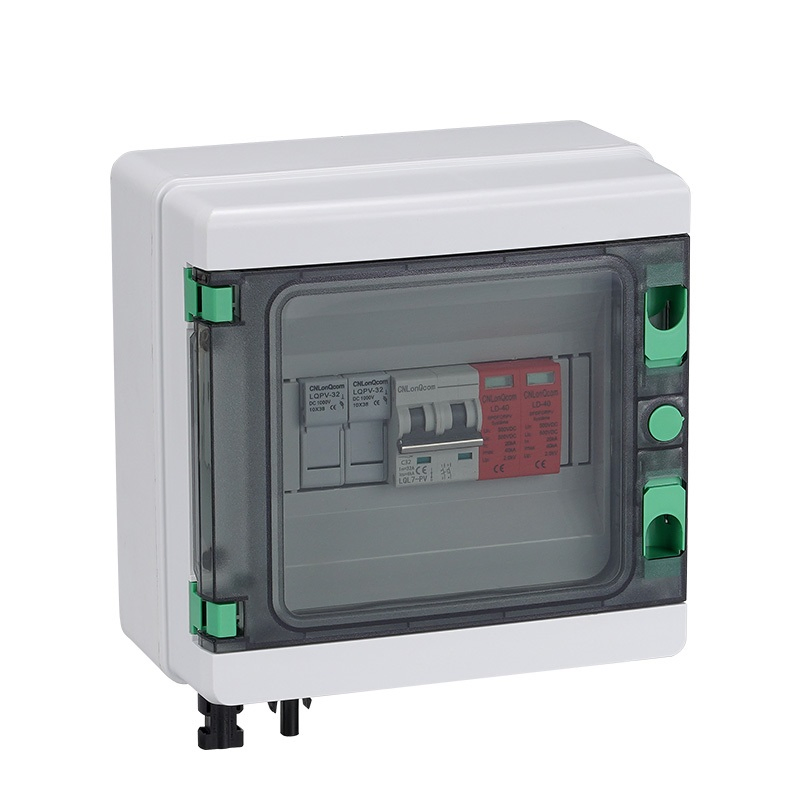

PV junction box 2 4 6 8 12 24 IN 1 OUT 2-24 Strings IP65 PV array Combiner Box. In the solar photovoltaic power generation system, in order to reduce the incoming line of solar photovoltaic cell array and inverter inspection, improve the reliability of the system, and facilitate the installation and maintenance of the system, it is generally necessary to add DC collector-shoe gear-PV combiner box in the inspection of photovoltaic modules and inverters.
🛡️
Advanced Protection System
Simplifies system wiring and improves safety. Provides protection functions such as current protection, over current protection, over voltage protection, and lightning protection.

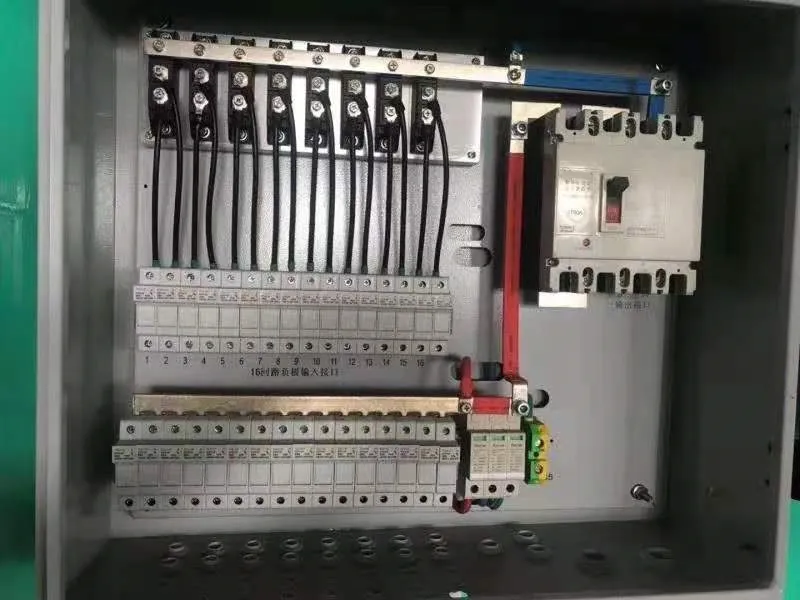

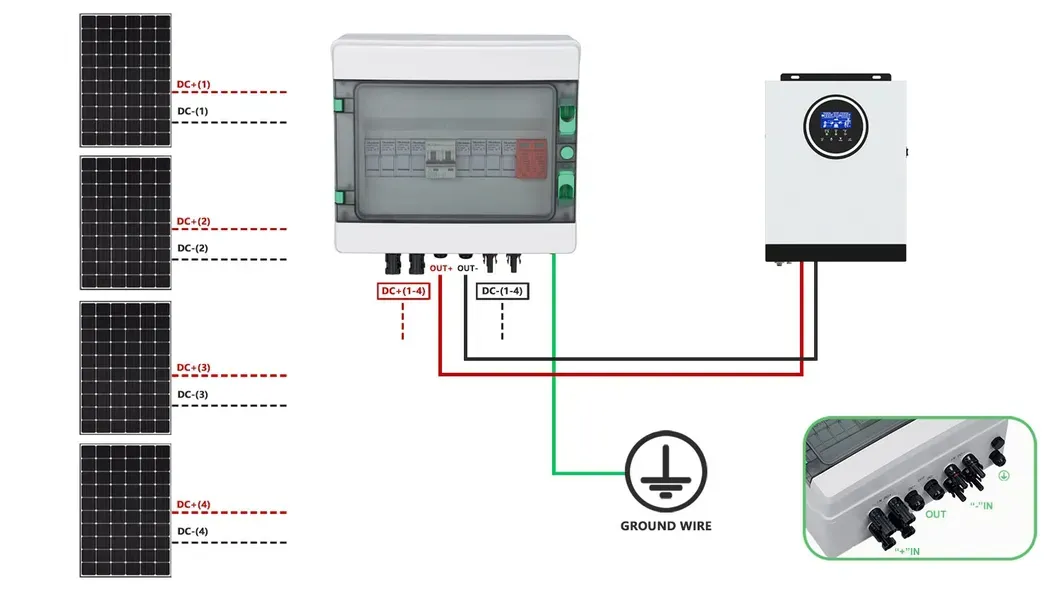

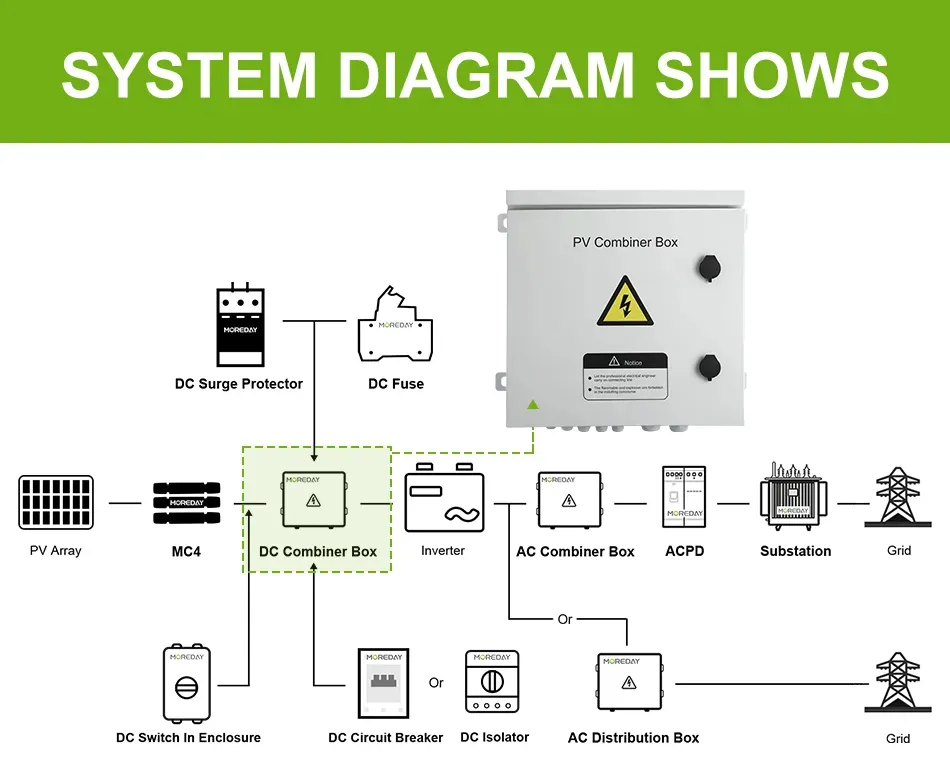

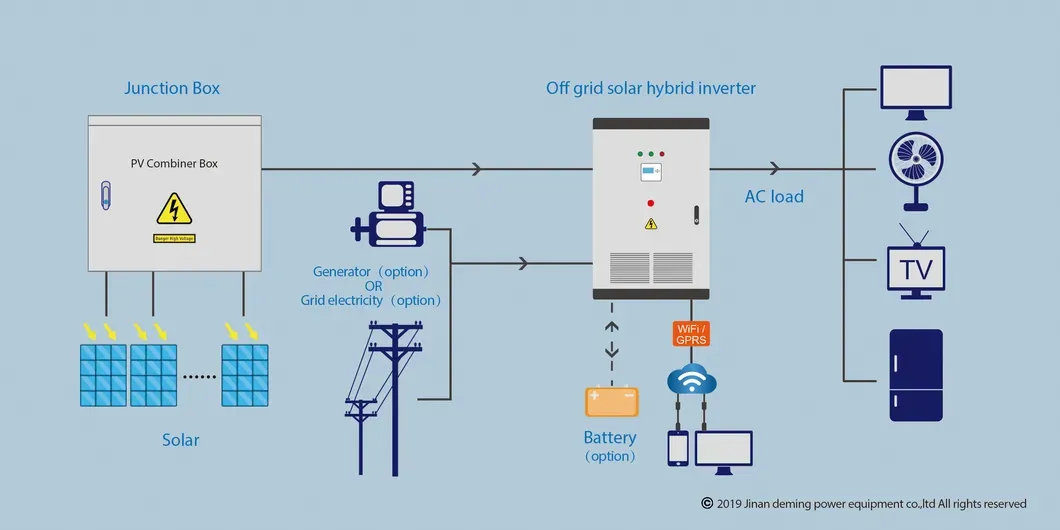

Users can connect a certain amount of photovoltaic cells with the same specification in series, form PV serials one by one, then connect several PV serials into PVB series PV combiner anti-thunder box. Collecting in the PV anti-thunder combiner box, by lightning protector and circuit breaker output to the PV inverter, which is used to form a complete PV power generation system.
Frequently Asked Questions
What is the main purpose of a PV combiner box?
The PV combiner box is designed to combine the DC output of multiple solar strings into a single output to the inverter. It simplifies wiring, enhances safety through integrated protection, and makes system maintenance easier.
Can this combiner box be installed outdoors?
Yes, the box features an IP65 protection degree, which means it is dust-tight and protected against water jets, making it suitable for demanding outdoor installation environments.
What kind of protection does the box offer?

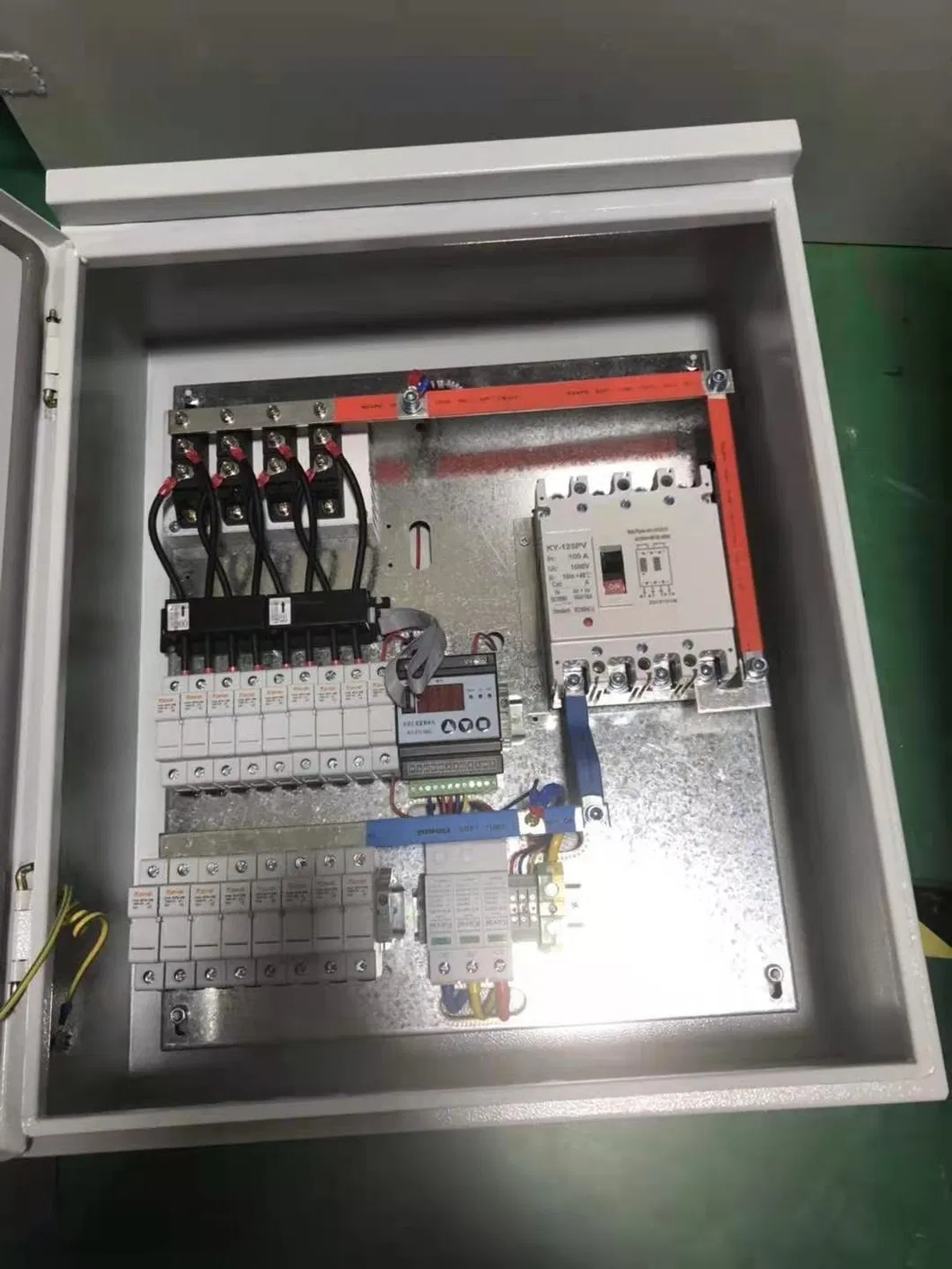

It provides comprehensive protection including DC fuses for both positive and negative electrodes, anti-reverse connection modules, lightning protection, and circuit breakers for over-voltage and over-current scenarios.

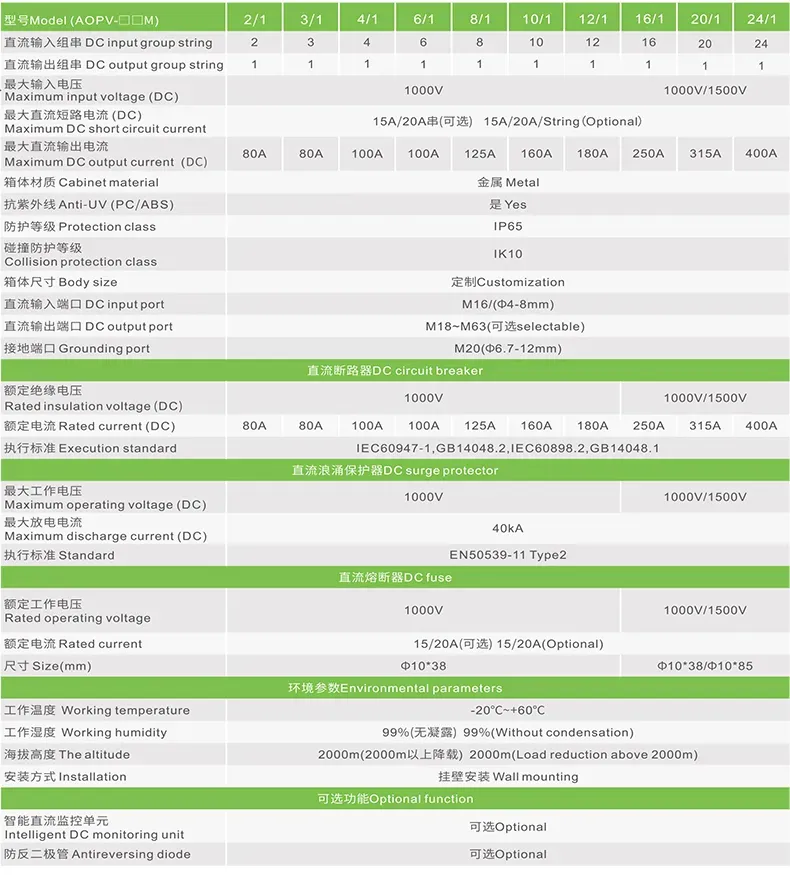

What is the maximum voltage support for this system?
The system supports wide DC voltage inputs, capable of reaching up to 1000VDC, depending on the specific configuration selected.
Are the input ways customizable?
Yes, the number of input ways can be customized to meet specific project requirements, ranging from 1 up to 24 parallel inputs.
What materials are used for the enclosure?
The shell is constructed from high-quality stainless steel, ensuring durability and long-term protection against environmental factors.
