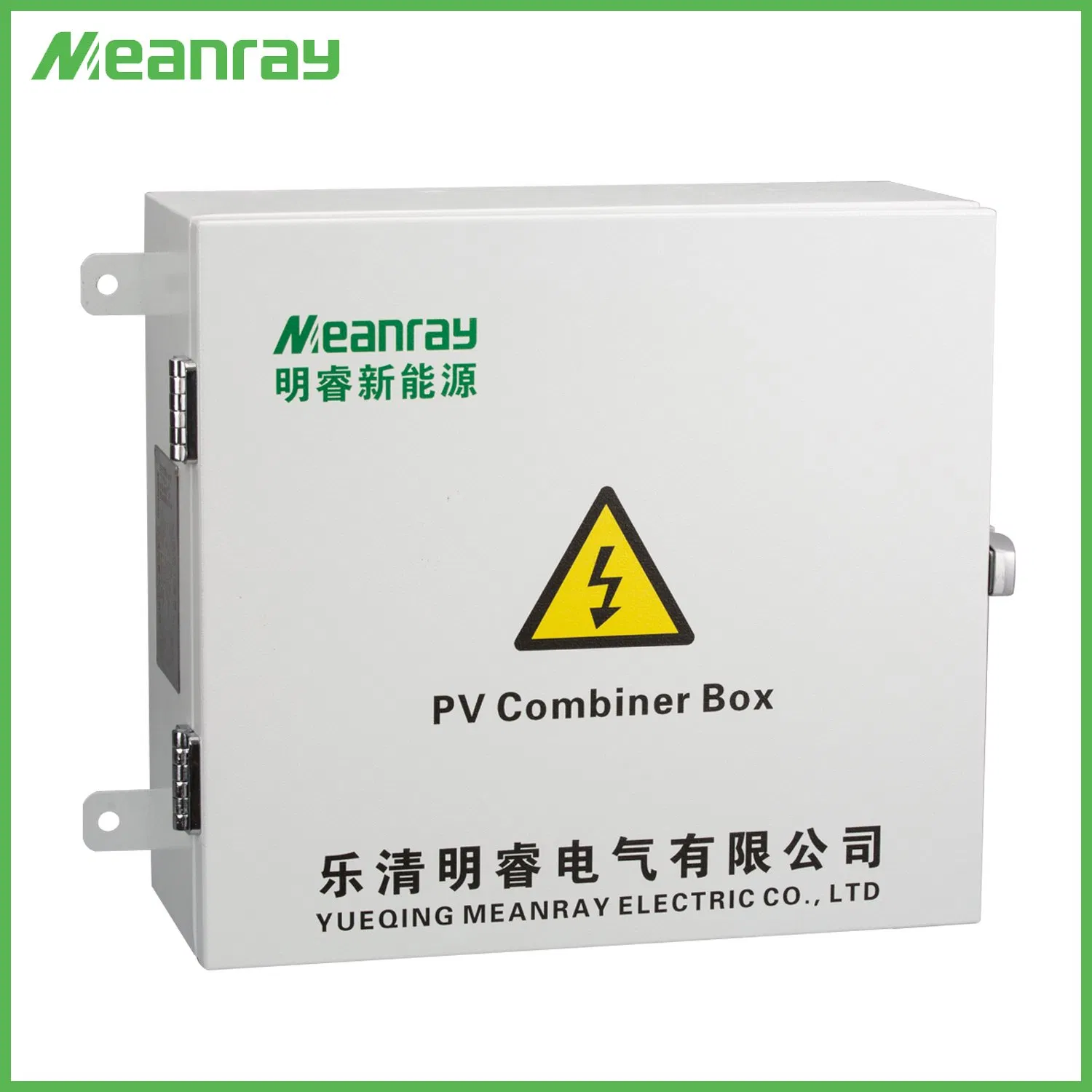

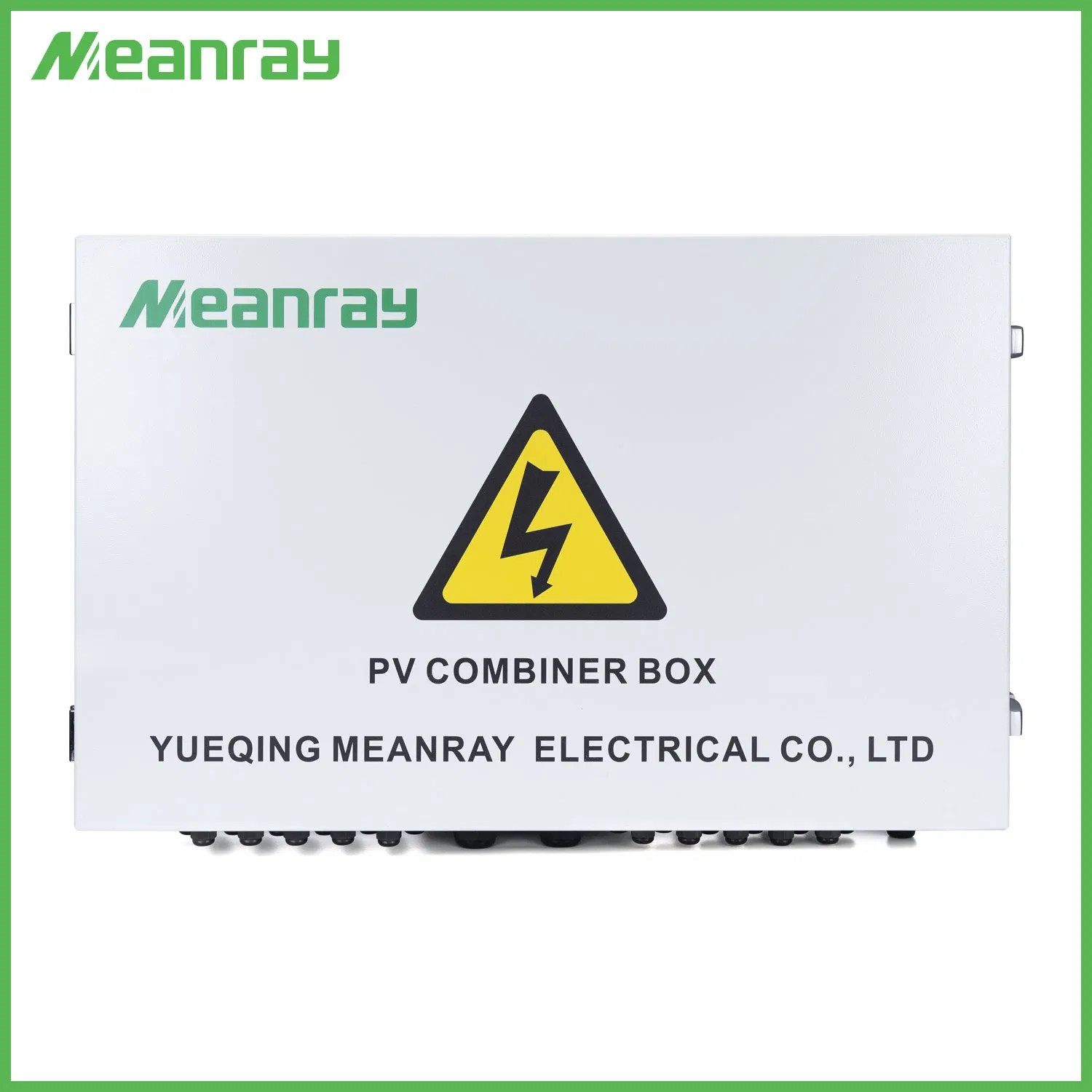

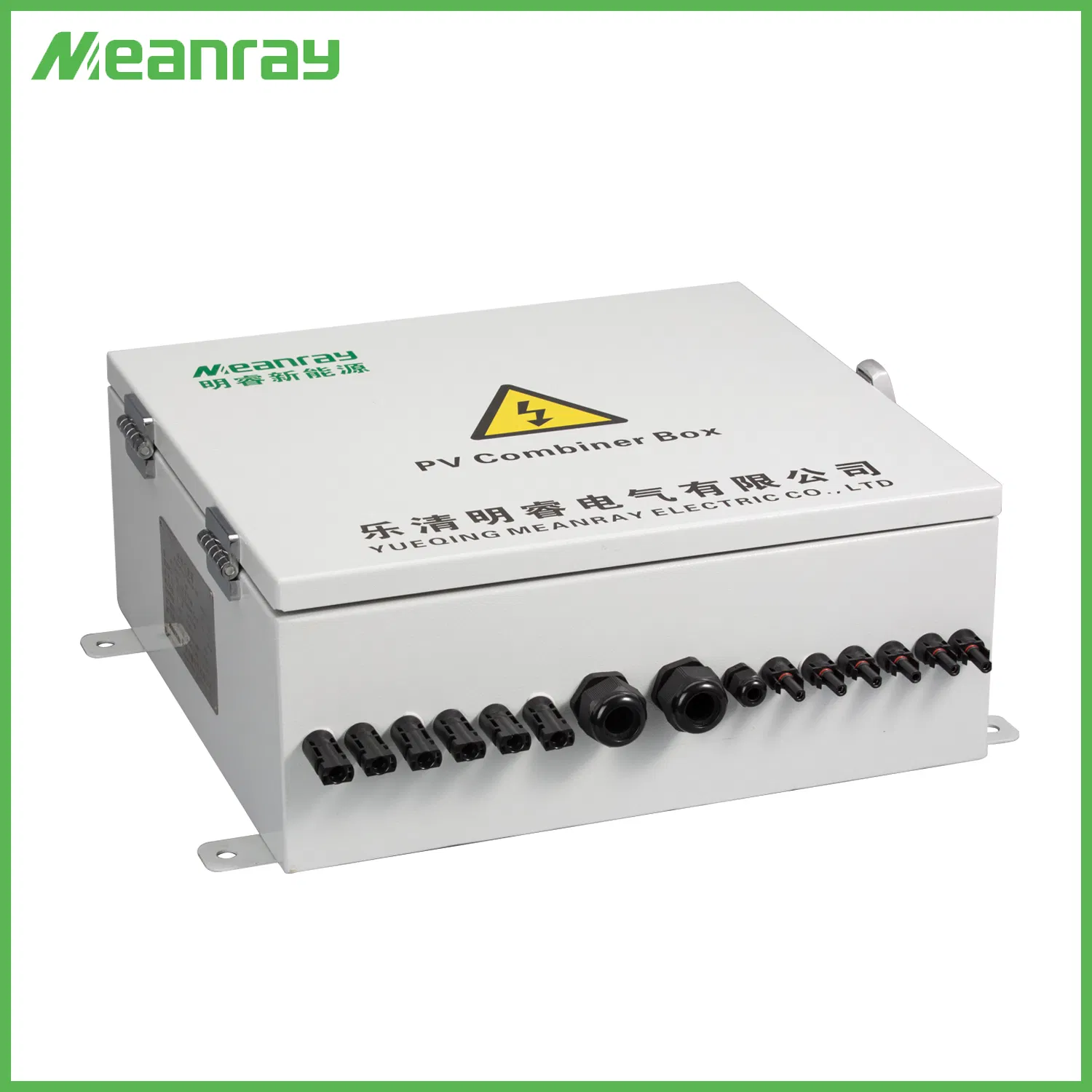

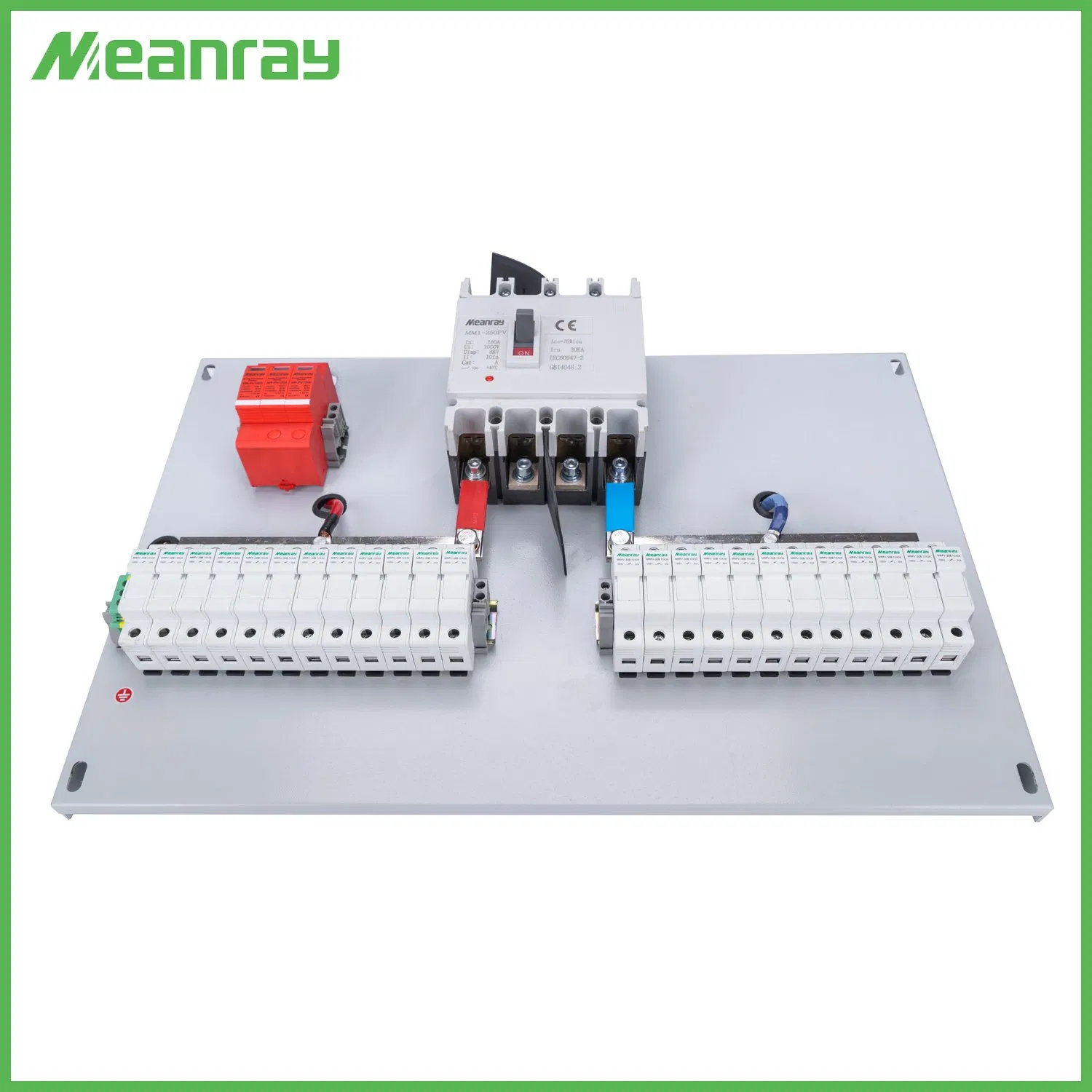

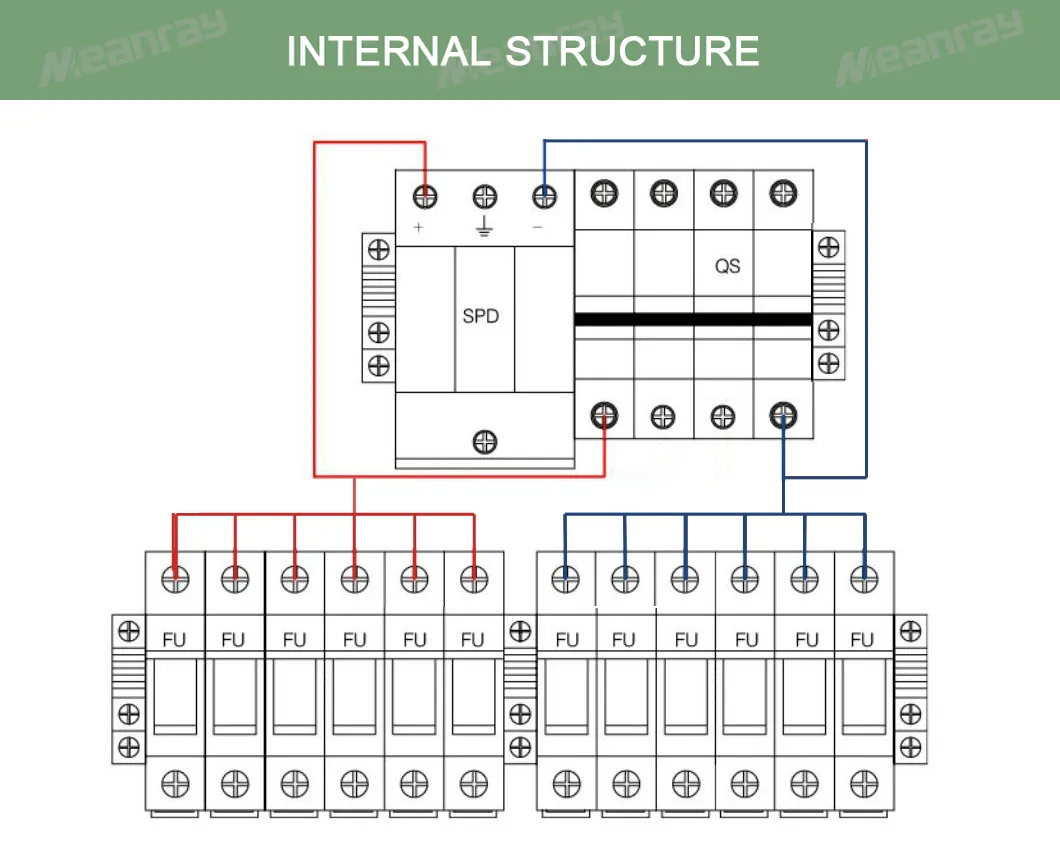

The MSPV/6-1 Solar DC Combiner Box is specifically designed for solar power systems. It is suitable for inverters with a maximum input voltage of DC 1000V, featuring 6 PV input channels and 1 output channel. The unit is housed in a high-quality enclosure made of PVC engineering materials, rigorously tested for fire retardancy, temperature resistance, impact resistance, and anti-ultraviolet properties.
Designed in strict accordance with the "Technical specification for photovoltaic junction equipment" (CGC/GF 037:2014), it provides users with a safe, concise, and efficient photovoltaic system solution. With an IP65 protection grade, it is built to withstand harsh outdoor environments.

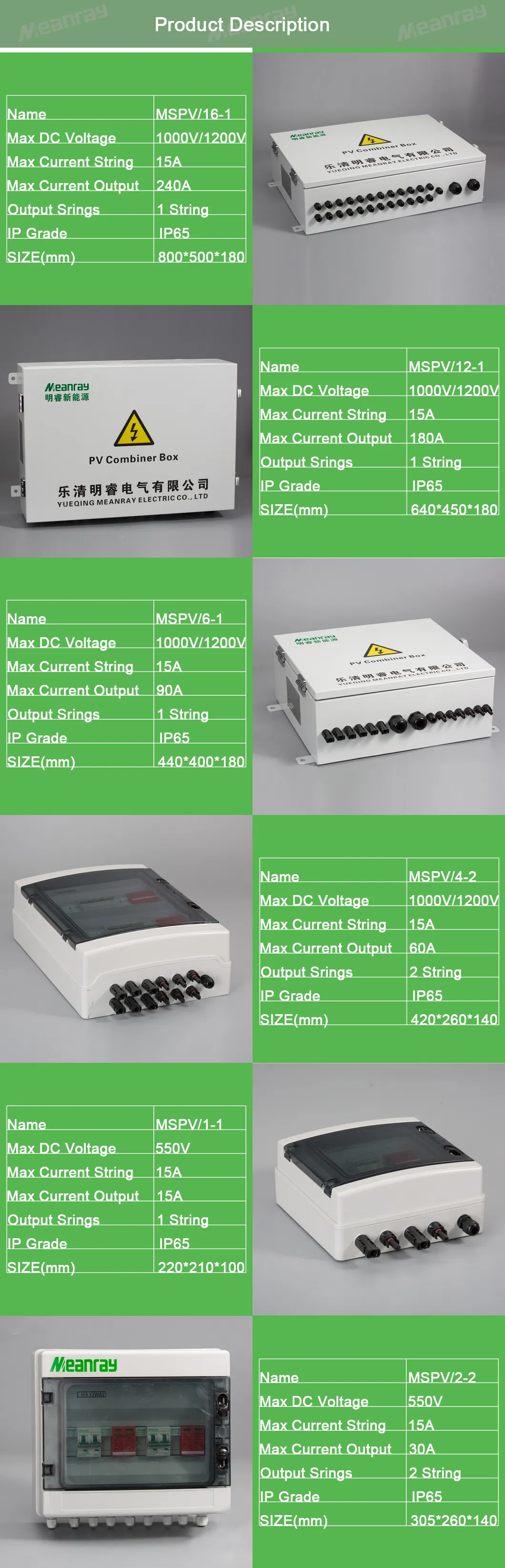

| Electric Parameters | |
| System Max DC Voltage | 1000/1200V |
| Max Input Current (Each String) | 15A |
| Max Input Strings | 6 |
| Max Output Switch Current | 90A |
| Number of Output Strings | 1 |
| Lightning Protection | |
| Category of Test | Grade 2 Protection |
| Nominal Discharge Current | 20kA |
| Max Discharge Current | 40kA |
| Voltage Protection Level | 3.8kV |
| System Properties | |
| Protection Grade | IP65 |
| Output Switch | DC Isolator Switch (Standard) / Circuit Breaker (Optional) |
| Box Material | PVC / Cold Rolled Steel |
| Operating Temperature | -25ºC to +55ºC |
| Mechanical Dimensions | 440mm * 400mm * 180mm |
