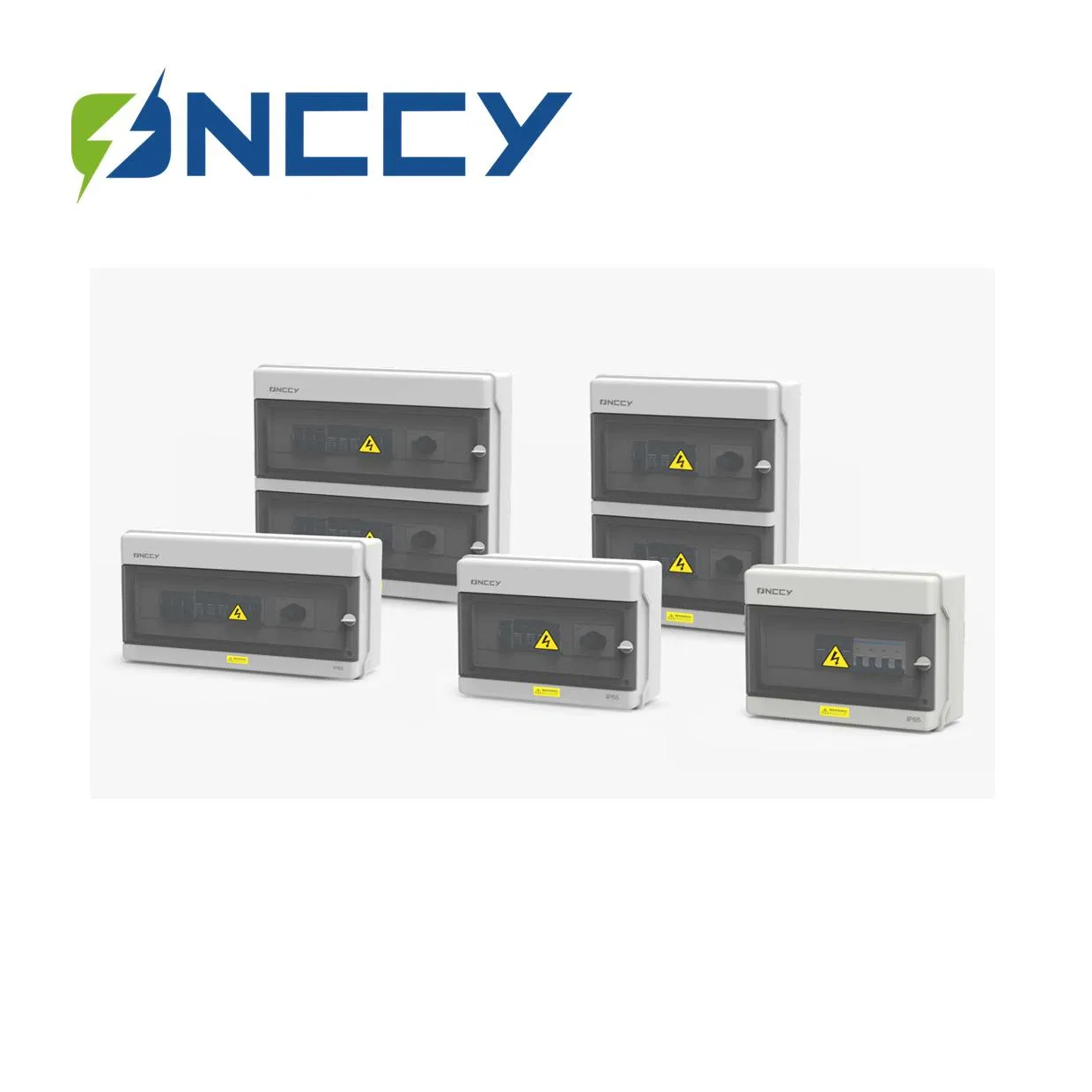

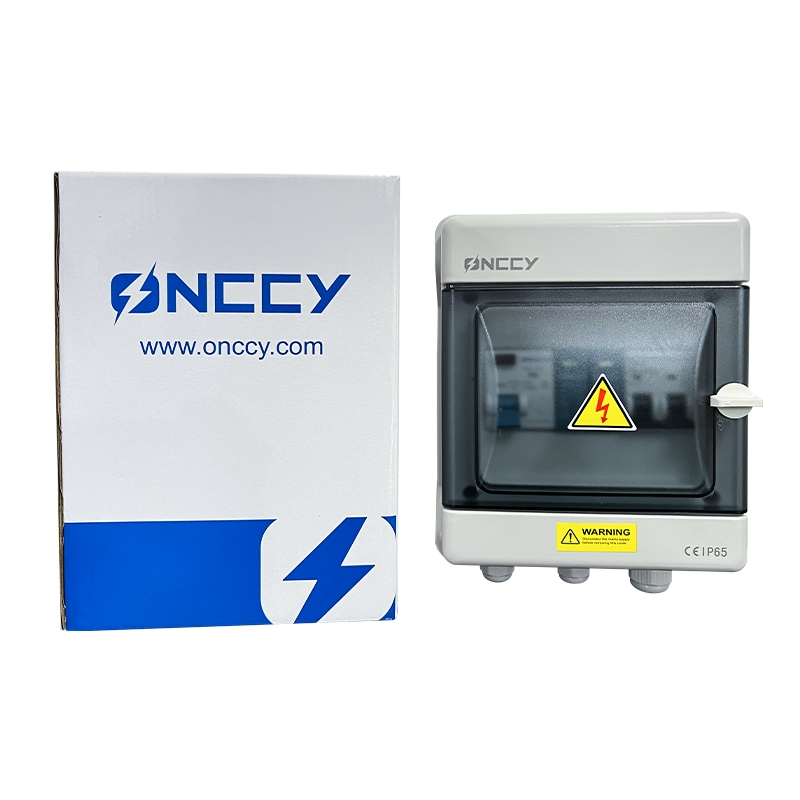

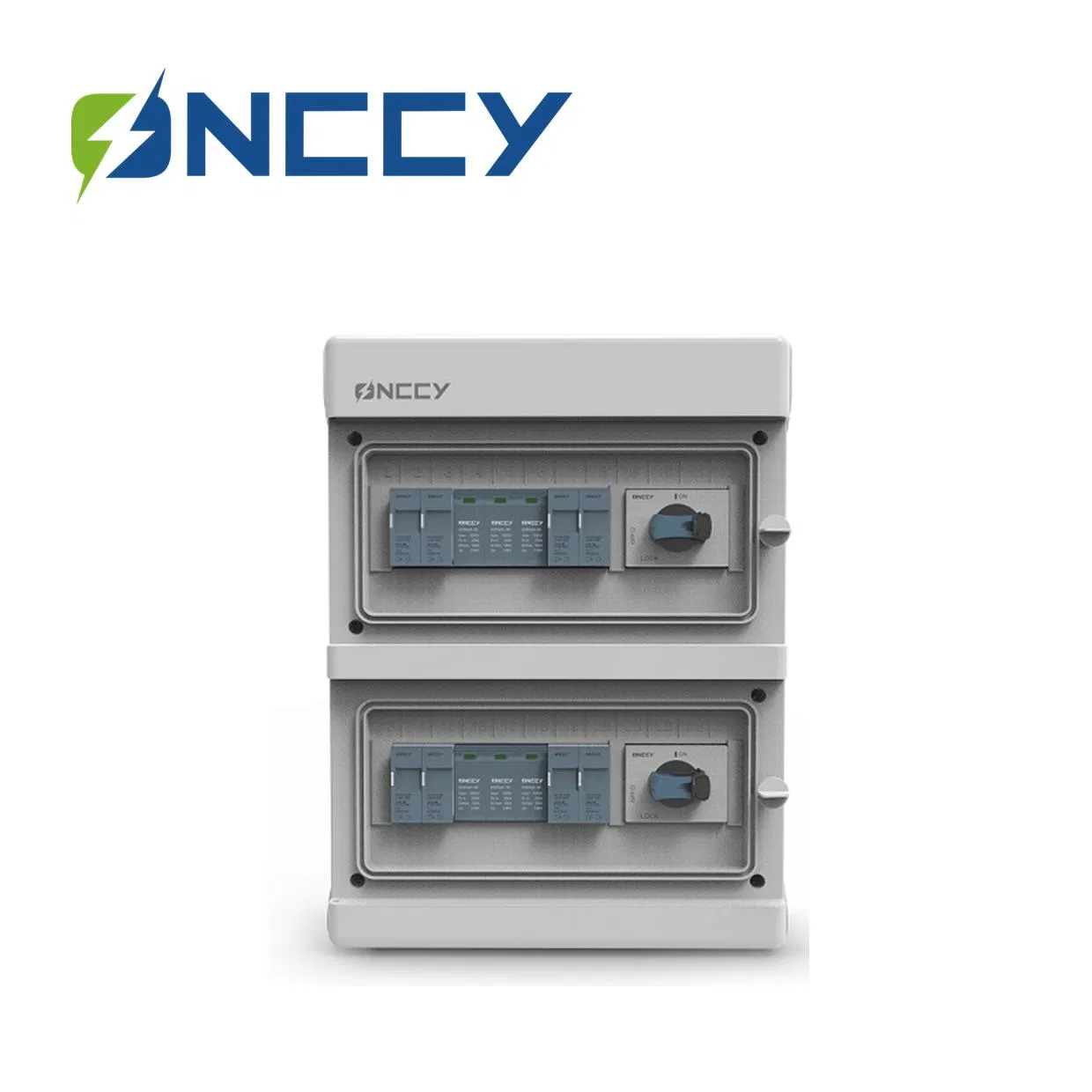

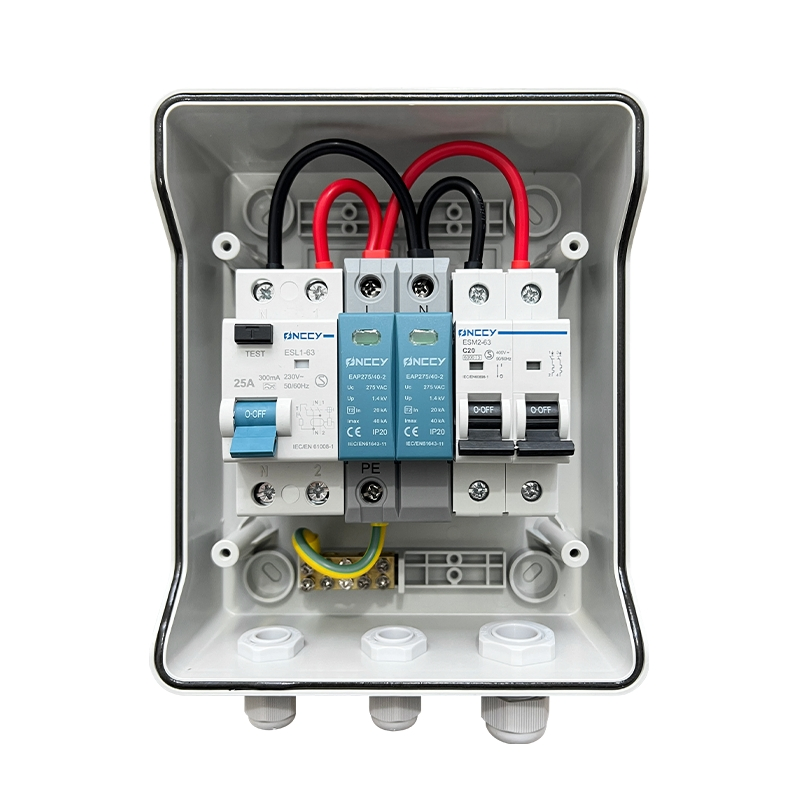

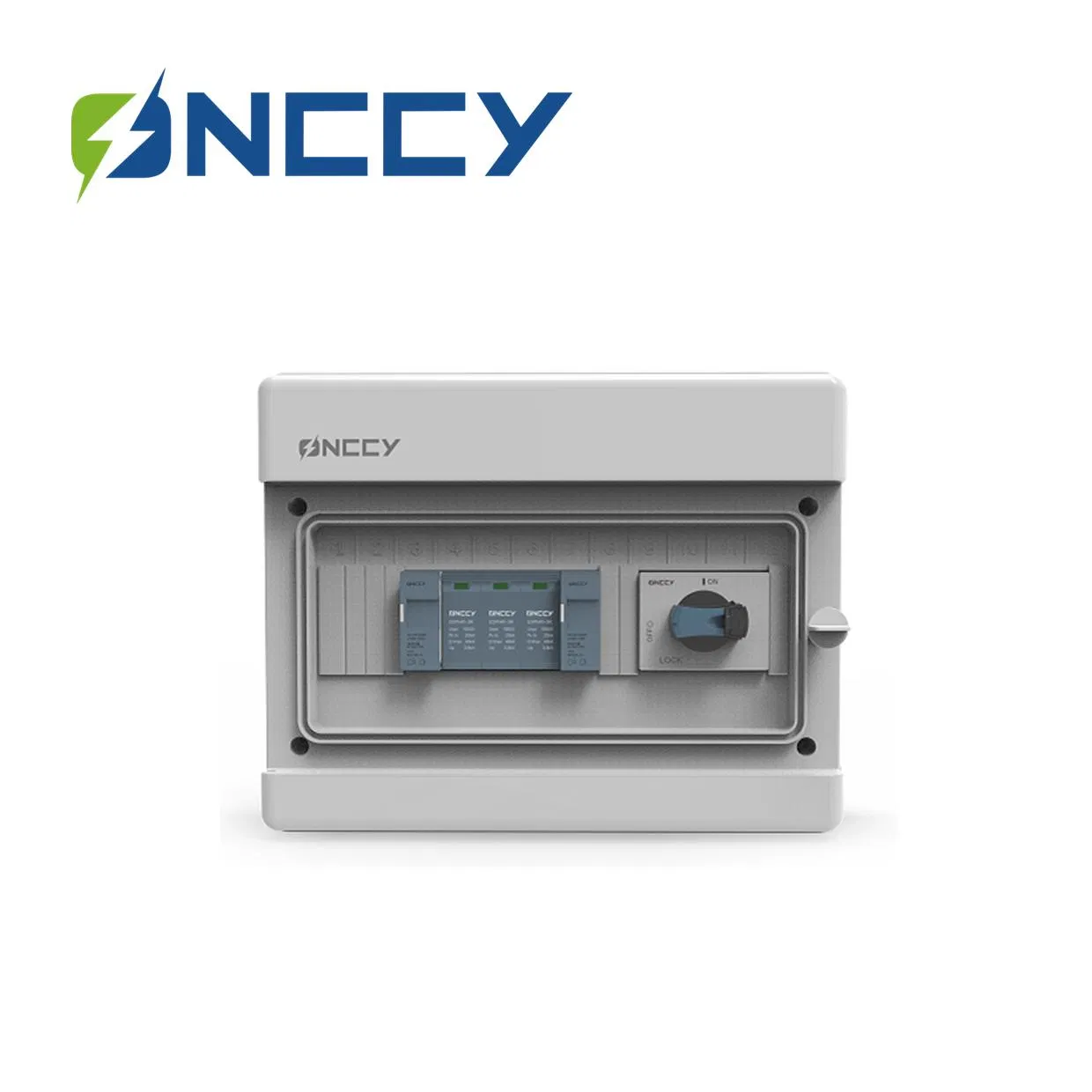

Solar Panel 2 Input 1output SPD+Cicuit Breaker IP65 PV Combiner Box
Solar Panel 2 Input 1output SPD+Cicuit Breaker IP65 PV Combiner Box
Solar Panel 2 Input 1output SPD+Cicuit Breaker IP65 PV Combiner Box
Solar Panel 2 Input 1output SPD+Cicuit Breaker IP65 PV Combiner Box
Solar Panel 2 Input 1output SPD+Cicuit Breaker IP65 PV Combiner Box
1 / 5
Solar Panel 2 Input 1output SPD+Cicuit Breaker IP65 PV Combiner Box
Solar Panel 2 Input 1output SPD+Cicuit Breaker IP65 PV Combiner Box
Solar Panel 2 Input 1output SPD+Cicuit Breaker IP65 PV Combiner Box
Solar Panel 2 Input 1output SPD+Cicuit Breaker IP65 PV Combiner Box
Solar Panel 2 Input 1output SPD+Cicuit Breaker IP65 PV Combiner Box

Solar Panel 2 Input 1output SPD+Cicuit Breaker IP65 PV Combiner Box

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Technical Specifications

Model
ECBX
Certification
ISO9001, VDE, CCC, SAA, CE, TUV
Voltage
600VDC / 1000VDC / 1500VDC
Protection
IP65 / IP66
Shell Material
High-strength PC/ABS
Application
Solar PV System
Input Strings
1/2/3/4/5/6 String
Output Strings
1/2/3/4/5/6 String
Current
10A/15A/20A/30A/40A
Warranty
1 Year
📦

Packaging & Delivery

Package Size
23.00cm * 19.00cm * 40.00cm
Gross Weight
1.760kg
Transport
Sea / Air / Express
★

Solar PV Combiner Box Features

Factory Solar Panel Input Safe Solar System PV Combiner Box

Designed to streamline your solar panel installation process, this innovative device consolidates multiple DC inputs into a single output, minimizing wiring complexity and maximizing system efficiency.

Standard Features:

  • System voltage 1000V to 1500V DC
  • Direct connection of DC strings
  • Fuse protection on plus/minus side 20A
  • Surge protection device Type I + II
  • IEC 61439-2 compliant construction
  • IP65 protection rating for outdoor use
  • Flexible number of DC inputs
  • Optional string monitoring
📷

Product Gallery

Solar Combiner Box View 1
Solar Combiner Box View 2

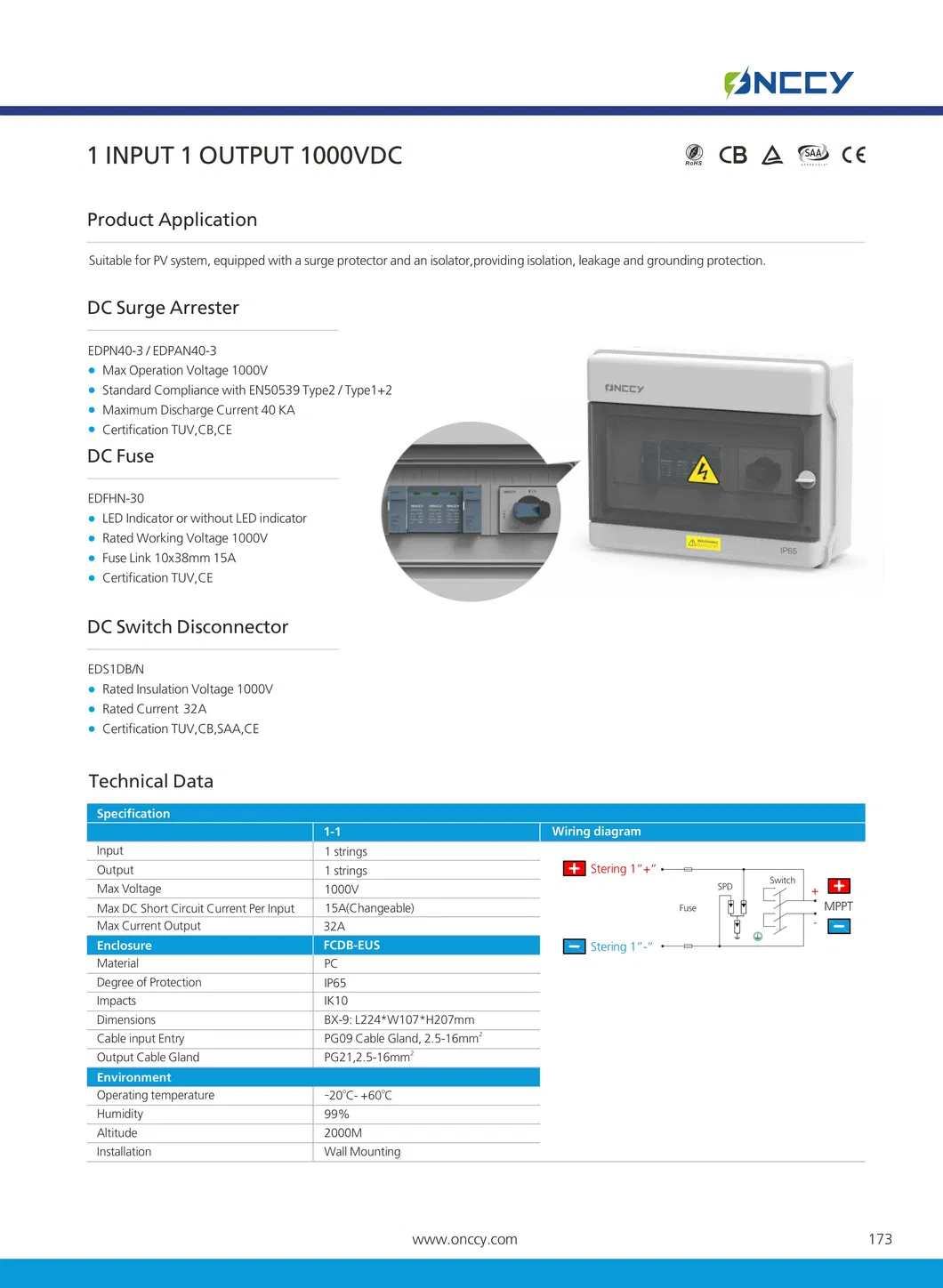

Solar Combiner Box View 3

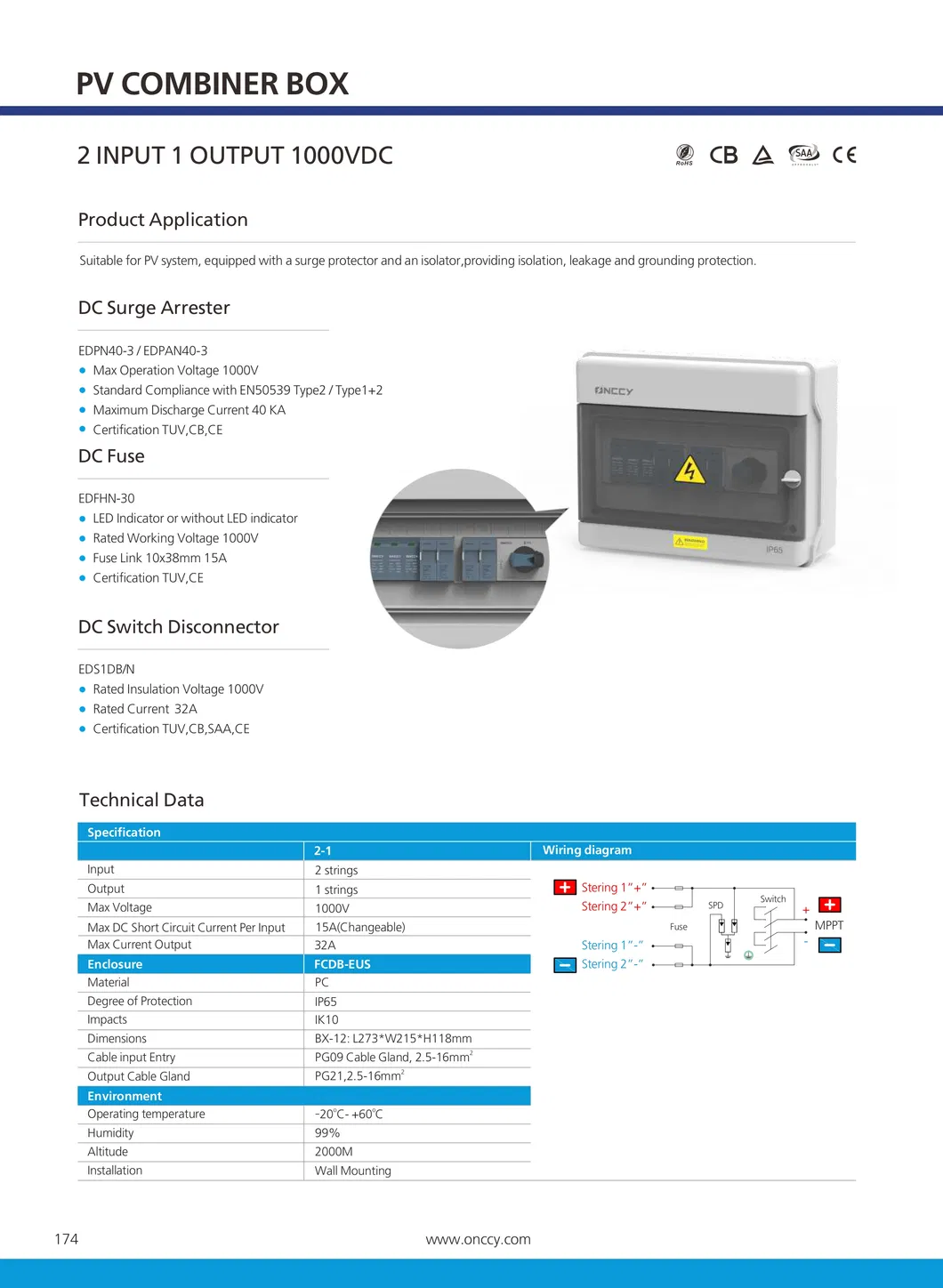

Solar Combiner Box View 4

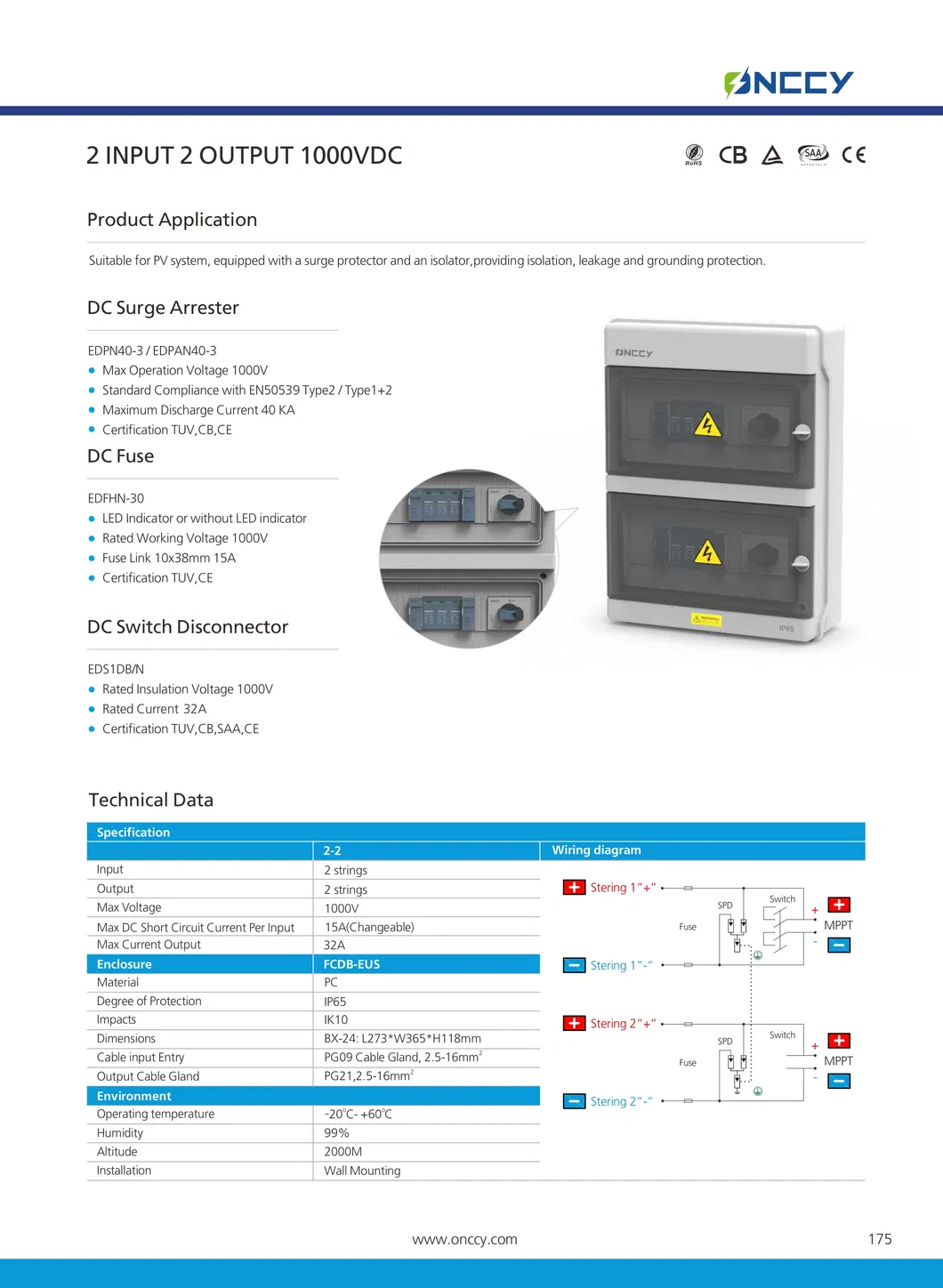

Solar Combiner Box View 5

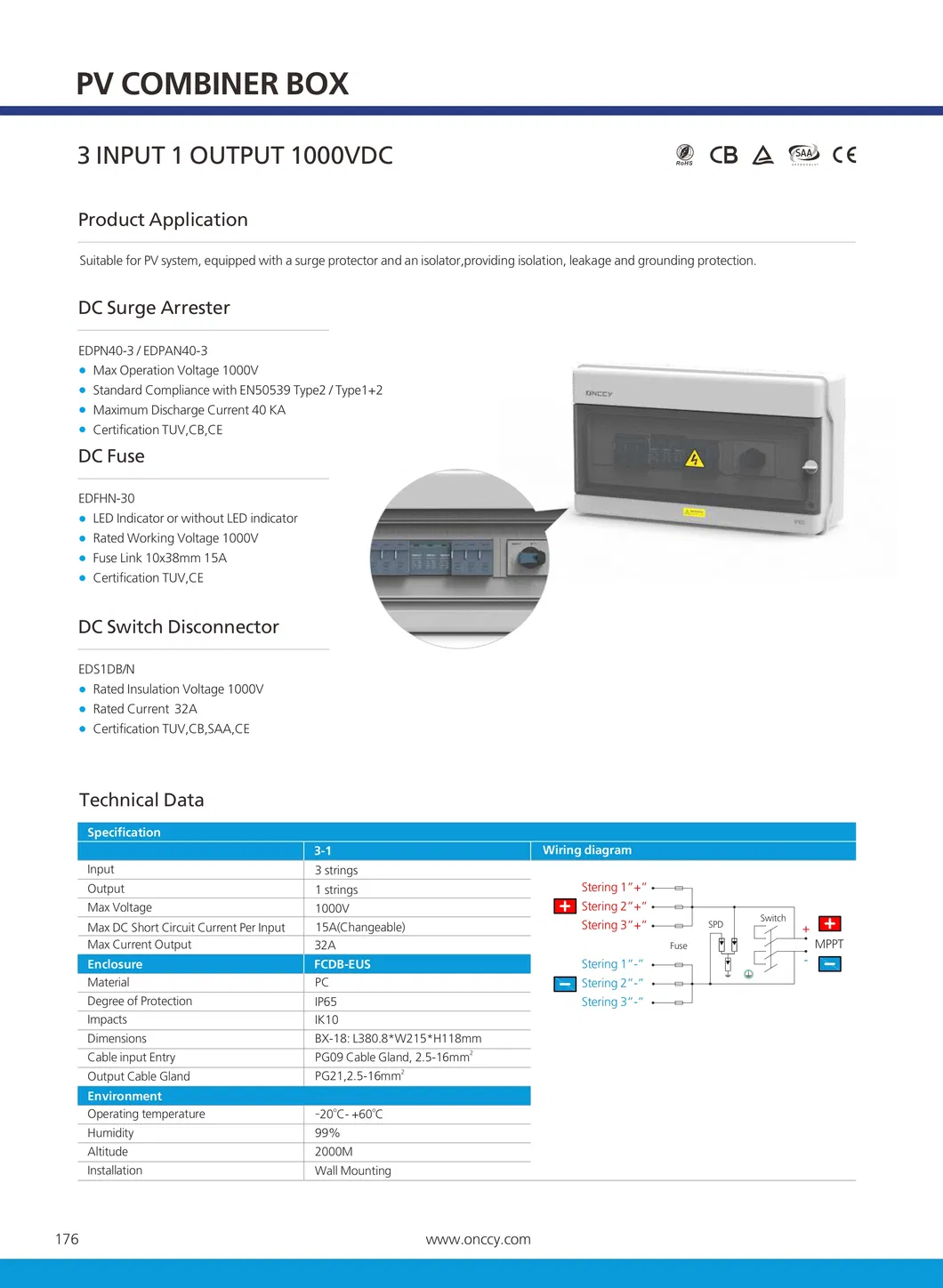

Solar Combiner Box View 6

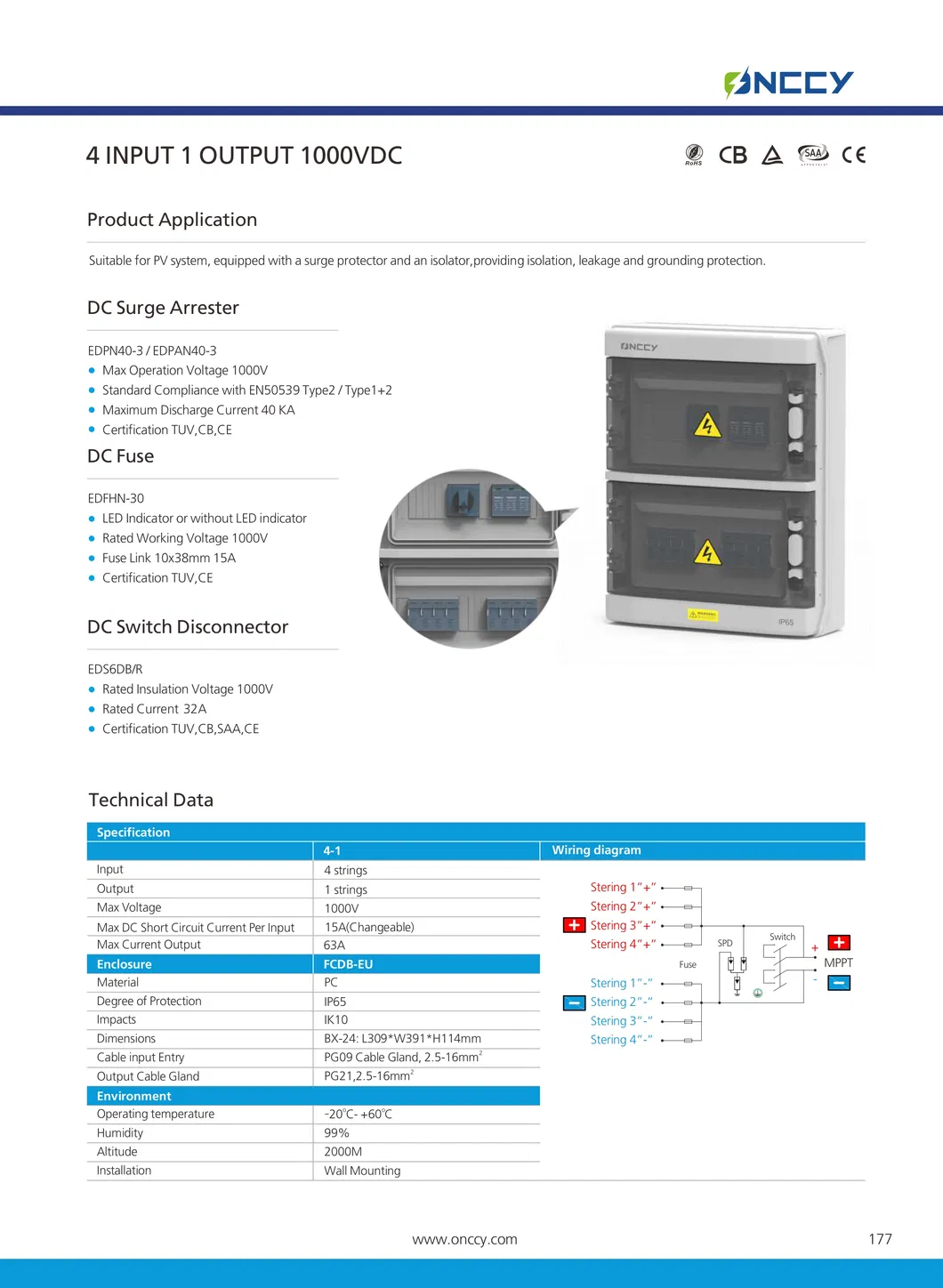

Solar Combiner Box View 7
Solar Combiner Box View 8
Solar Combiner Box View 9

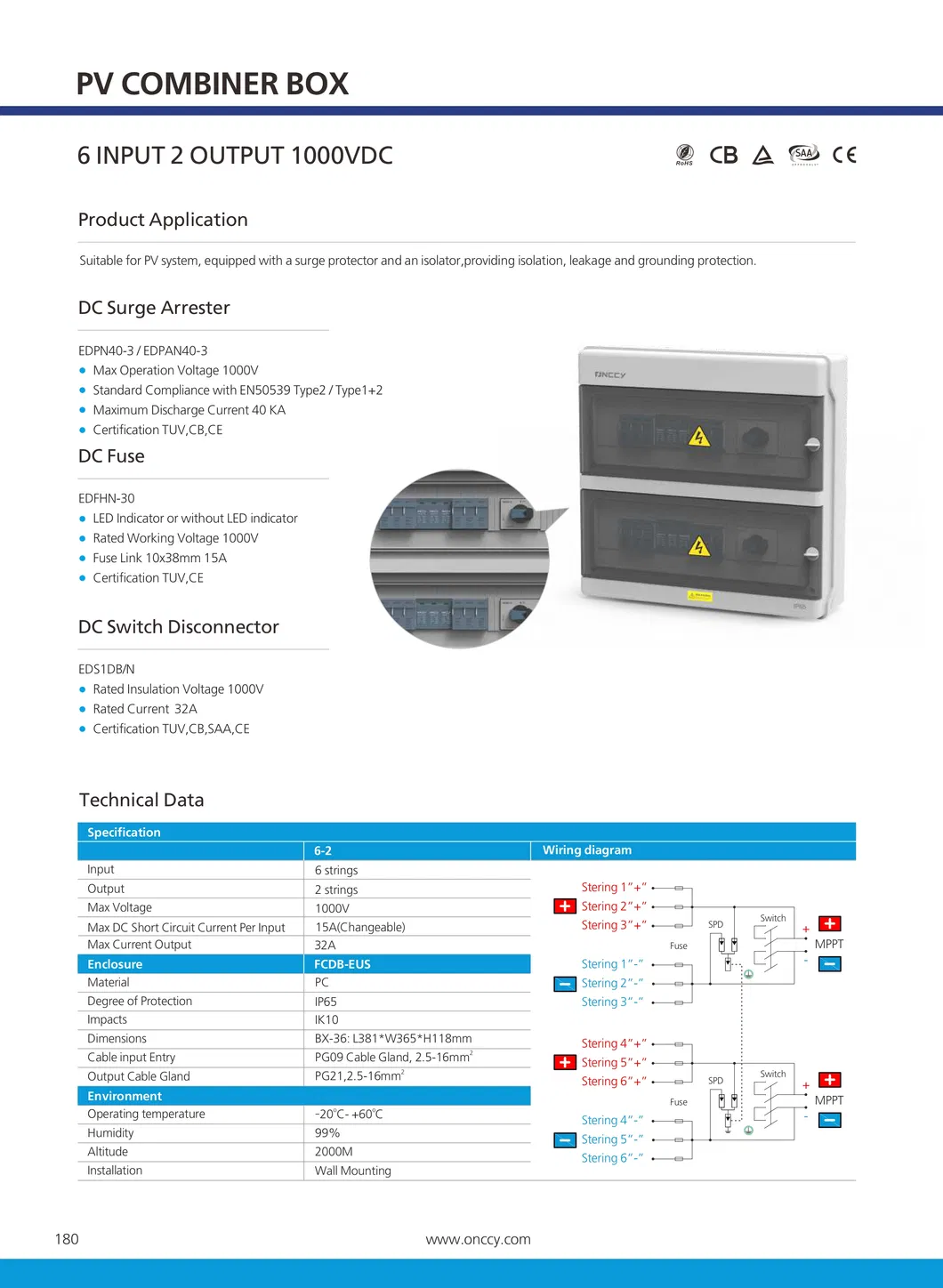

Solar Combiner Box View 10
Solar Combiner Box Diagram
Internal Components
Dimensions
Installation
Wiring Scheme
?

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a professional manufacturer with our own large-scale production facilities dedicated to solar electrical components.
What certifications do your combiner boxes hold?
Our products are fully certified with TUV, CE, CB, SAA, CCC, and UL to ensure international safety and quality standards.
How long is the delivery time for standard orders?
Small quantities are usually shipped within 3 days. Standard bulk orders typically take 15-20 days.
Can you provide samples for technical evaluation?
Yes, we provide samples for quality checking. Please contact our team for detailed requirements.
Do you offer customization for specific project requirements?
Yes, we have a professional engineering team that can design and develop customized solutions based on your DC voltage and string requirements.
What is the standard protection rating for these boxes?
Our combiner boxes feature IP65 or IP66 protection ratings, making them suitable for harsh outdoor environments.
