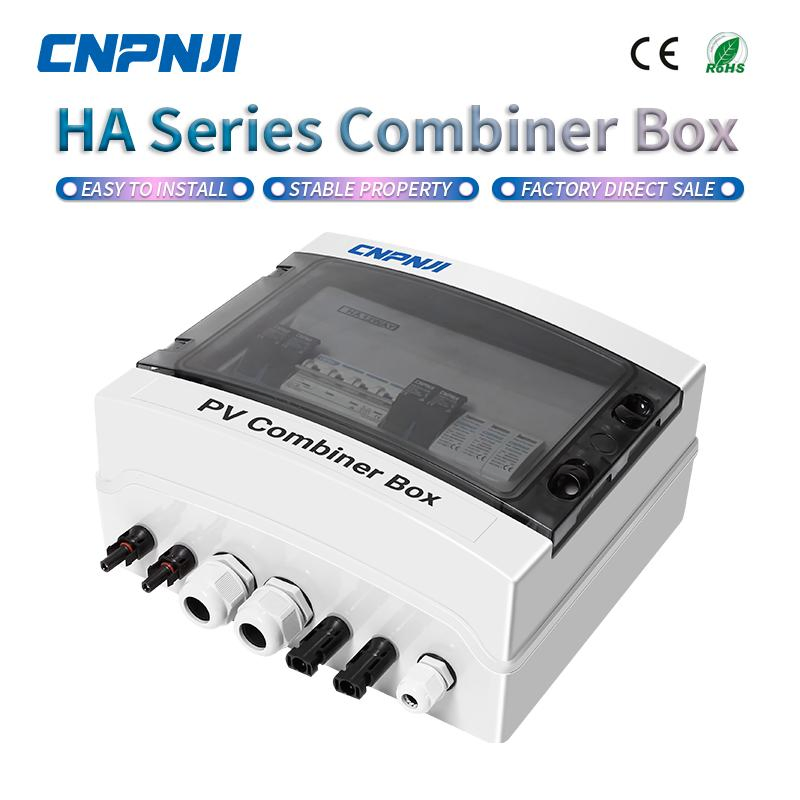

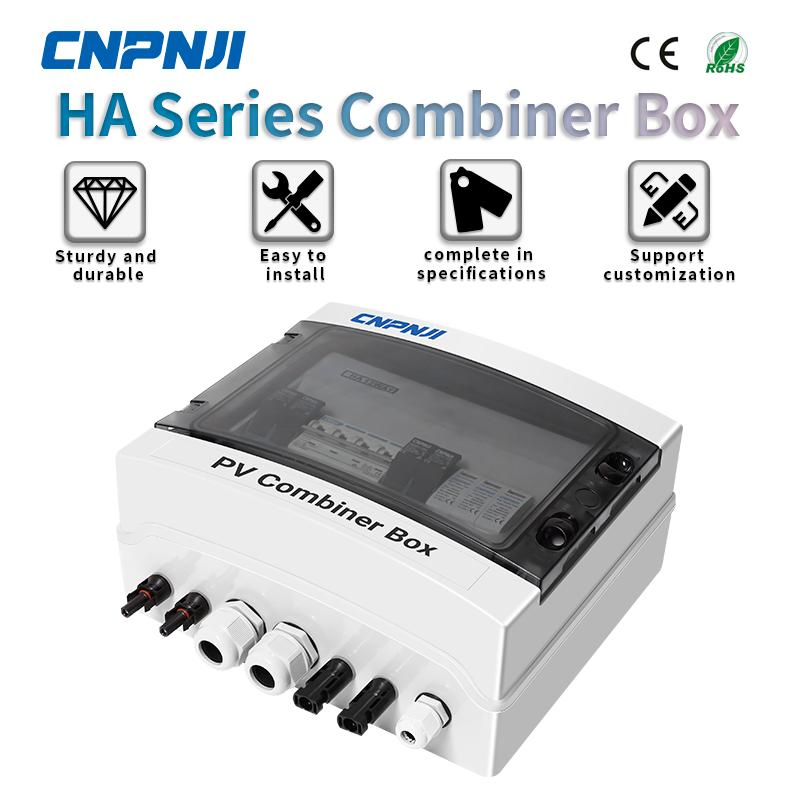

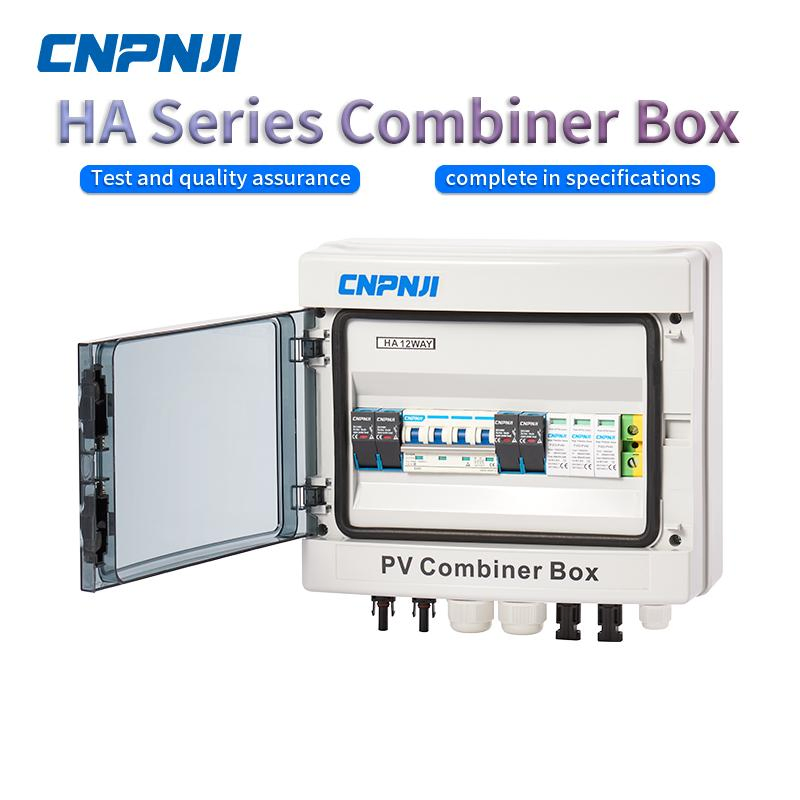

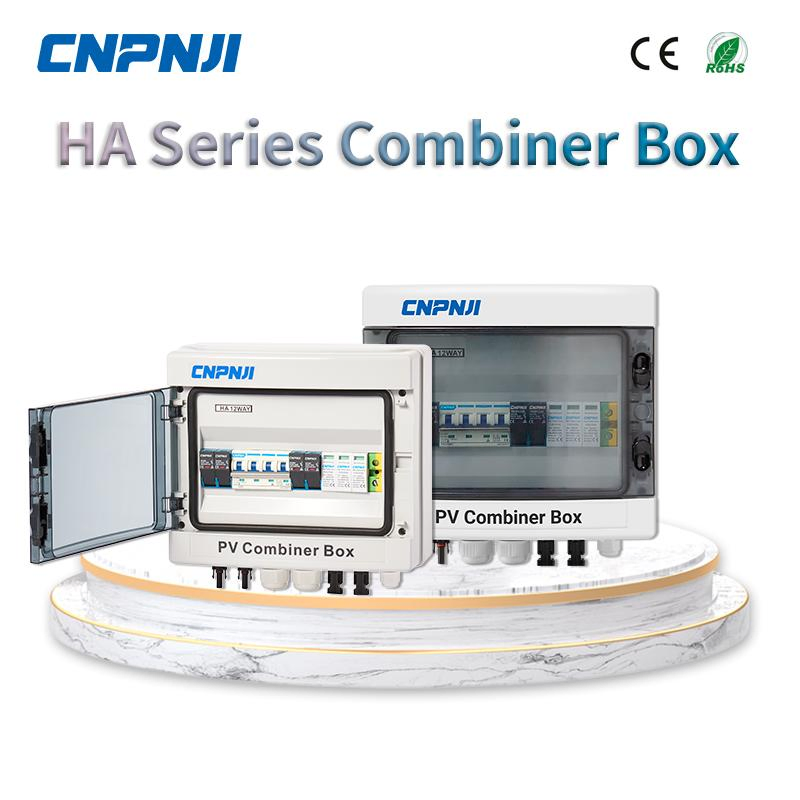

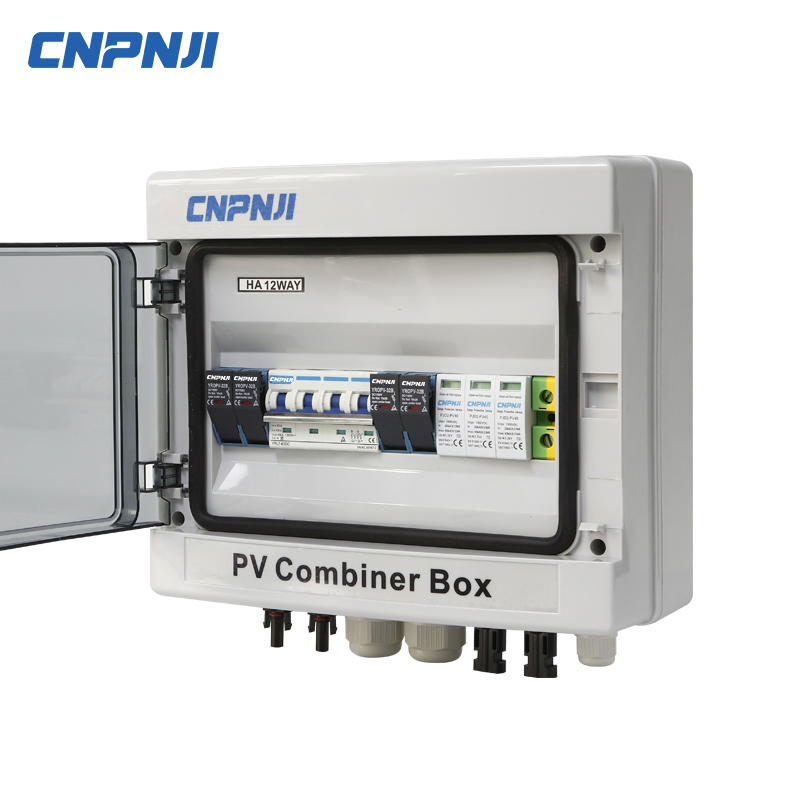

Solar DC Combiner Box IP65 Plastic PV Combiner Box 2 in 1 out Waterproof 1000V

📋 Basic Info.

Model NO.

MGV-DCPV2

Certification

ISO9001:2000, CCC, TUV CE CQC

Form

All- packaged Type

Operation Voltage

High Voltage

Size

1 Uint

Application Range

Power Plants

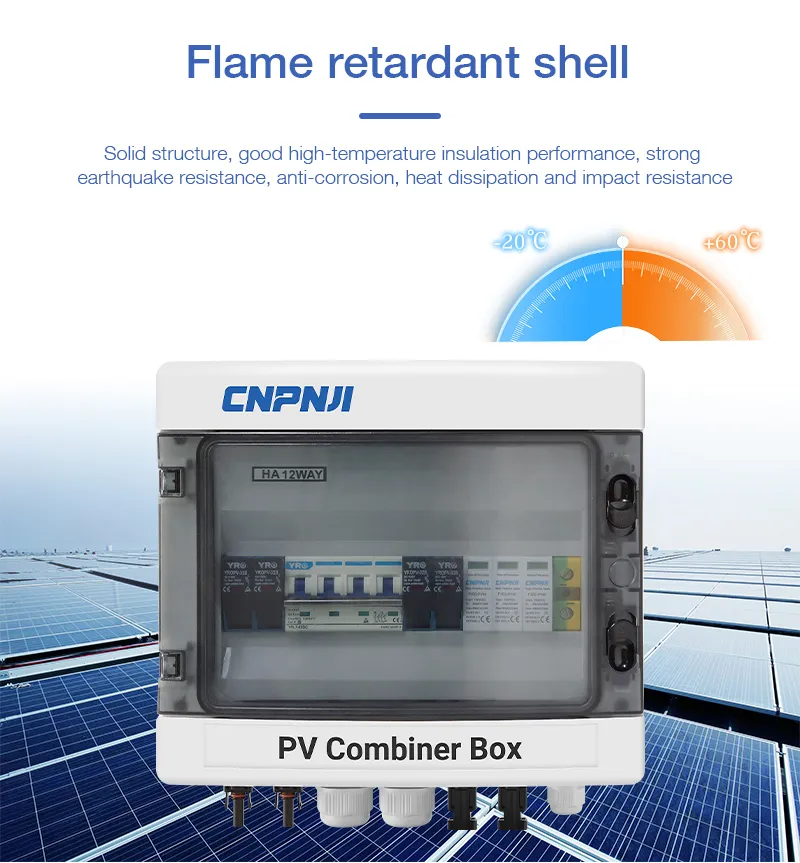

Shell Material

Plastics

Protection Grade

IP65

Name

PV Combiner Box

Input Current

20A Each Circuit

Max Output Current

40A

Strings

2

Voltage

1000V

HS Code

8537109090

Origin

China

📦 Packaging & Delivery

● Package Size: 39.00cm * 35.00cm * 17.00cm
● Gross Weight: 5.000kg
● Transport Package: Paper / Wooden Carton

📌 Product Description

Name	PV combiner box
System maximum DC voltage	1000V
Maximum input current each string	20A
Maximum input strings	2
Maximum output switch current	40A
Number of inverter MPPT	1
Category of test	II grade protection
Nominal discharge current	20kA
Maximum discharge current	40kA
Voltage protection level	3.8kV
Poles	3P
Installation method	Wall mounting type

🔥 Hot Products

🏭 Facility Overview

❓ Frequently Asked Questions

Q1. What is the working time?

Our standard hours are 08:30-17:00 (GMT+8 Beijing), Monday to Saturday. We also provide 24-hour customer service support for urgent inquiries.

Q2. Will my drawing be safe after you receive it?

Yes, we prioritize intellectual property protection. We will not release your design to any third party without your explicit permission and are happy to sign an NDA before you send any drawings.

Q3. What is the Minimum Order Quantity (MOQ)?

Usually, we do not set a strict MOQ, but larger quantities offer better pricing. We are happy to produce prototypes or samples to ensure quality standards are met before bulk production.

Q4. Can samples be provided?

Yes, we can supply samples if parts are in stock. Customers are responsible for the sample cost and the courier/shipping fees.

Q5. What are the payment terms?

Our standard terms are a 50% deposit via T/T, with the remaining 50% due before delivery. We provide photos of the finished products and packaging before final payment.

Q6. How about the delivery time?

Generally, it takes 5-7 days after receiving your advance payment. The specific timeframe depends on the items and the total quantity of your order.
