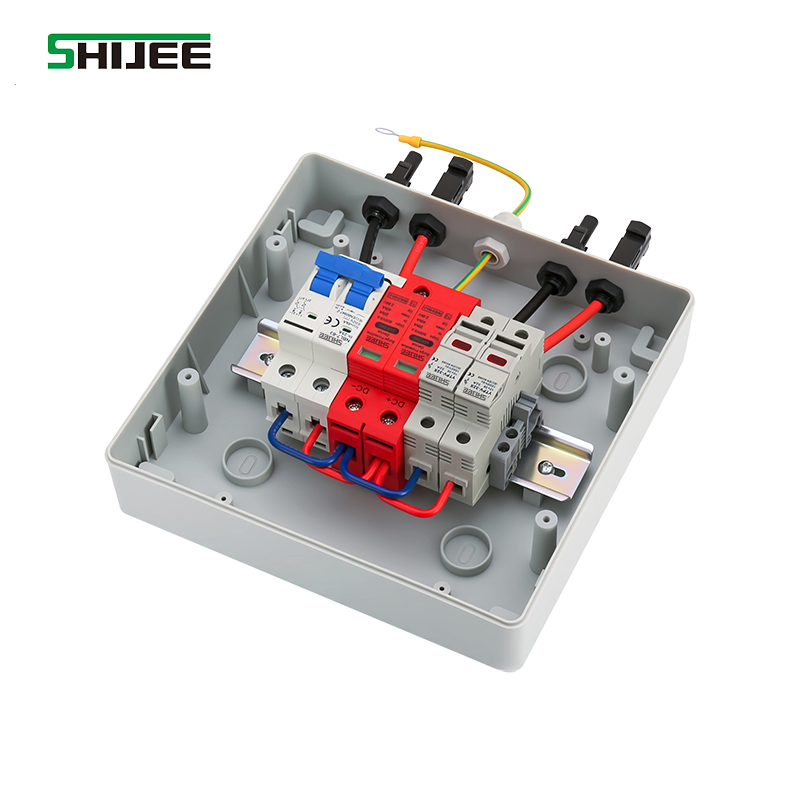

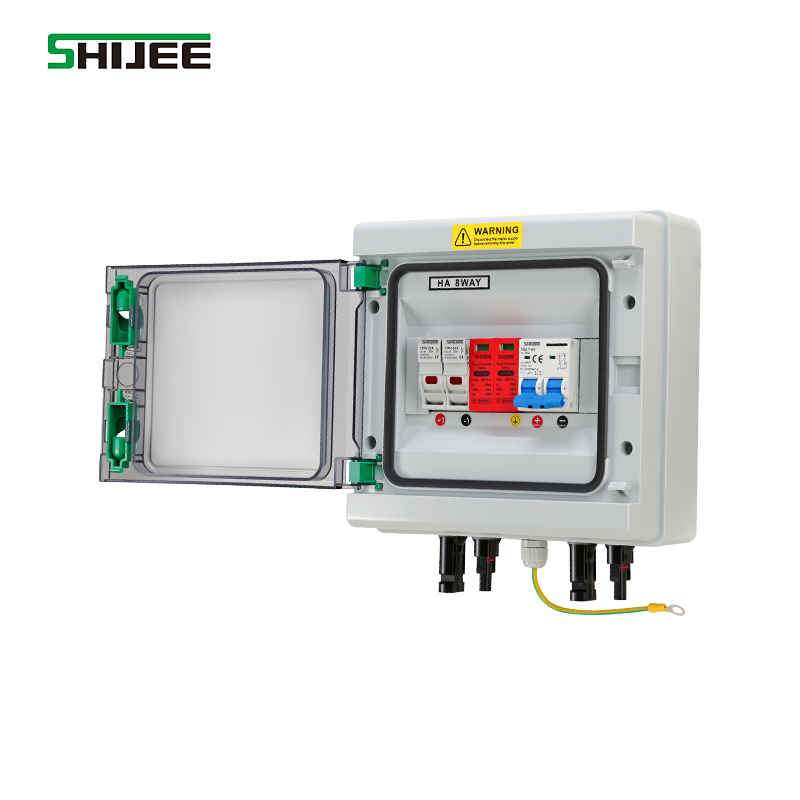

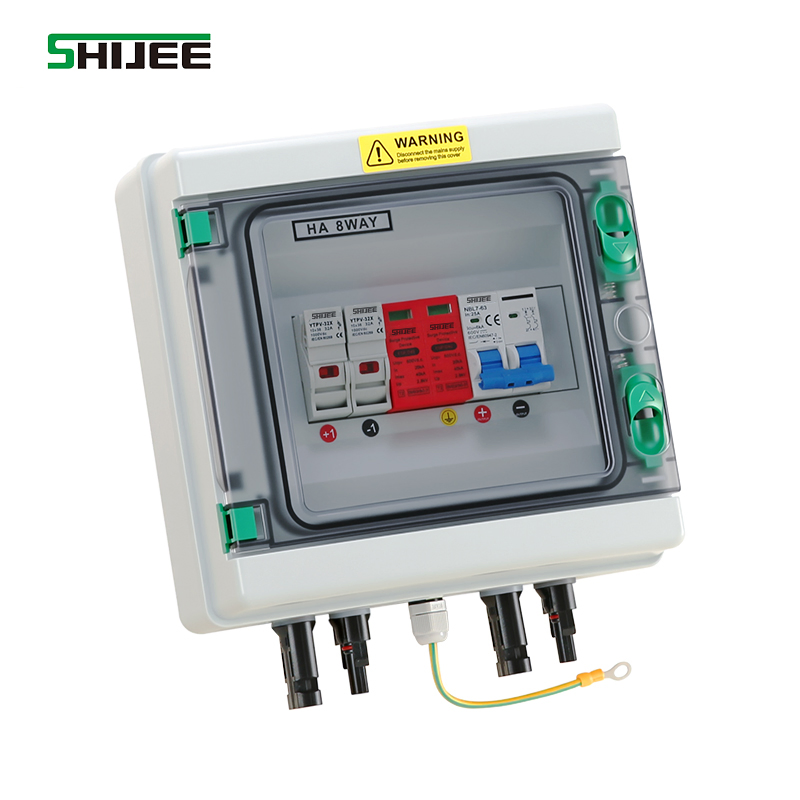

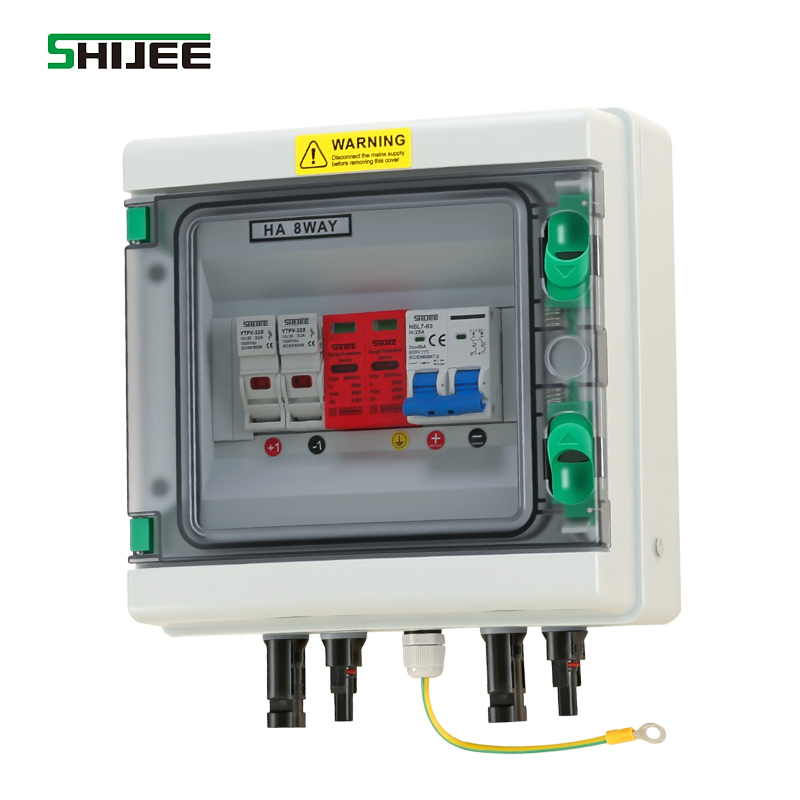

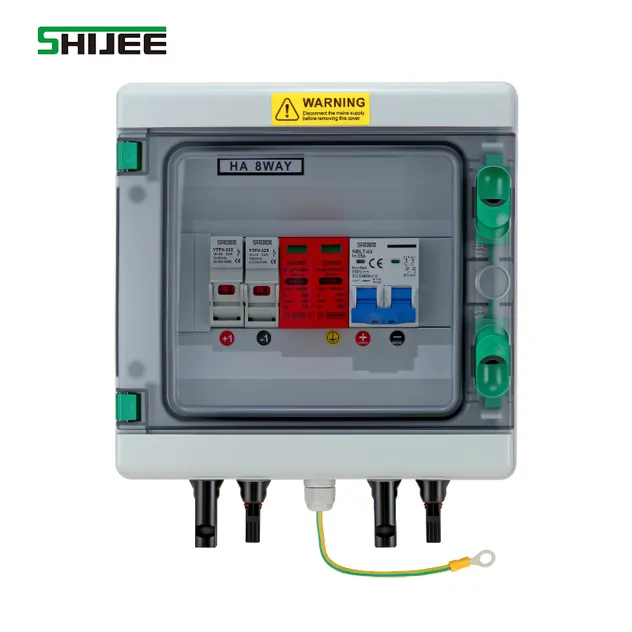

DC 1 in 1 Out 600V PV Combiner Box
Designed for compact and streamlined solar installations, the DC600V 1-in-1-out PV Combiner Box provides a reliable and efficient interface for single-string solar panel systems operating up to 600VDC. This unit safely combines the DC output from one solar string, integrating essential protection features such as overcurrent protection, surge protection, and isolation switching. With its durable enclosure and optimized internal layout, it ensures secure connectivity while minimizing space requirements, making it ideal for residential, small commercial, or portable solar applications where simplicity and safety are paramount.
Engineered for ease of installation and long-term reliability, this combiner box supports straightforward wiring and maintenance. Its robust design withstands outdoor environmental conditions and helps enhance system performance by reducing electrical losses and improving fault management. Suitable for both grid-tied and off-grid solar setups, the 1-in-1-out configuration offers a cost-effective and dependable solution for protecting your PV investment and maintaining system uptime.
| Product Name | DC600V 1-in-1-out Solar PV Combiner Box |
| Application | 1 String Solar Panel System |
| Rated Voltage | DC 600V |
| Input/Output | 1 Input / 1 Output |
| Protection Class | IP65 (Outdoor) |
| Material | UV-resistant ABS or Polycarbonate (PC) |
| Max Input Current | 15A / 20A / 30A |
| Circuit Protection | DC Fuse (10A–30A), Optional DC Surge Protection |
| Disconnect Switch | Yes (DC Isolator Switch) |
| Cable Entry | PG gland or watertight connector, 4–6mm² solar cable |
| Temperature Range | -25°C to +60°C |
| Certification | CE, TÜV, IEC 60947, IEC 60269 |
| Key Features | Compact design, easy installation, safe isolation, suitable for outdoor use |

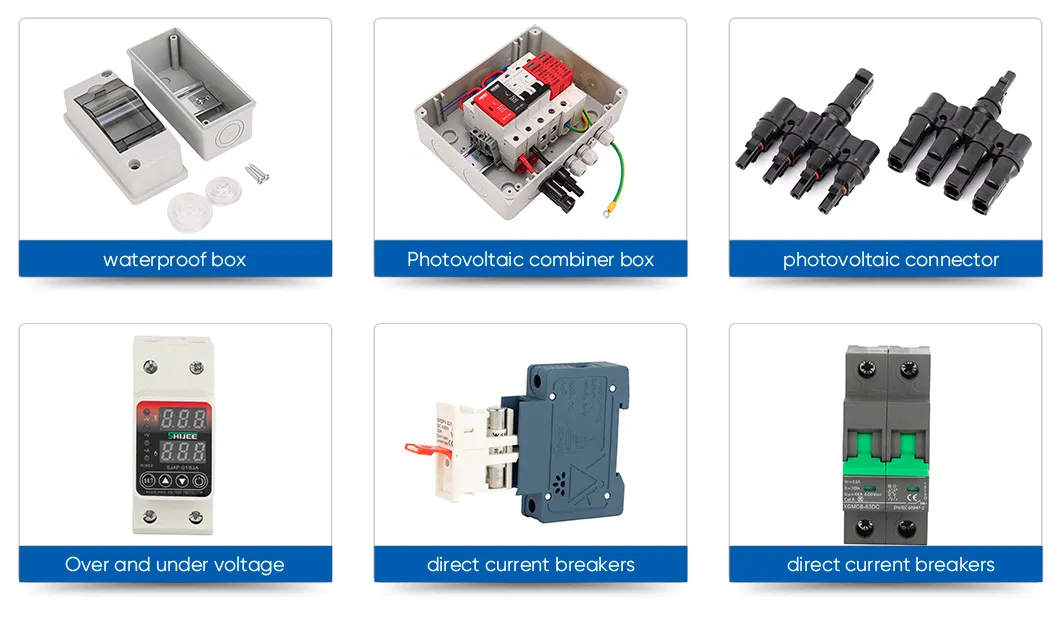

We are a professional solar PV electric components manufacturer. We specialize in DC Combiner boxes, DC circuit breakers, MC4 connectors, Surge Protective Devices, DC fuses, isolator switches, and more.
