⚡ Product Description

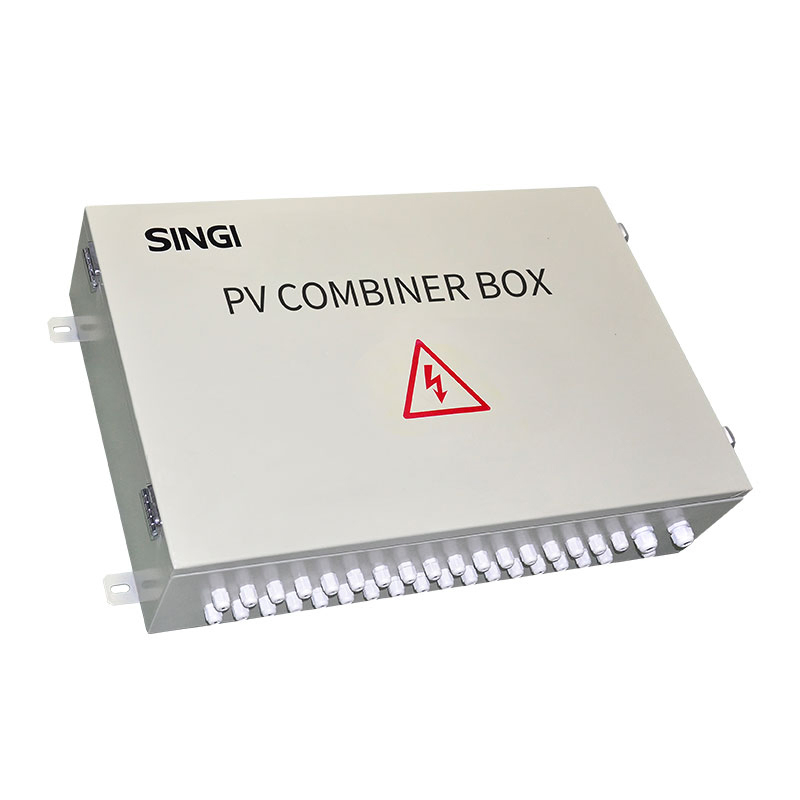

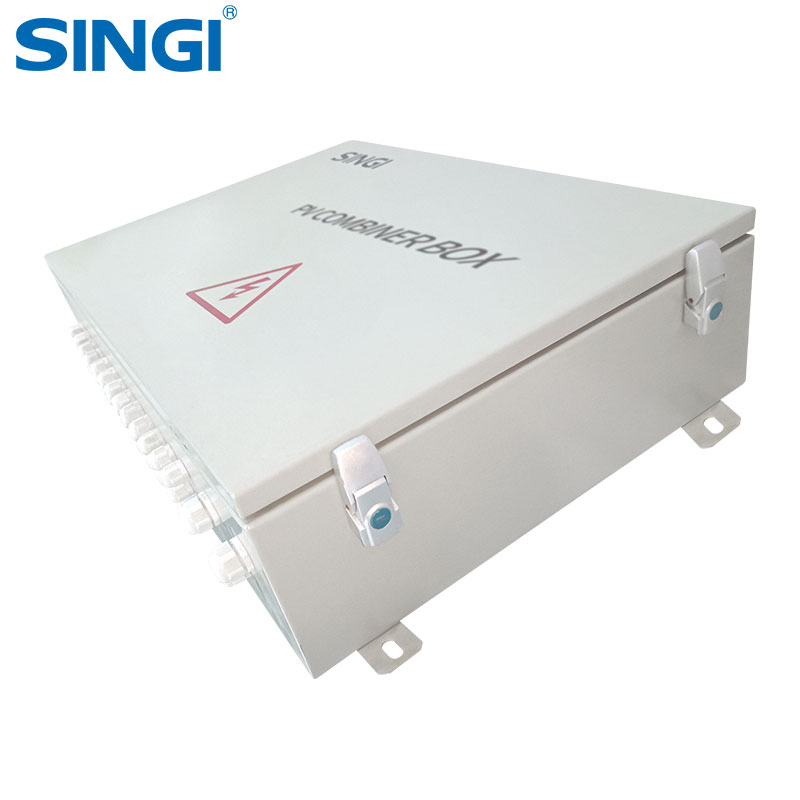

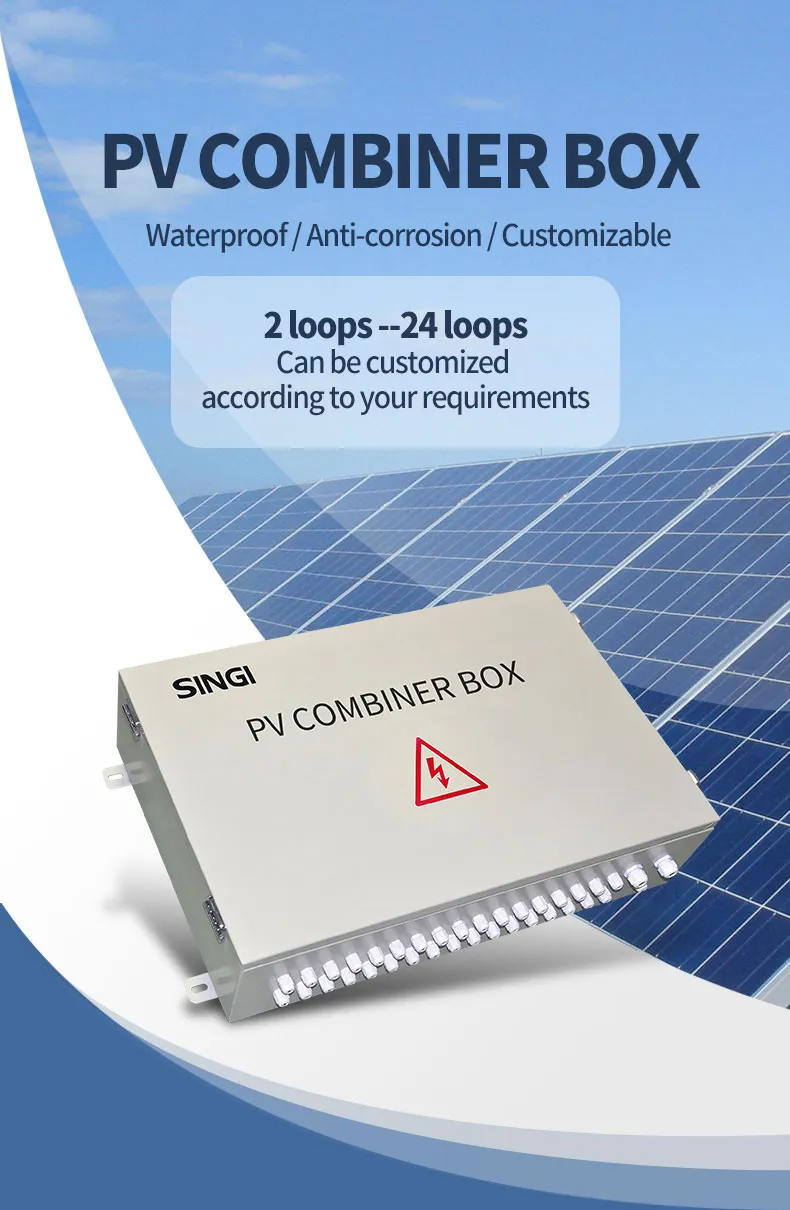

The PV combiner box are suitable for grid-connected and off-grid power generation. The main function is to sink the input of PV cell array at one level, and to provide fast cut-off short-circuit fault protection and lightning protection to avoid damage to PV panels and inverters in case of failure. It is also used to reduce the connection of photovoltaic arrays to the inverter, optimize the system structure, improve reliability and maintainability, and optimize power generation efficiency. The parallel mode has anti-backflow and anti-reverse access functions.
| Type |
SWHX-8 |
SWHX-12 |
SWHX-16 |
SWHX-24 |
| Input Channels |
Below 8 |
8-12 |
13-16 |
17-24 |
| Max Voltage |
DC 1000V |
| Max Output Current |
Below 100A |
100/125/160A |
160/200A |
250A |
| Protection |
IP65 |
| Size (W*H*D mm) |
630*500*180 |
720*500*180 |
800*500*180 |
850*500*200 |

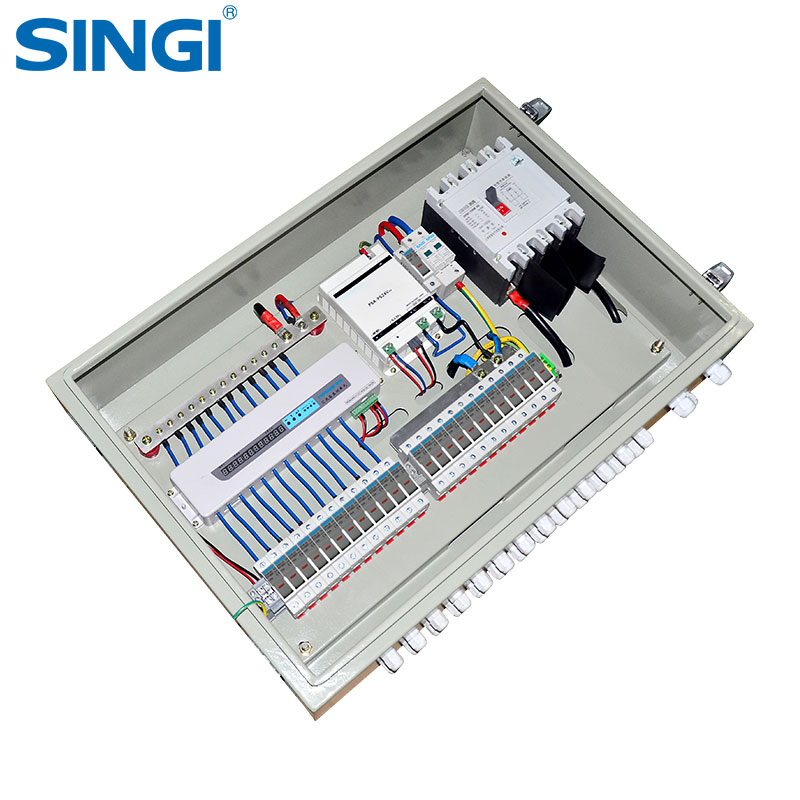

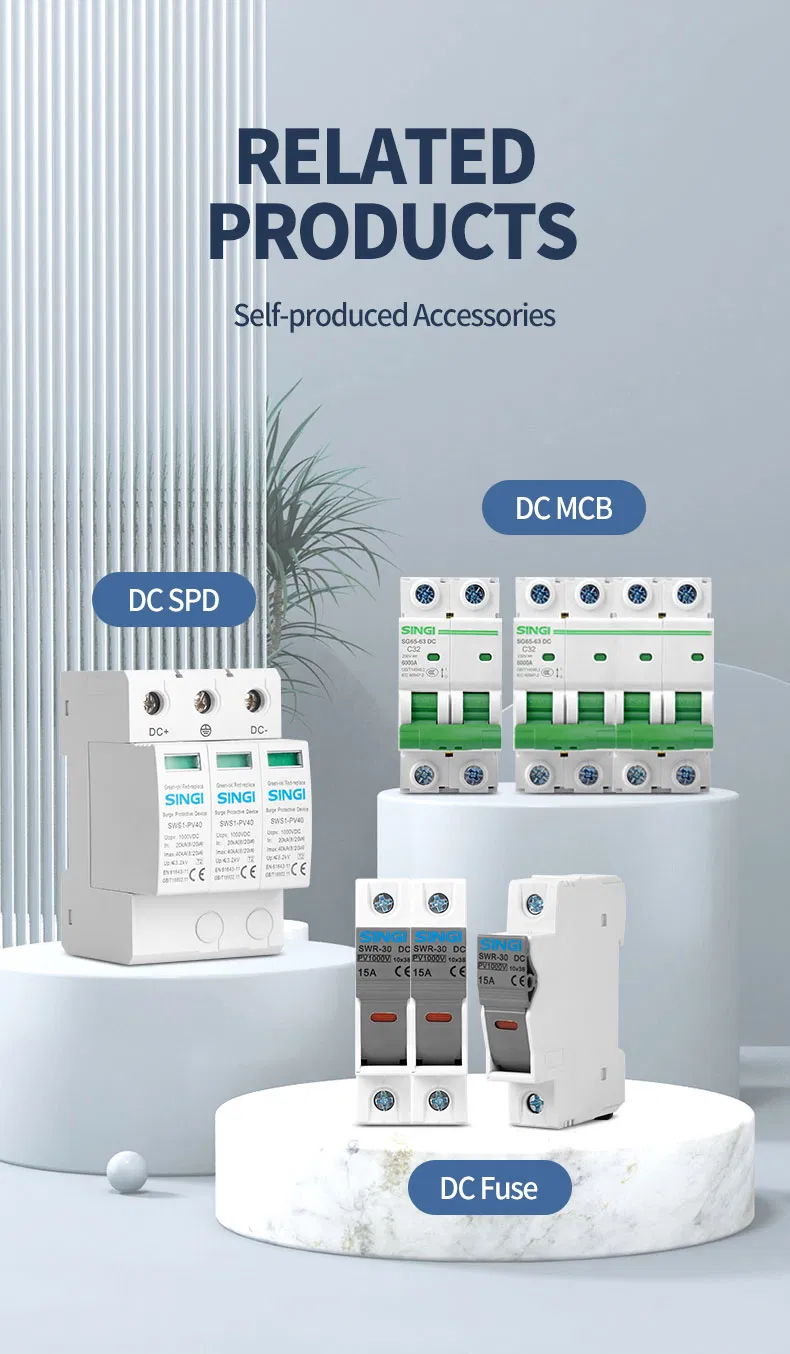

We offer a plug & play solution that accommodates overcurrent protection devices, disconnectors and surge protective devices (SPDs) in one solar combiner box. Depending on the application, combiners are equipped with monitoring devices to measure current, voltage and temperature to ensure the availability of the strings and to maximize generation. The string combiner boxes form subsystems that can be standardized according to the number of strings, voltage and rated current.
Welcome to consult.
❓ Frequently Asked Questions
What is the primary purpose of this PV Combiner Box?
The main function is to converge multiple PV string inputs, providing short-circuit fault protection and lightning protection to safeguard solar panels and inverters.
Is the box suitable for extreme outdoor weather?

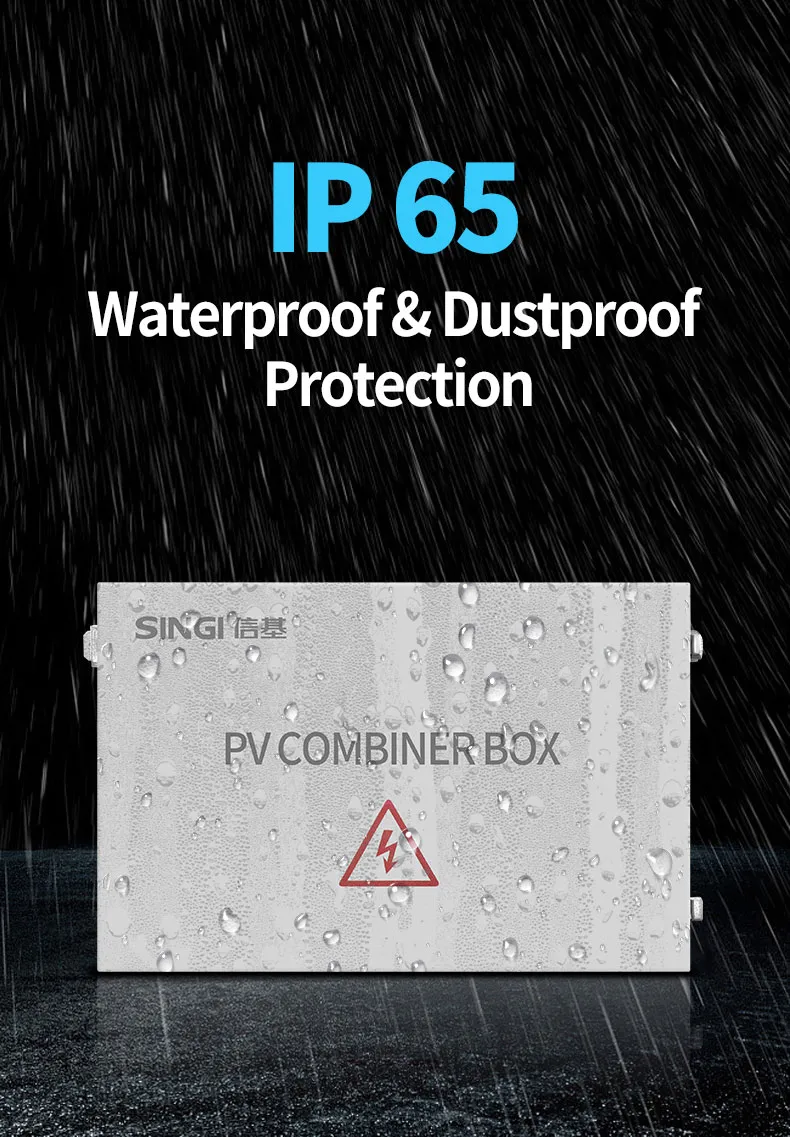

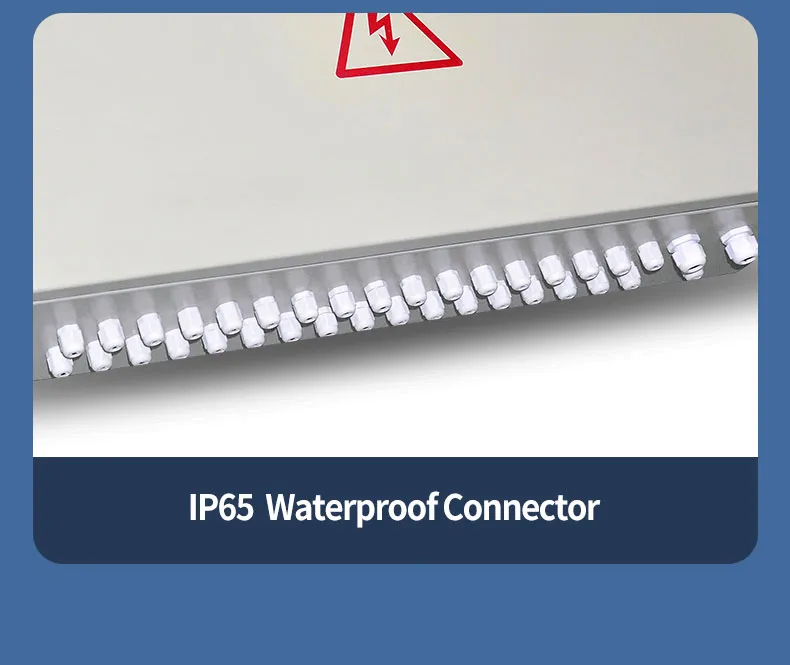

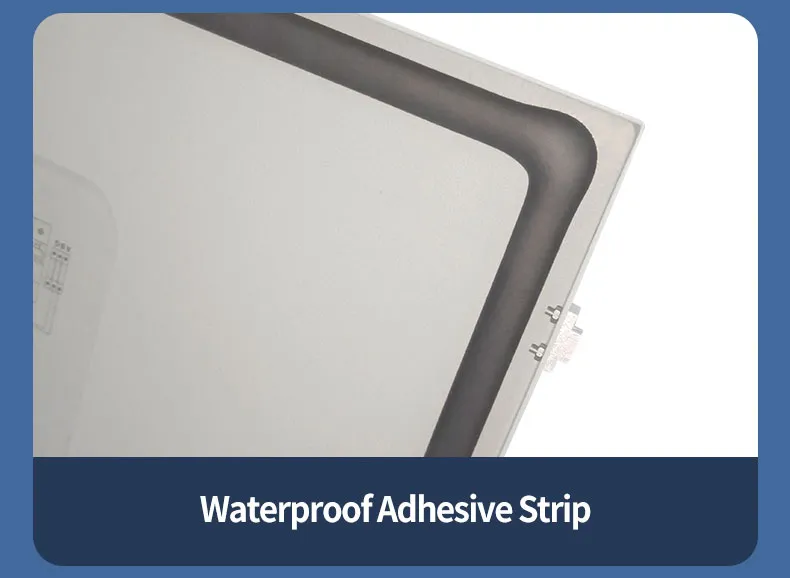

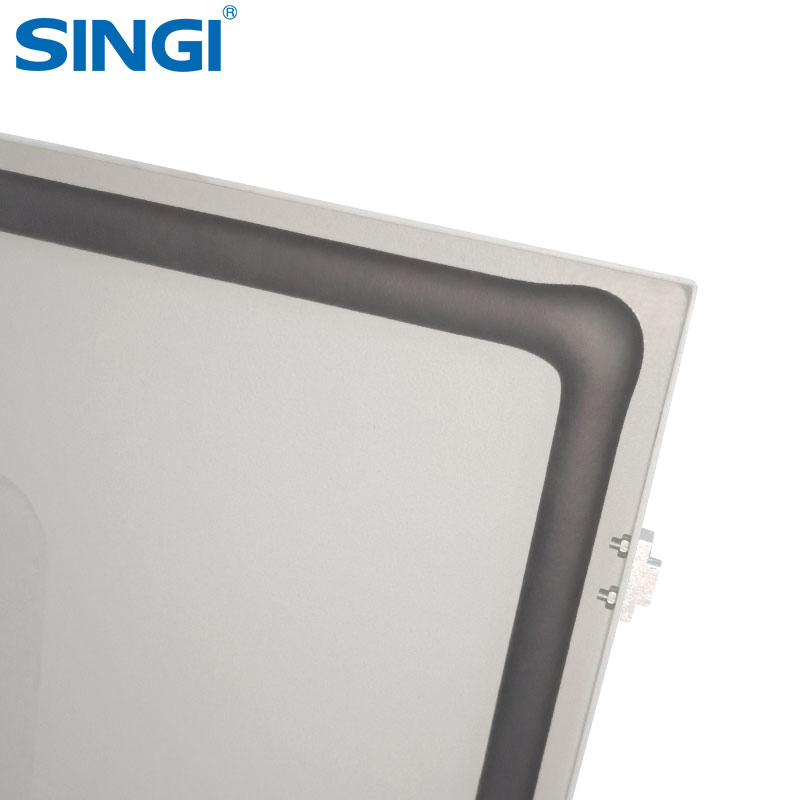

Yes, the box features an IP65 protection grade and is constructed from durable stainless steel, making it waterproof and dustproof for outdoor environments.
What is the maximum voltage support?
The system supports a maximum input voltage of DC 1000V, suitable for high-voltage power plant applications.
Does it support both grid-connected and off-grid systems?
Yes, our combiner boxes are designed for versatility and can be integrated into both grid-connected and off-grid power generation setups.
Are there different models based on string requirements?
We offer multiple configurations including 8, 12, 16, and up to 24 input channels to accommodate various system sizes.
What safety features are included?

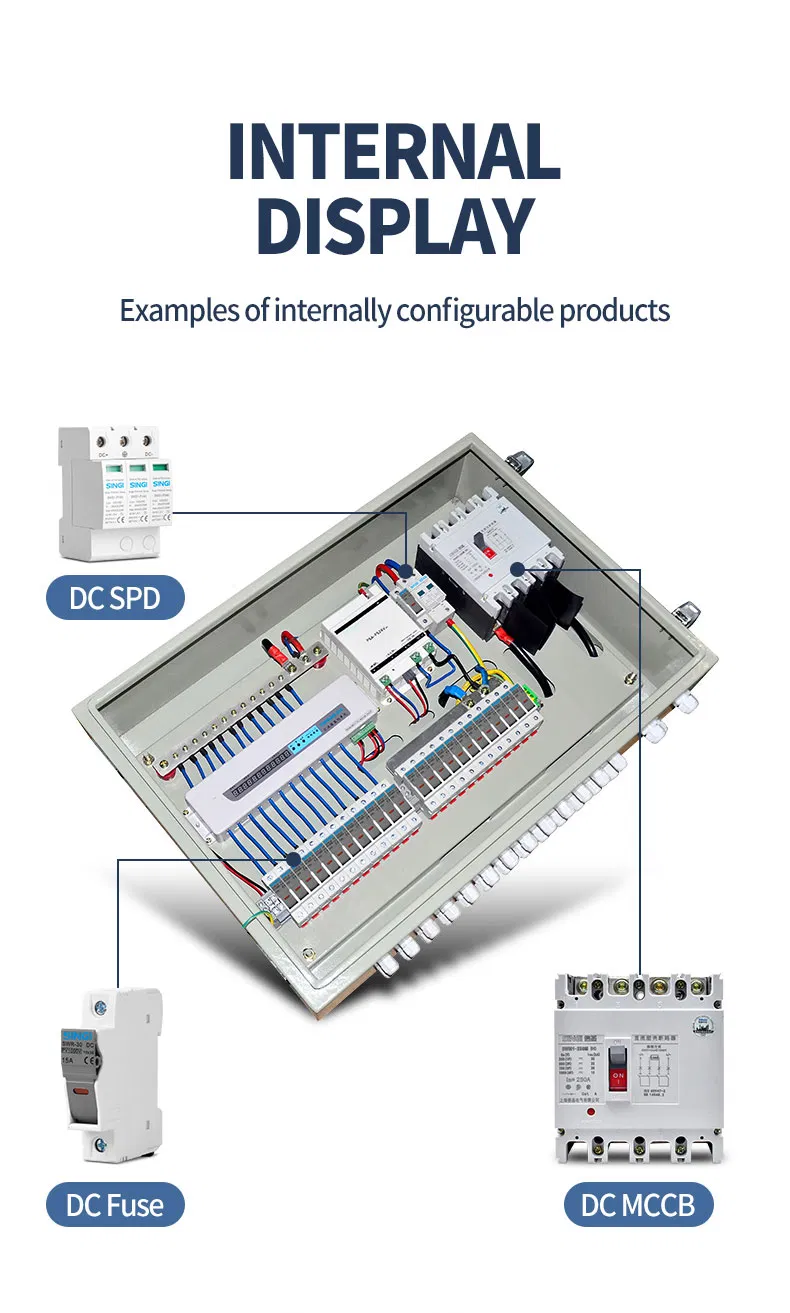

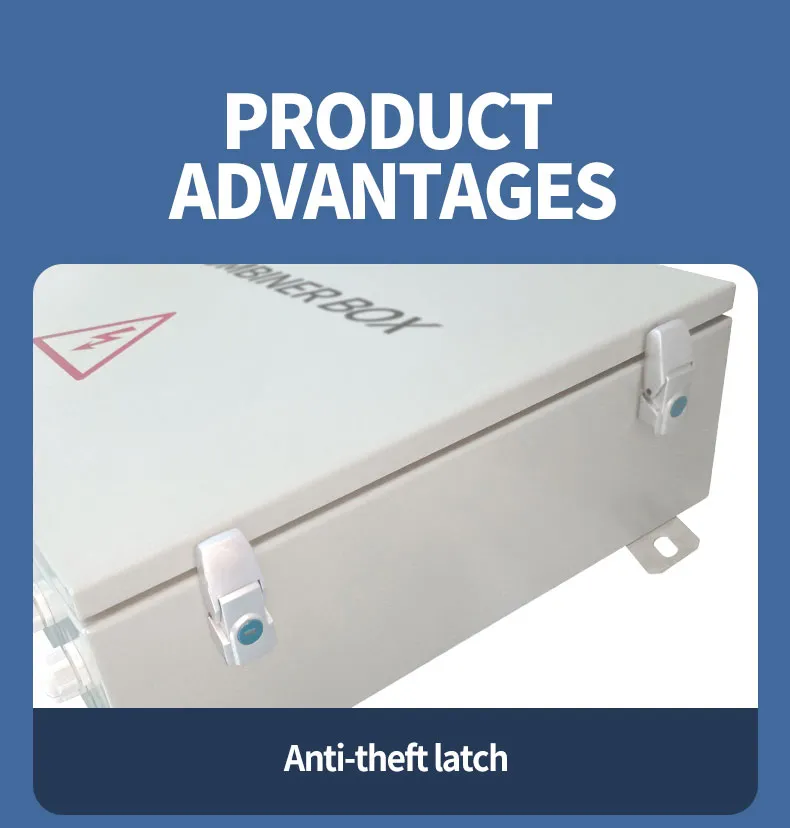

The units include overcurrent protection, surge protective devices (SPDs), disconnectors, and optional monitoring for current and temperature.
