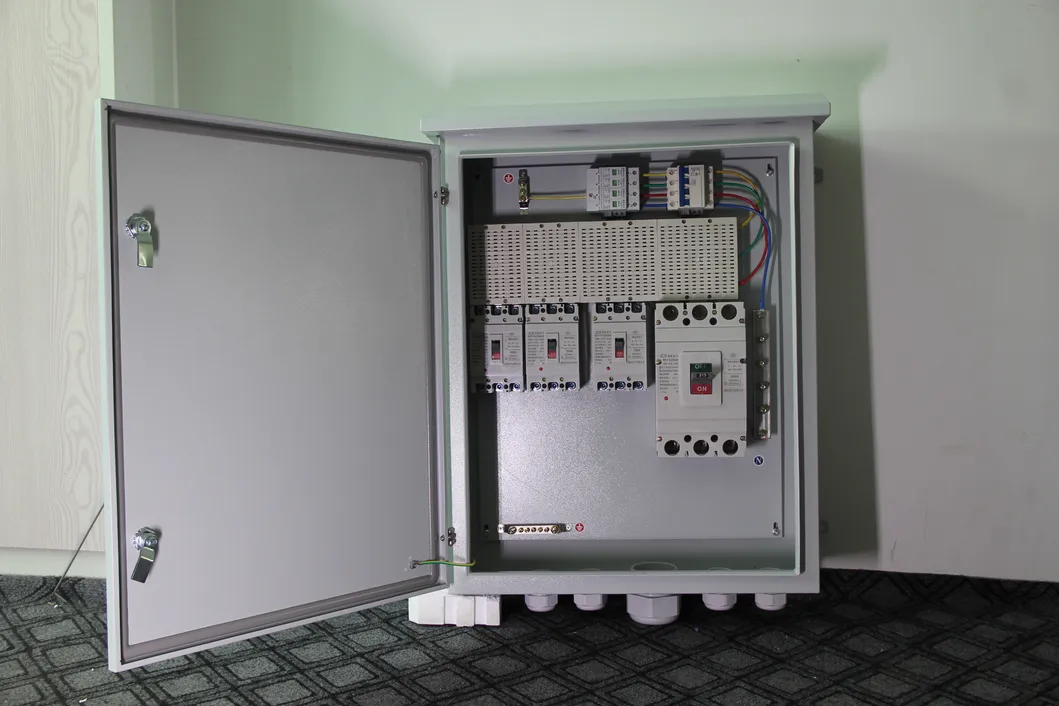

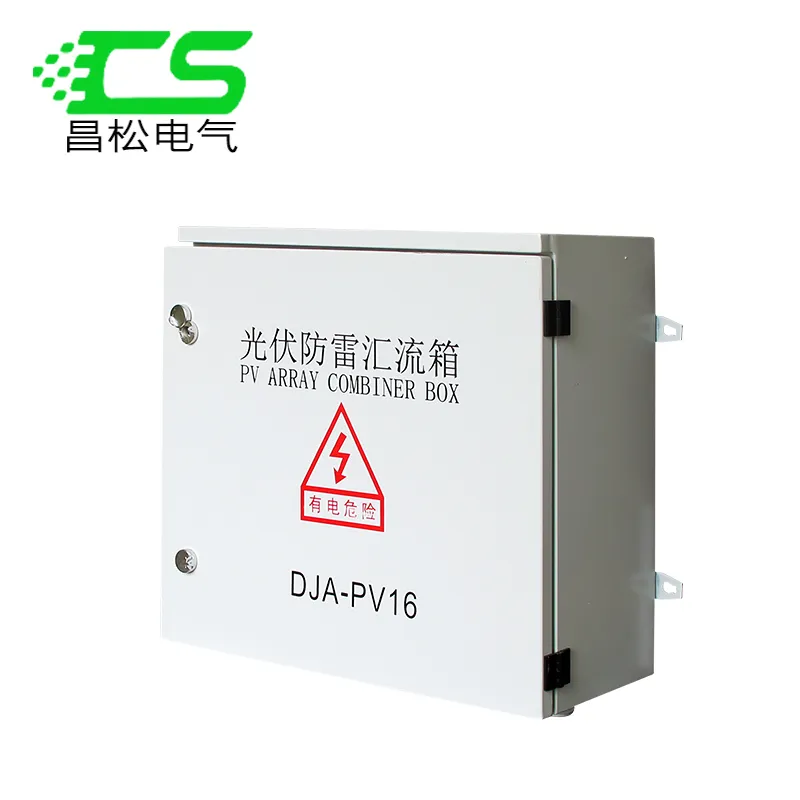

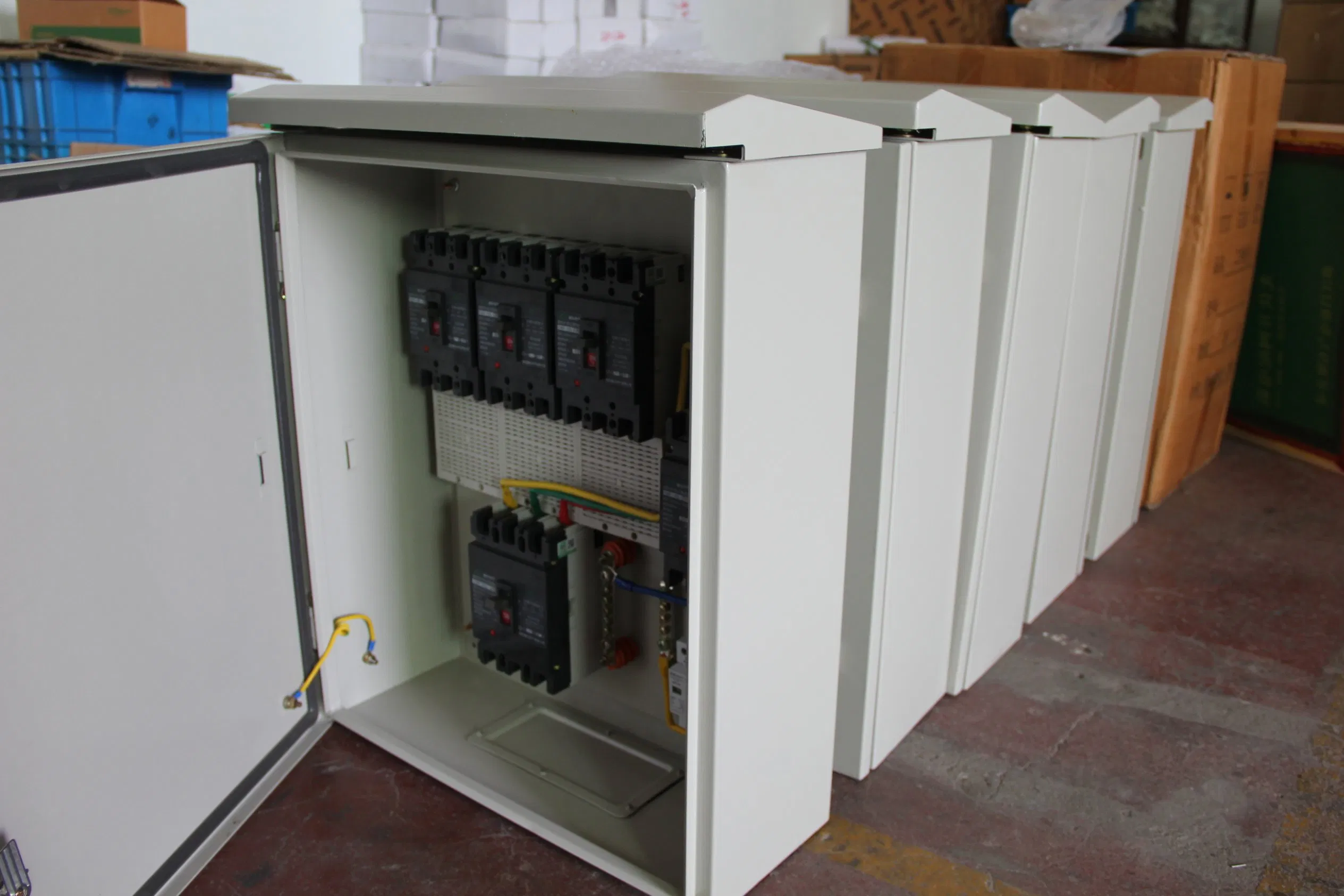

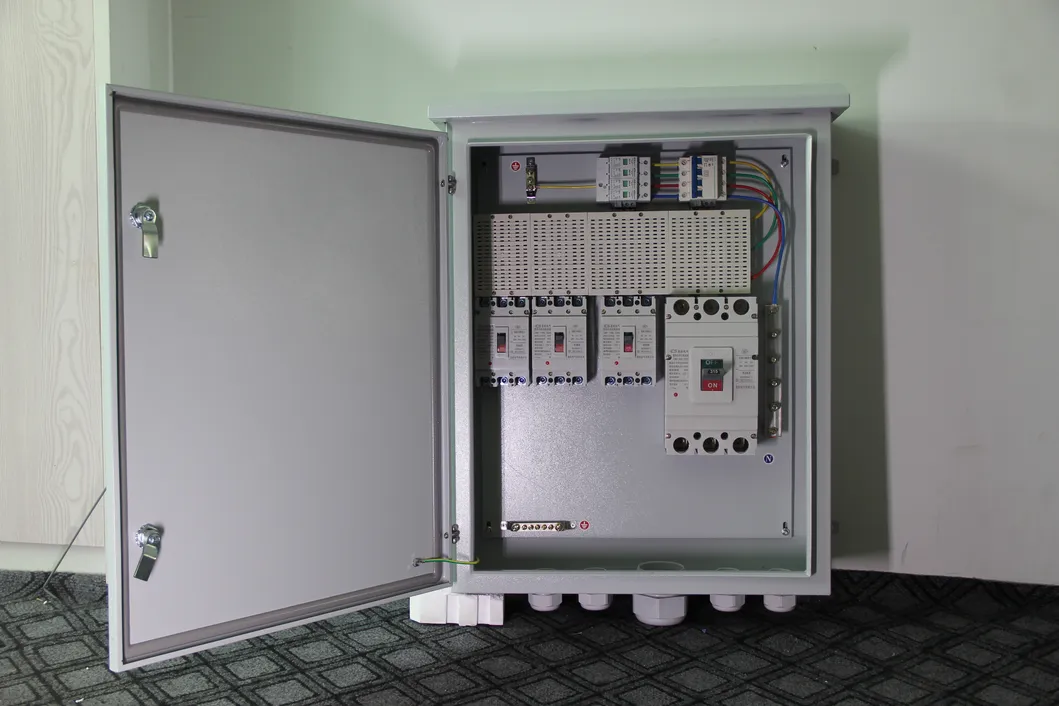

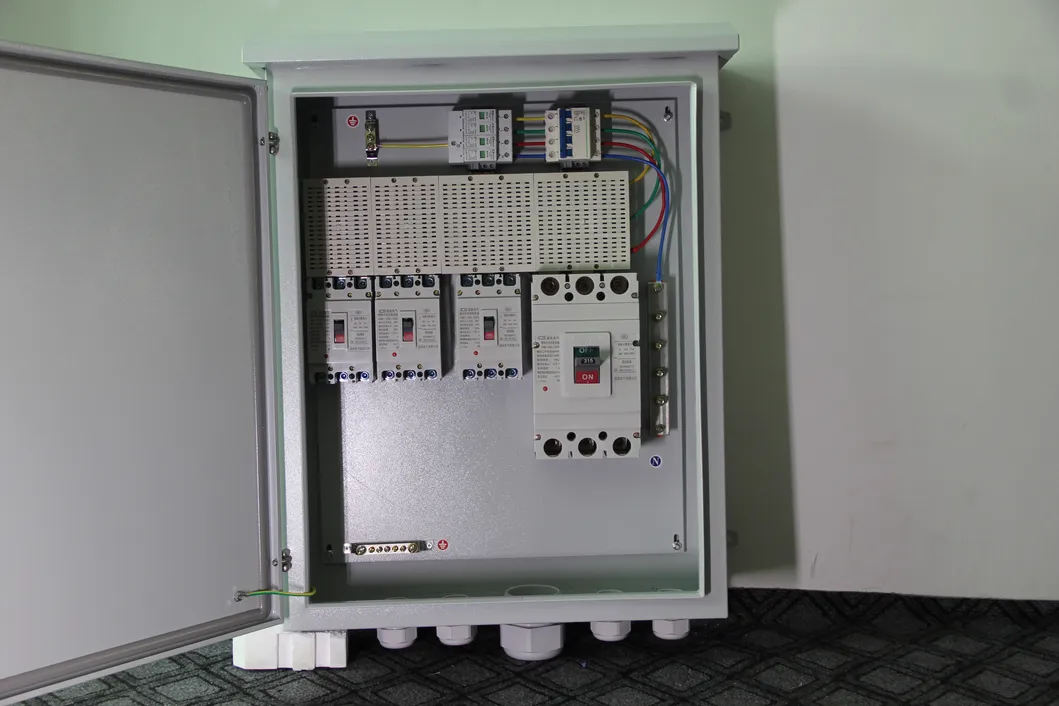

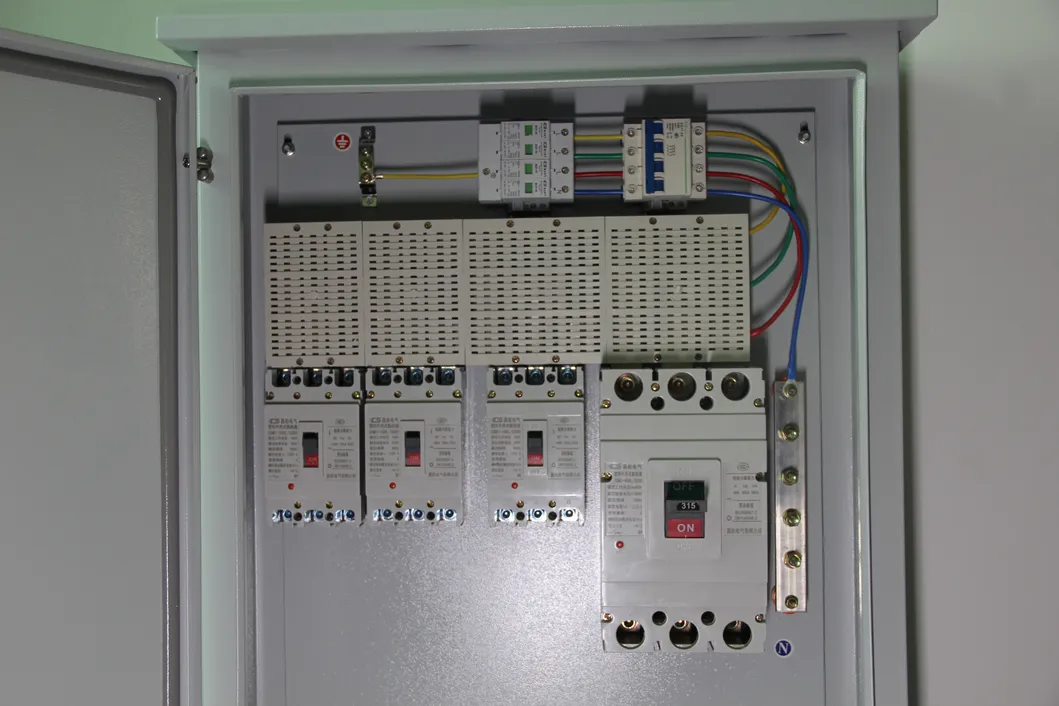

For large-scale PV grid-connected power generation systems, the PV array lightning protection combiner box is essential for reducing the connection between PV modules and inverters. It facilitates easier maintenance and significantly improves system reliability. This device acts as a DC busbar, allowing multiple series PV modules of the same specification to be integrated safely before outputting to the inverter through lightning protection devices and circuit breakers.

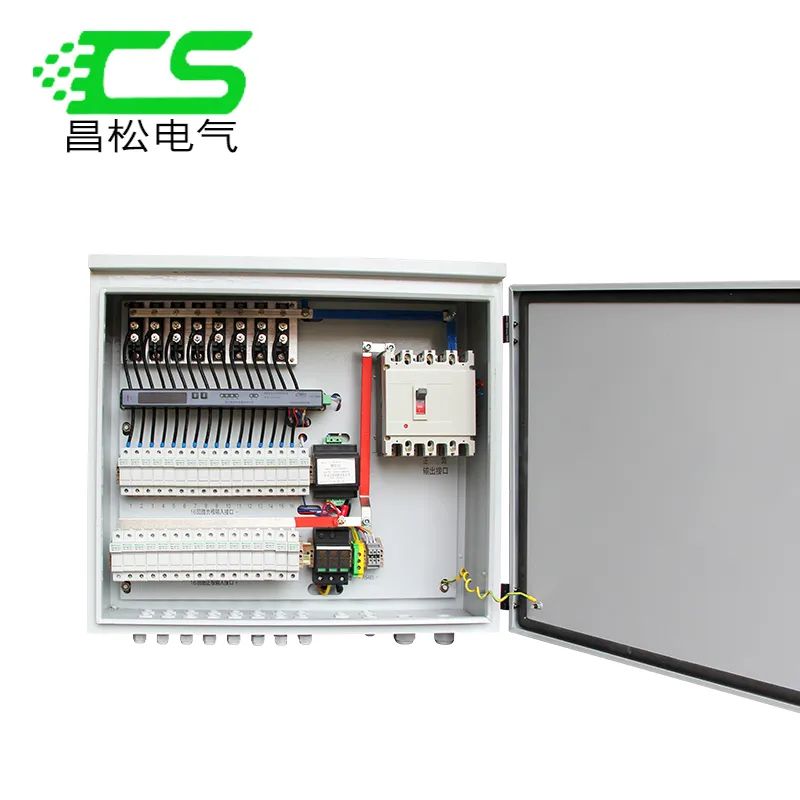

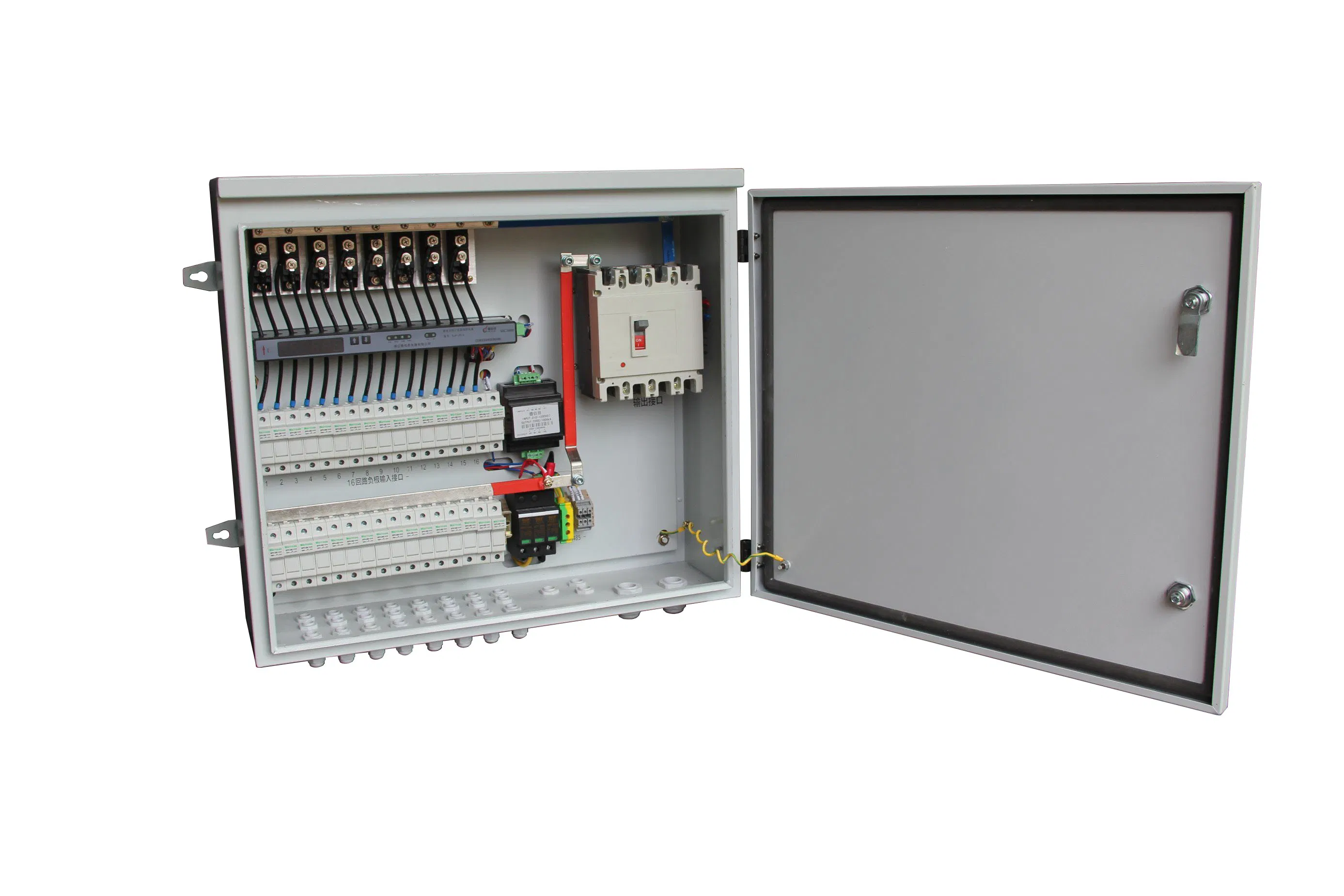

| Part No. | Description |
|---|---|
| 1 | Negative convergence copper busbar |
| 2 | Detection unit |
| 3 | DC MCB |
| 4 | Dc positive Convergence output |
| 5 | Dc negative Convergence output |
| 6 | RS485 communication terminal (output point) |
| 7 | Ground output point |
| 8 | Lightning protection device |
| 9 | Positive convergence copper |
| 10 | DC positive fuse holder and fuse (up to 16 way) |
| 11 | DC negative fuse holder and fuse (up to 16 way) |
| Specification | Width (A) mm | Height (B) mm | Depth (C) mm |
|---|---|---|---|
| 18 way | 645 | 550 | 205 |
| 14, 16 way | 610 | 550 | 205 |
| 10, 12 way | 530 | 550 | 205 |
| 6, 8 way | 460 | 550 | 205 |
| 2, 4 way | 390 | 550 | 205 |
