Product Description

Basic Information

Model NO.LS-R-F1

CertificationISO, TUV, CE

ApplicationCommercial

MaterialAluminum Alloy

Wind Load1.4kN/M2

Snow Load60m/S

Installation SiteFlat Roof or Ground

Delivery Time7-15 Days

Surface TreatmentAnodizing

Panel LayoutPortrait or Landscape

Product Introduction

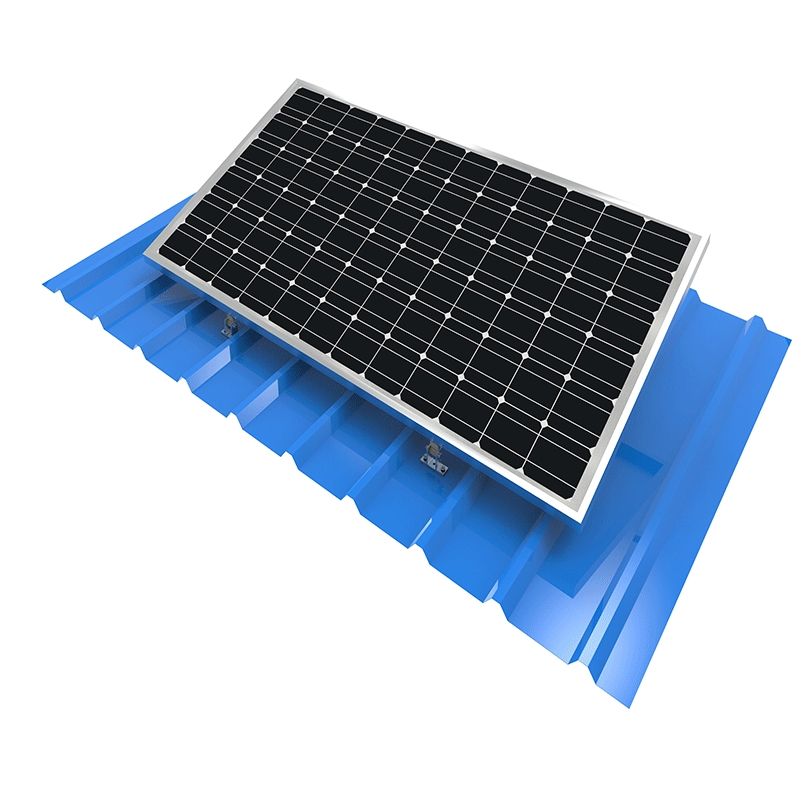

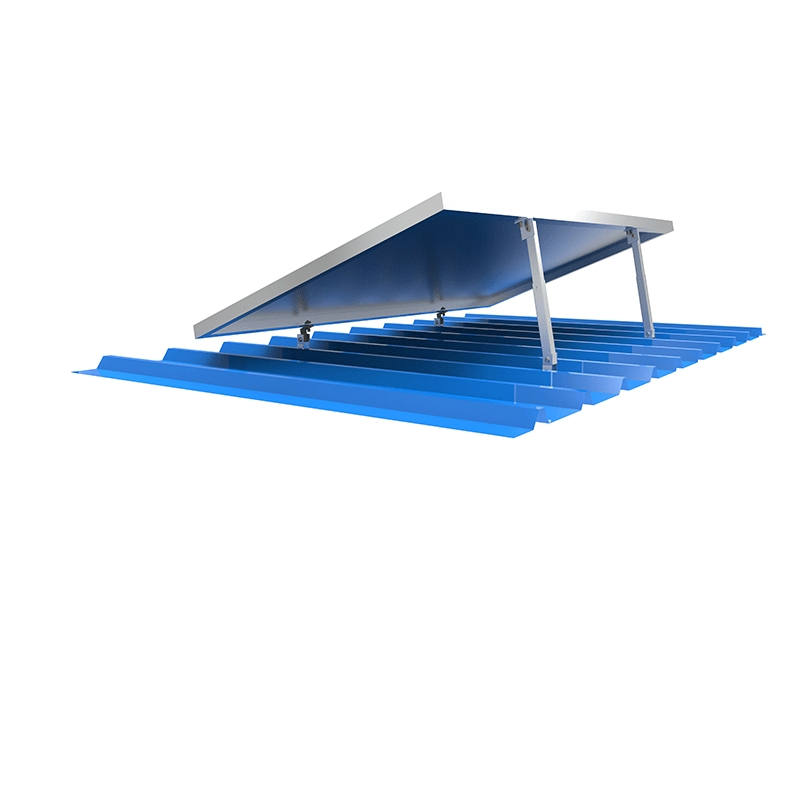

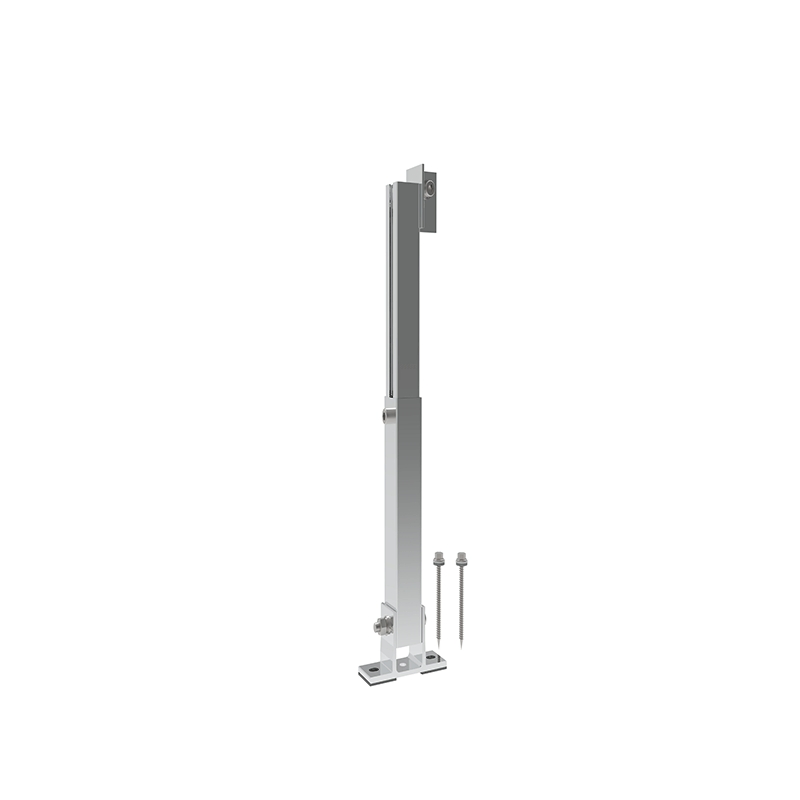

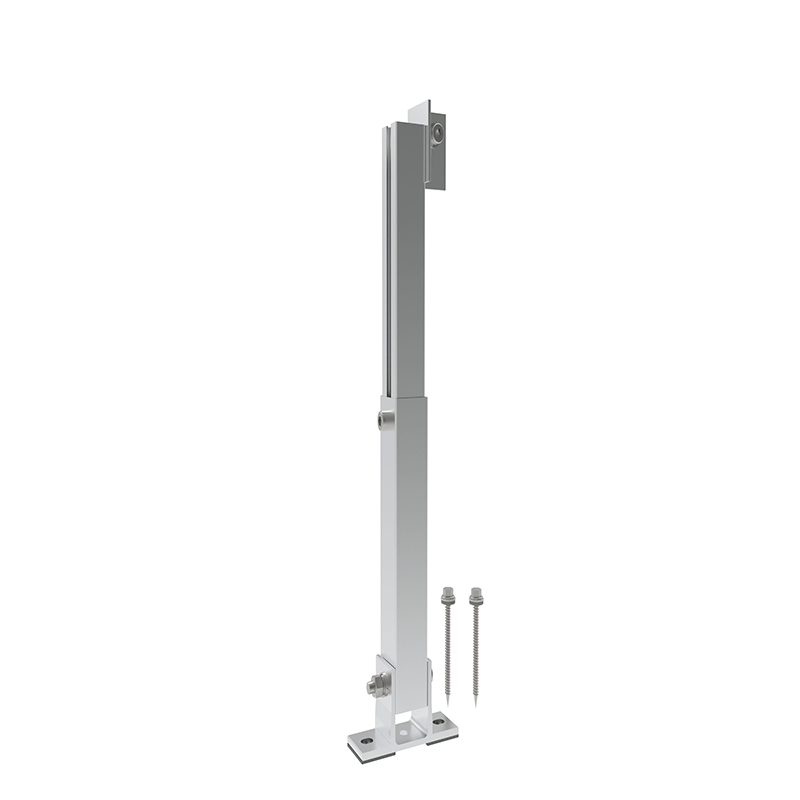

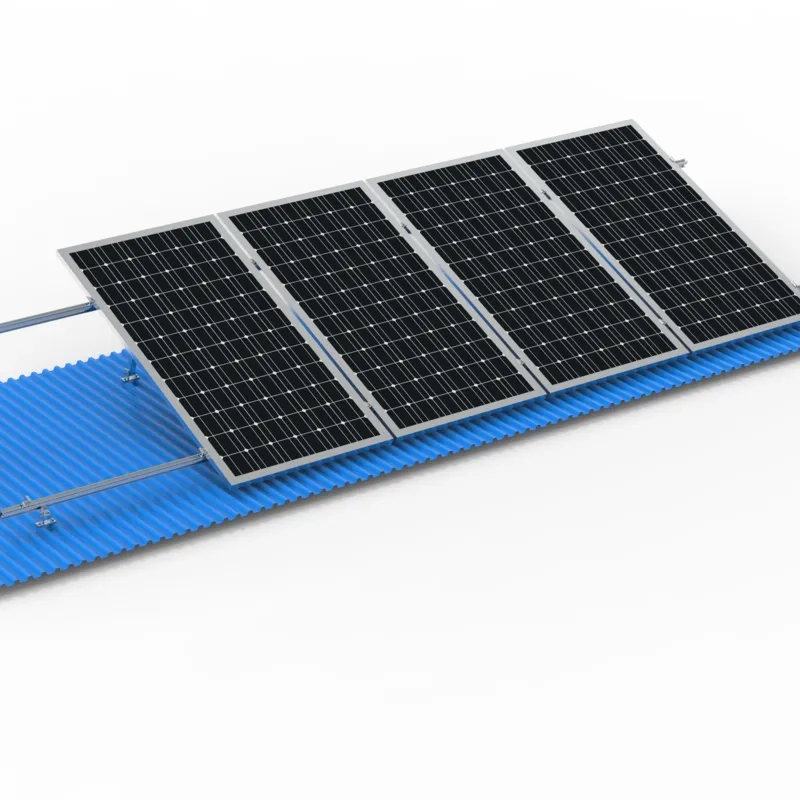

Adjustable Tilt Design: The adjustable front/rear leg system is specifically designed for PV modules on Metal Roofs. Classic adjustable ranges include 10-15 degrees and 15-30 degrees.

Constructed from high-grade AL6005-T5, the structure is simple, durable, and engineered for rapid assembly on trapezoidal metal roofs.

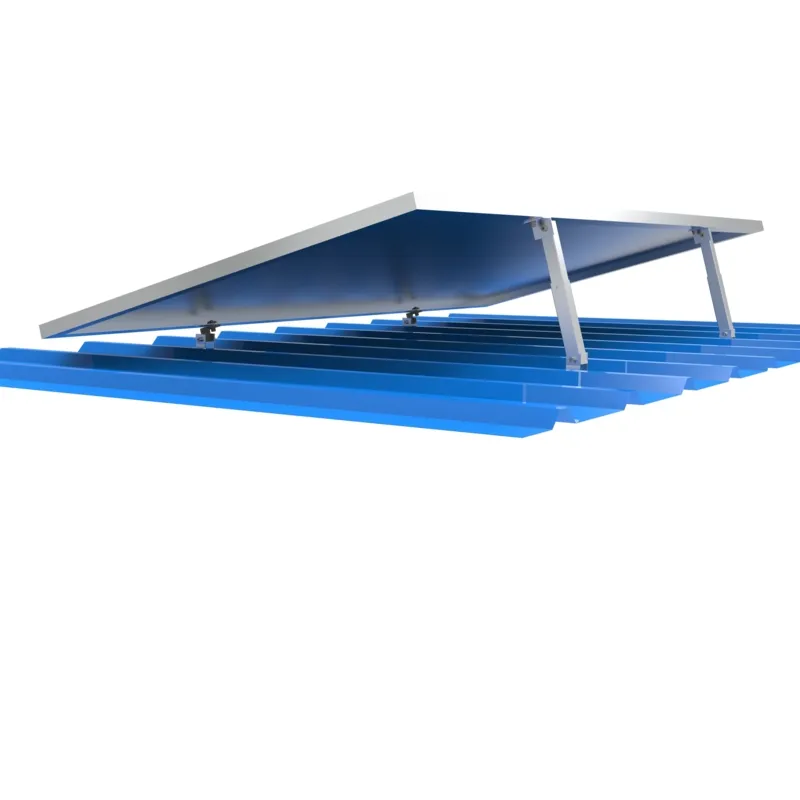

Installation Method

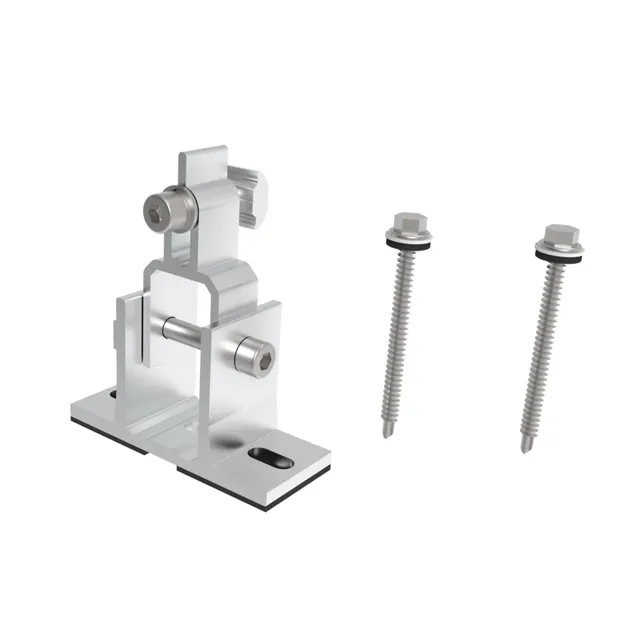

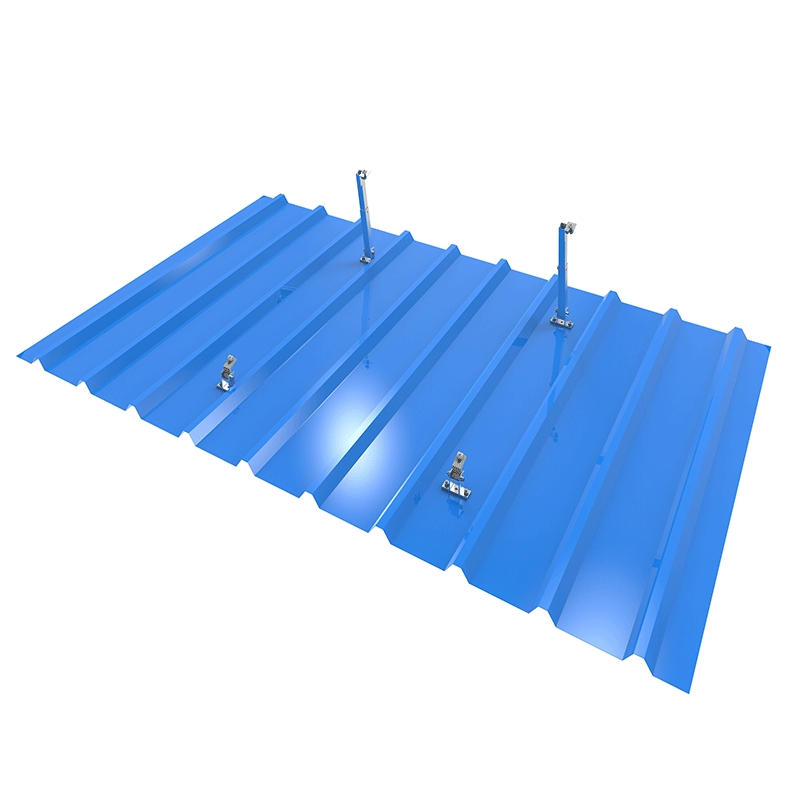

Attach the rear and front legs to the roof using self-drilling screws.

Confirm the required angle and fasten the hexagon bolt on the adjustable leg.

Install the solar rail (R50) to the front and rear legs.

Secure the solar panels using end clamps and middle clamps.

Technical Specifications

Product Material	High strength extrusion Aluminum 6005-T5 + SS304 bolt
Installation Site	Solar Mounting Rail, roof rail, ground rail
Wind Speed	Up to 60m/s
Snow Load	Up to 1.5KN/m2
Warranty	10 years on material
Standard Compliance	AS/NZS 1170, JISC8955, Euro Code 8, DIN 1055, IBC 2006
Service Life	25 years

Main Product Gallery

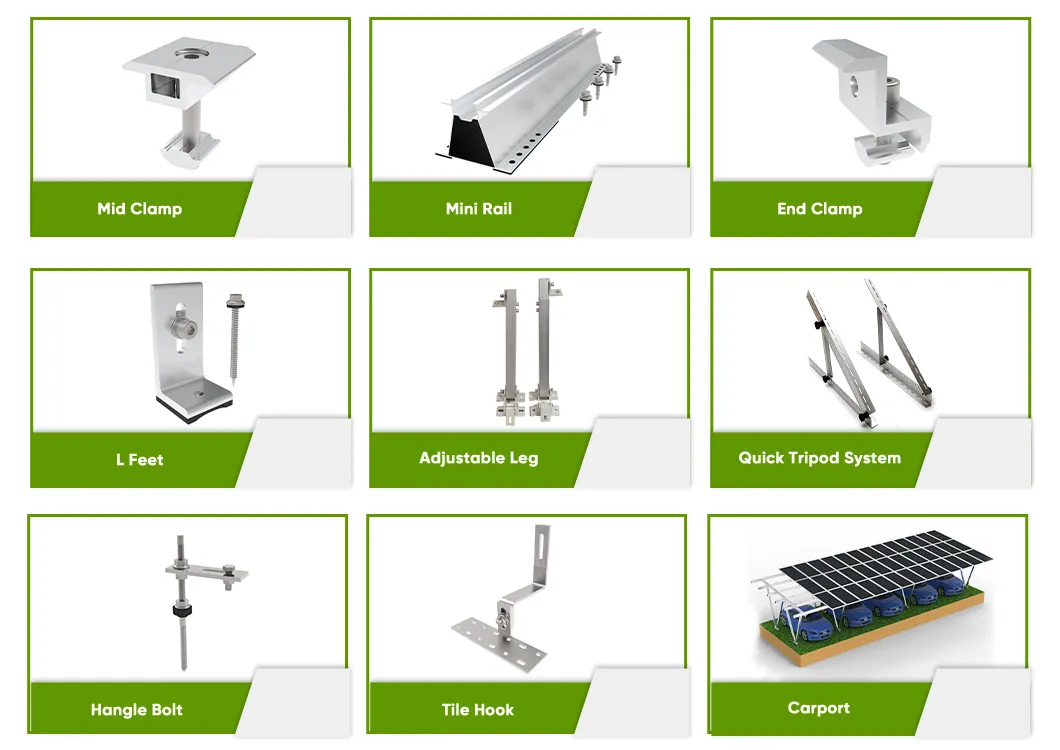

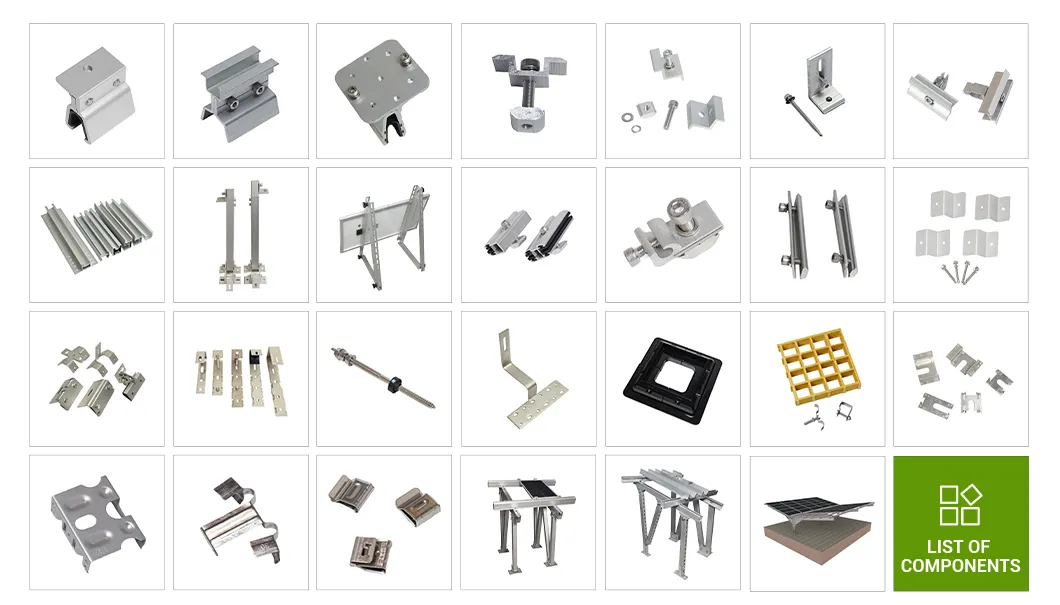

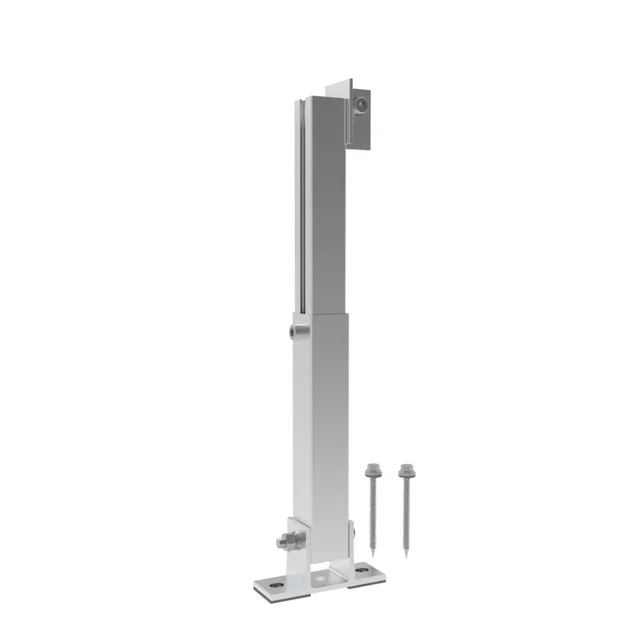

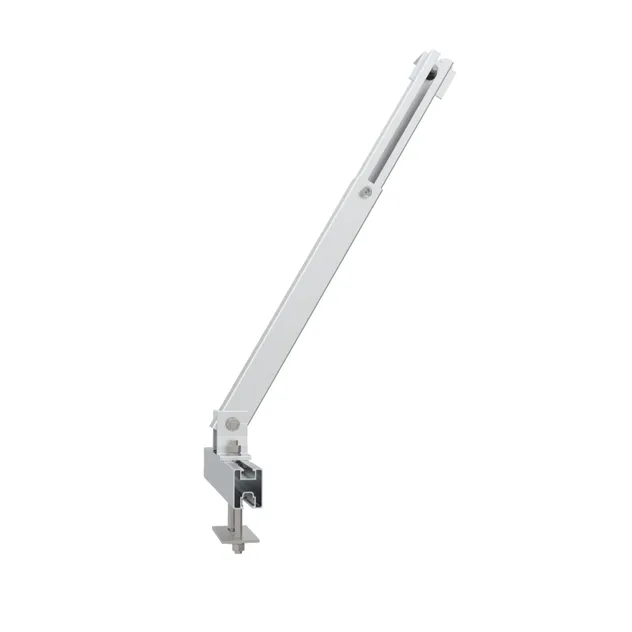

List of Components

Professional Solution Provider

Established in 2018, we are a high-tech enterprise in the renewable energy industry. We provide leading patented technology and efficient services, specializing in the R&D, production, and sales of solar PV mounting systems with independent intellectual property rights.

Advantages & Exhibition

Our Services

Packaging & Shipping

Frequently Asked Questions

Where is your production facility located?

Our manufacturing facility is located in Xiamen, Fujian Province, China, an area known for high-quality aluminum extrusion and solar technology.

Do you provide samples for testing?

Yes, we encourage testing. We offer free samples for our standard roof mounting components.

What is the typical lead time for production?

Standard production usually takes 7 to 15 days. For custom OEM designs, the timeline will be confirmed after engineering review.

Is there a Minimum Order Quantity (MOQ)?

We have no MOQ for our standard components. For OEM or custom-designed products, we discuss minimum requirements during the design phase.

How can I place an order for my project?

Simply provide your project details (roof type, ground, or carport). Our team will provide professional suggestions, a design layout, and a formal quotation.

What is the expected service life of the mounting system?

Our aluminum mounting structures are designed for a service life of up to 25 years, with a 10-year warranty on the materials.
