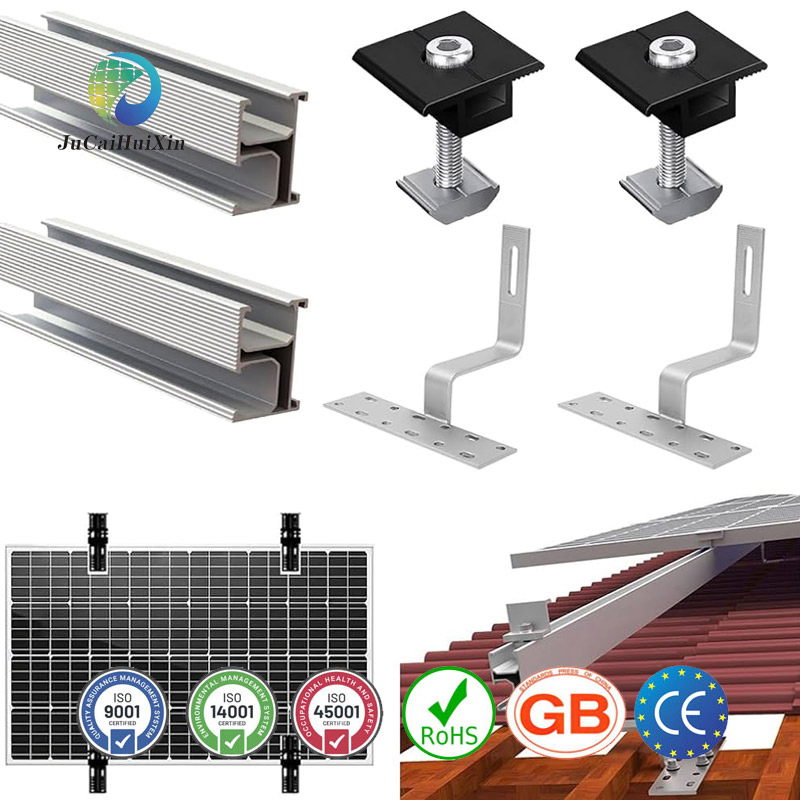

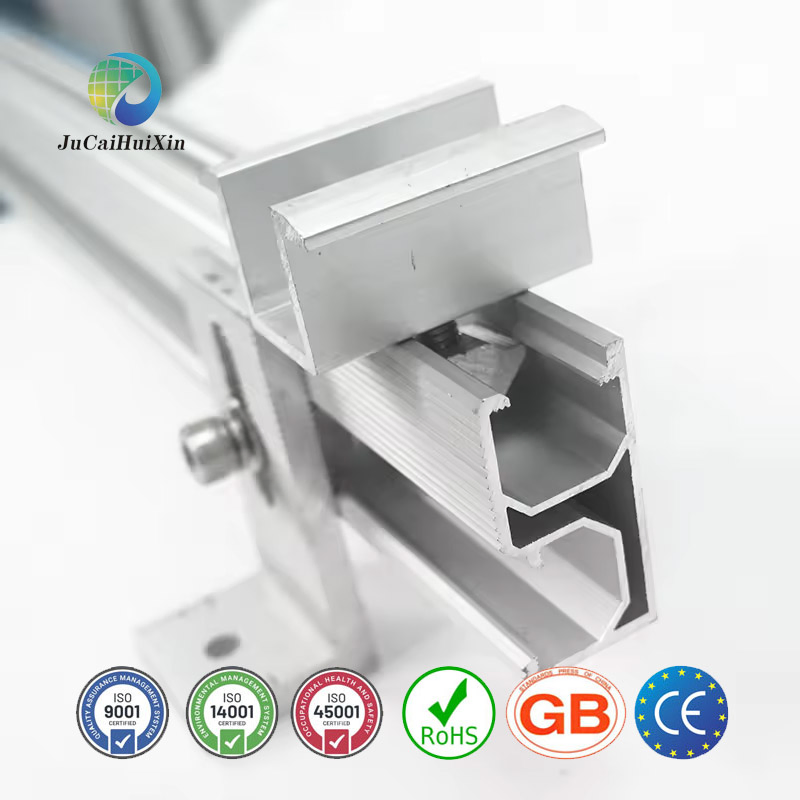

Customizable Aluminum Profile Solar Panel Rail for Roof Solar Mounting System
Customizable Aluminum Profile Solar Panel Rail for Roof Solar Mounting System
Customizable Aluminum Profile Solar Panel Rail for Roof Solar Mounting System
Customizable Aluminum Profile Solar Panel Rail for Roof Solar Mounting System
Customizable Aluminum Profile Solar Panel Rail for Roof Solar Mounting System
1 / 5
Customizable Aluminum Profile Solar Panel Rail for Roof Solar Mounting System
Customizable Aluminum Profile Solar Panel Rail for Roof Solar Mounting System
Customizable Aluminum Profile Solar Panel Rail for Roof Solar Mounting System
Customizable Aluminum Profile Solar Panel Rail for Roof Solar Mounting System
Customizable Aluminum Profile Solar Panel Rail for Roof Solar Mounting System

Customizable Aluminum Profile Solar Panel Rail for Roof Solar Mounting System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
AL solar rail-006
Certification
GB, ISO, CE, RoHS
Application
Home / Commercial
Material
Aluminum Alloy
Type
Solar Part
Coating
Anodic Oxidation
Grade
6005, etc.
Wind Load
0-60m/S
Snow Load
0-3kN/M²
Waterproof Grade
IP68
Production Capacity
100,000 Tons / Year

Product Description

MaterialAluminum alloy Grade6005, etc
Wall Thickness1.5-2.5mm Weight/Piece11.7-15.4 kg
Surface TreatmentAnodic oxidation Service LifeOver 25 years
Annual Capacity1,000,000 Tons/year Delivery Time3-45 Days
Corrosion ResistanceVery strong OEM/ODMAccepted

Customizable Aluminum Solar Panel Rail System For Residential & Commercial Projects

The Solar Panel Rail System is the core supporting component of photovoltaic systems, made of high-strength aluminum alloy (Al6005-T5). With a surface treated by anodizing (12-15 μm), it provides excellent corrosion resistance (4800 hours of salt spray testing). The guide rail design is compatible with metal roofs, tile surfaces, and ground installations, supporting single axis/dual axis tracking systems.

Key Advantages

✔
Highly Corrosion-Resistant: Excellent weather and fatigue resistance. It can resist external forces such as wind, snow, and earthquakes, ensuring the safety of solar modules in harsh weather conditions.
✔
High Structural Strength and Stability: The system features sufficient structural stability to resist the impact of seismic activities and extreme wind or snow loads.
Solar Rail 1

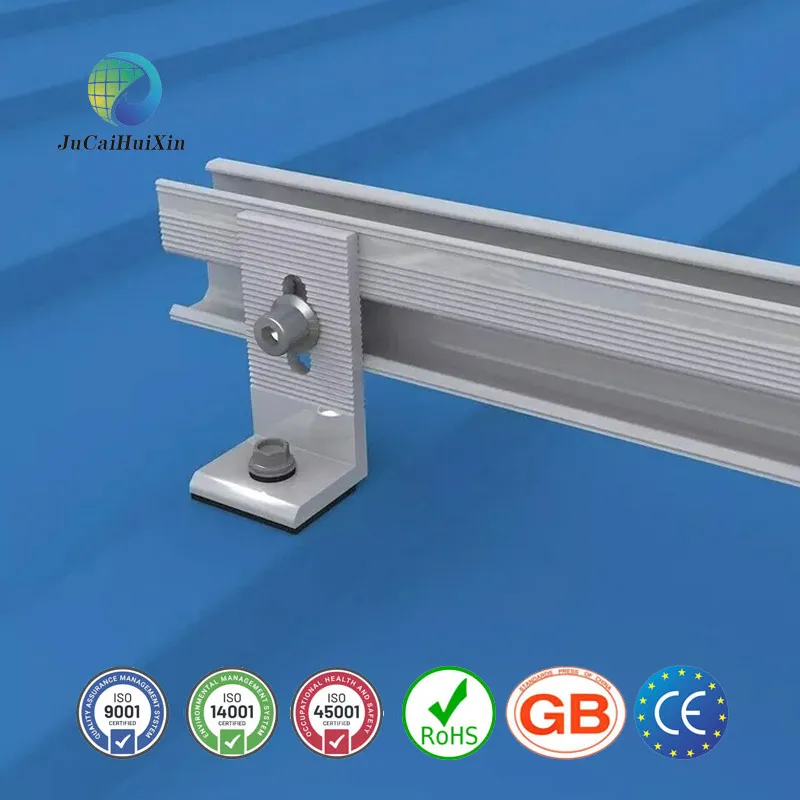

Solar Rail 2

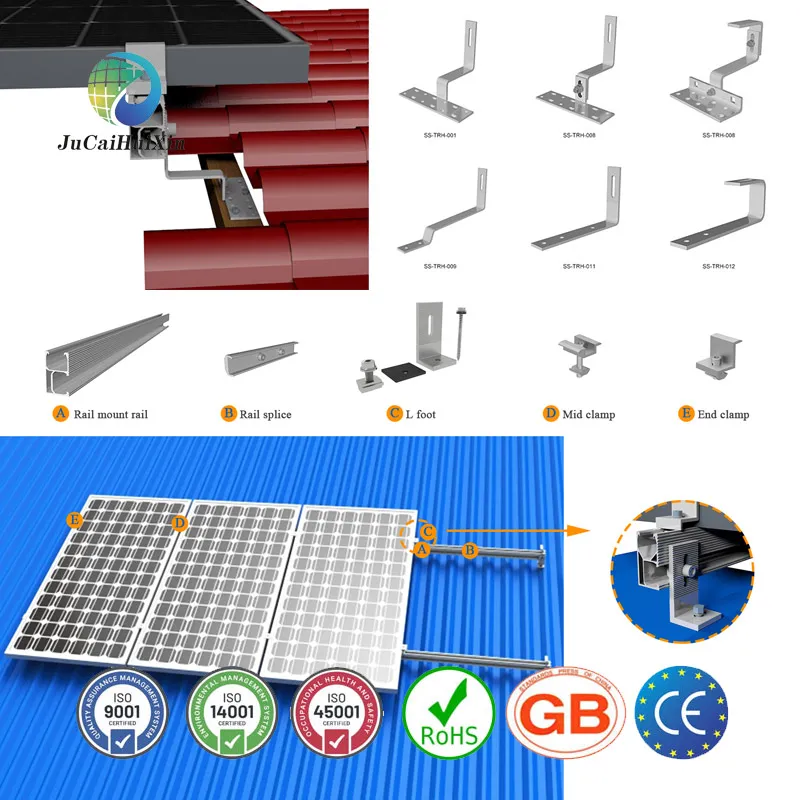

Solar Rail 3

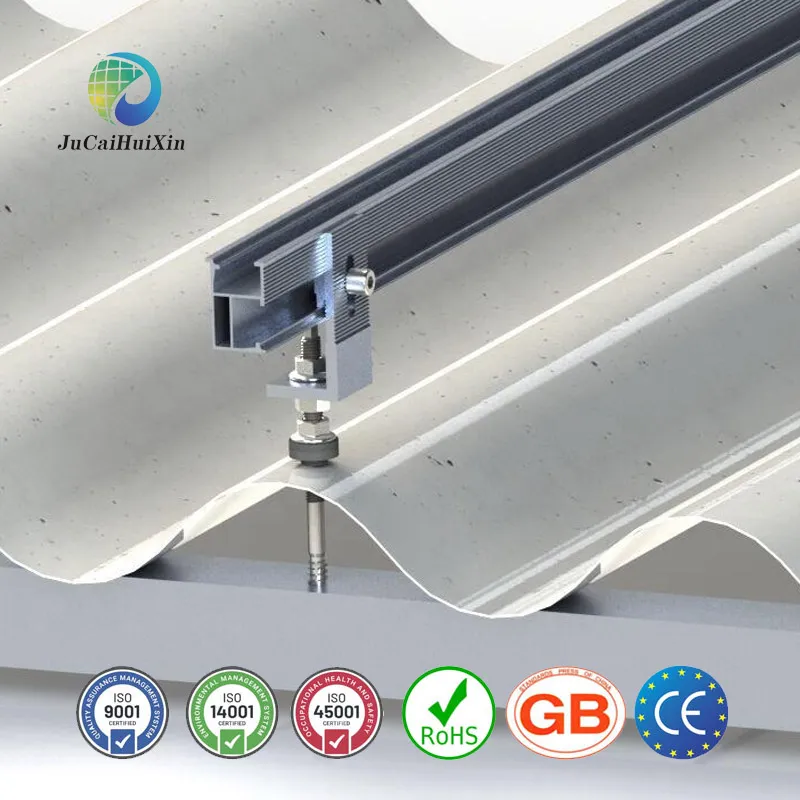

Solar Rail 4

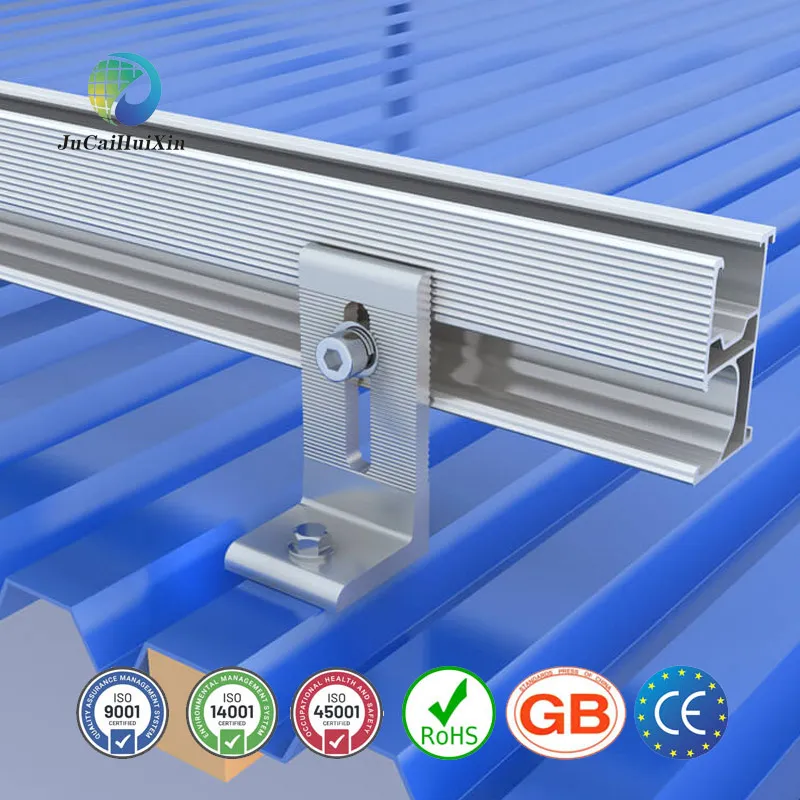

Solar Rail 5
Solar Rail 6

Certifications

Certifications

Manufacturing Excellence

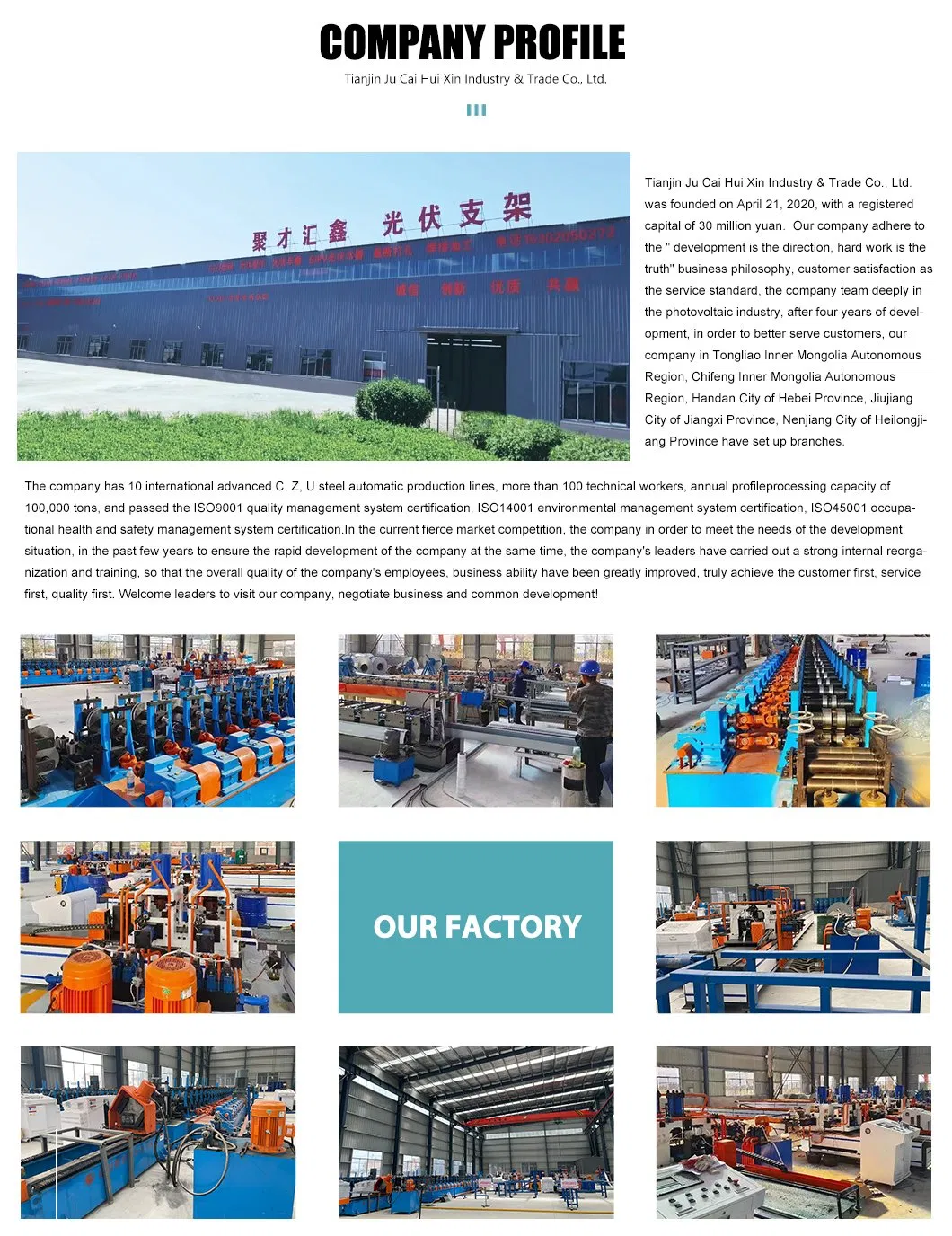

Factory Overview

Global Expert in Intelligent Photovoltaic Bracket Manufacturing

★ 10,000 square meter Intelligent Manufacturing Base.
★ 10 advanced automated production lines, 200,000 tons annual profile output.
★ Global authoritative certifications including ISO triple system, CE, and Rohs.
Production Line

Product Scenarios

  • Hot-dip Galvanized Series: Protecting power stations for over 25 years.
  • Zinc-Aluminum-Magnesium Series: Self-repairing technology for harsh environments.
  • Aviation Aluminum Series: Lightweight and high-strength for rooftop projects.
  • Single-axis Tracking System: Increases power generation by 30%.
Project Display

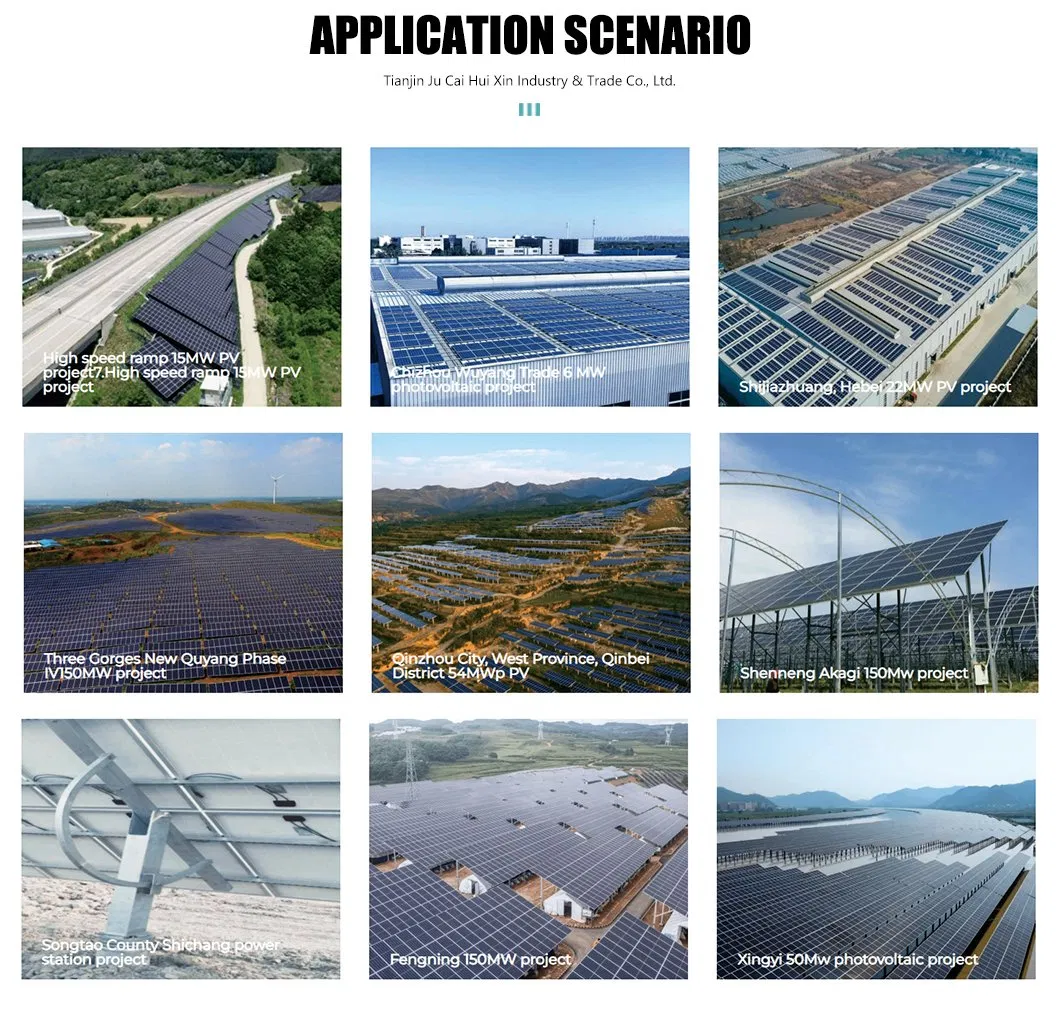

Global Project References

Project 1
Project 2
Project 3
Project 4

Five-Star Service

🚀 1v1 Exclusive Butler: Full escort from design to installation guidance.
🚀 24-hour Response: Uninterrupted global time zone support.

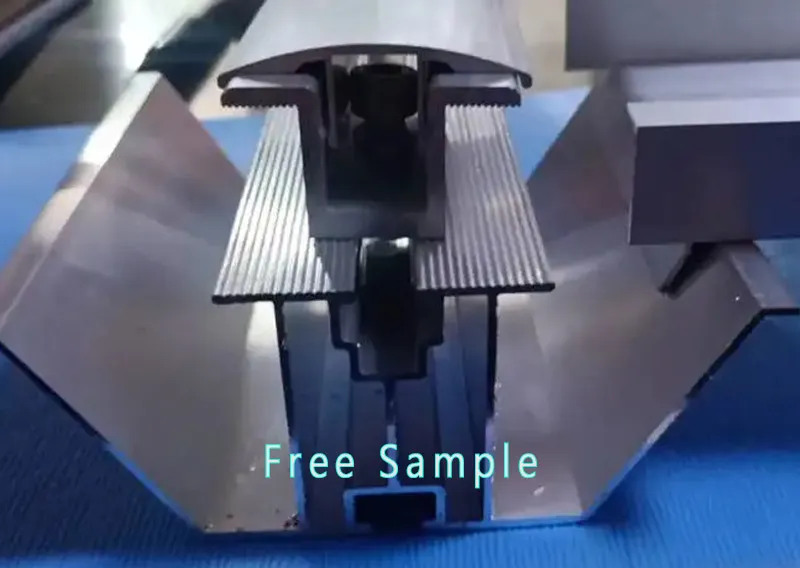

🚀 Free Design: Professional 3D modeling and sample experience.

Frequently Asked Questions

Q1: Do you need professional tools to cut the solar rail? A: The standard guide rail can be cut on-site. We recommend using tungsten steel saw blades. For precision, we offer pre-cutting services for bulk orders.
Q2: Can it be used for asphalt tile roofs? A: Yes, a dedicated Tile Roof Hook is required to avoid penetrating the waterproof layer. We suggest a load of ≤ 20kg/m² and spacing ≤ 0.8 meters.
Q3: How to enhance load-bearing capacity in snow disaster areas? A: We recommend upgrading to thickened guide rails (wall thickness ≥ 2.5mm) or reducing the bracket spacing to ≤ 1 meter for added stability.
Q4: What does the warranty cover? A: The 10-year warranty covers material and process defects. Human-induced damage is not covered but parts can be replaced at cost.
Q5: Do you offer galvanized steel material options? A: We support customization of Q235B galvanized steel guide rails, though aluminum alloy is recommended due to its superior weight-to-strength ratio.
Q6: Are the solar rails compatible with different panel sizes? A: Yes, the universal design and adjustable clamps ensure compatibility with most mainstream solar panels on the market.
