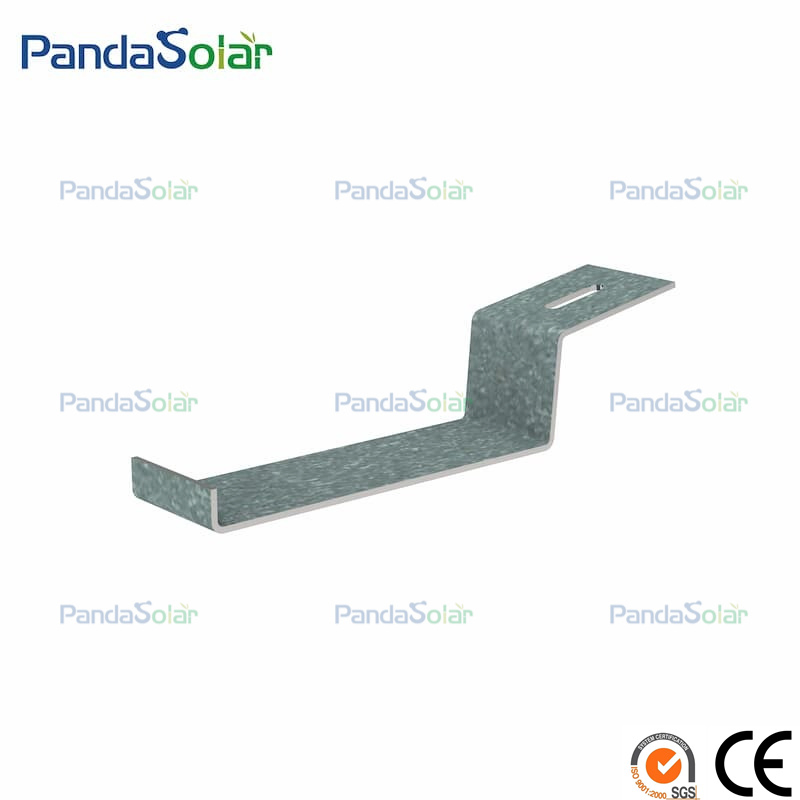

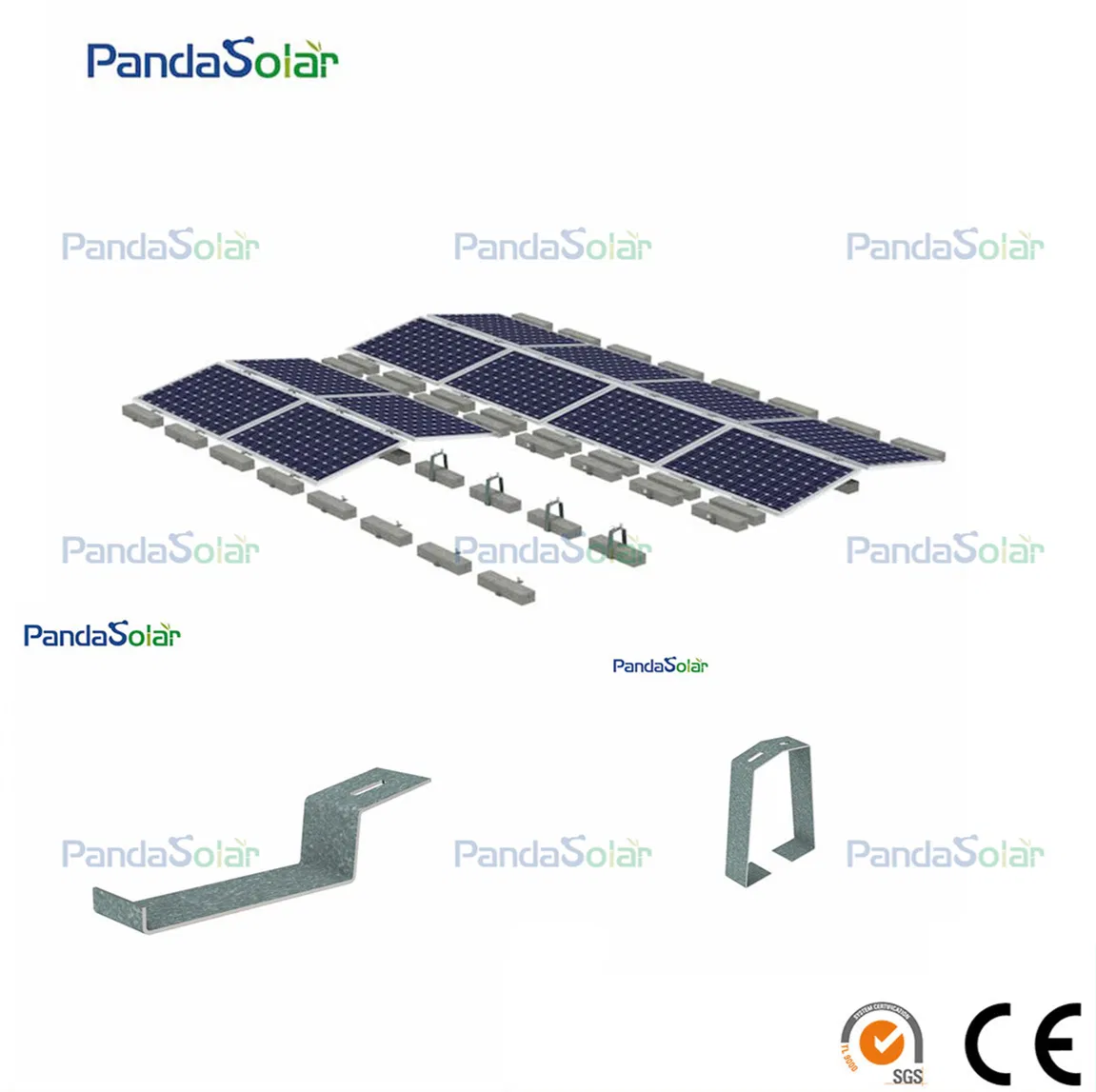

Custom Concrete Steel Solar Ballasted Brackets Flat Roof Mounting System Installed Easily

Basic Information

Model NO.

PD-BS-ST

Certification

CE

Application

Home / Commercial

Material

Steel (Mg-Al-Zn)

Type

Roof Ballast Bracket

Wind Speed

60m/S

Snow Load

1.4kn/M2

Lead Time

7-15 Days

HS Code

76109000

Standard

AS/NZS1170/Jisc8955:2017

Product Description

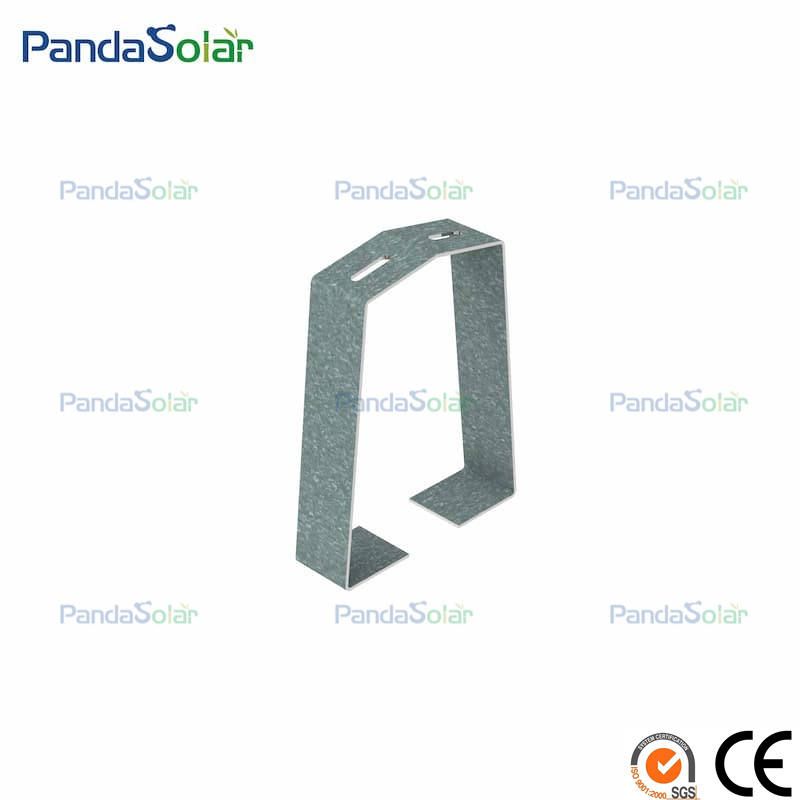

Solar Roof Mounting Bracket Magnesium-Aluminum-Zinc Q235B Solar Ballasted System:

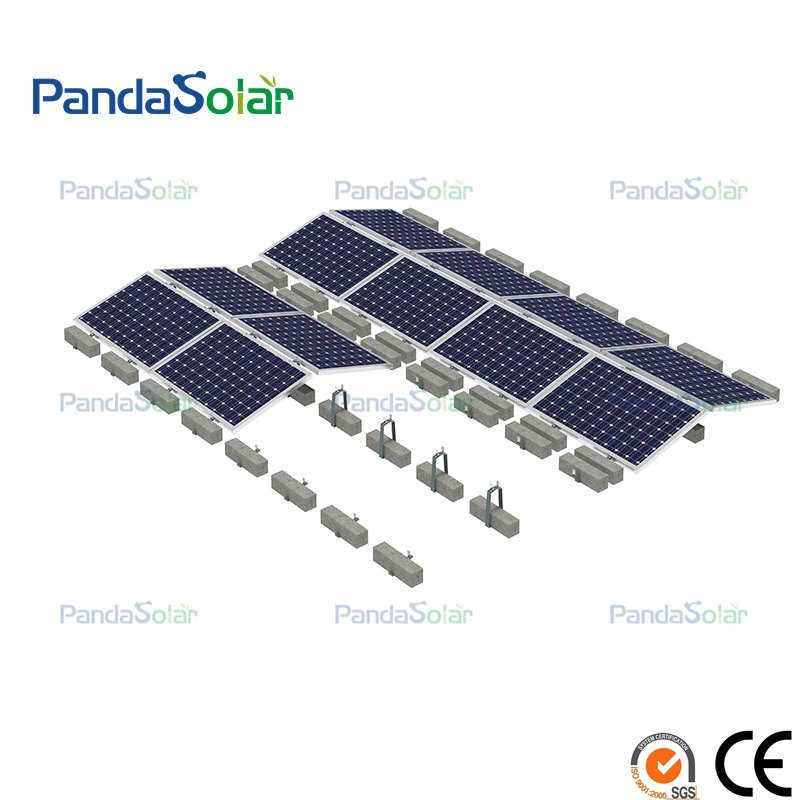

The solar front/rear leg system is made of high-quality steel, specifically designed for solar flat roof mounting. This Magnesium-Aluminum-Zinc Solar Mounting Kit requires no drilling, utilizing a cement pier foundation. It offers a flexible solution for mounting solar panels without direction limitations. The integrated wind deflector design enhances structural stability, allowing it to adapt to high wind speeds on rooftops. The entire structure is simplified for rapid and easy assembly.

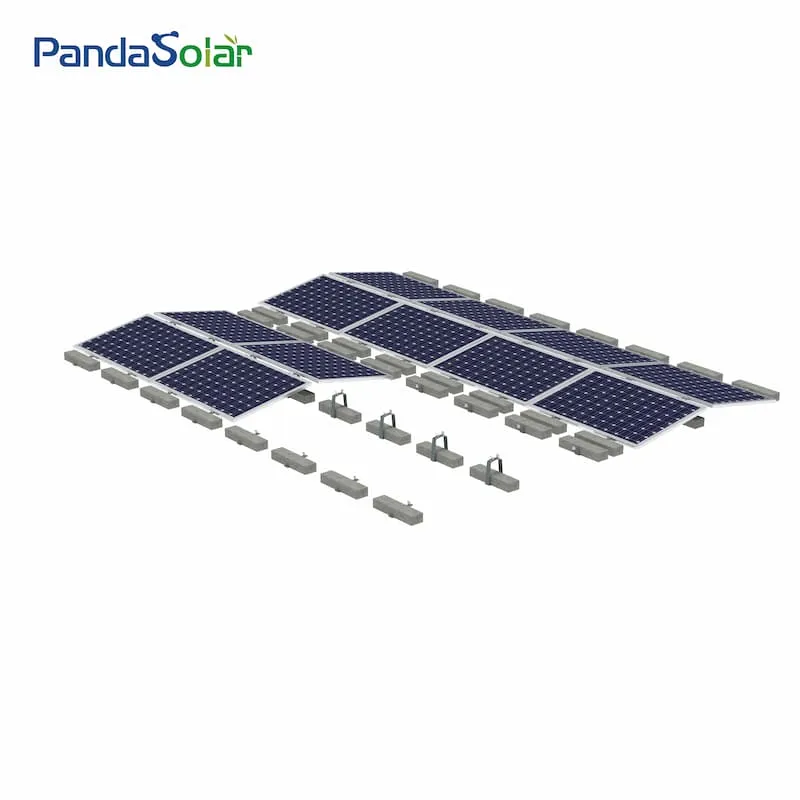

🛠️ Installation Method

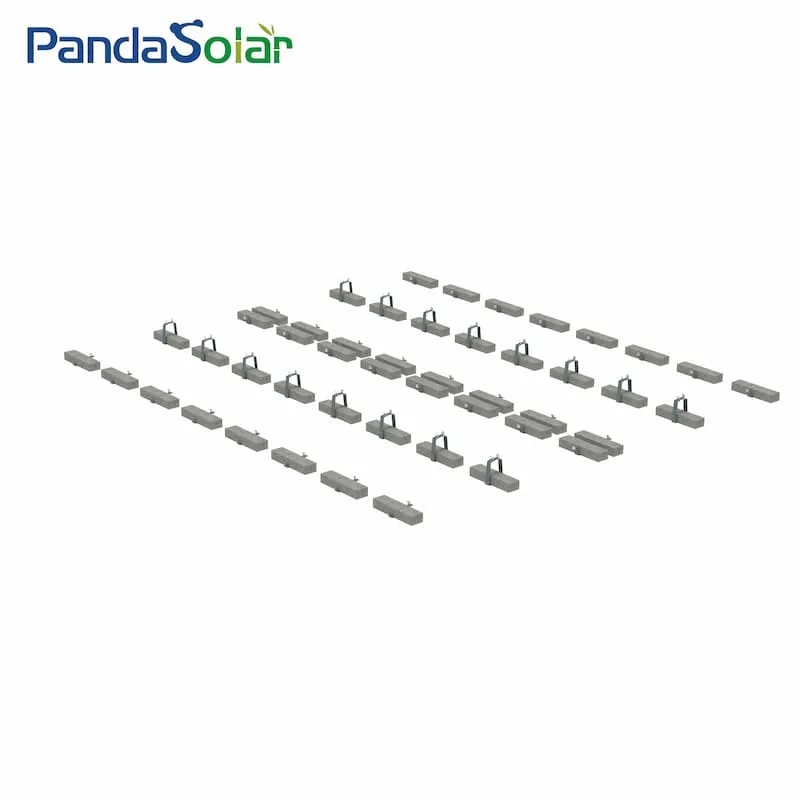

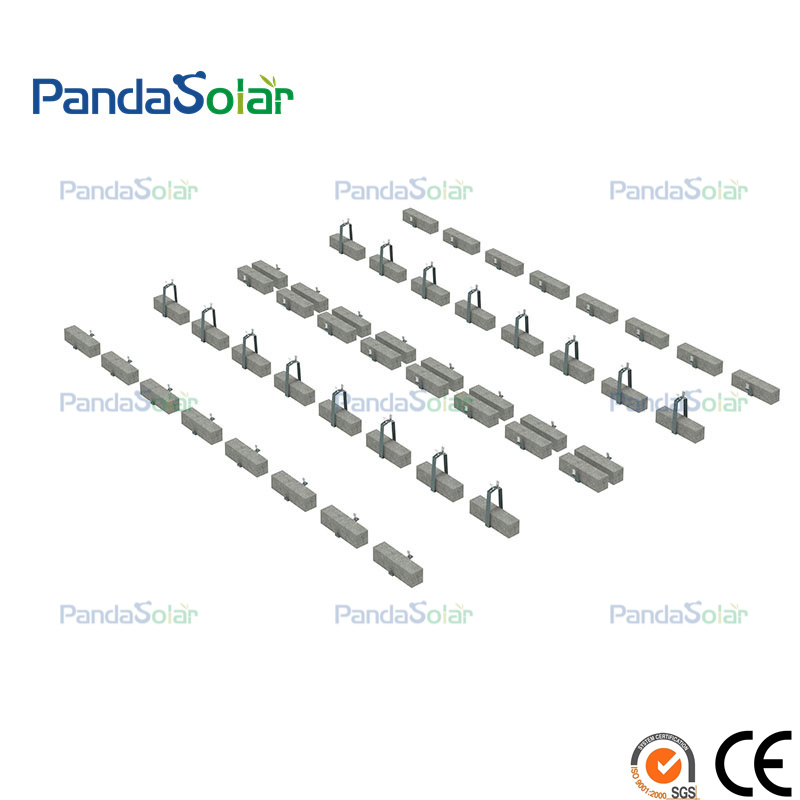

1. Place the corresponding weight of cement piers on the flat roof according to wind speed and snow load. Fix the front and rear legs to the piers.

2. Secure the solar panels to the Ballast Mounting System using professional solar end clamps and middle clamps.

🚀 Our Advantages

Highly pre-assembled for fast installation
Great flexibility to accommodate different designs
Long service life with high-quality materials
OEM services accepted
Long strip holes on top for precise height adjustment

Product Parameters

Parameter	Details
Material	Structure: Mg-Al-Zn Steel; Components: SUS304 & AI6005-5 (Anodized)
Application	Commercial and Residential Installation
Tilt Angle	0 - 60°
Wind Speed	0 - 60 m/s
Snow Load	0 - 150 cm
Design Standard	AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009
Warranty	12 Years

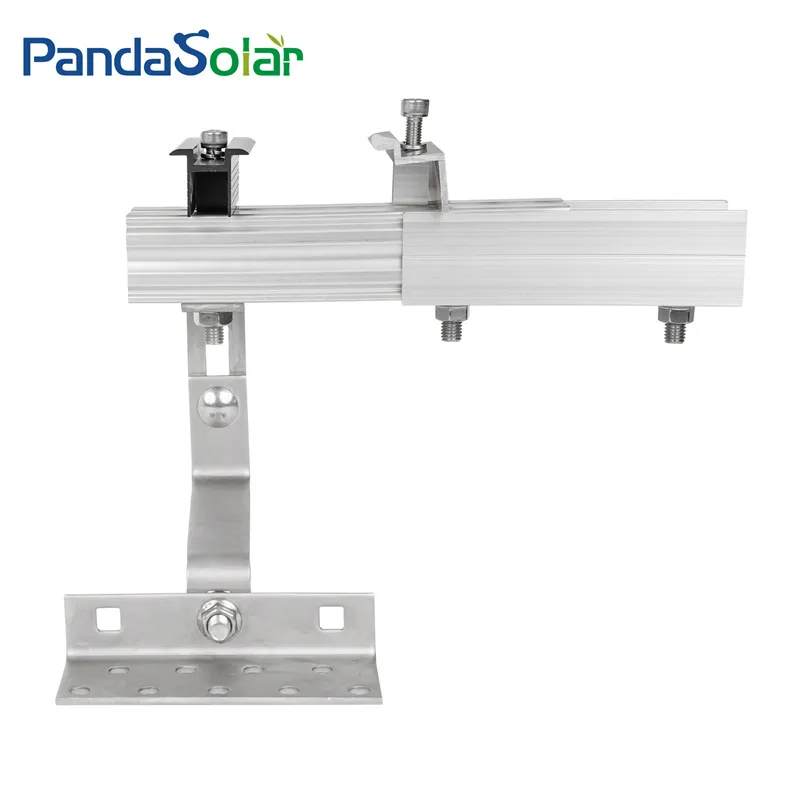

Other Related Products

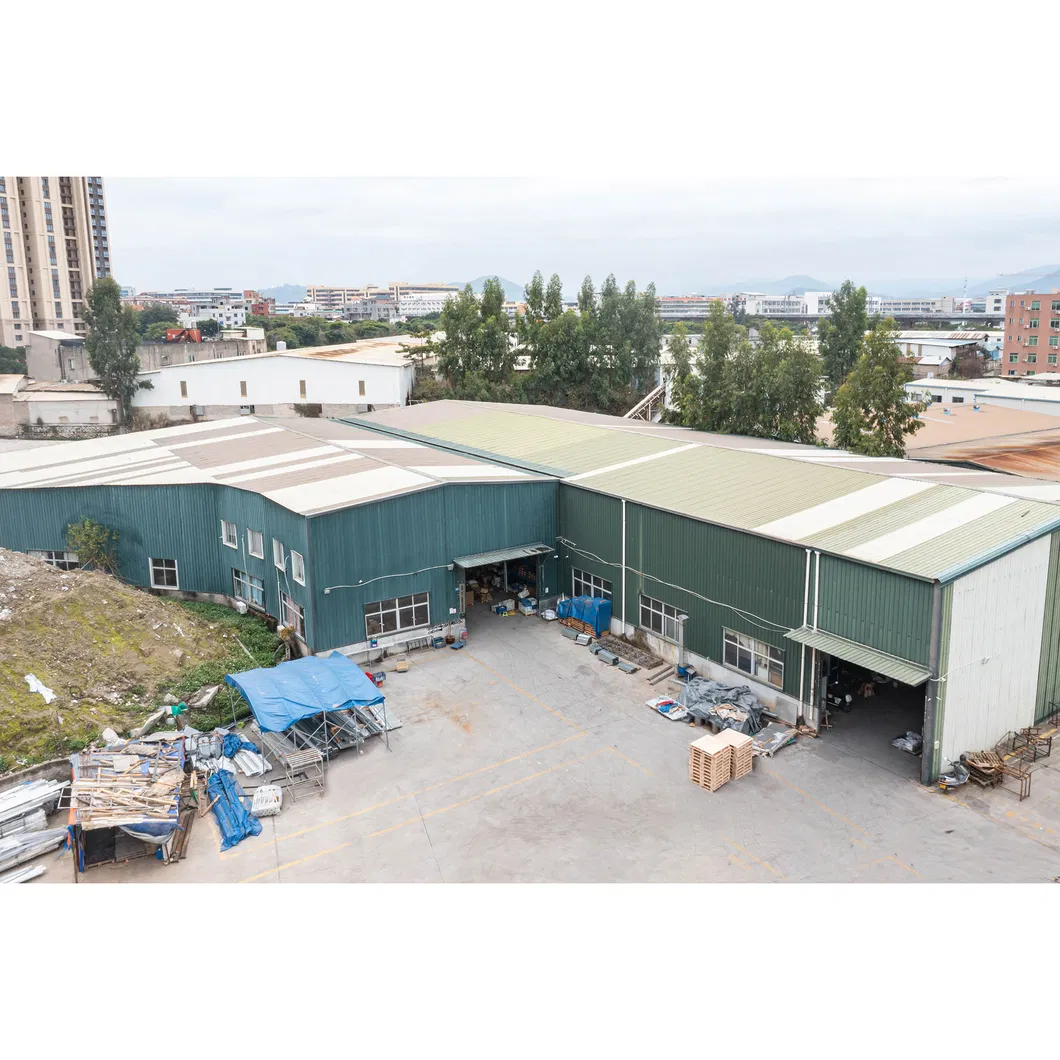

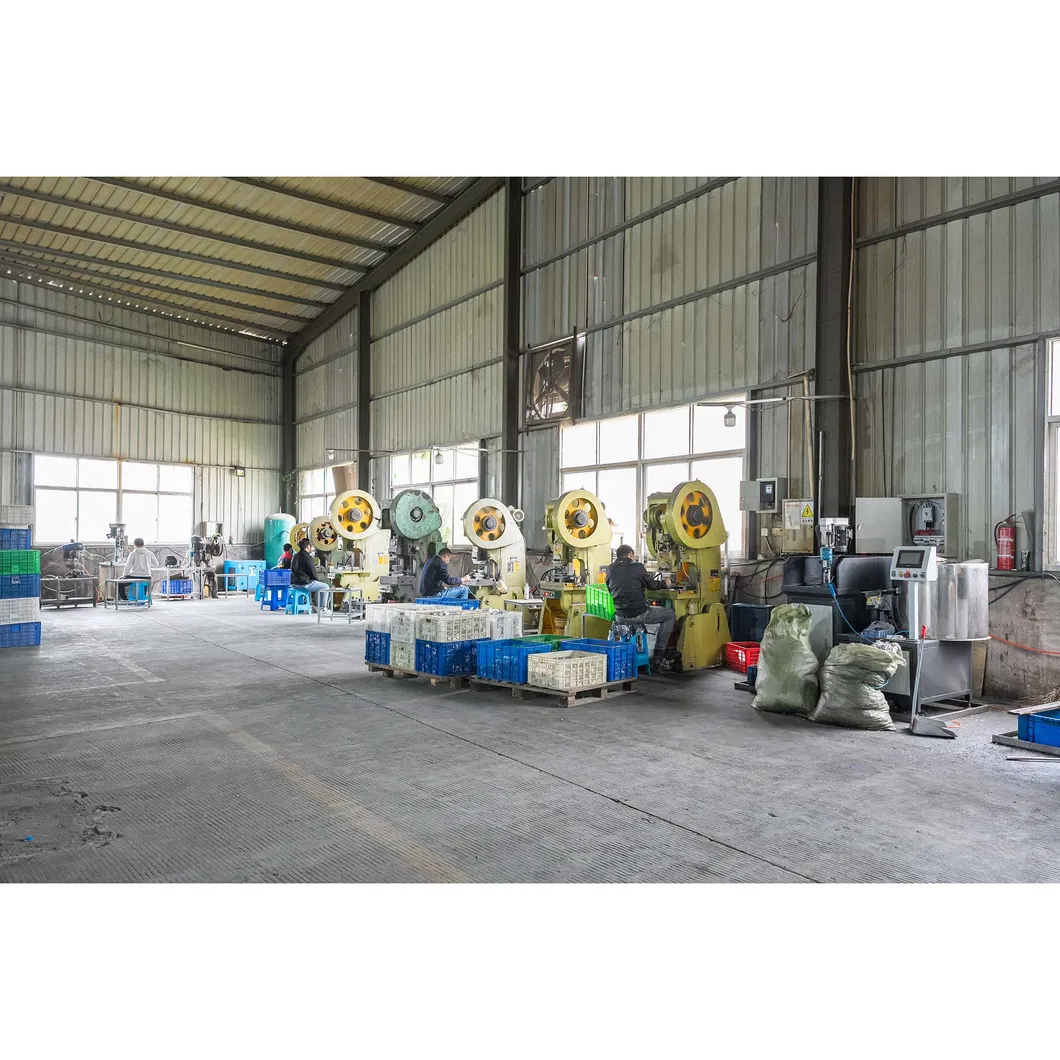

Factory & Workshop

Clean energy mounting systems are developed with professional design and sales expertise. Systems include Solar Ground, Greenhouse, Tile Roof, Metal Roof, and Carport mounting solutions.

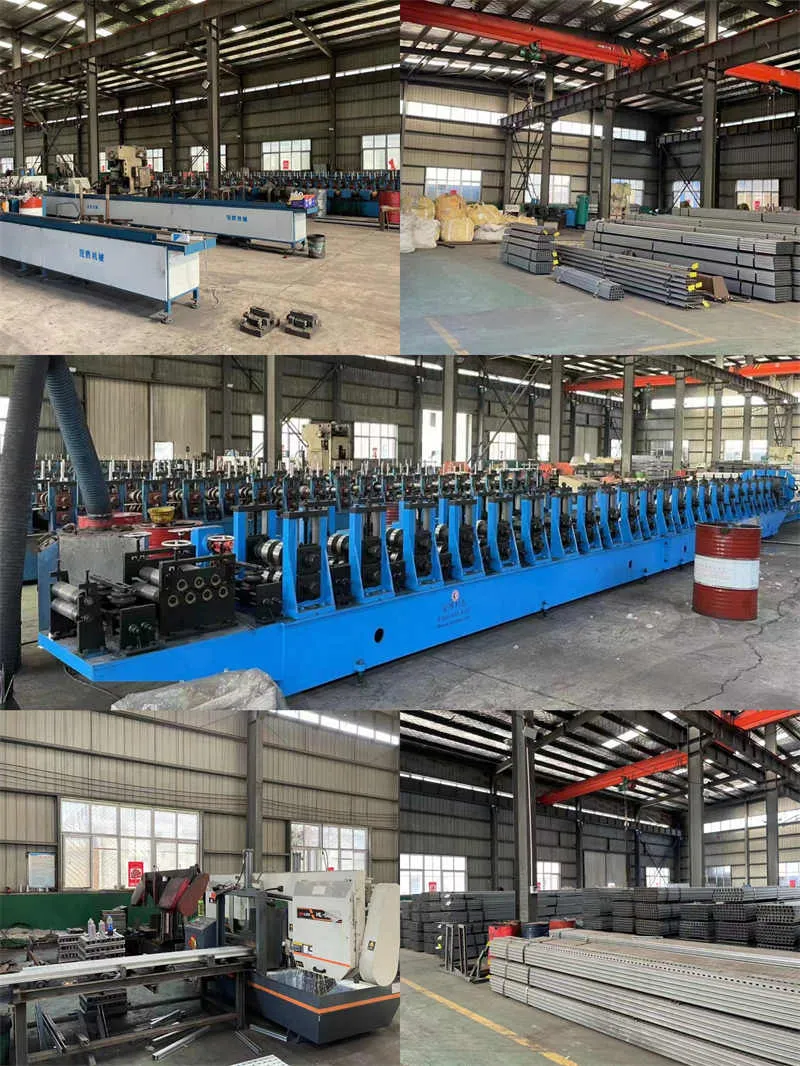

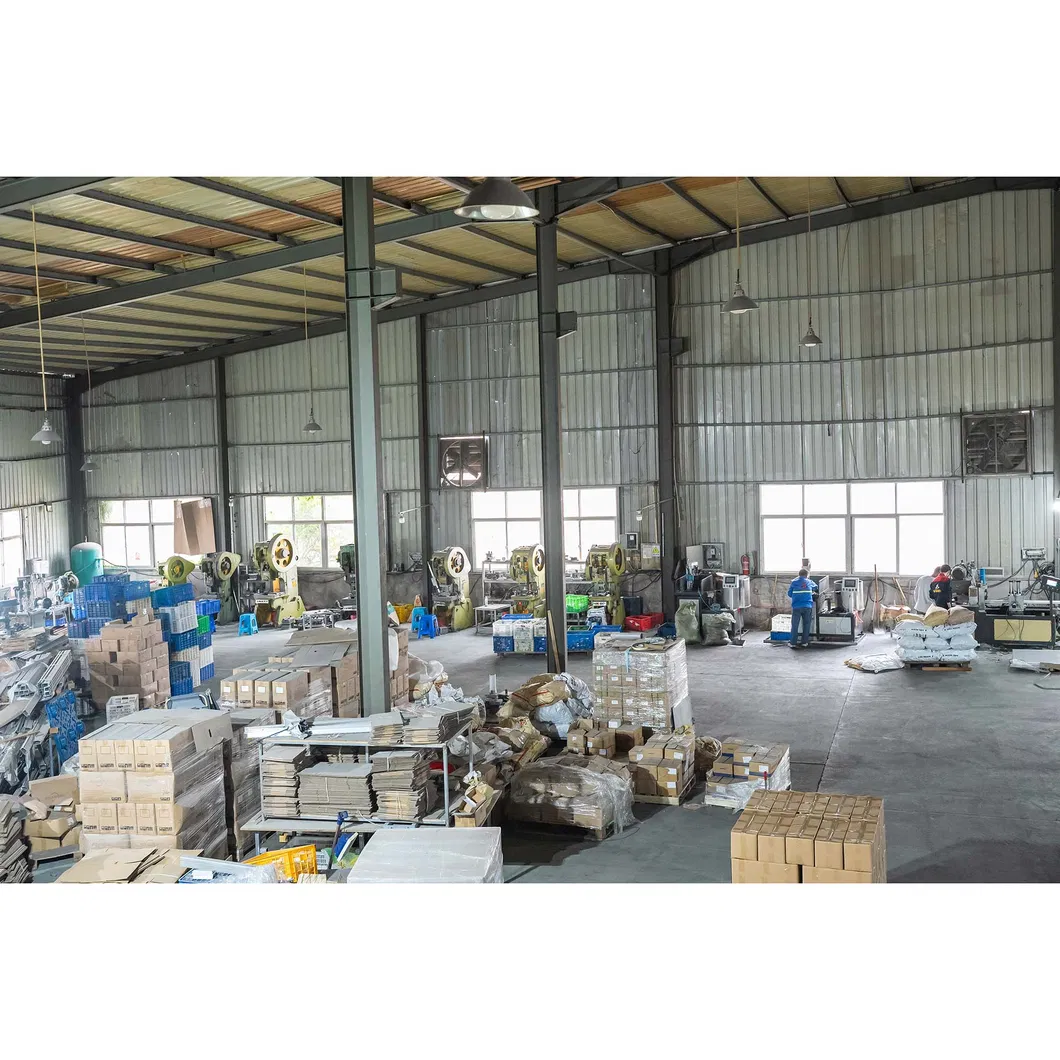

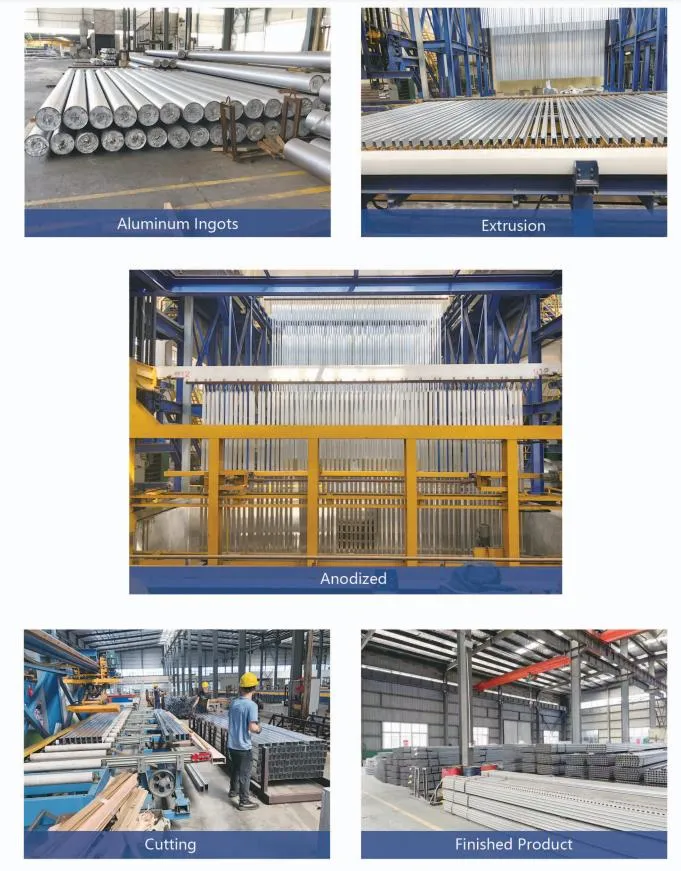

Aluminum & Steel Processing

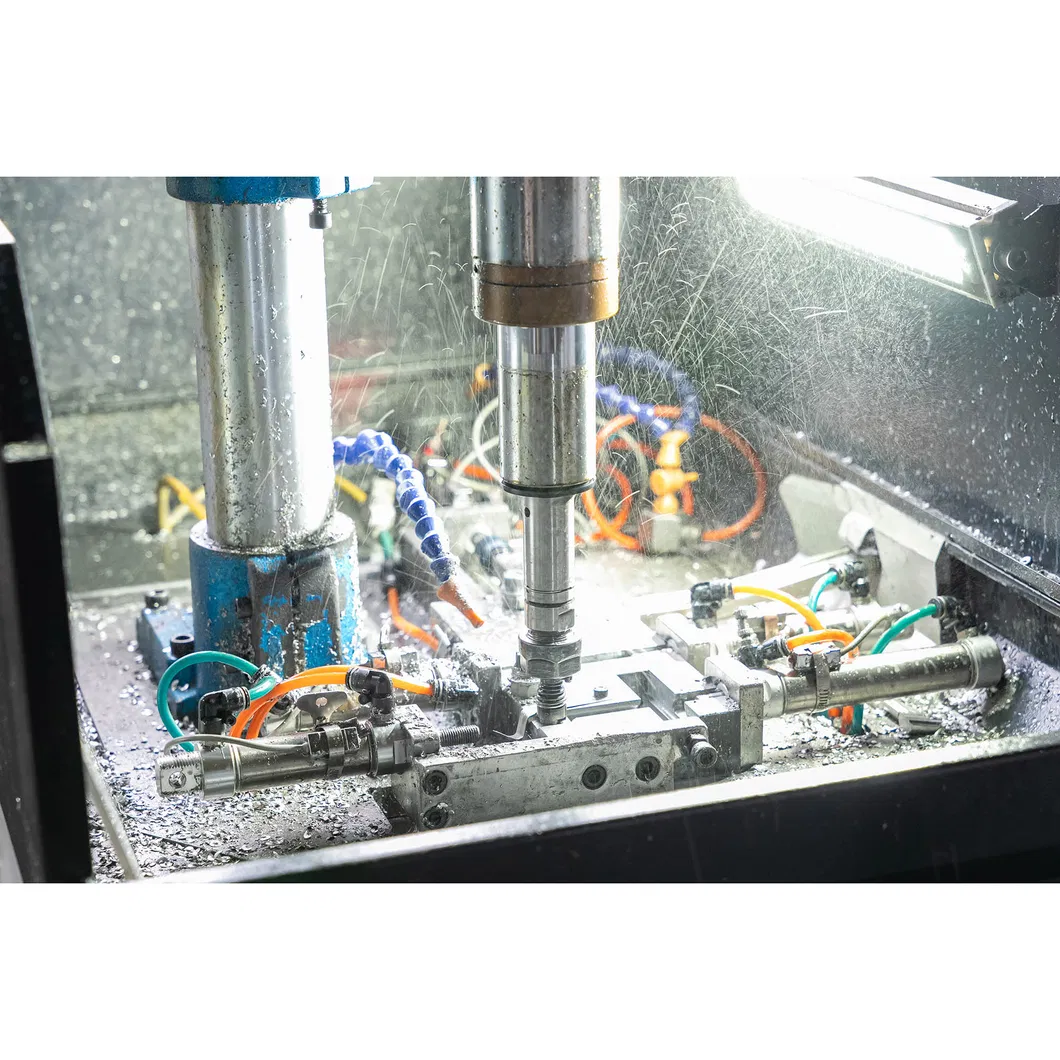

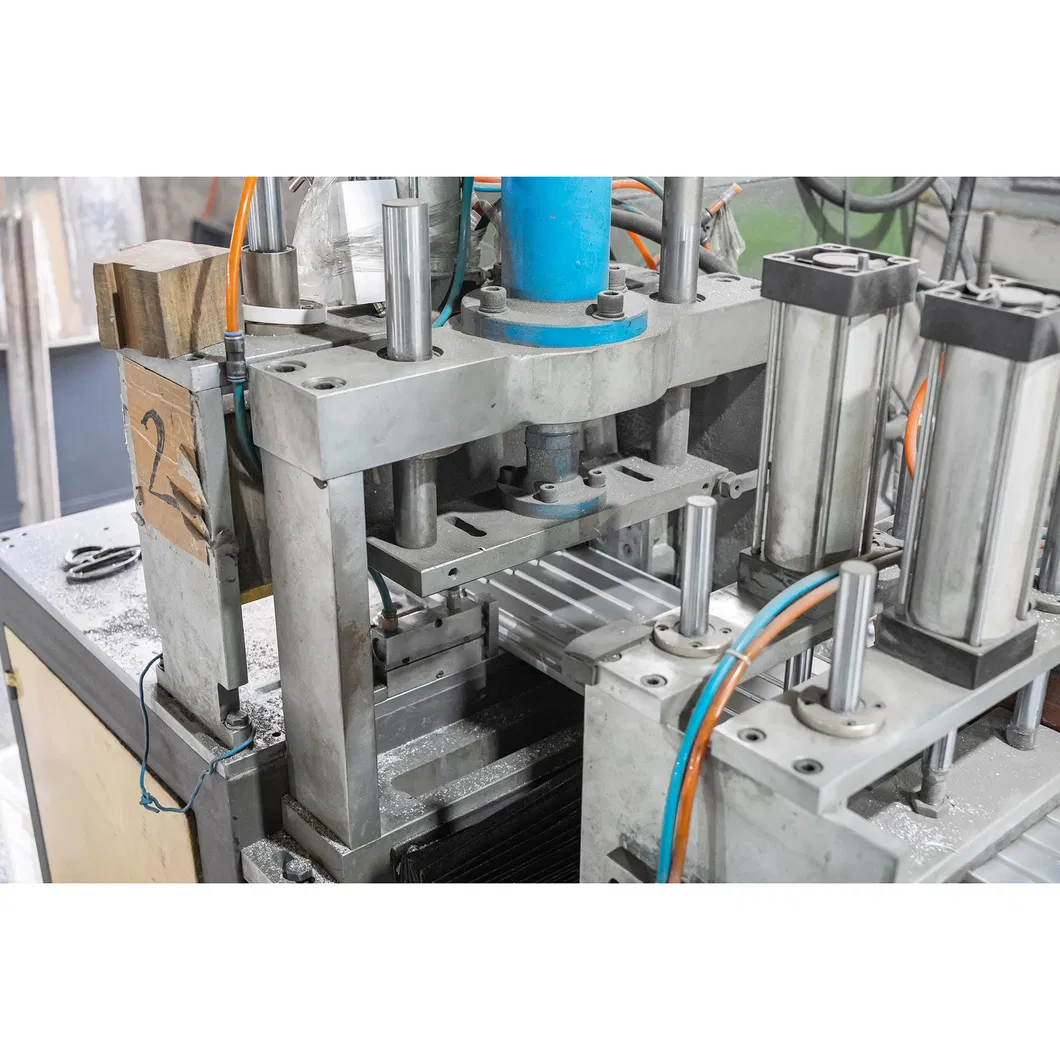

Aluminum Material Workshop: Independent processing including cutting, drilling, stamping, and forging for high customization requirements.

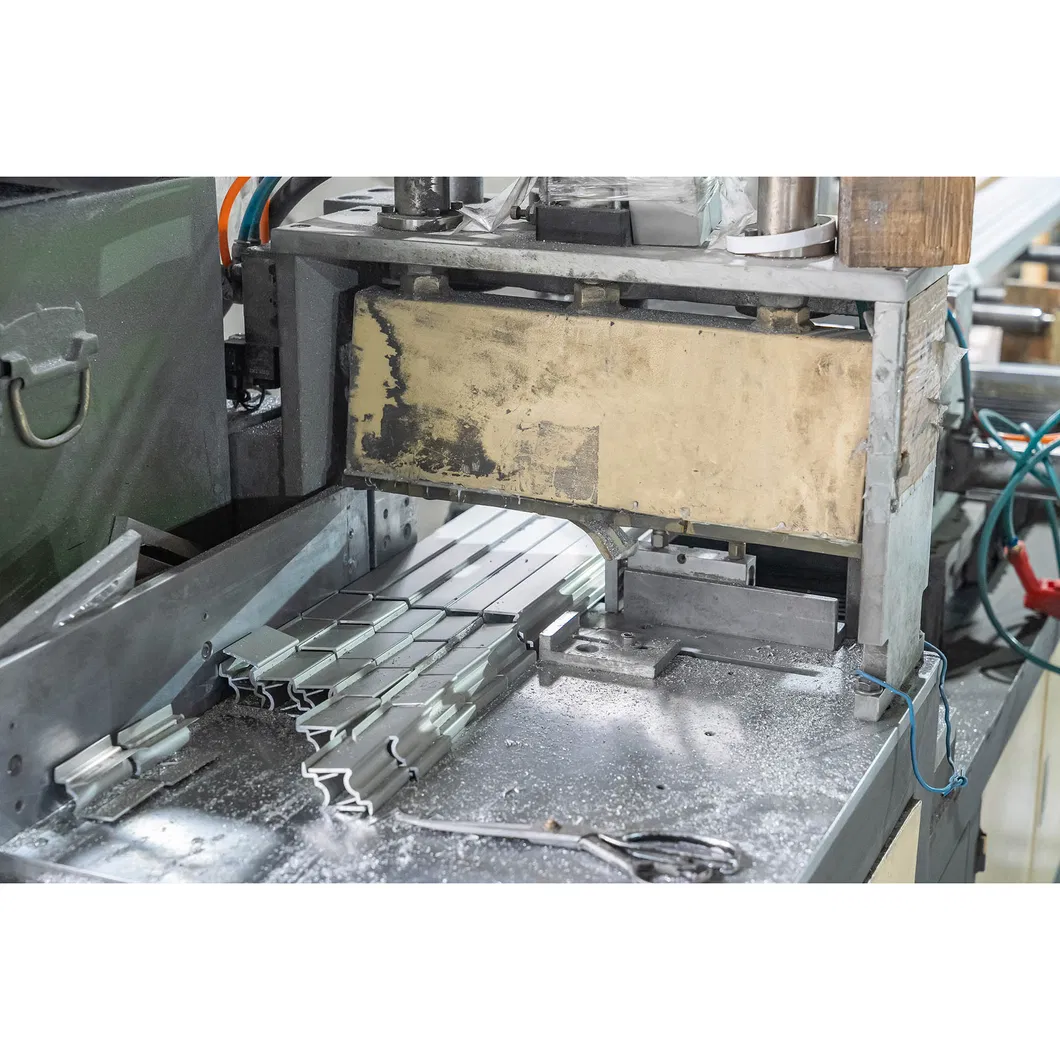

Steel Material Workshop: Features 6 production lines for Steel, Magnesium-Aluminum-Zinc, S350GD, and S450GD with a capacity of 40-50MW per month.

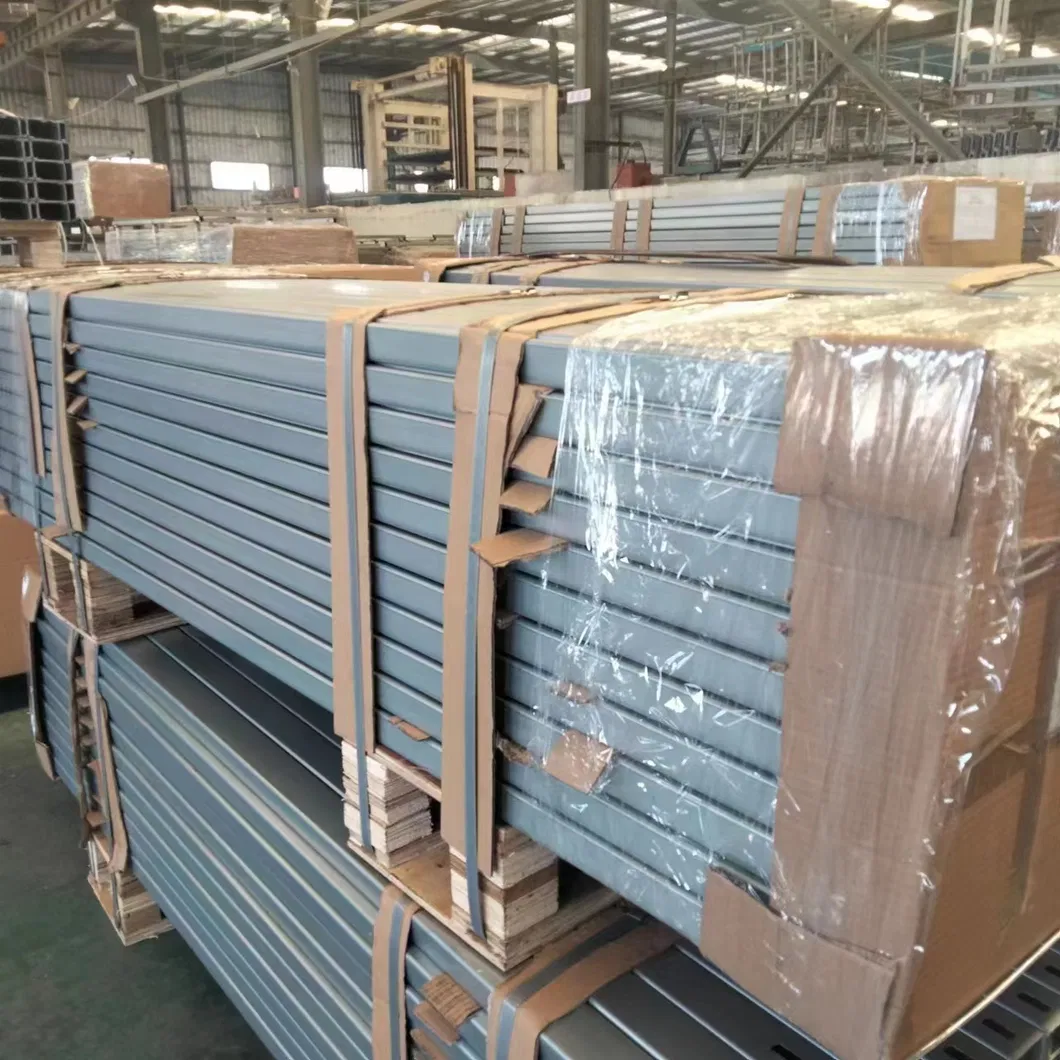

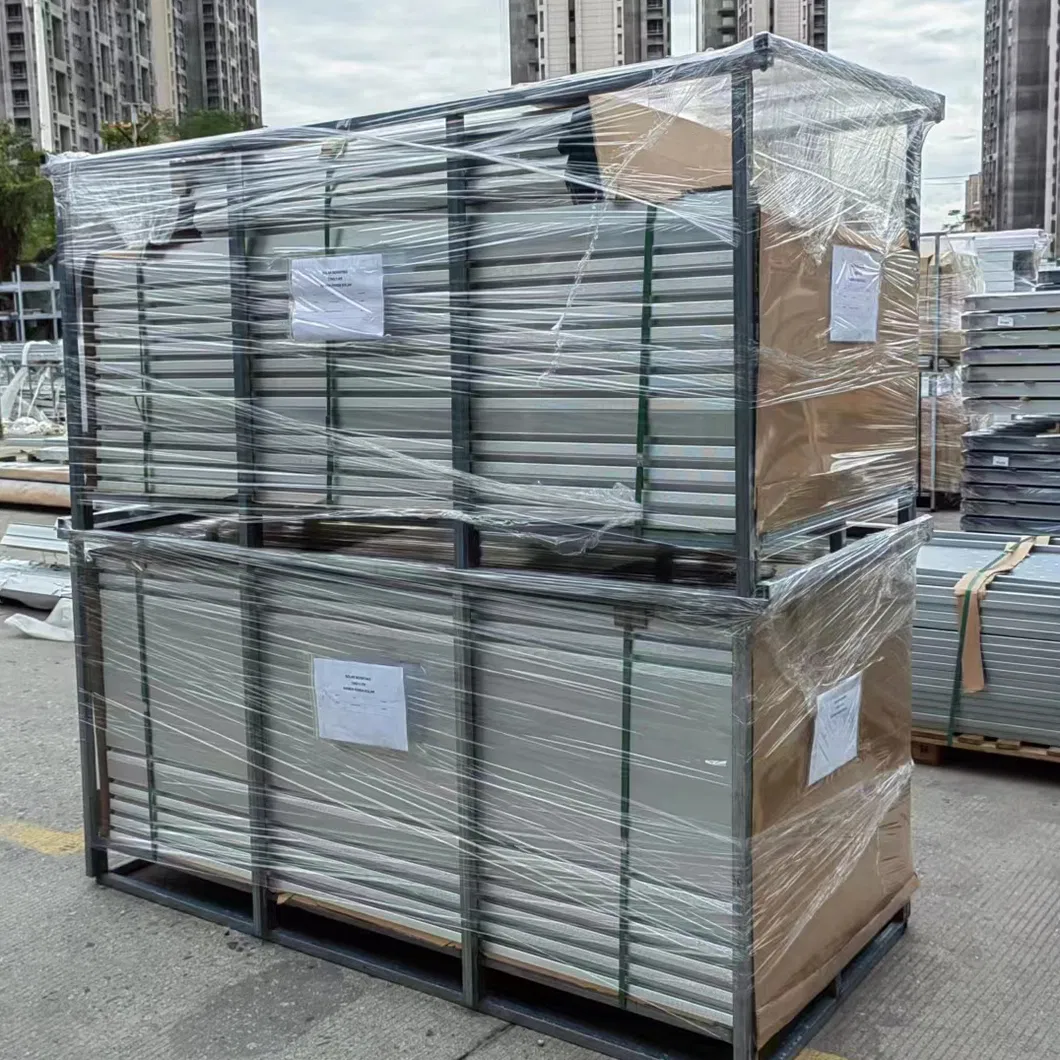

Packaging & Shipping

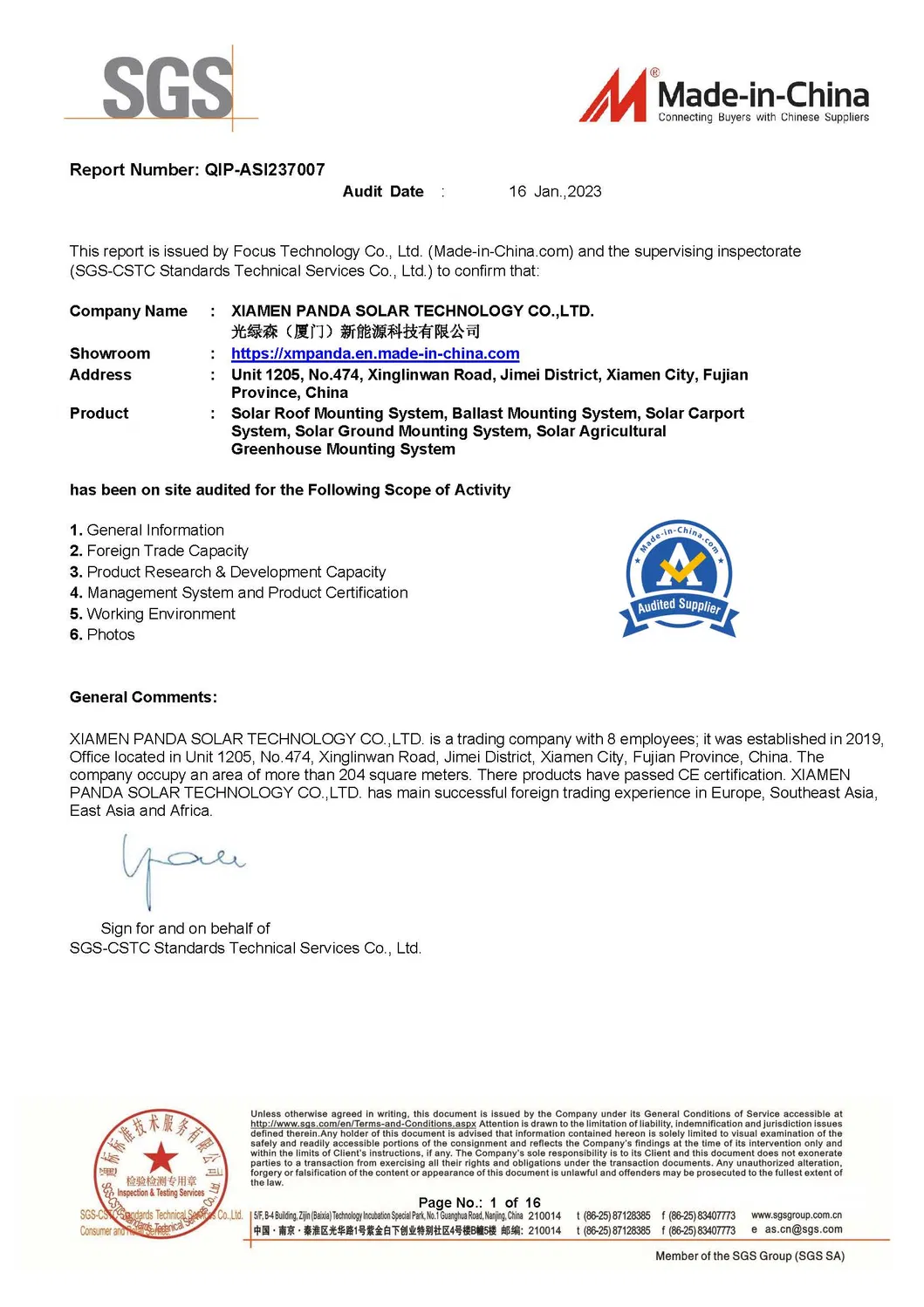

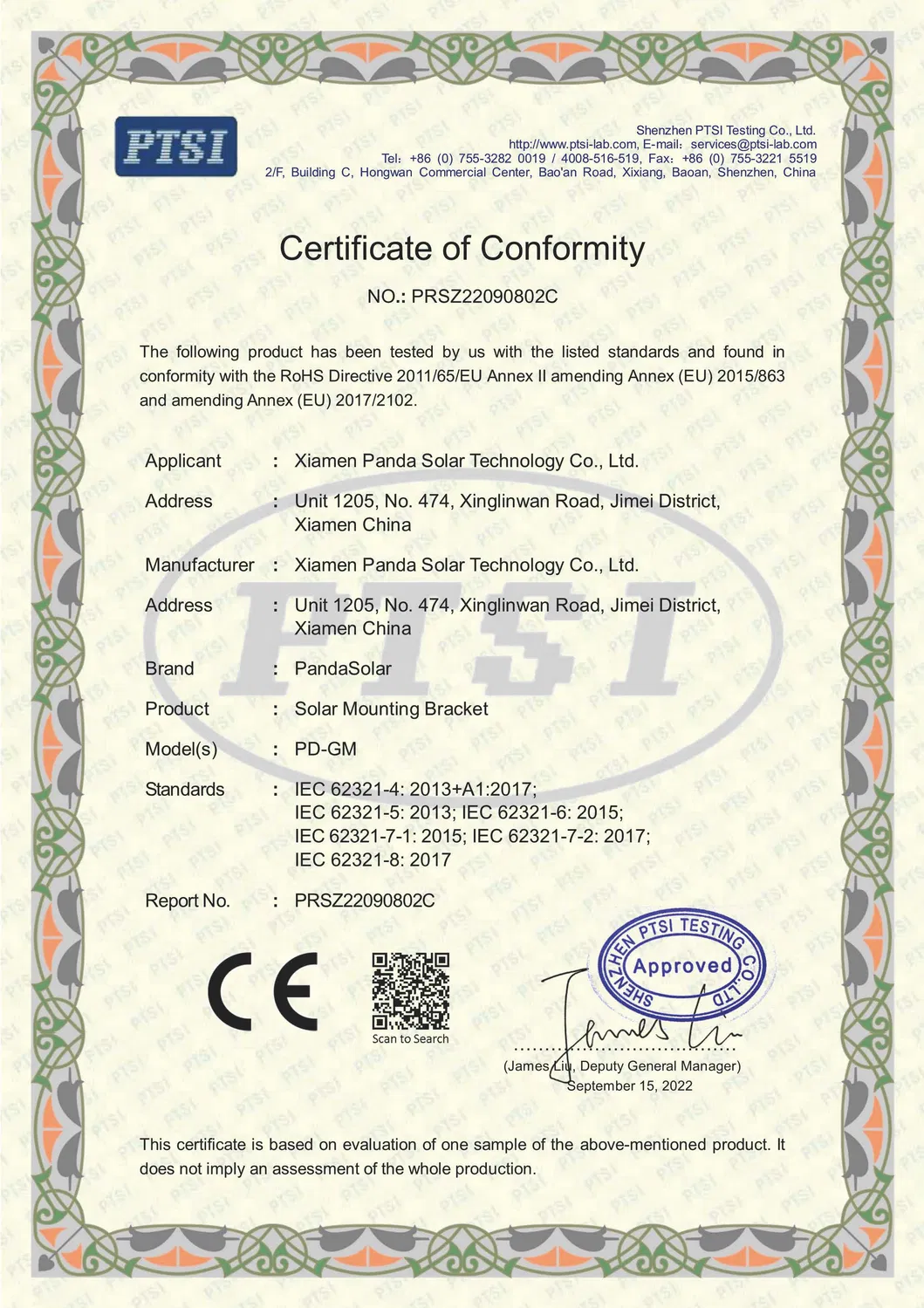

Certifications

Frequently Asked Questions

Q1: What is your typical delivery time?

A: Our standard delivery time is approximately 7-15 days depending on the order volume.

Q2: Can you provide samples for testing?

A: Yes, we provide free samples for your testing and quality verification.

Q3: Are you a direct manufacturer?

A: Yes, we are a manufacturer with over 12 years of professional production experience in solar mounting systems.

Q4: Do you offer OEM services?

A: Yes, we accept and offer full OEM services to meet your specific project requirements.

Q5: What is the warranty period for your mounting systems?

A: We provide a 12-year warranty on our solar mounting structures.

Q6: What materials are used for the ballast system?

A: The system uses high-strength Magnesium-Aluminum-Zinc Steel and SUS304 stainless steel components for maximum corrosion resistance.
