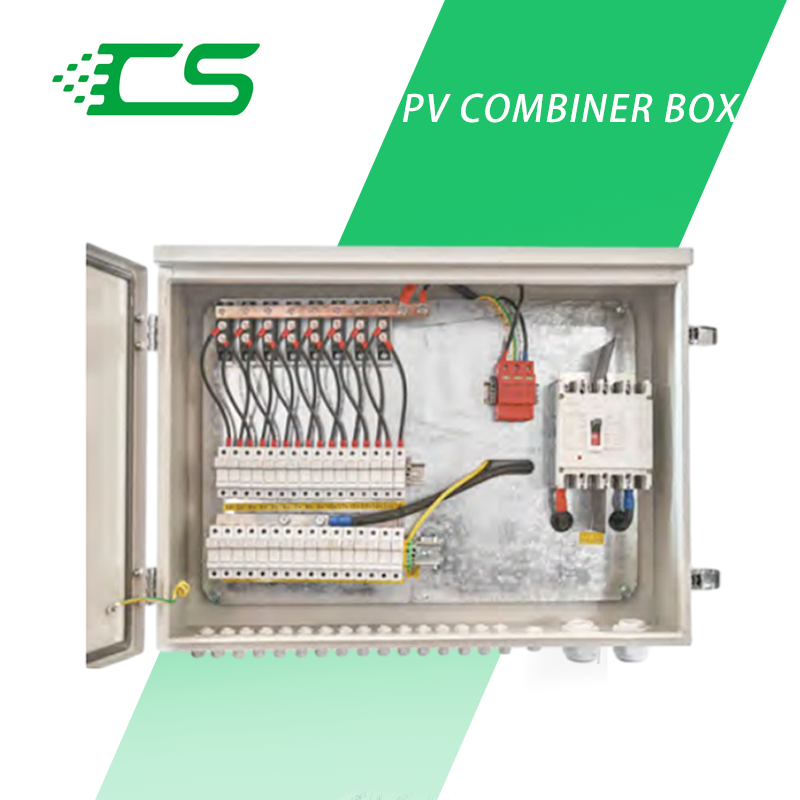

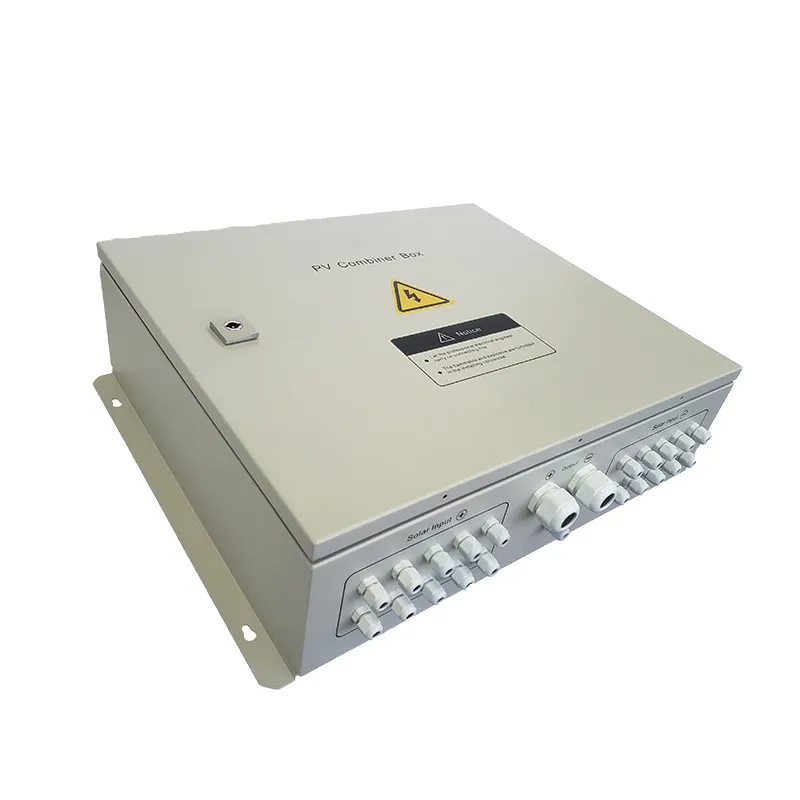

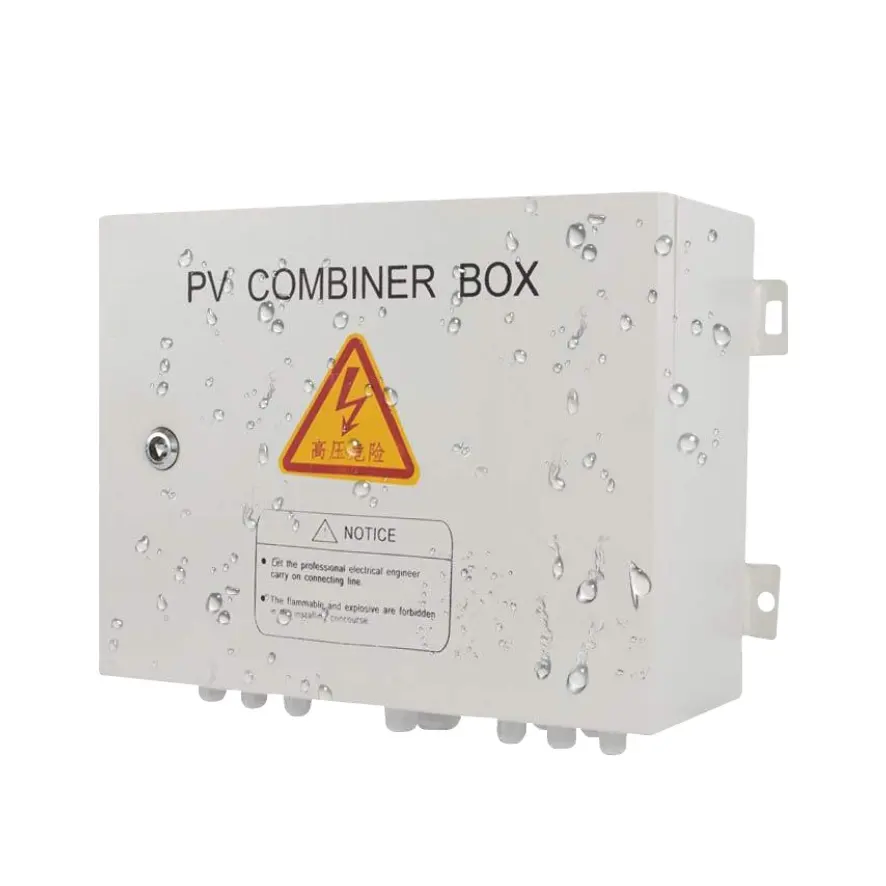

Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel

1 / 5

Cncsgk 16 in 1 out IP65 PV Junction Box 1000V 1500V 2 3 4 6 8 12 16 24 Strings DC Solar Array PV Combiner Box for Solar Panel

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

CSPVB/16-1

Product Name

Solar Combiner Box

IP Rating

IP65

Certification

ISO, CCC, CQC, CE

Shape

Rectangle

Keyword

Slew Worm Gear Drive

Color

Customized

Installation Site

Rooftop

Transport Package

Carton

Specification

Pallets

Production Capacity

300/M

📦

Packaging & Delivery

Package Size

900.00cm * 480.00cm * 200.00cm

Gross Weight

30.000kg

Lead Time Schedule:

• 3 days (1 - 1 pieces)
• 10 days (2 - 10 pieces)
• 30 days (11 - 100 pieces)
• To be negotiated (> 100 pieces)

★

Product Description

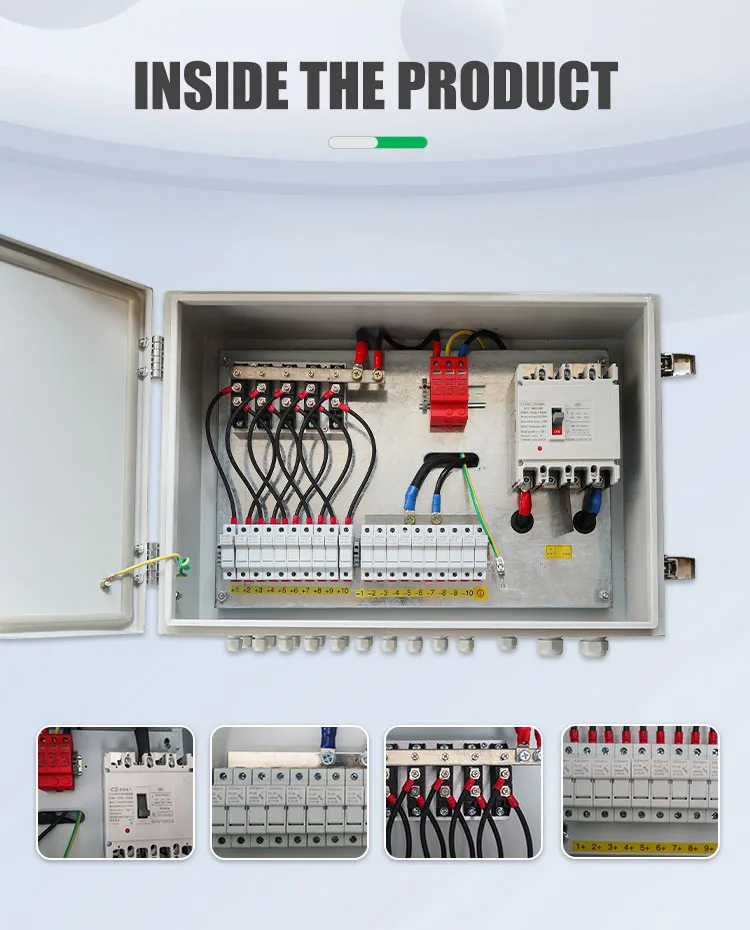

Technical Specifications

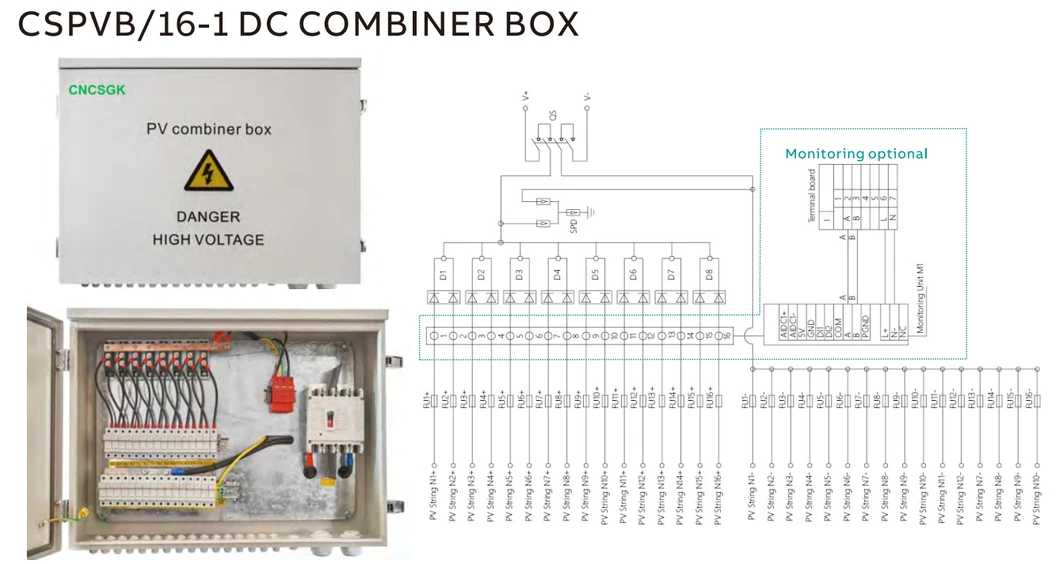

Model	CSPVB/16-1
Electric Parameters
System maximum DC voltage	1000V
Maximum input current for each string	15A
Maximum input strings	16
Maximum output switch current	240A
Number of Output strings	1
Lightning Protection
Category of test	Grade 2 protection
Nominal discharge current	20kA
Maximum discharge current	40 kA
Voltage protection level	3.8kV
Maximum continuous operating voltage Uc	1050V

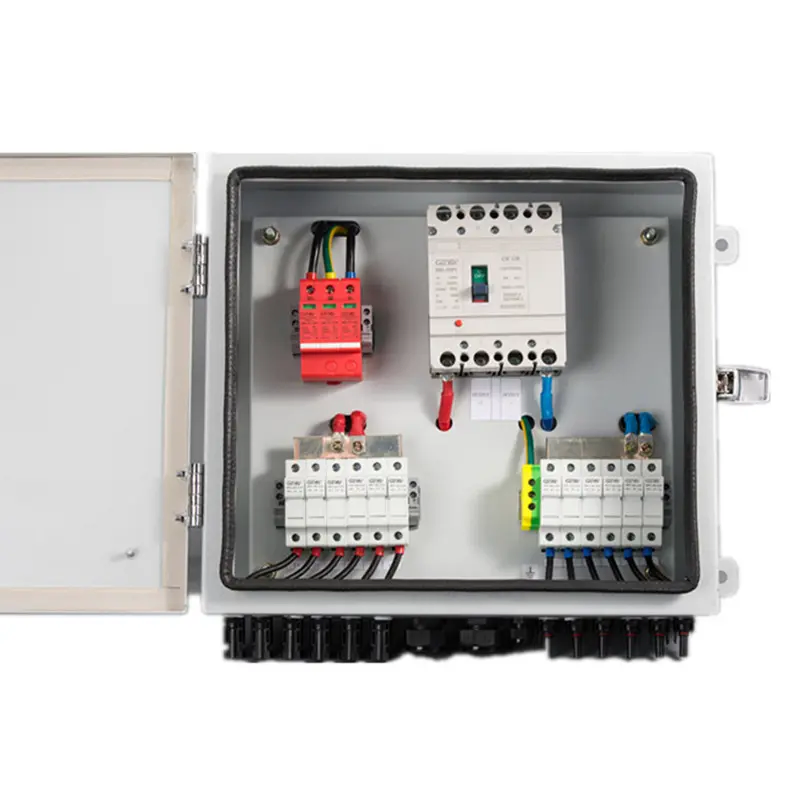

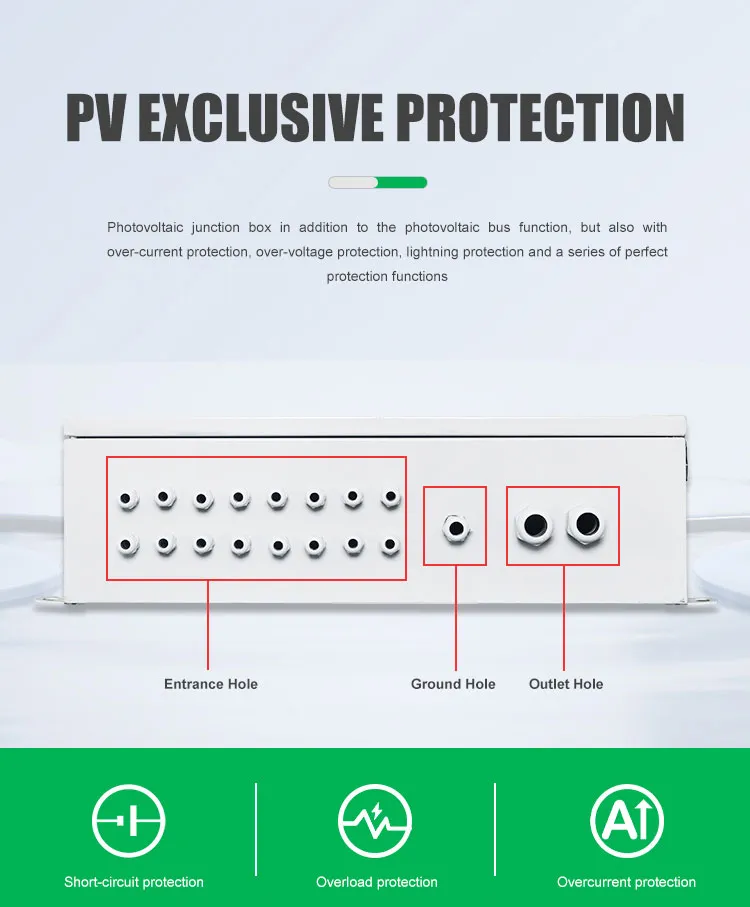

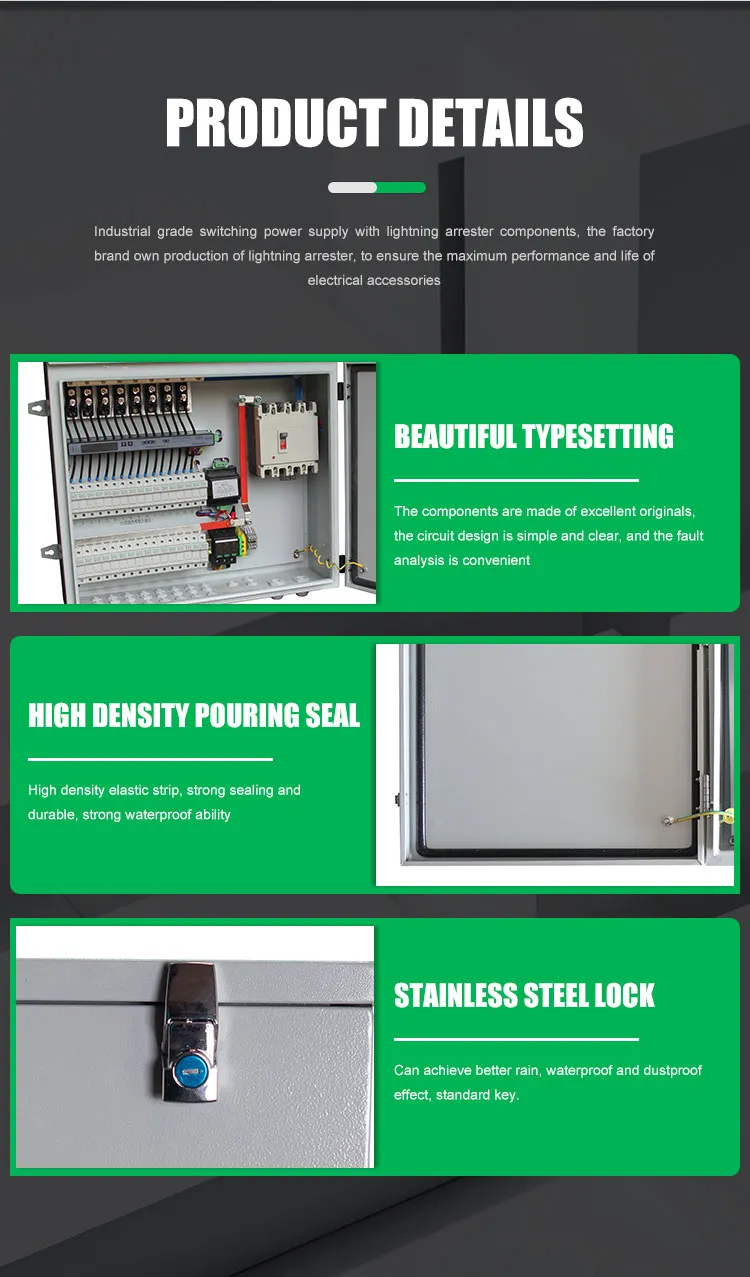

System Characteristics
Protection grade	IP65
Output switch	DC circuit breaker
MC4R Waterproof Connectors	Standard
Box material	Engineering plastics
Operating Temperature	-40°C ~ + 85°C
Dimensions (W x H x D mm)	750 x 560 × 200

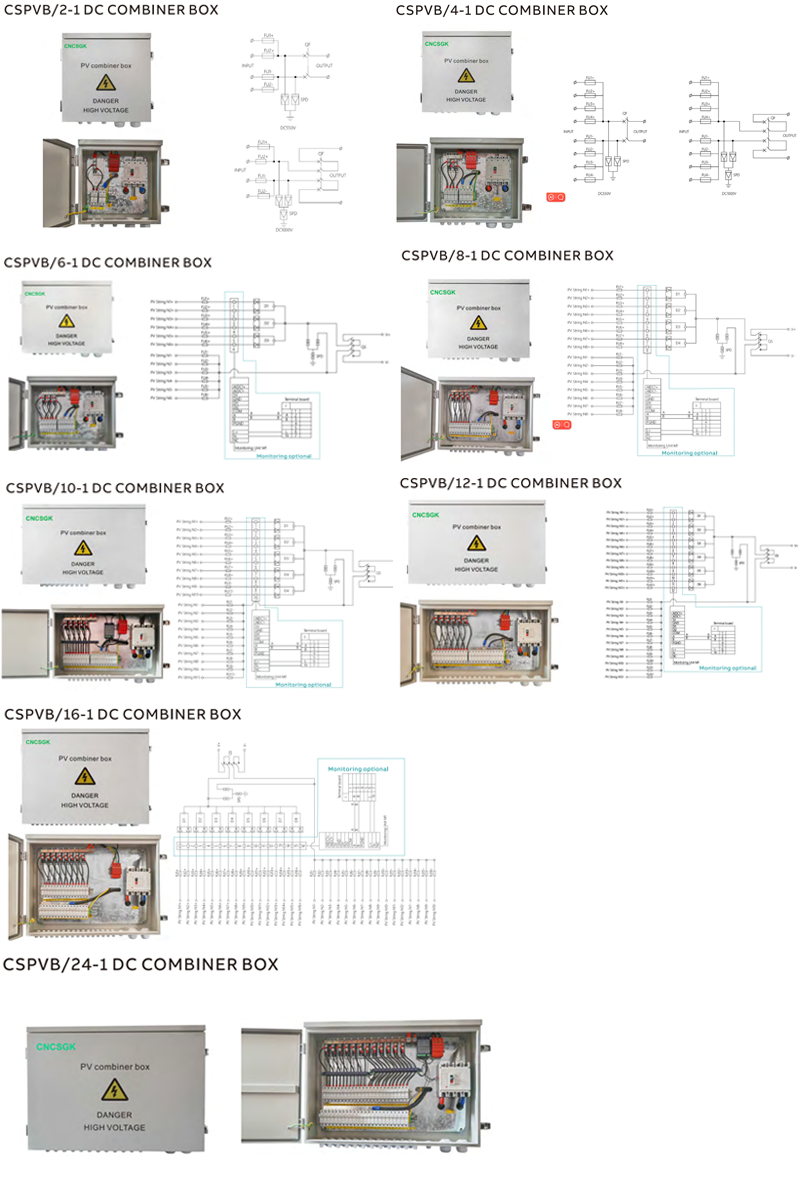

Combiner Box Selection Guide:
2-way: 400*400*180 | 4-way: 440*400*180 | 6-way: 500*400*180 | 8-way: 600*460*180 | 12-way: 750*460*180 | 16-way: 750*560*200 | 24-way: 800*560*200

Frequently Asked Questions

1. What is the maximum voltage this combiner box can handle?

The CSPVB/16-1 solar combiner box is designed to handle a system maximum DC voltage of 1000V.

2. Is this product suitable for outdoor installation?

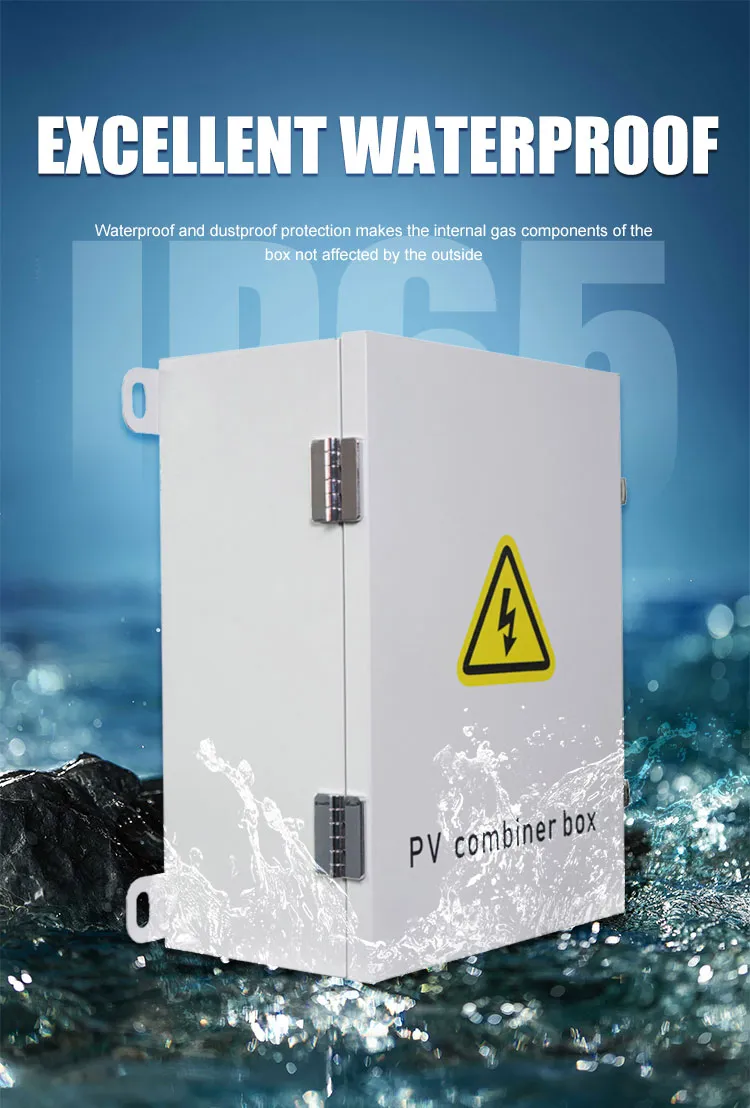

Yes, the box features an IP65 protection rating and is made of high-quality engineering plastics, making it waterproof and suitable for rooftop and outdoor installations.

3. Does it include lightning protection?

Absolutely. It includes a Grade 2 lightning protection system with a maximum discharge current of 40kA and a voltage protection level of 3.8kV.

4. How many input strings does this model support?

This specific model supports up to 16 input strings, with each string handling a maximum current of 15A.

5. What are the operating temperature limits?

The unit is designed to operate reliably in extreme conditions, with a temperature range from -40°C to +85°C.

6. What certifications does the product hold?

The product is fully certified with ISO9001, CCC, CQC, and CE standards, ensuring international quality and safety compliance.
