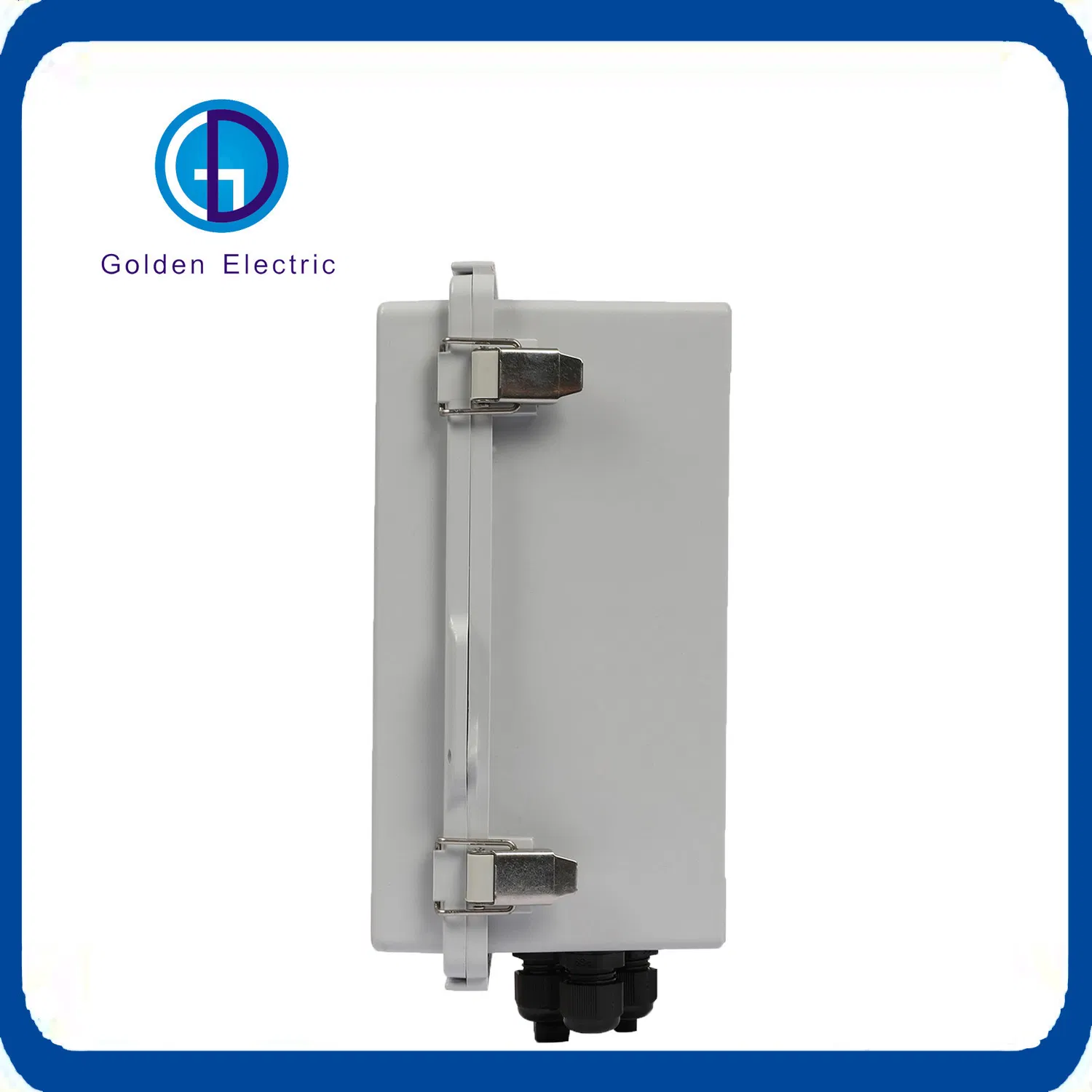

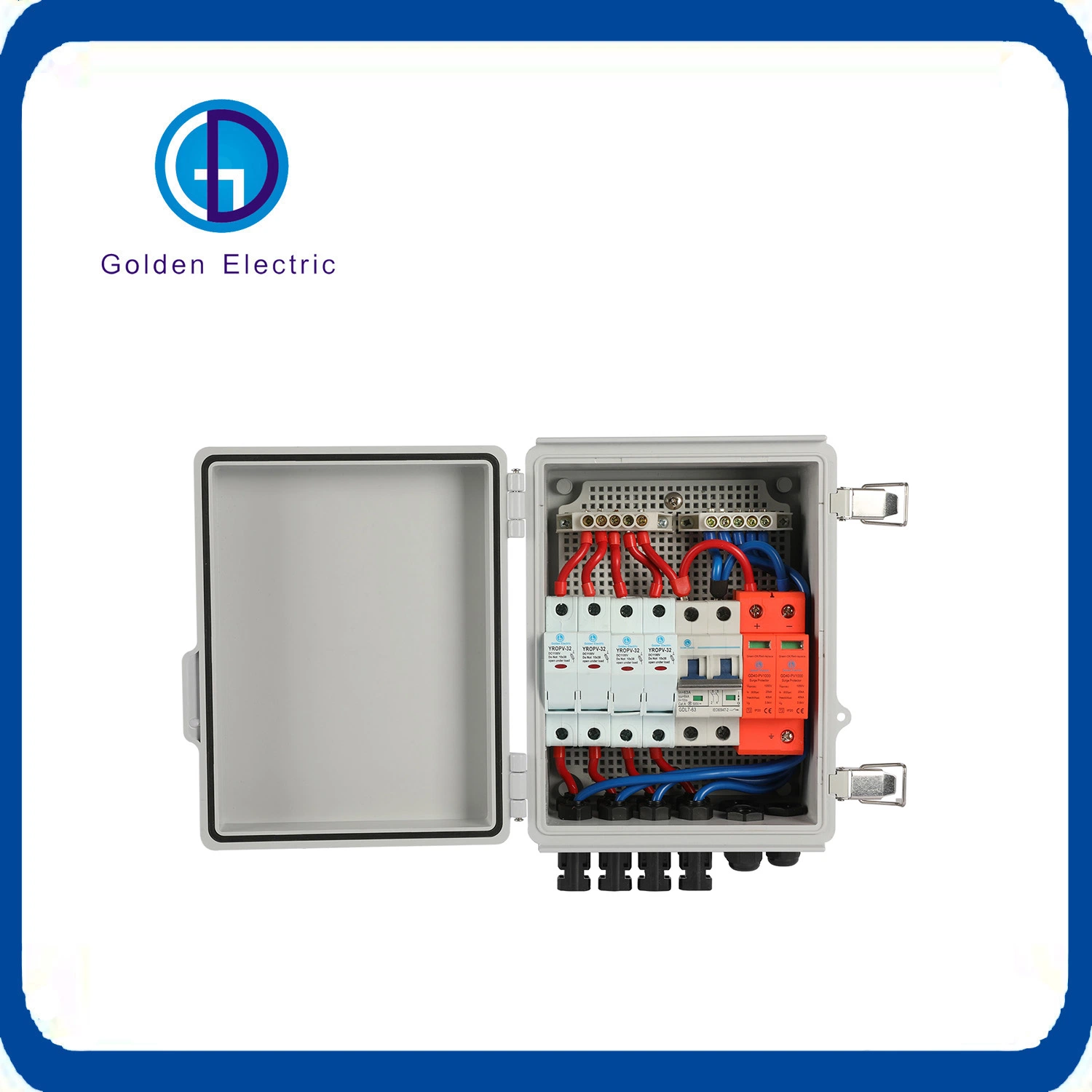

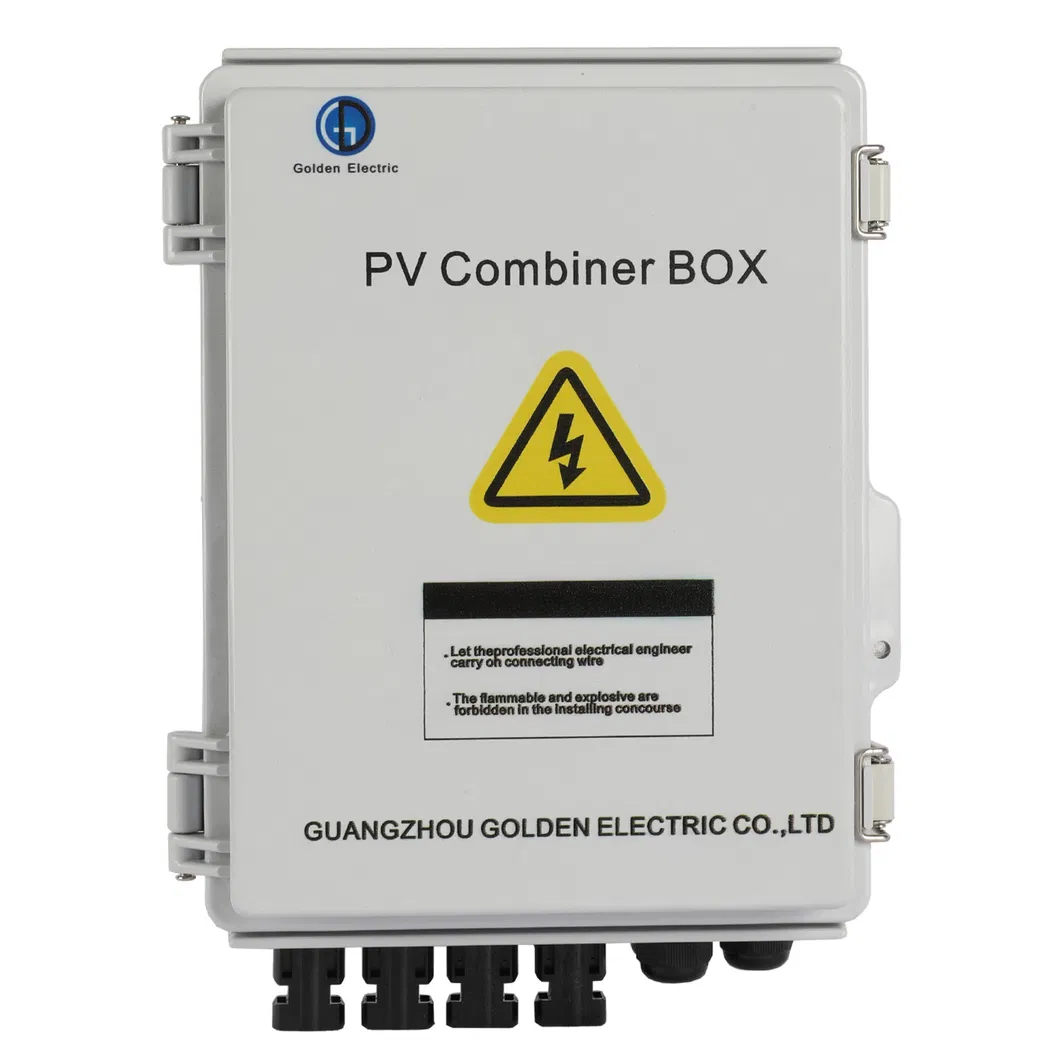

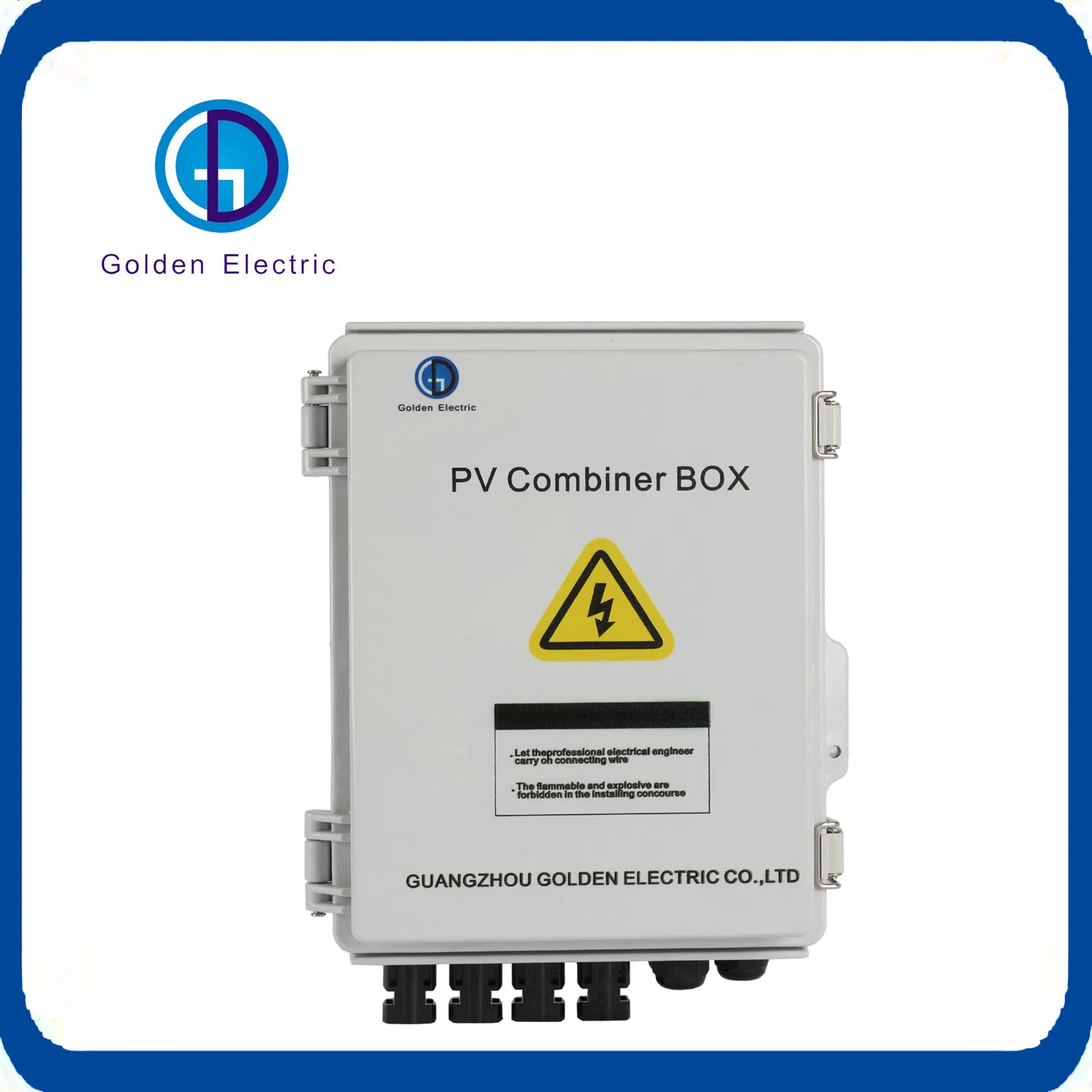

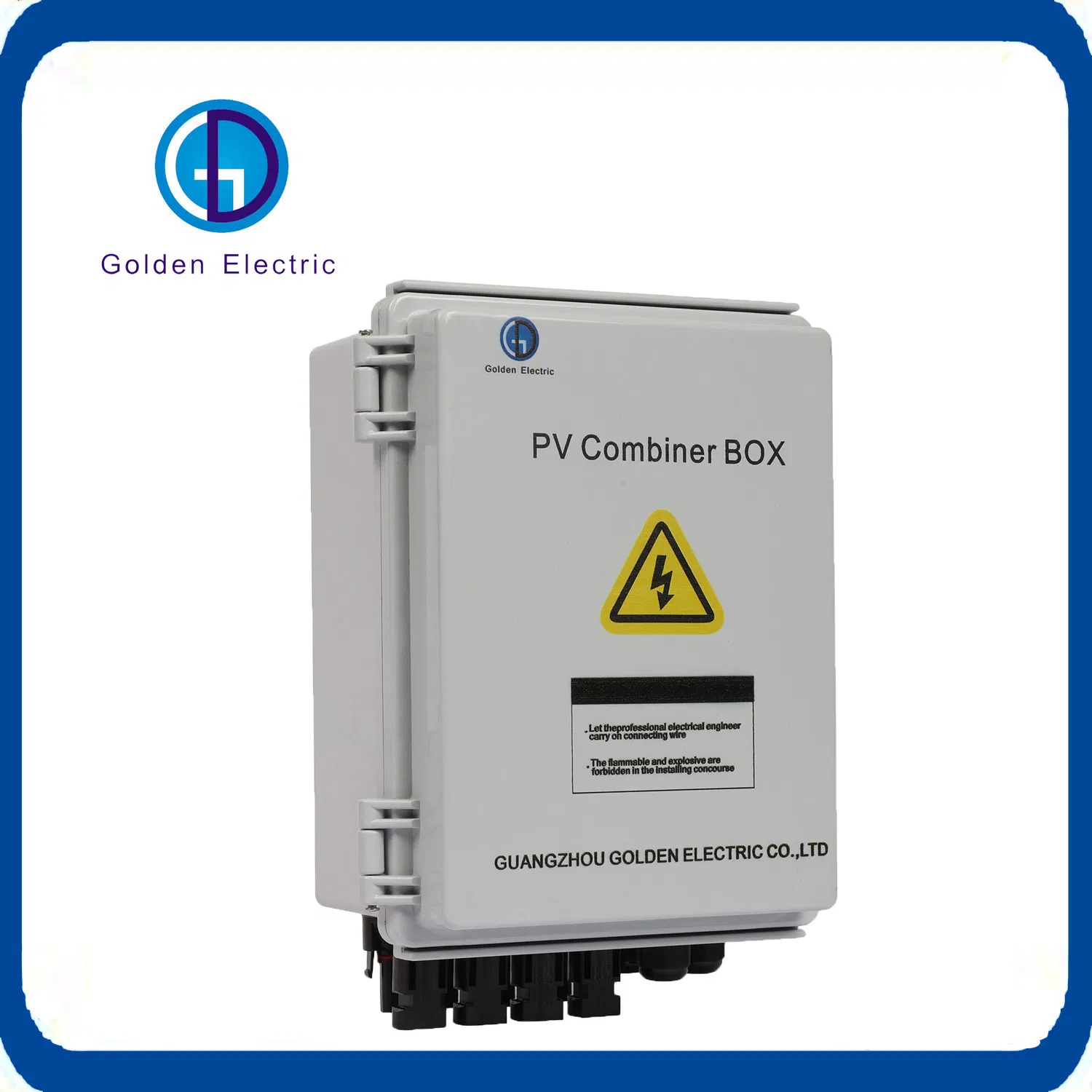

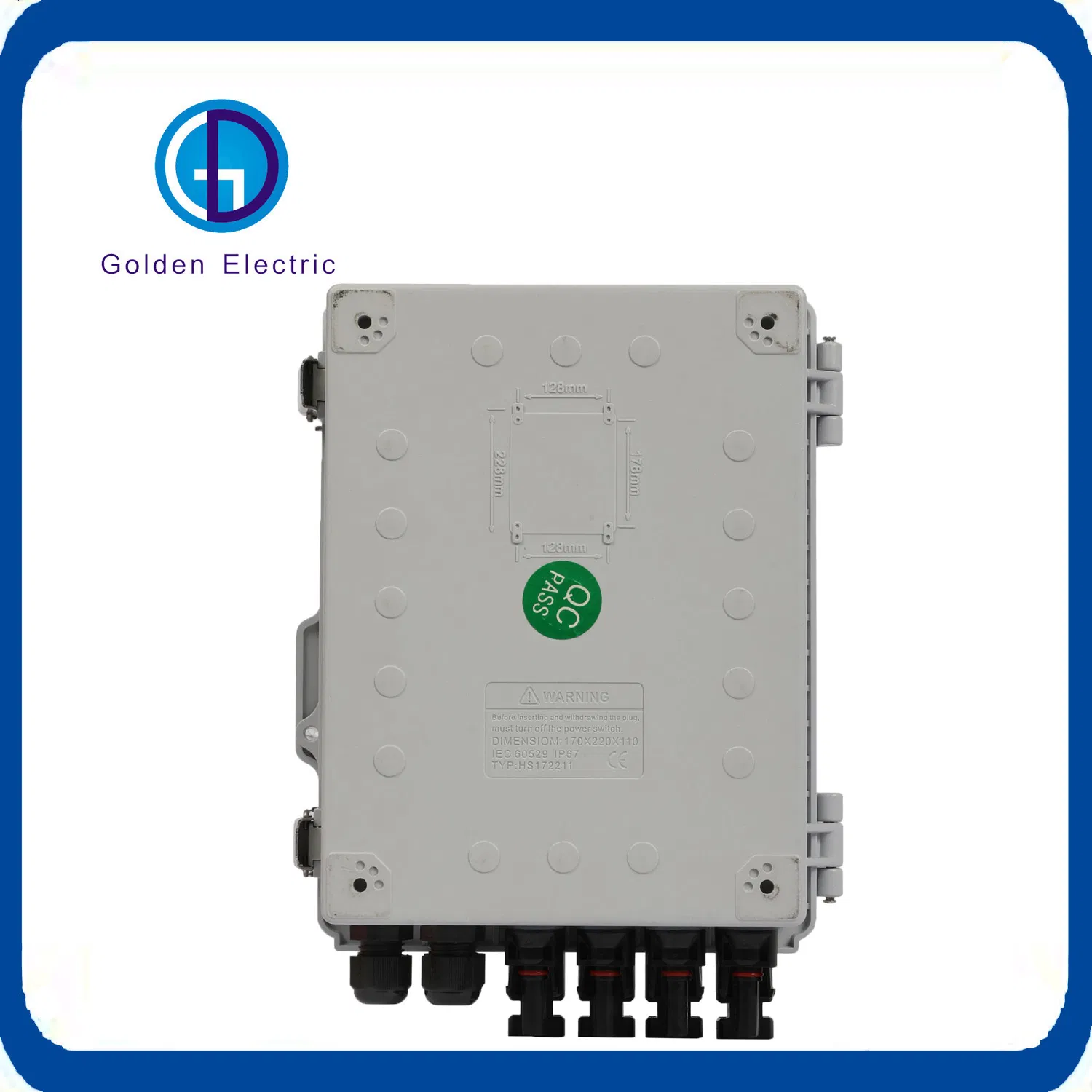

Cheap Solar System DC PV Combiner Box 2 in 1 out IP65 with SPD and Fuse

Basic Product Information

Model NO.

GD-PV05

Certification

ISO9001:2000, VDE, CCC

Operation Voltage

Low Voltage

Application Range

Solar Panels System

Shell Material

PC/ABS

Protection Grade

IP65

Max DC Voltage

DC 1000V

Rated Voltage

DC550V / DV1000V

Input Strings

6

Installation

Wall Mounting

Warranty

3 Years

HS Code

8543709990

Product Description

New Design PV Combiner Box for Household Systems

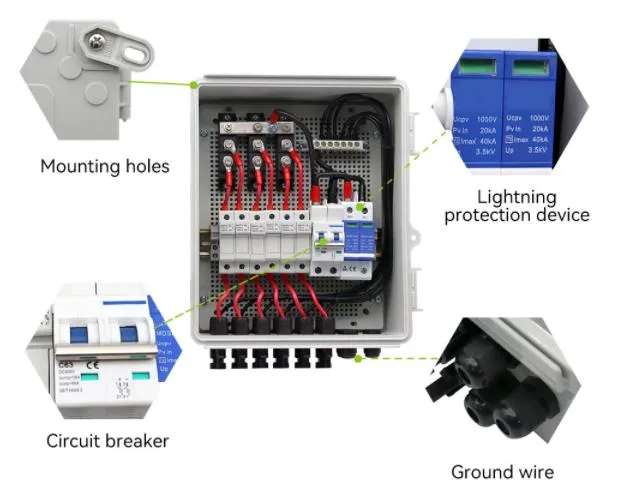

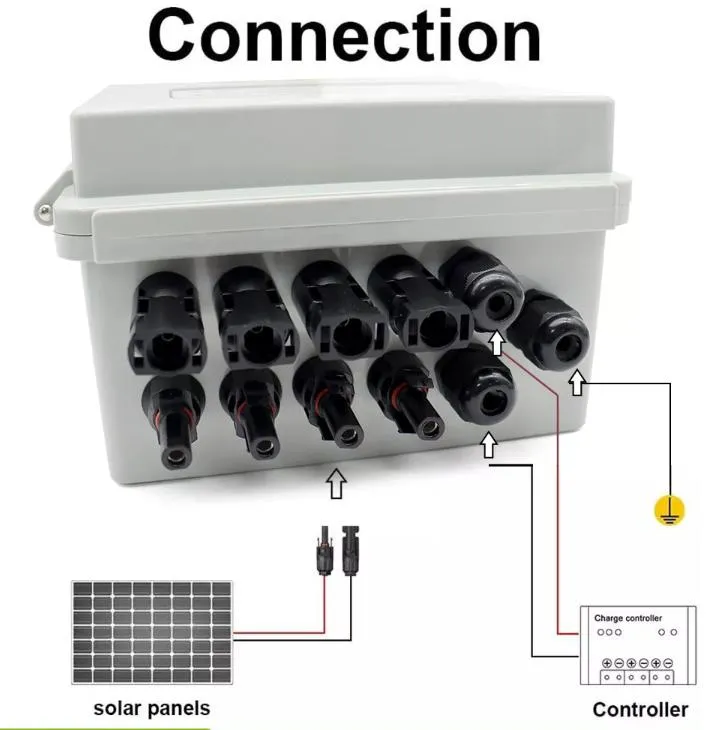

Suitable for inverters with MAX input voltage DC550V/DC1000V. This box includes 6 PV input channels and 1 output channel. The body is made of fire-retardant PVC engineering materials, providing high impact resistance, anti-ultraviolet protection, and an IP65 protection grade. Designed strictly according to technical specifications for photo-voltaic junction equipment.

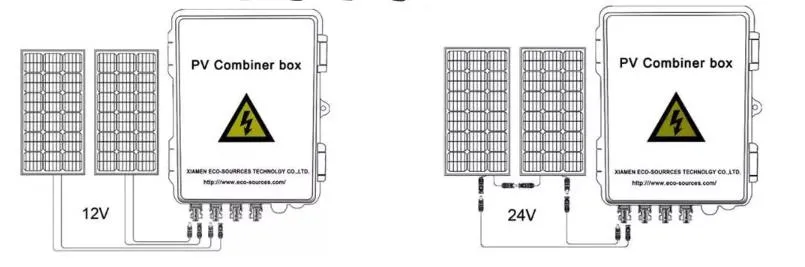

Product Parameters

Parameter Item		Specifications
System Maximum DC Voltage		550V / 1000V
Maximum Input Strings		6
Max Input Current per String		15A
Max Output Switch Current		20A / 32A
Number of Inverter MPPT		1
Nominal Discharge Current		20KA
Maximum Discharge Current		40KA
Voltage Protection Level		2.8KV / 3.8KV
Box Material		PC/ABS
Operating Temperature		-25°C to +55°C

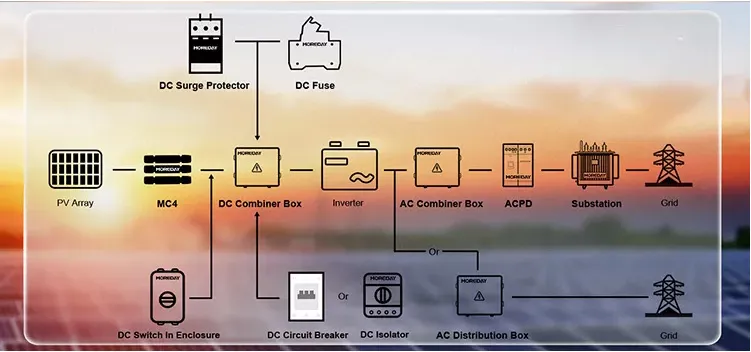

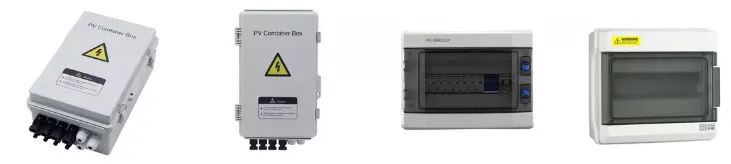

Recommended Products

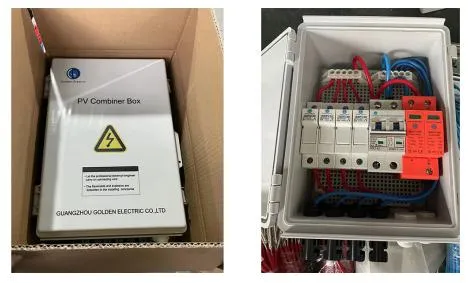

Packaging & Shipping

✔ Customized Packing: Header card, blister packing, or canister packing based on requirements.
✔ Shipping Methods: By Air or Sea for batch goods; customers can specify freight forwarders.
✔ Delivery: Typically shipped within 7 days after payment.

Our Advantages

★ 100% customer satisfaction guarantee.
★ One-year guarantee on all products.
★ Easy to operate and maintain designs.
★ Qualified materials for all electrical parts.
★ No MOQ limit for trial orders.
★ Efficient after-sales service and 12-hour response time.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a solar system manufacturer with a cumulative installed capacity reaching 5GW+.

Can you supply samples for checking?

Yes, we provide free samples for clients to check quality.

How long is your delivery time?

Samples: 1-2 days; Small orders: 3-5 days; Mass orders: 7-10 days, depending on quantity.

Do you accept OEM business?

We accept OEM orders with your official authorization.

What certificates do you have?

Our products are certified by CE, CB, TUV, SAA, and others.

How is the after-sale service?

We provide necessary spare parts and offer online English-speaking engineering support.
