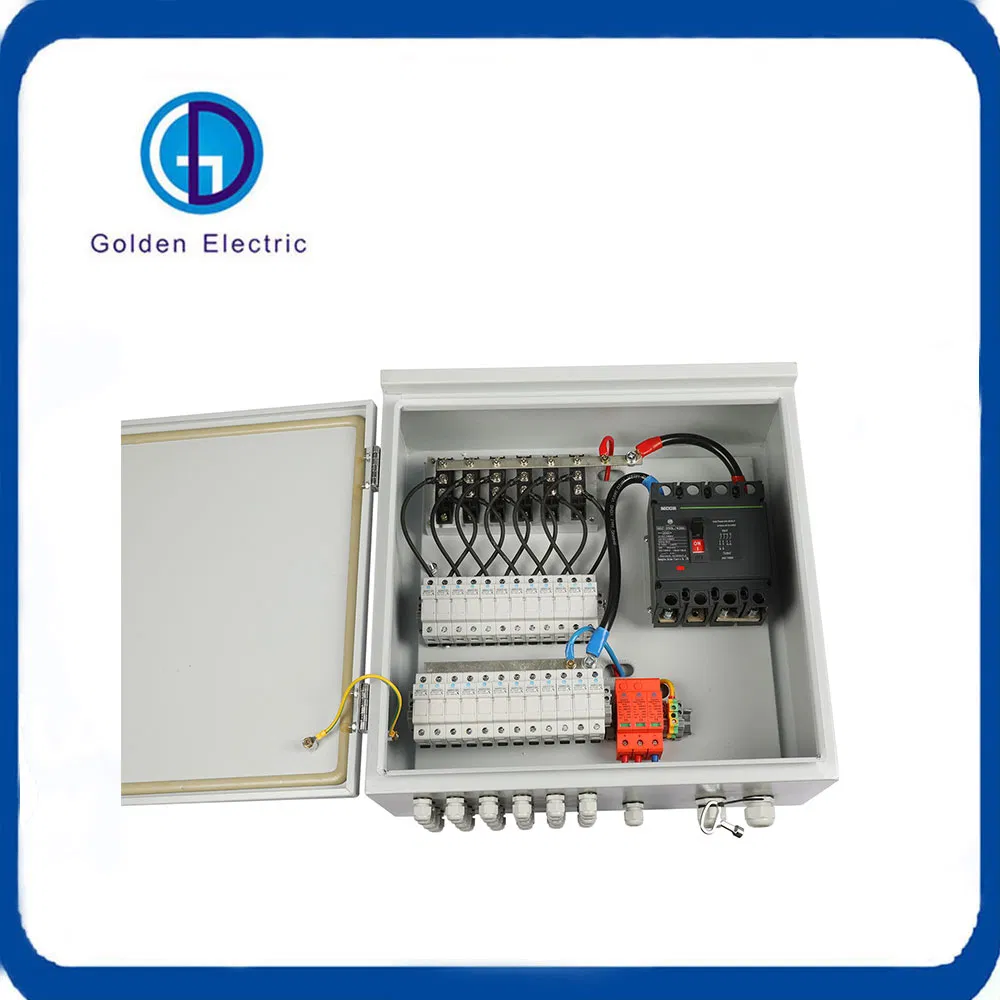

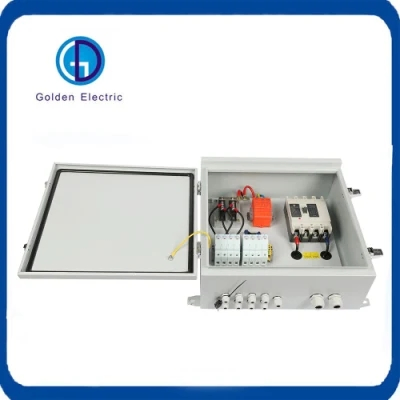

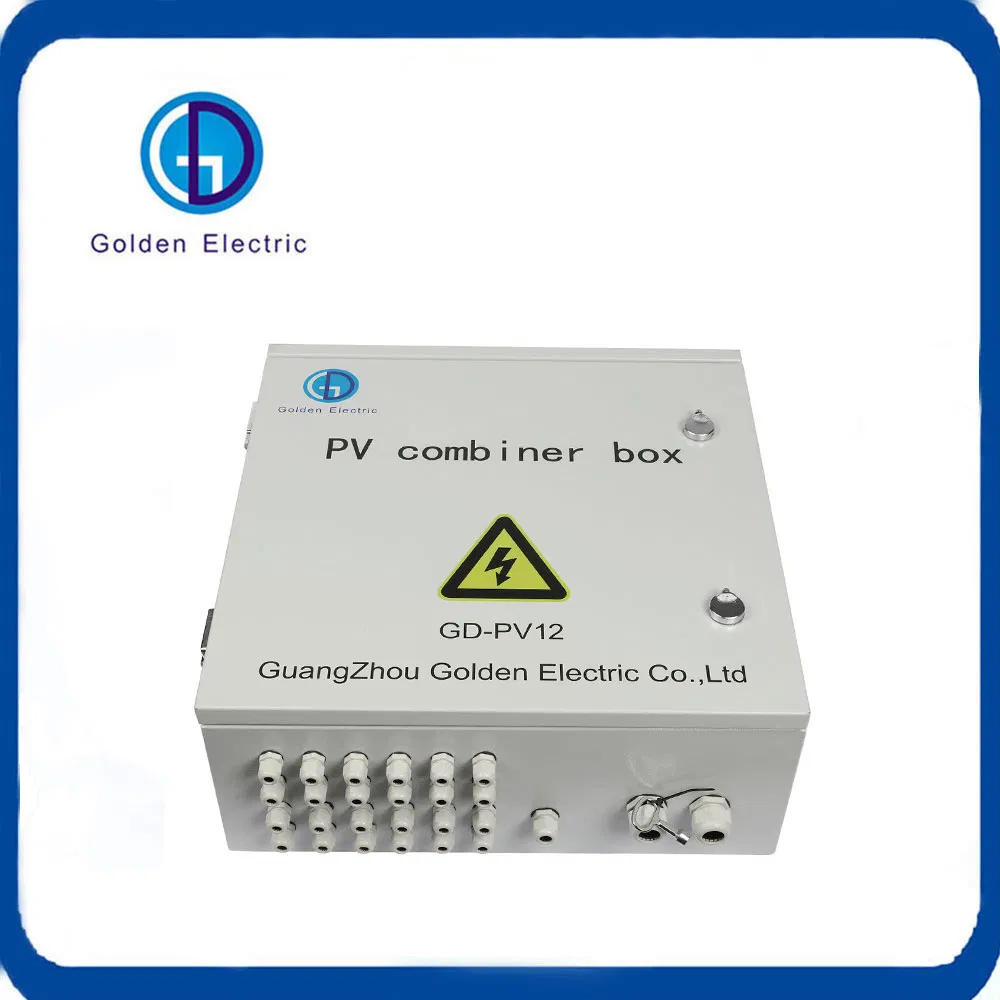

Hot Selling 12 String PV Combiner Box Photovoltaic Power Distribution Box DC 1000V PV Solar Panel Combiner Box
Hot Selling 12 String PV Combiner Box Photovoltaic Power Distribution Box DC 1000V PV Solar Panel Combiner Box
Hot Selling 12 String PV Combiner Box Photovoltaic Power Distribution Box DC 1000V PV Solar Panel Combiner Box
Hot Selling 12 String PV Combiner Box Photovoltaic Power Distribution Box DC 1000V PV Solar Panel Combiner Box
Hot Selling 12 String PV Combiner Box Photovoltaic Power Distribution Box DC 1000V PV Solar Panel Combiner Box
1 / 5
Hot Selling 12 String PV Combiner Box Photovoltaic Power Distribution Box DC 1000V PV Solar Panel Combiner Box
Hot Selling 12 String PV Combiner Box Photovoltaic Power Distribution Box DC 1000V PV Solar Panel Combiner Box
Hot Selling 12 String PV Combiner Box Photovoltaic Power Distribution Box DC 1000V PV Solar Panel Combiner Box
Hot Selling 12 String PV Combiner Box Photovoltaic Power Distribution Box DC 1000V PV Solar Panel Combiner Box
Hot Selling 12 String PV Combiner Box Photovoltaic Power Distribution Box DC 1000V PV Solar Panel Combiner Box

Hot Selling 12 String PV Combiner Box Photovoltaic Power Distribution Box DC 1000V PV Solar Panel Combiner Box

Customization: Available
Type: Metal Solar PV Combiner Box
Structure: Protection
Send Inquiry

Product Description

Basic Information
Certification
ISO9001:2000, VDE, CCC
Operation Voltage
Low Voltage
Application Range
Industrial, Solar PV System
Shell Material
Metal
Protection Grade
IP66
System Voltage
1000V
Installation
Wall Mounting Type
Structure
Plug-Push Module
Output Strings
1
Nominal Discharge
20ka
Max Discharge
40ka
Product Description
GD-PV4/1 PV combiner box synthesizes DC input of 4 PV components to 1 output. Each channel is equipped with a dedicated fuse. The output side features lightning protection and a circuit breaker, greatly simplifying input wiring for DC power distribution cabinets and inverters.
  • Realizes lightning protection, short circuit protection, and grounding protection.
  • Strictly accordance with CGC/GF 037:2014 technical specifications.
  • IP65/IP66 protection grade suitable for harsh outdoor environments.
  • Simplifies system wiring and improves overall safety.
Technical Parameters
Electric Parameters
ModelGD-PV4/1
System Max DC Voltage1000V
Max Input Current (Per String)15A
Max Output Switch Current20A/32A
Lightning Protection
Category of TestII Grade Protection
Nominal Discharge Current20kA
Max Discharge Current40kA
Voltage Protection Level3.8kV
Max Continuous Operating Voltage (Uc)1050V
Mechanical & Environment
Protection GradeIP65
Operating Temperature-25ºC ~ +55ºC
Box MaterialMetal (Cold rolled steel)
Permissible Relative Humidity0-95%, no condensation
Product Details & Display

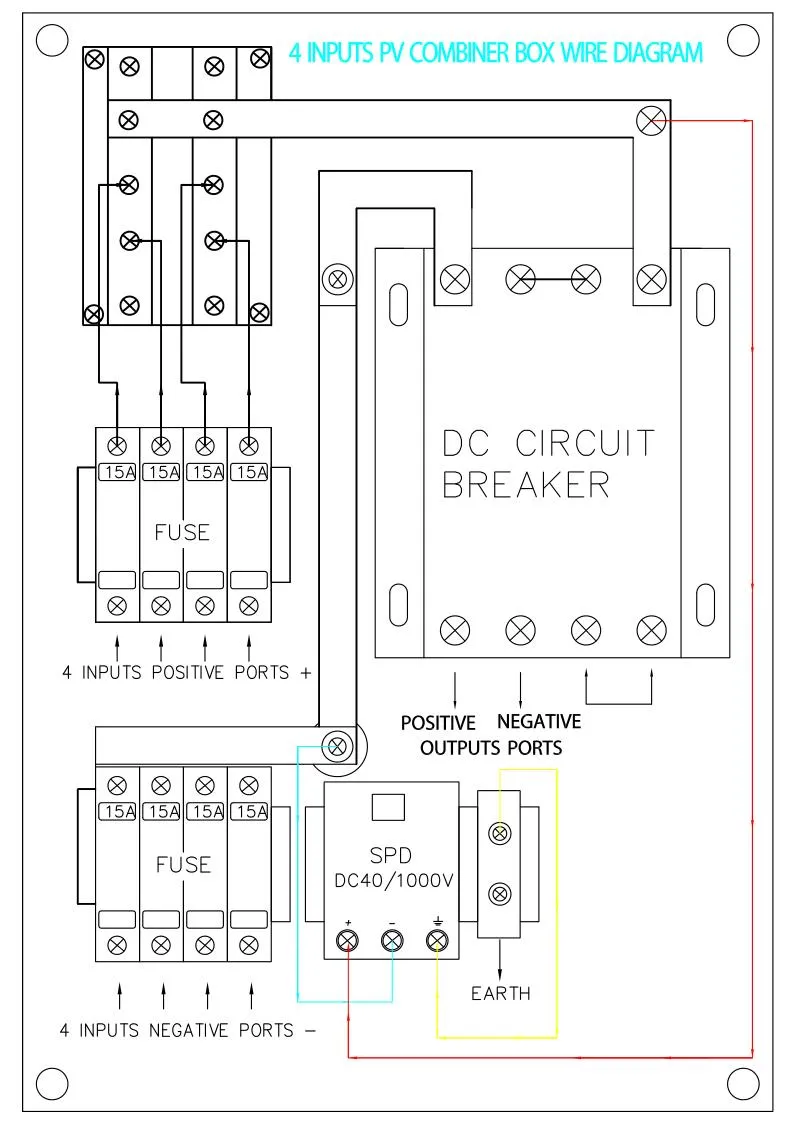

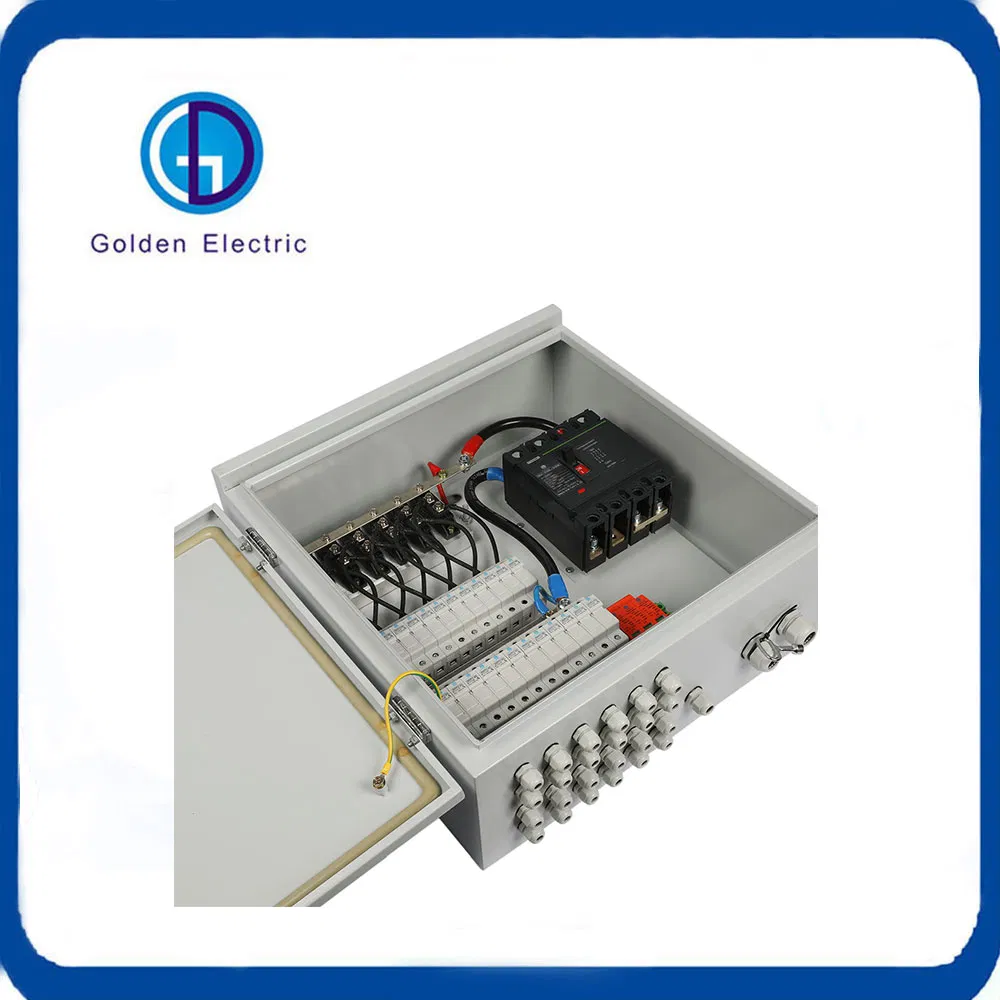

PV Combiner Box Internal View
Packing and Dimensions
Key Advantages:
  • High Reliability: Equipped with DC fuses, surge protection devices, and high-quality circuit breakers.
  • Strong Adaptability: Waterproof, anti-dust, and anti-ultraviolet design for industrial use.
  • Flexible Configuration: Compatible with single crystal, polycrystalline, and thin-film solar modules.

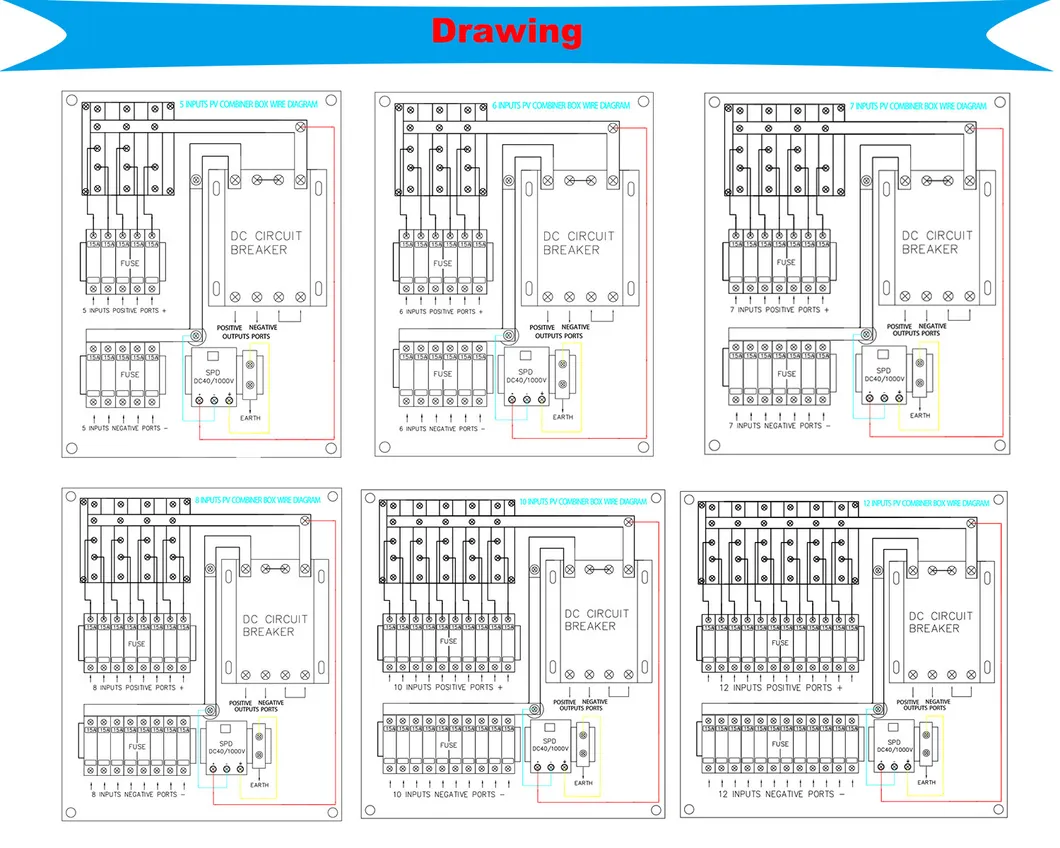

Component Details

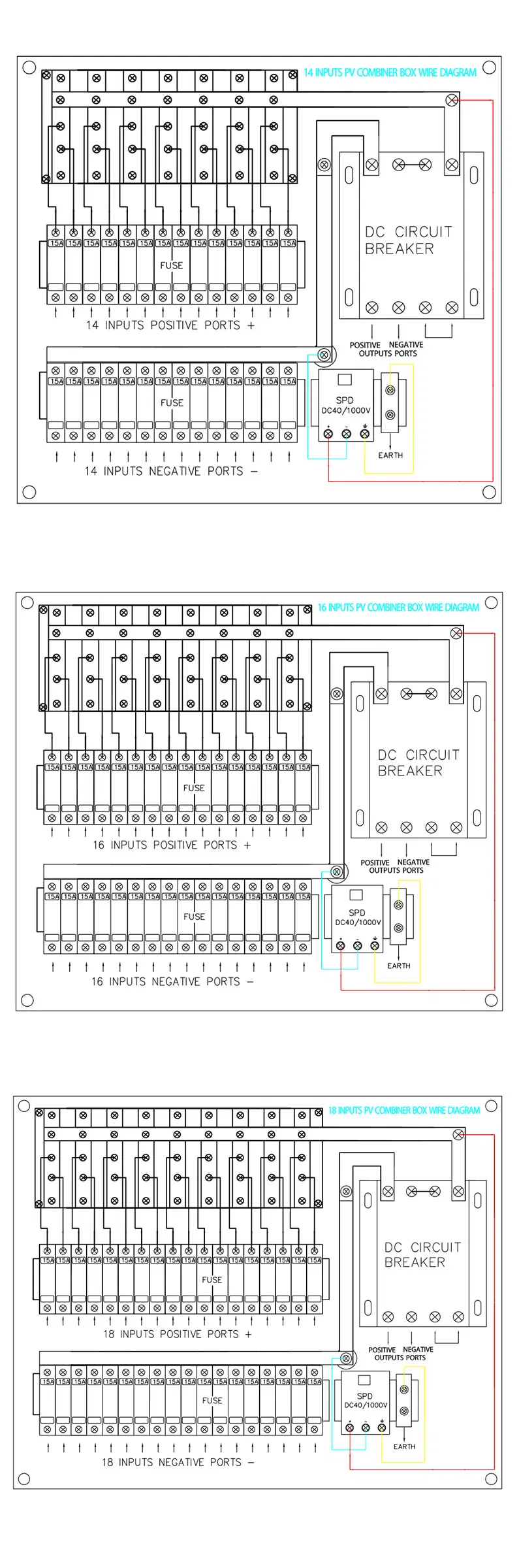

Full Product Range
Recommended Solutions

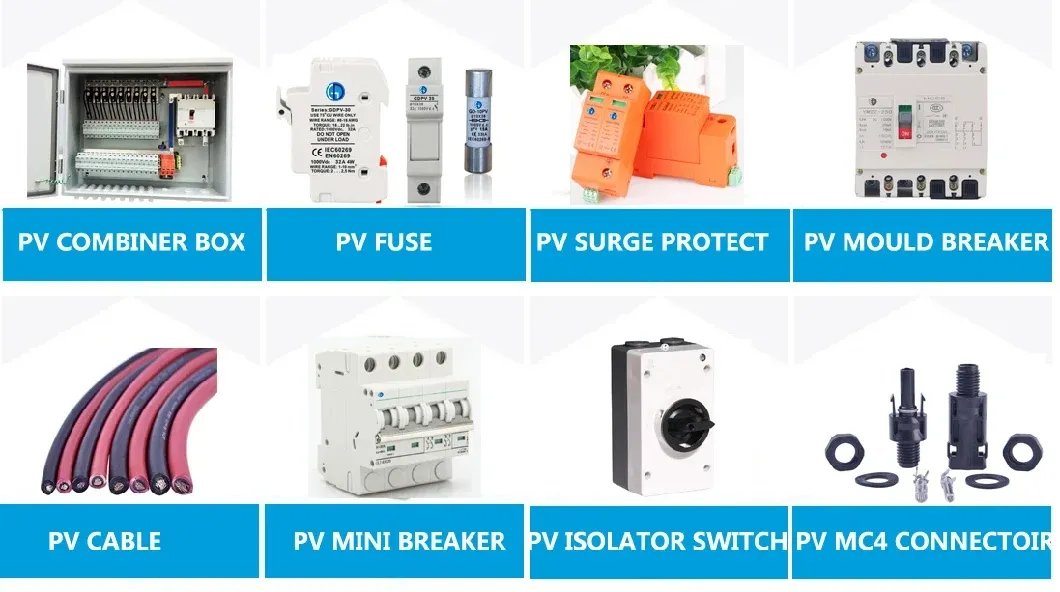

Solar System Schematic
Frequently Asked Questions
What are the main functions of a PV combiner box?
The main function is to converge the DC output of multiple solar strings into one channel, while providing protection through fuses, surge protectors, and circuit breakers to ensure system safety.
Is this combiner box suitable for outdoor installation?
Yes, the box is designed with an IP65/IP66 protection grade, making it waterproof, dustproof, and resistant to harsh outdoor environments and UV exposure.
What types of solar panels can be used with this box?
It is highly flexible and can be used with single crystal silicon, polycrystalline silicon, and thin-film solar modules.
How does the lightning protection work?
The box includes a professional DC Surge Protection Device (SPD) that handles nominal discharge currents of 20kA and maximums up to 40kA, protecting the inverter and panels from voltage spikes.
Can the components inside the box be customized?
Yes, while core components follow high standards, elements like the circuit breaker types or specific monitoring modules can be modified based on specific project requirements.
What is the standard payment term for orders?
Typically, orders are processed via T/T. For standard orders, advanced payment is required, while for larger projects, terms can be discussed regarding balance payments before shipment.
