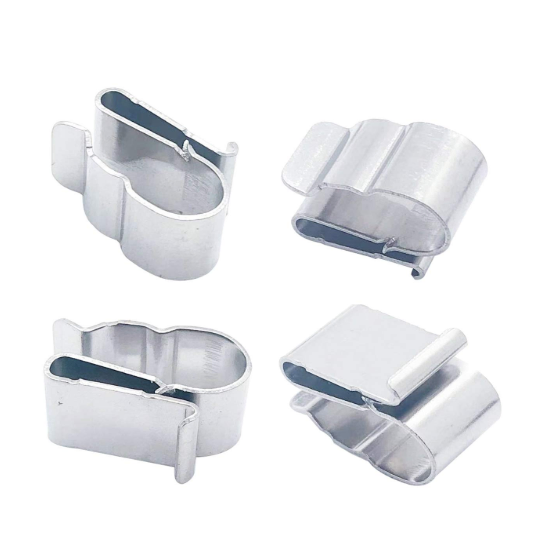

Solar Panel Wire Clip and Stainless Steel Cable Tie for Solar PV Bracket Mounting System

Customization:	Available
Color:	Natural Silver
Material:	Stainless Steel

📋

Basic Info

Model NO.

Wanhos-02

Type

Wire Rope Clip

Application

Hold 1-4 pieces 2-6mm2 Solar Cables

Specification

Standard or Customized

🔍

Product Description

Frame Wire Clips Specification:

Function: PV module wire management

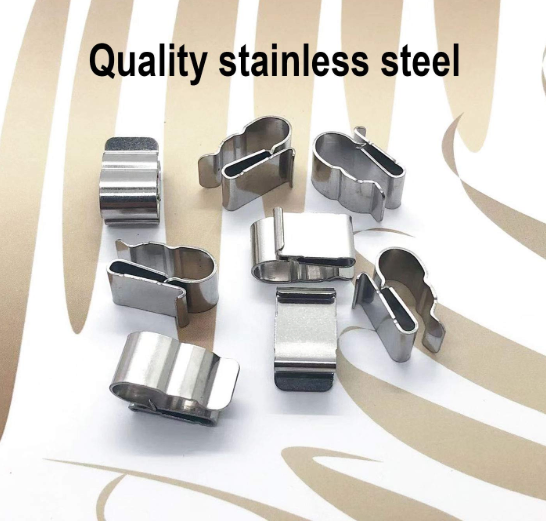

Material: 304 Stainless Steel
Compliance: UL certification

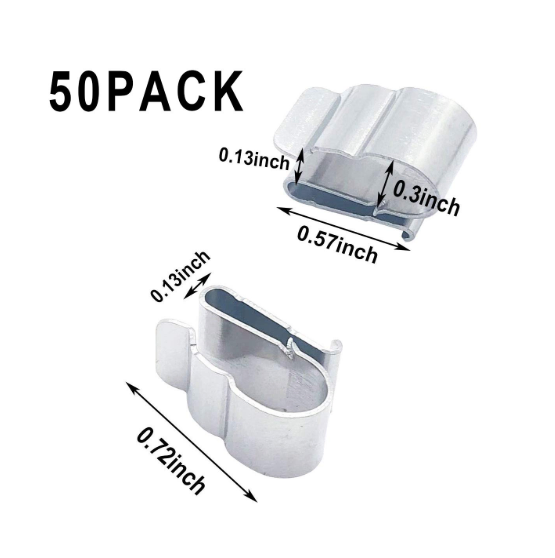

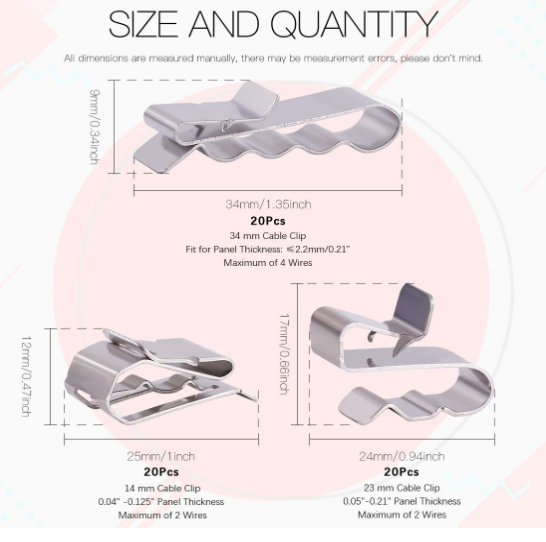

14 mm cable clip: 0.04" - 0.125" Panel Thickness; Max of 2 Wires, 0.20-0.30" each cable.

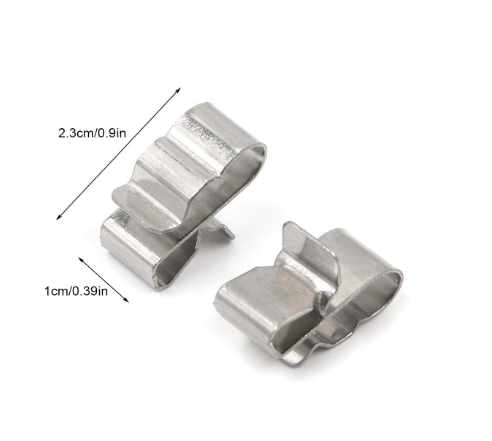

23 mm cable clip: 0.05" - 0.21" Panel Thickness; Max of 2 Wires.
34 mm cable clip: Fit for Panel Thickness: ≤2.2mm/0.21"; Max of 4 Wires.

Product Features:

Long Lasting Material: Made of 304 stainless steel, durable, corrosion and rust resistance.

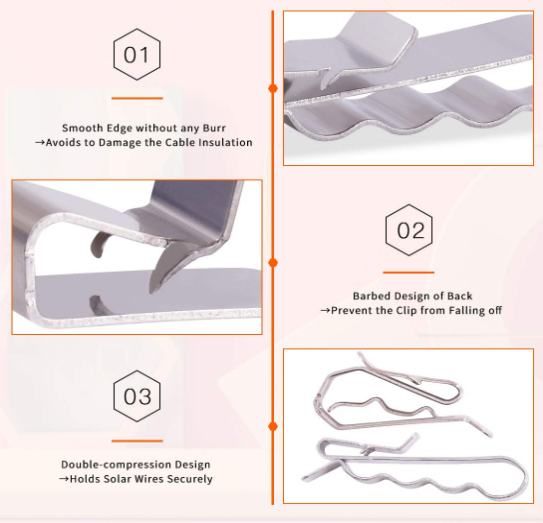

Safe and Reliable: Smooth edges without any burrs avoid damage to cable insulation. The double-compression design securely holds solar wires.

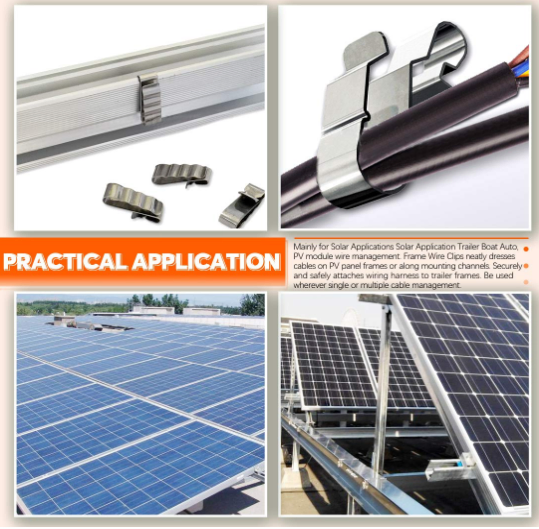

Practical Application: Used wherever single or multiple cable management is required.
Neat Management: Neatly dresses cables on PV panel frames or along mounting channels.

Item	Solar panel wire clip and stainless steel cable tie for PV bracket mounting system
Install Site	Solar panel RV, Caravan, Yacht, Motorhome, Flat Roof
Module Type	Any sizes
Application	Hold 1-4 pieces 2-6mm2 solar cables
Color	Natural silver
Material	Stainless Steel
Standards	ASNZS1170 & ISO9001 & SGS & TUV
Warranty	10 years warranty and 25 years service life
Duration	More than 20 years

⭐

Our Advantages

Overhead Hook: Prevent falling off from solar panels.
High Duty Metal: Strong construction but easy to insert cables into the clip.
Long Service Life: 30 years design life and 10 years warranty.
Optimized Protection: Specifically sized for solar cables with blunt edges to prevent injury to cable jackets.

📦

Packing & Delivery

Packing (Small Parts)	Plastic bag, box, wooden pallet
Packing (Large Parts)	Steel pallet, wooden pallet
Delivery Options	By Sea, By Air, or By Express (TNT/DHL/FEDEX)
Payment Terms	TT 30% deposit, balance before shipment
Delivery Time	30 days upon receipt of down payment

❓

Frequently Asked Questions

Q1: Are you a factory or a trading company?

A: We are a professional factory specializing in solar PV mounting solutions and accessories.

Q2: What materials are these cable clips made of?

A: The clips are manufactured from high-quality 304 Stainless Steel, ensuring excellent corrosion and rust resistance for outdoor environments.

Q3: Do these clips damage the cable insulation?

A: No, the clips are designed with smooth, blunt edges to prevent any damage to the PV cable insulation during installation or service life.

Q4: How many wires can a single clip hold?

A: Depending on the model (14mm, 23mm, or 34mm), our clips can hold between 1 to 4 solar cables securely.

Q5: Are samples available for testing?

A: Yes, samples are available upon request to verify the quality and fit for your specific solar project.

Q6: What is the estimated service life of these clips?

A: Our stainless steel clips are designed for a service life of over 25 years, matching the standard lifespan of most solar PV modules.
