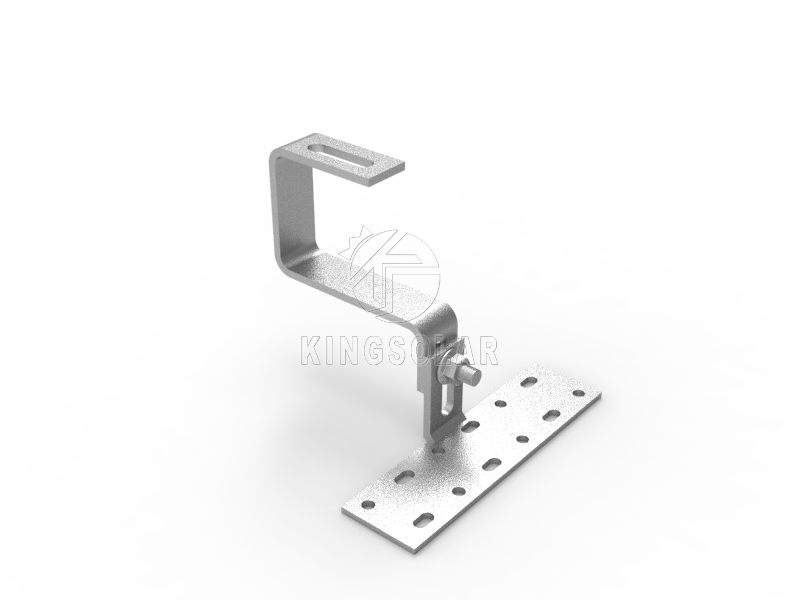

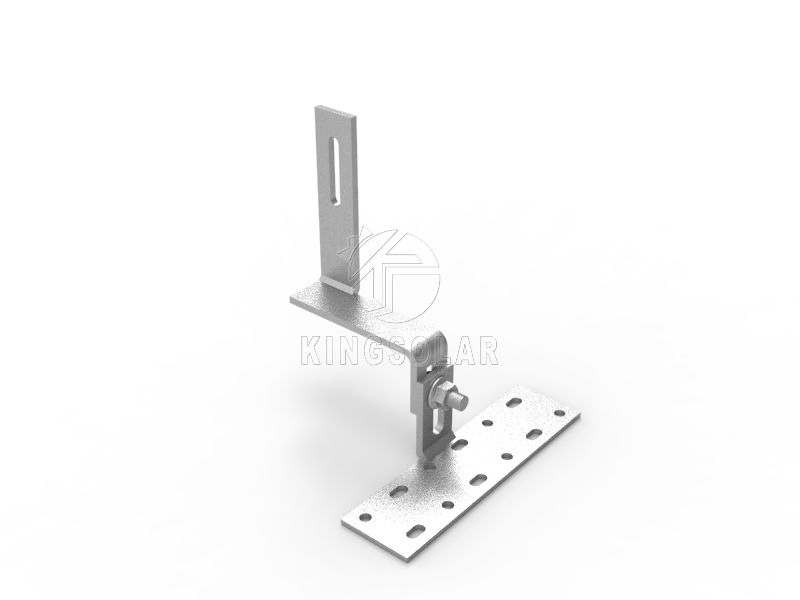

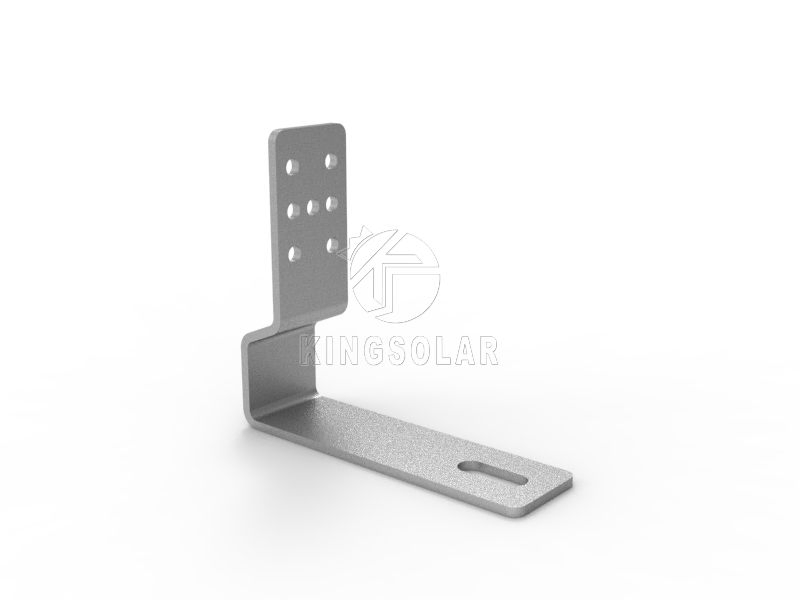

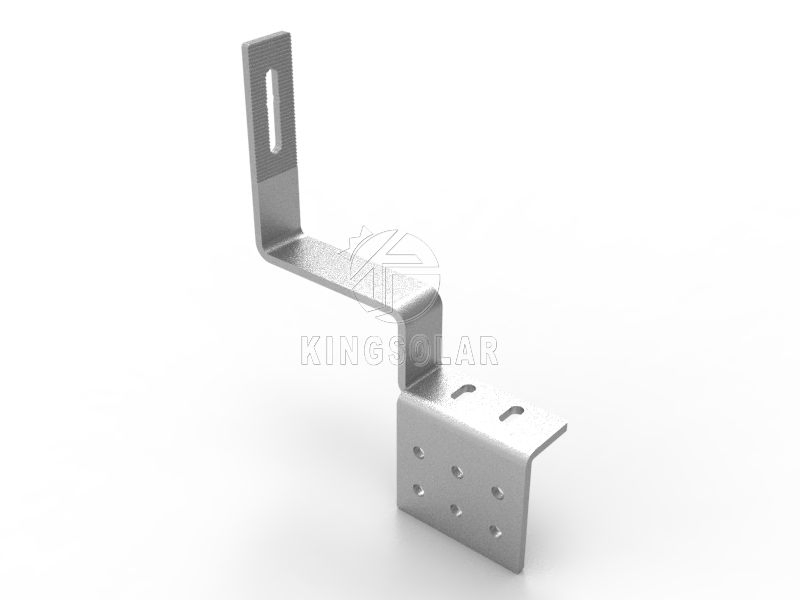

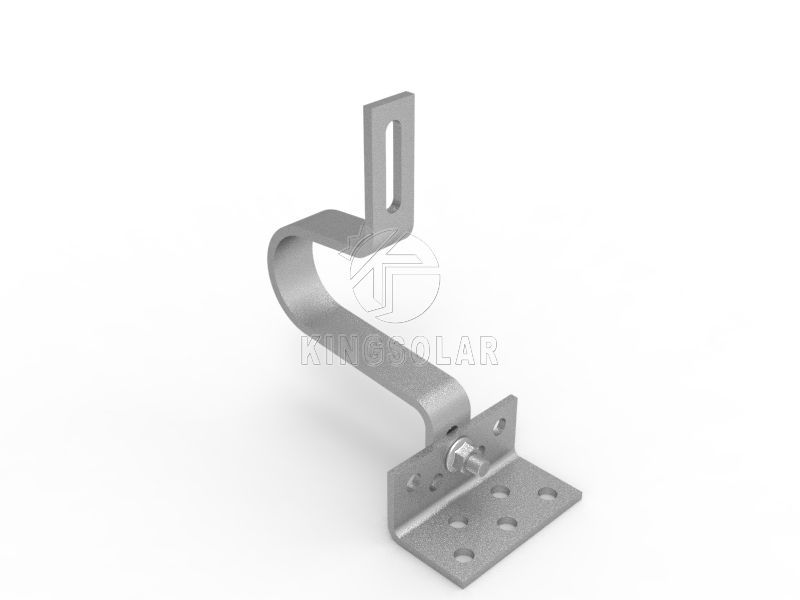

Solar Panel Mounting Bracket Hooks Can Be Used for Aluminum Roofs

Basic Information

Certification:ISO, CE

Application:Industrial, Commercial, Home

Material:Aluminum Alloy

Type:Roof Bracket

Surface Treatment:Anodized

Color:Silver and Customized

Feature:Quick Installation

Installation Site:Tin Roof

Transport Package:Box+Wooden/Steel Pallet

HS Code:7610900000

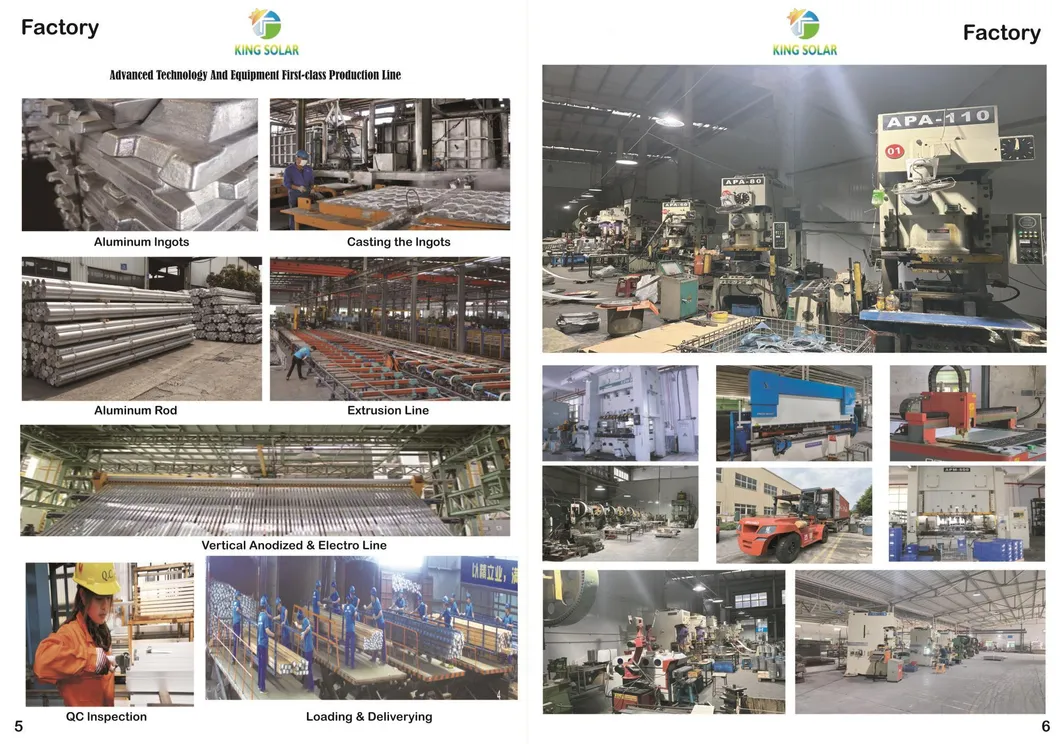

Production Capacity:1gw/Years

Product Description

These roof solar railless mounting clamps do not require rails, which is easy to install and saves costs. This roof clamp can be used to make the roof solar structure components stable and firm.

Technical Details

Material	Anodized AL6005-T5, HDG steel Q235B, SUS304
Foundation	Tin roof
Warranty	10 years warranty and 25 years service life
Standard	AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006
Max Wind Load	Up to 60m/s
Snow Load	Up to 1.4KN/M²
Applicable Module	Framed Or Frameless, Mono-crystalline, Poly-crystalline, Double
Module Orientation	Portrait or Landscape

Product Parameters

Specification	Roof Clamps	Waterproof Pad	Bolt	Nuts	Flat Washer	Spring Washer
Size	50mm	50mm	M8X25	M8	M8	M8
Quantity	1	1	2	2	2	2
Material	Aluminium	EPDM	SUS304/316	SUS304/316	SUS304/316	SUS304/316

Product Advantages

Lightweight, easy transportation and installation, safe construction.
High corrosion resistance and salt tolerance for long-term durability.
Maximum pre-assembly to save construction time and labor costs.
Environmental protection, suitable for various geological conditions; recyclable.
Professional structural design ensuring the strength of the bracket system.
Flexible component installation suitable for trapezoidal tin roofs.
Ideal for both commercial and residential solar applications.
