Solar Energy Y Branch Connector 30A1000V DC IP67 Waterproof for Photovoltaic Parallel Connection with Male Female Mc4 Connectors

📊 Basic Information

Model NO.

New energy wiring harness

Sheath Material

PC

Insulating Material

PVC

Conductor Type

Solid

Certification

TUV

Wire Core Material

Red Copper Wire

Rated Current

30 A

IP Level

IP68

Rated Voltage

1000V/1500V

Lead Time

7 days (1 - 5000 Pieces)

🚀 Product Description

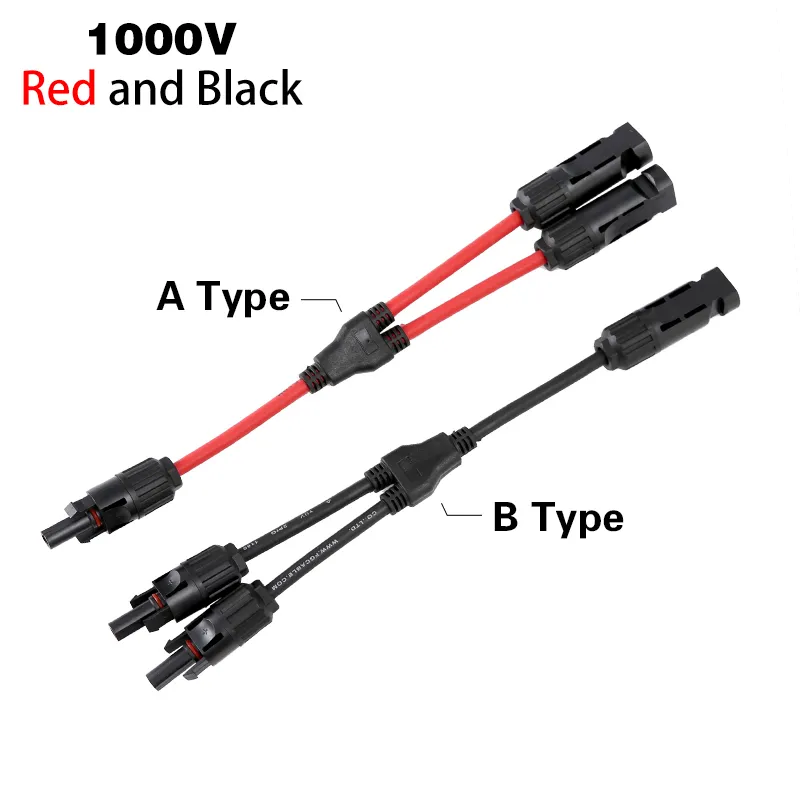

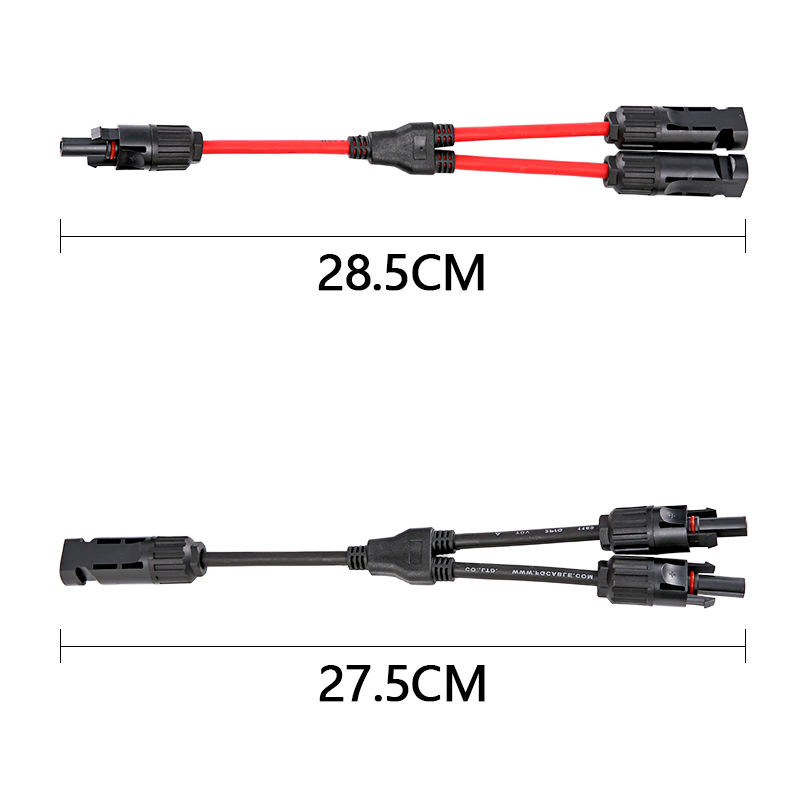

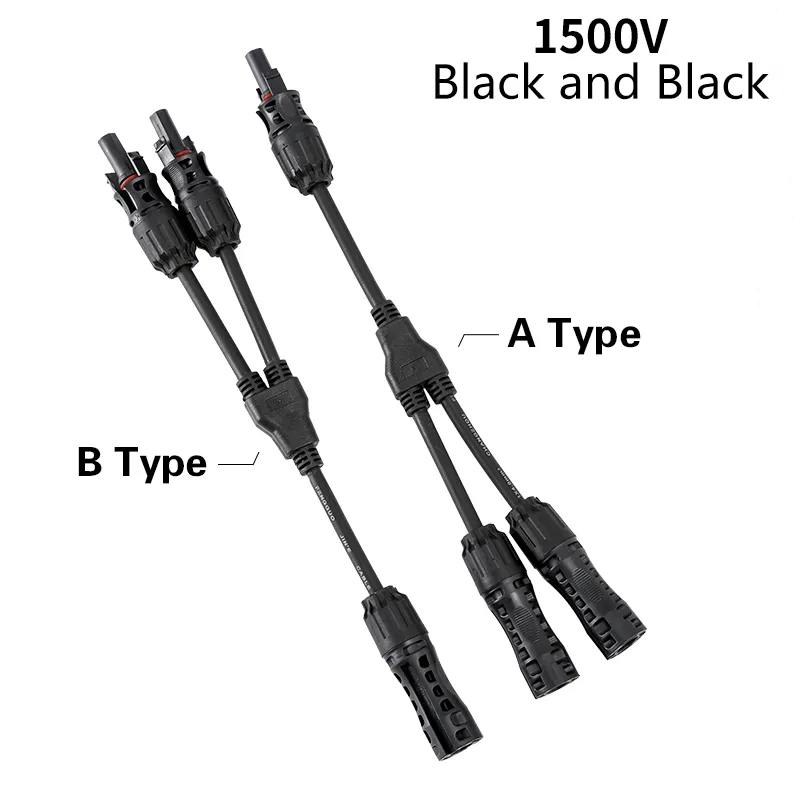

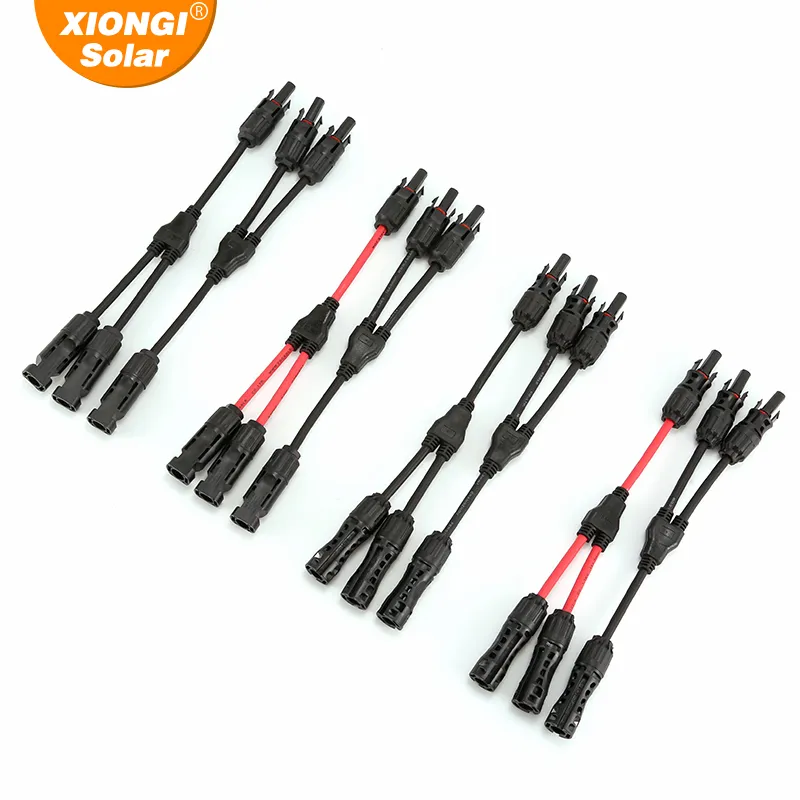

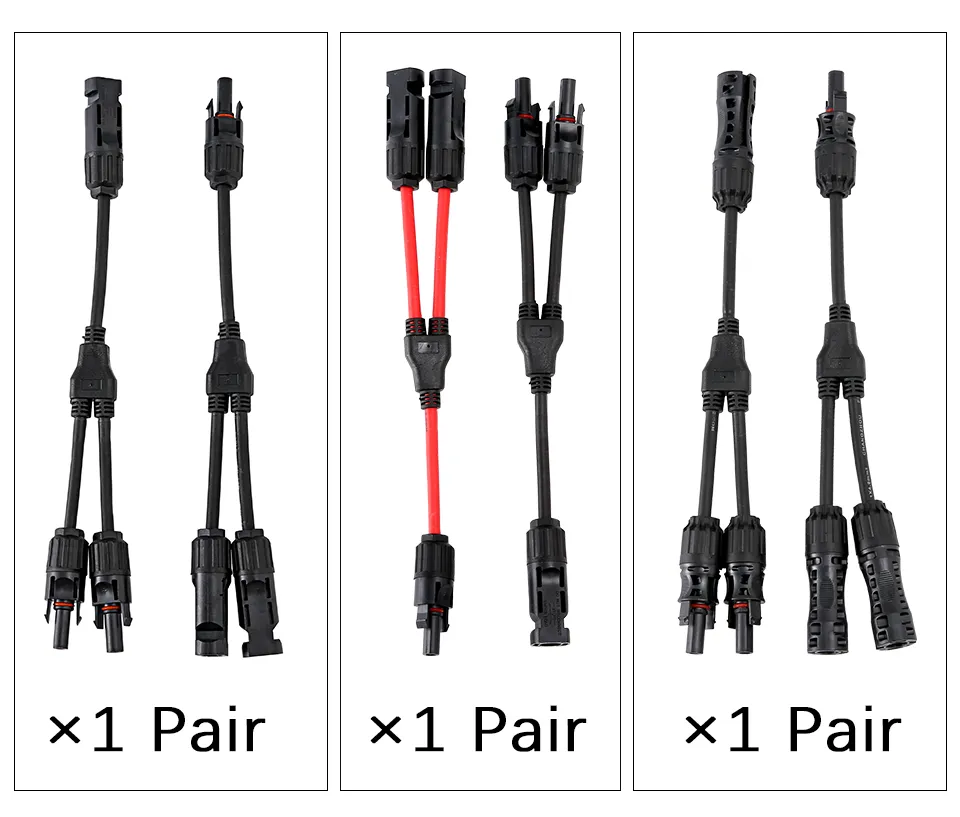

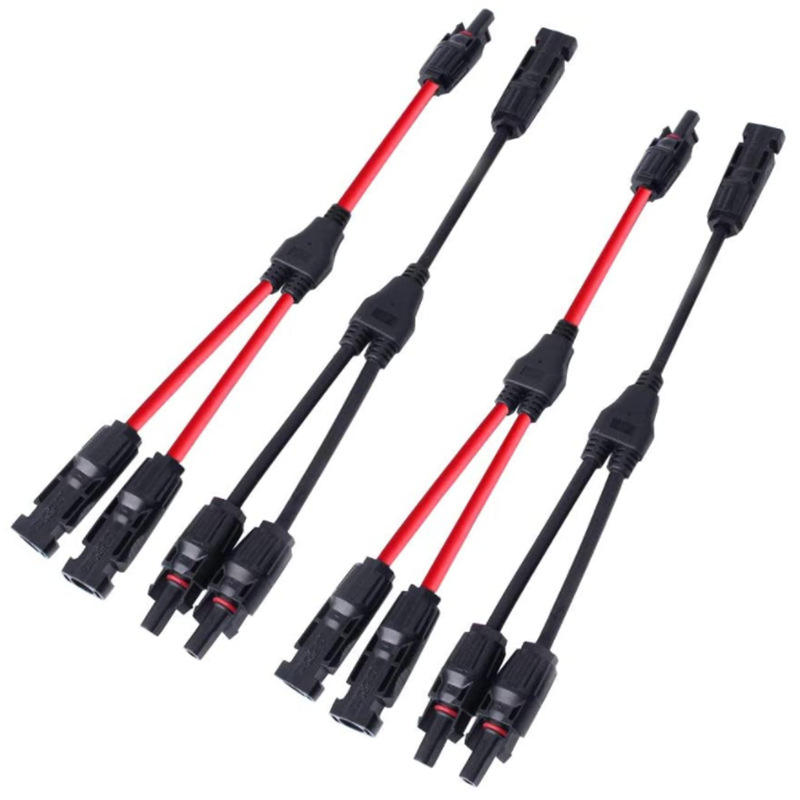

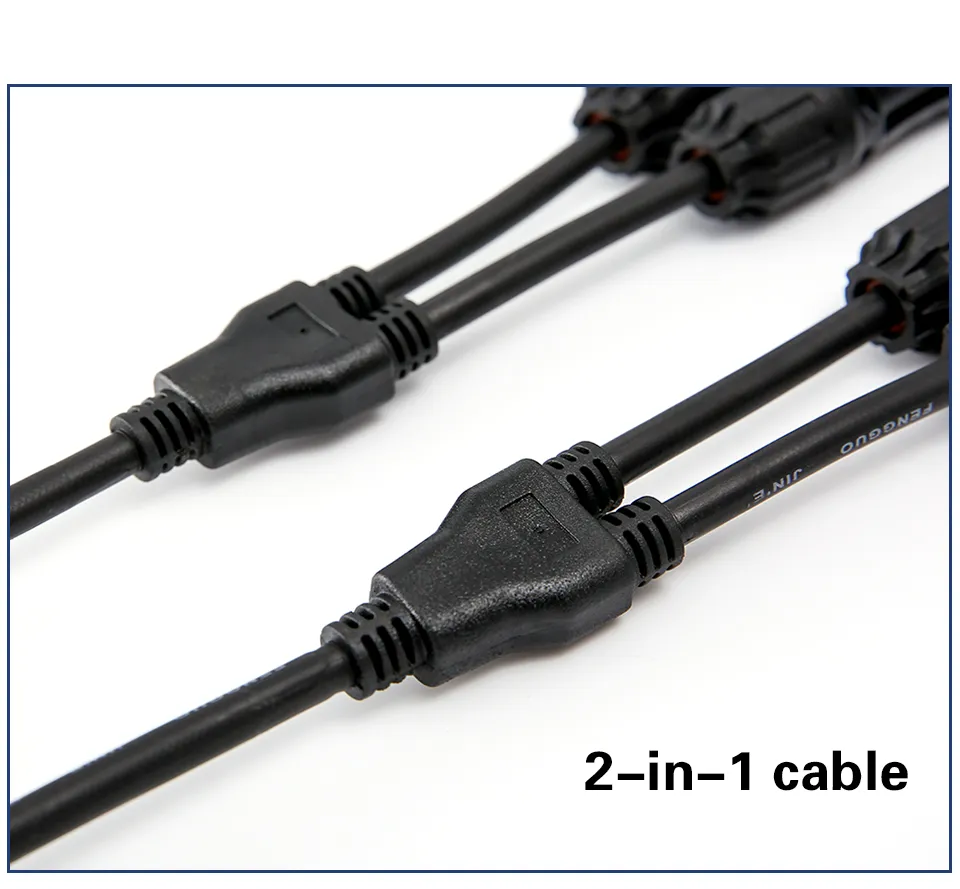

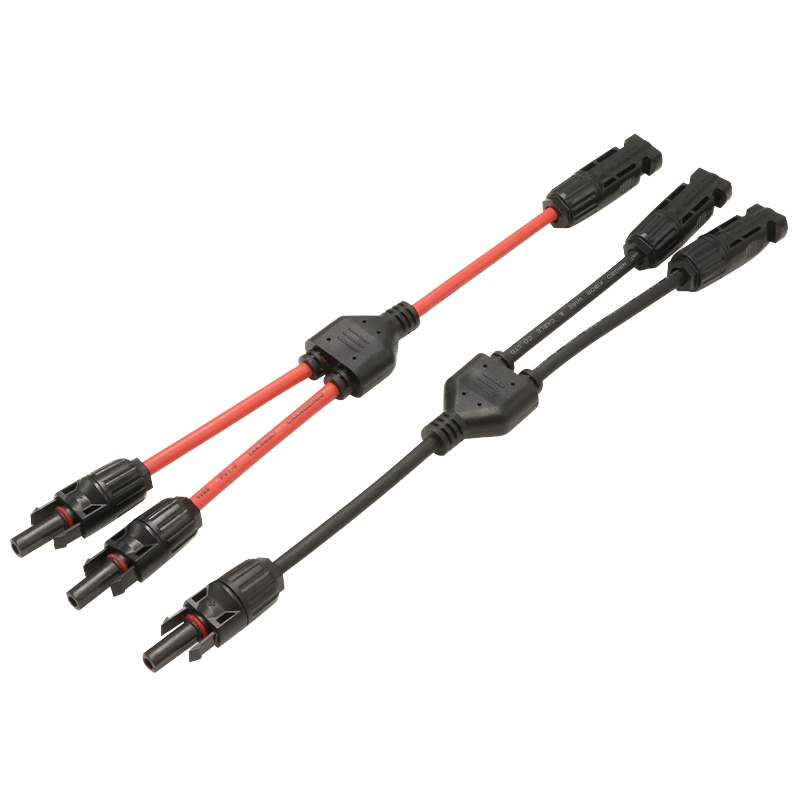

Introducing our robust Y-type solar panel cable connector, designed for ultimate flexibility and reliability. This connector includes one female to dual male (F/M/M) and one male to dual female (M/F/F) configuration, with options for 1 to 3, 1 to 4, and customized Y branch designs. Built to endure harsh environments, it is fully compatible with standard solar connectors and features dual sealing rings for superior waterproofing.

It allows for a quick and simple assembly process, offers strong pulling force and withstands ultra-high and low temperatures. Fireproof with low contact resistance, this connector is the perfect choice for your solar power needs.

📋 Technical Specifications

Feature	Details
Product Name	Waterproof LTY2 Solar Connector
Rated Max Voltage	1000V DC (IEC)
Rated Current	17A (1.5mm²) / 22A (2.5mm²) / 30A (4mm², 6mm²)
Temperature Range	-40ºC to +90ºC (IEC)
Test Voltage	6KV (50HZ, 1Min)
Protection Class	IP67 (Mated) / IP2X (Unmated)
Contact Material	Copper Alloy, Tin Plated
Flame Class	UL-94-V0

💎 Product Highlights

1. Versatile Product Design: Engineered for diverse solar applications, providing seamless connections.
2. Superior Voltage Handling: Supports DC600V to 1500V demands.
3. Material Quality: Premium PPO housing for temperature and UV resistance.
4. Flexible Integration: Easy installation for peak performance.

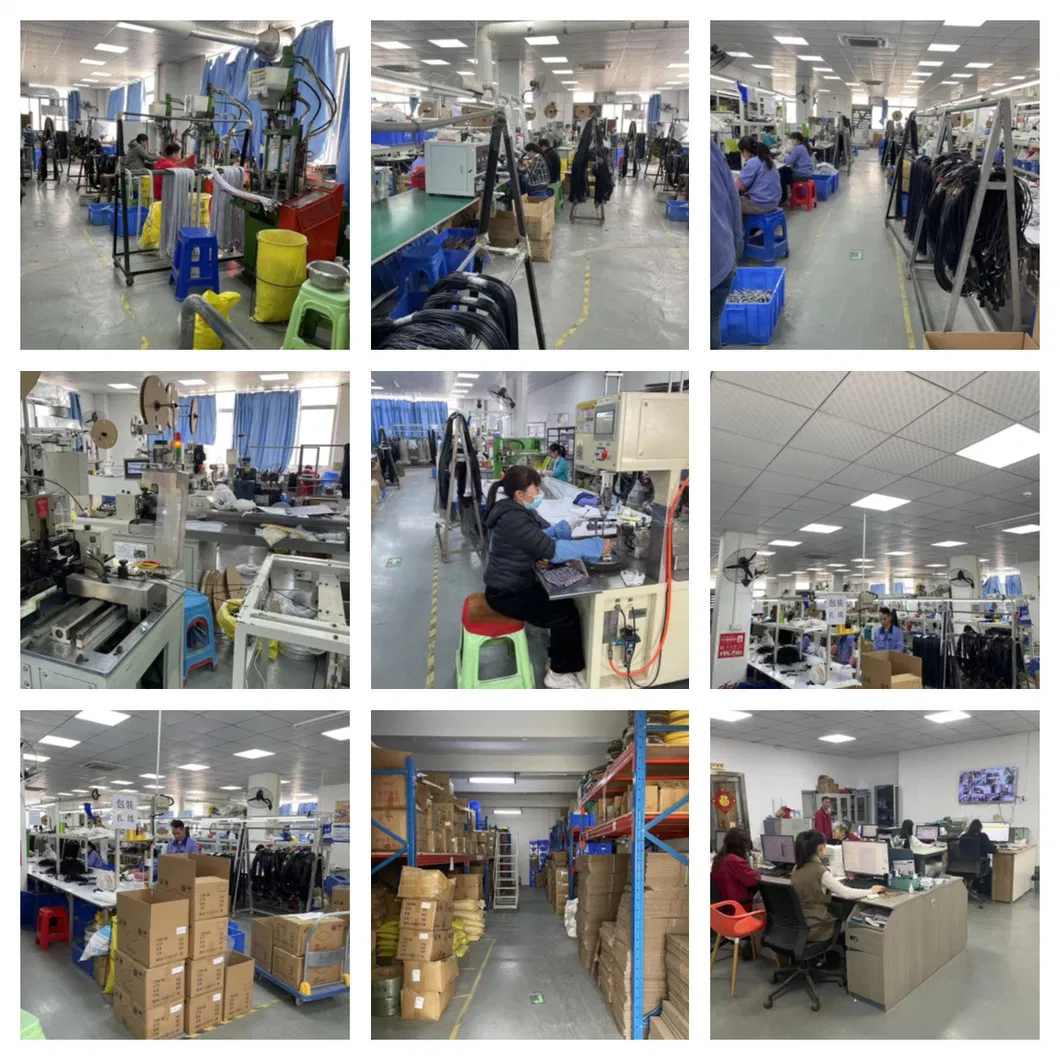

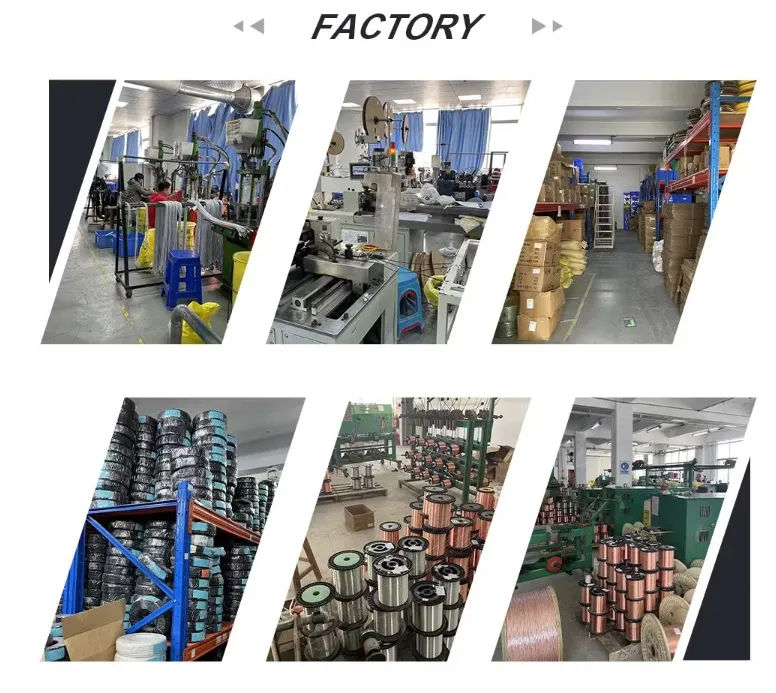

🏭 Professional Production

❓ Frequently Asked Questions

Q1: How fast can I get a quotation?

We usually quote within 3 hours during business hours, and no later than 8 hours after work. Urgent inquiries are prioritized.

Q2: Can I get a sample to check the quality?

Yes, samples can be sent within 3-5 days to verify the product quality.

Q3: Do you offer a guarantee for the products?

Yes, we provide a 2-year guarantee to ensure trouble-free cooperation.

Q4: What are your terms of delivery?

We accept EXW, FOB, C&F, and CIF. You can choose the most cost-effective option for your needs.

Q5: How long will it take for the delivery?

Standard delivery typically takes about fifteen days after payment is confirmed.

Q6: Why choose your solar connectors?

With over 15 years of experience, we provide competitive pricing combined with superior quality and dedicated customer service.
