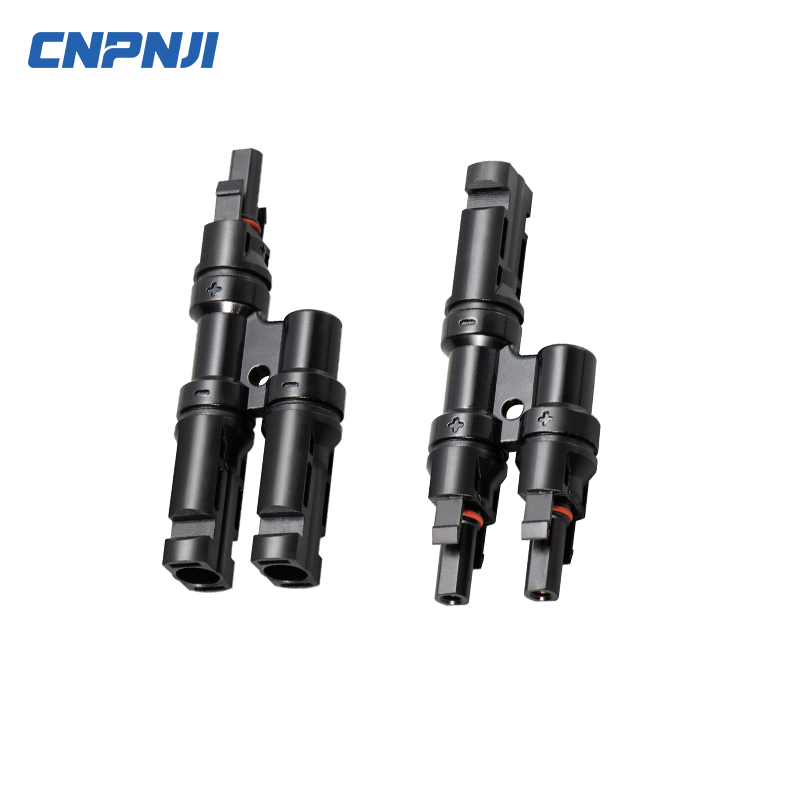

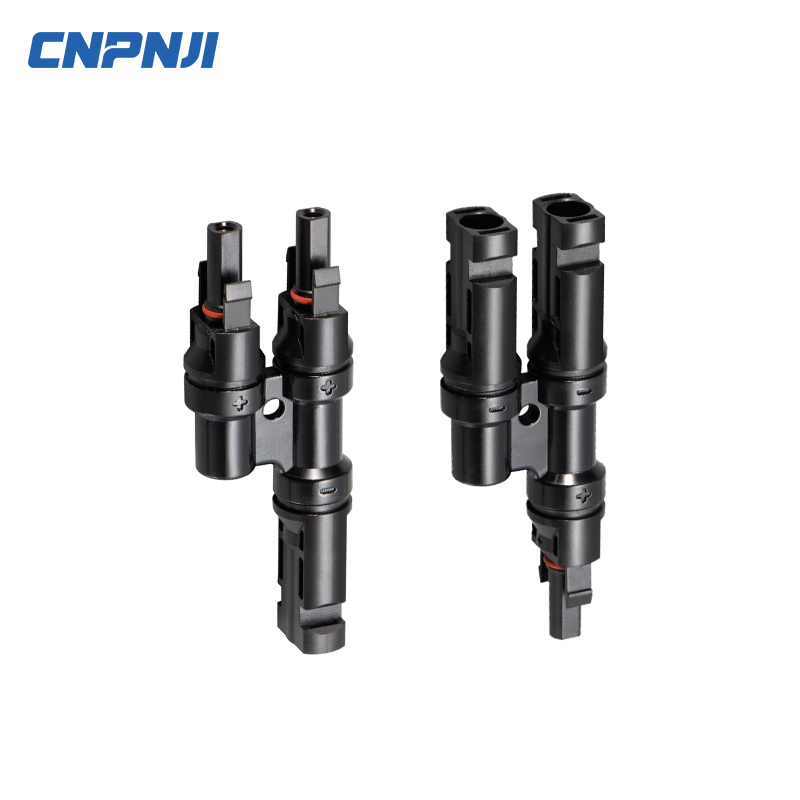

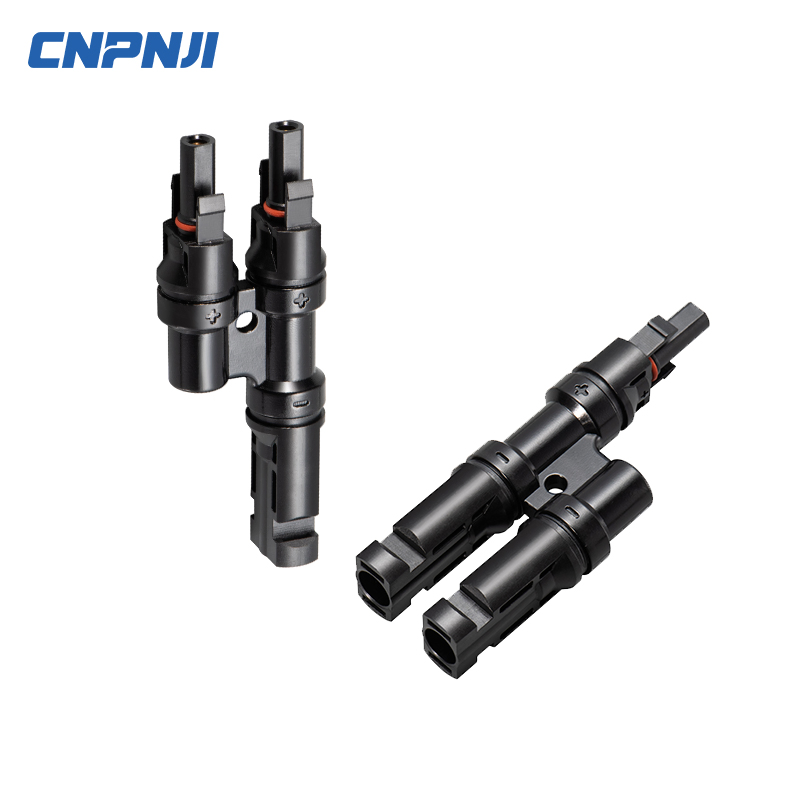

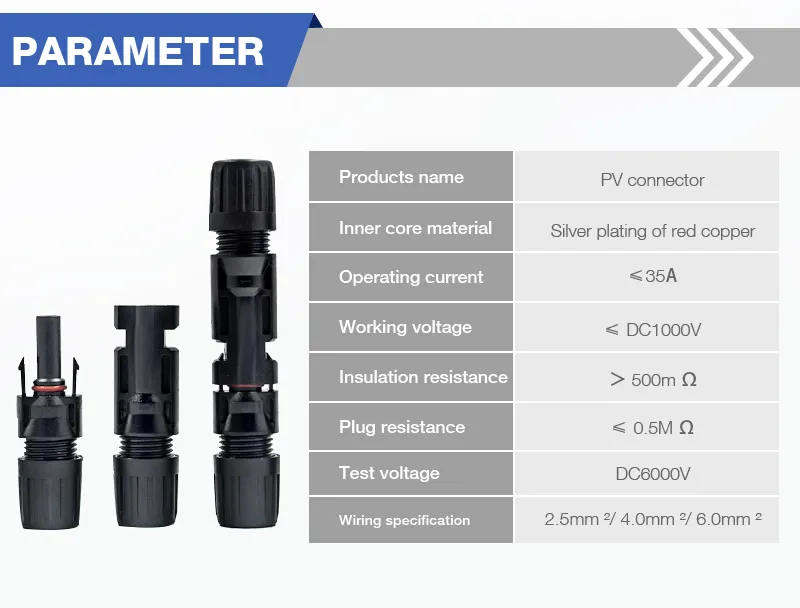

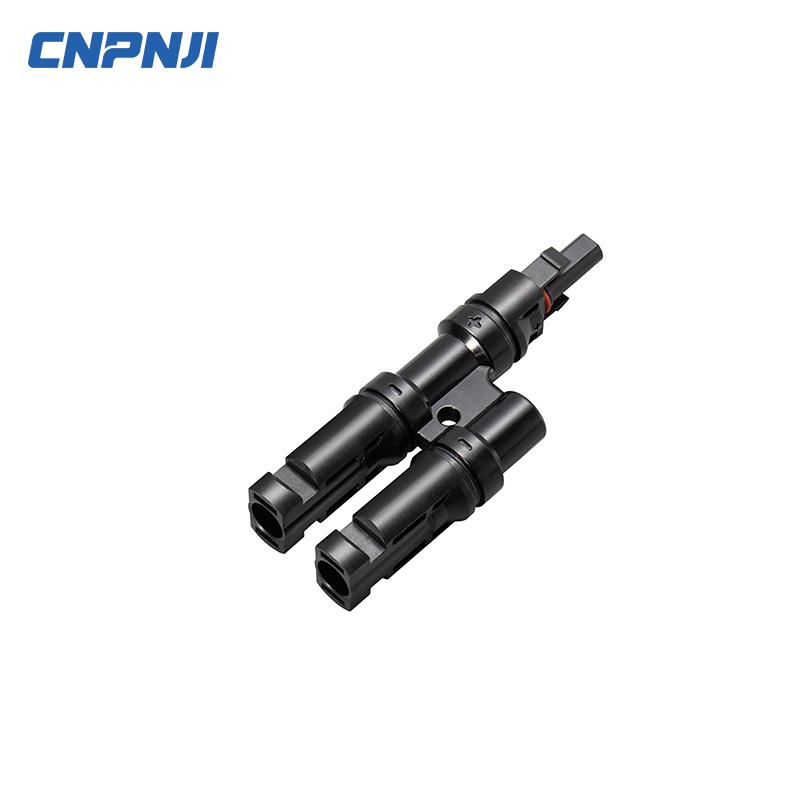

| Technical Specifications | |
|---|---|
| Model Number | MGMC4 |
| Rated current | 30A(2.5-6mm2), 45A(2.5-6mm2) |
| Rated voltage | 1000VDC / 1500VDC |
| Overvoltage Type/Pollution Degree | 6000V(50Hz, 1min) |
| Contact Resistance | 1mΩ |
| Contact Material | Copper, Tin-plated |

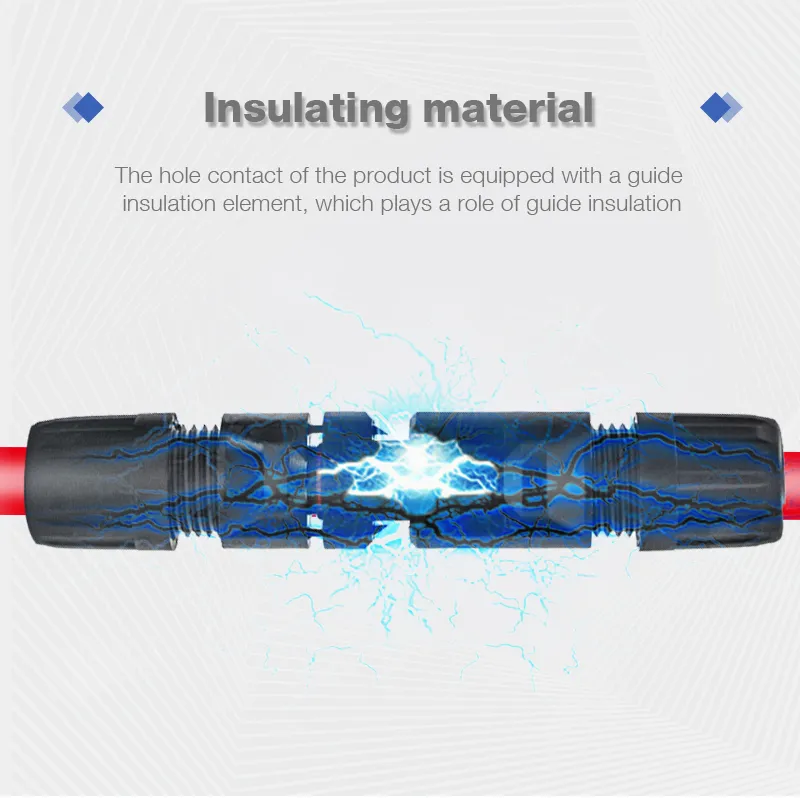

| Insulation Material | PPO |
| Degree Of Protection | IP2X / IP67 |
| Flame Class | UL94-V0 |
| Suitable Cable | OD4.5-8.5 (2.5-6.0mm2) |
| Connecting System | Crimp connection |
| Temperature Range | -40ºC ~ +125ºC |
Specialized in manufacturing waterproof junction boxes, cable glands, PV combiner boxes, MC4 connectors, flexible pipes, plastic wiring ducts, and nylon cable ties. We have advanced production equipment and abundant technical force. Our production processes have passed the certificate of ISO9001:2000 and most products have obtained IP68, CE, SGS, and RoHS certificates.
Our products are widely used in power trains, automobile cables, mechanical engineering, and installation. We maintain a strong domestic sales network and established global cooperation with customers in South America, Europe, and other regions. Pursuing quality is our everlasting theme; continuous innovation is our philosophy.
