| Feature | Range | Application Details |
|---|---|---|
| Pile Diameter (OD) | 100mm - 300mm | 100-160mm for small projects; 180-300mm for building foundations |
| Pile Length | 1m - 12m | Customizable up to 15m; 6-12m recommended for soft soil |
| Helix Diameter | 150mm - 400mm | Typically 50-100mm larger than pile diameter for friction resistance |
| Helix Pitch | 150mm - 300mm | Smaller pitch (150-200mm) for clay layers to prevent loosening |
| Pointed Angle | 30° - 60° | Sharp (30°-45°) for hard soil; Obtuse (45°-60°) for soft soil |
| Wall Thickness | 3mm - 10mm | Q235 (3-6mm) for light loads; Q355 (6-10mm) for heavy loads |
| Connection Type | Welded, Flanged | Segmented connection for lengths > 6m; Flange for easy maintenance |

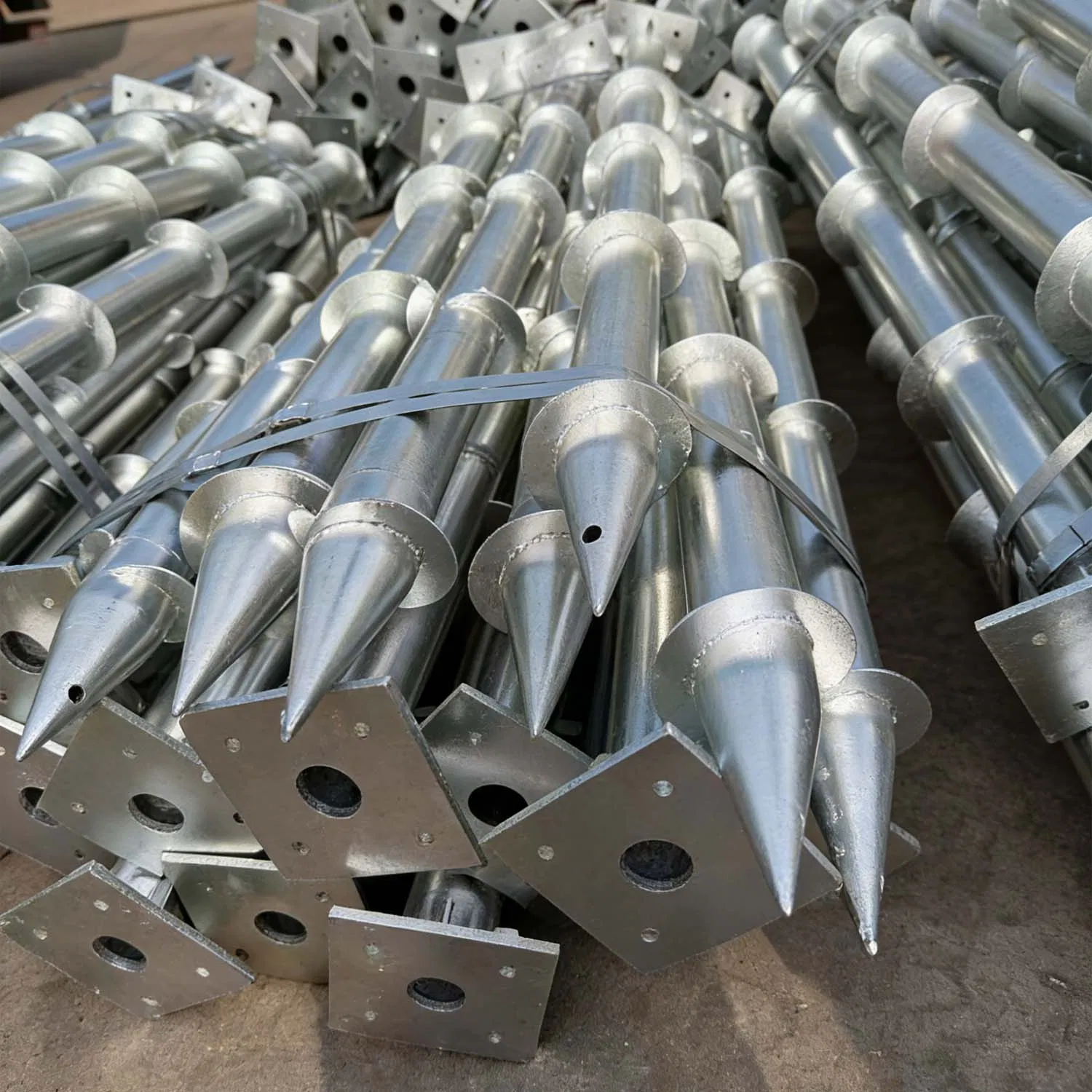

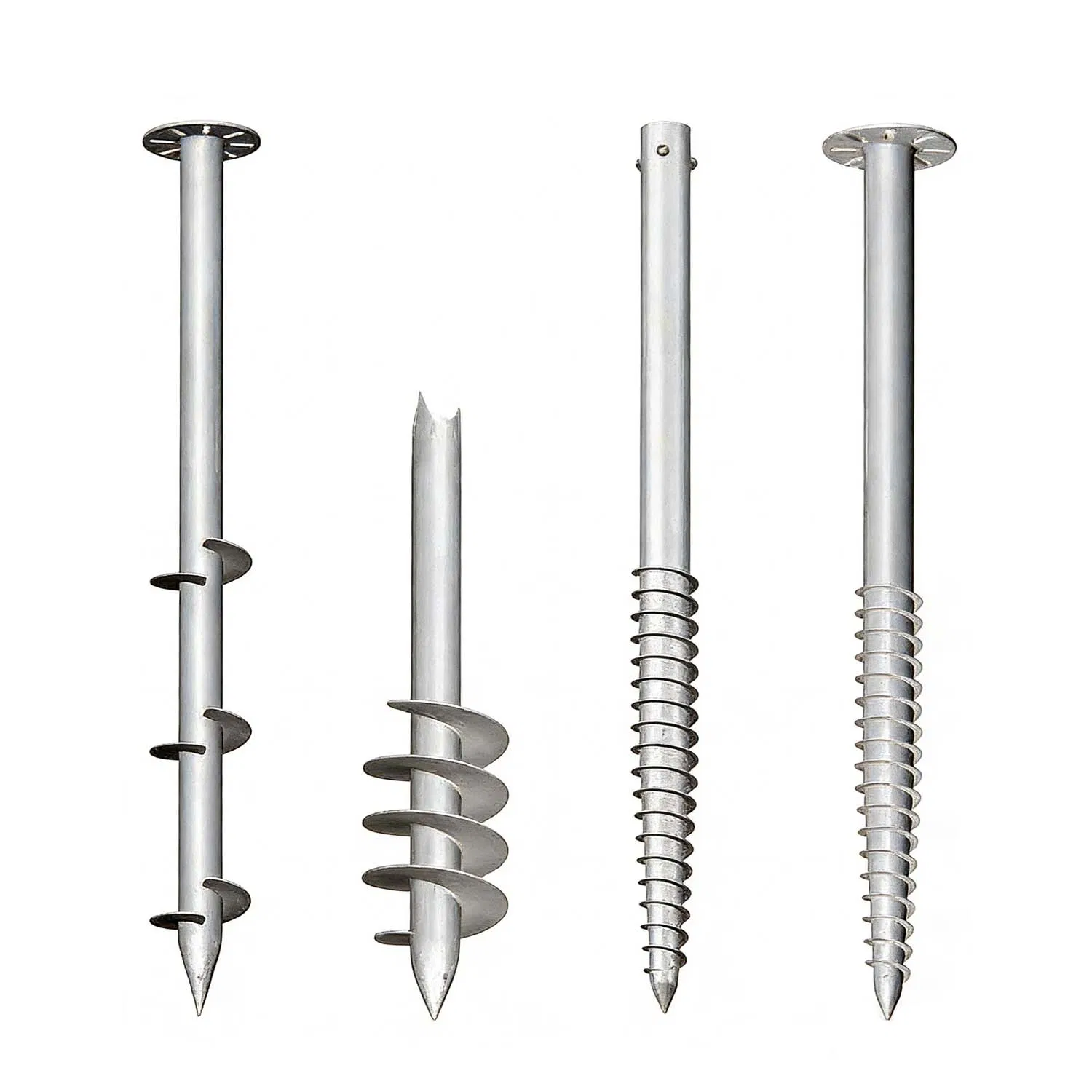

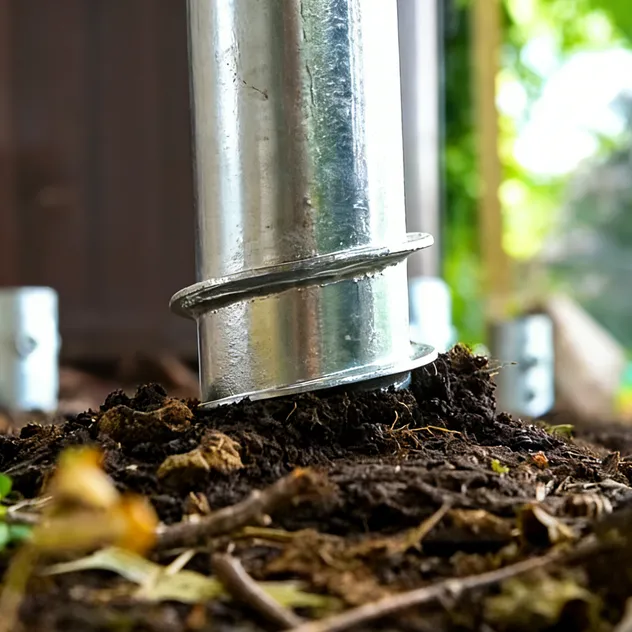

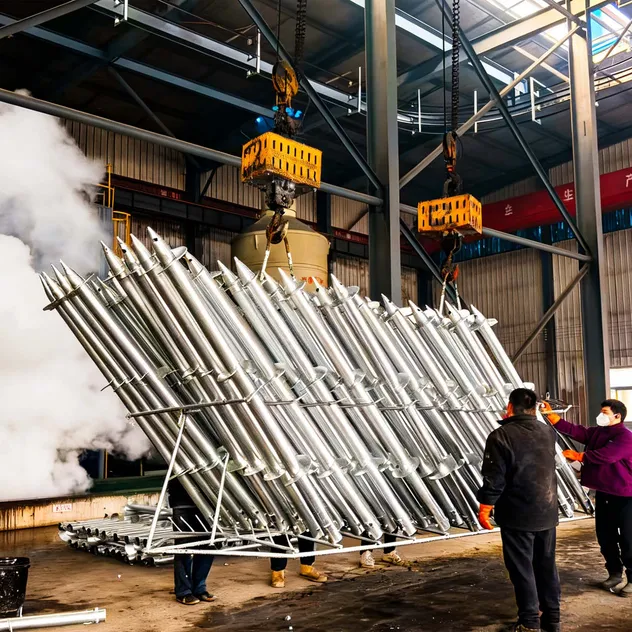

Screw pointed piles (helical piles) are a unique geotechnical material featuring a threaded structure and pointed design. They offer efficient construction and strong load-bearing capacity for foundation reinforcement.

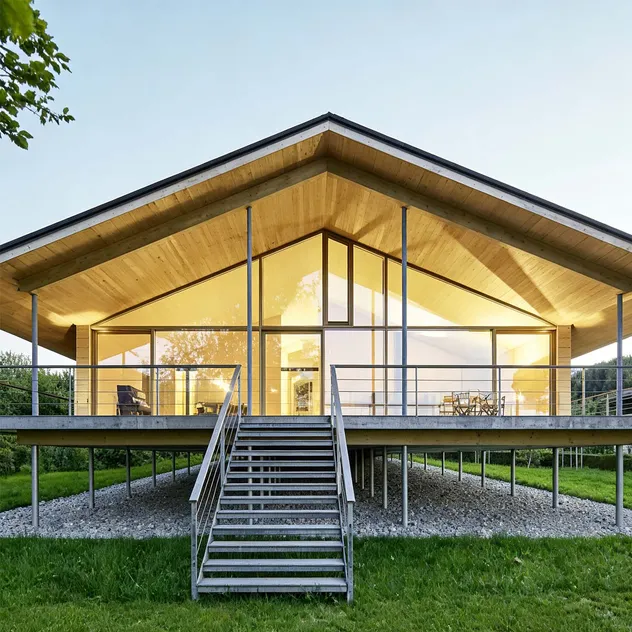

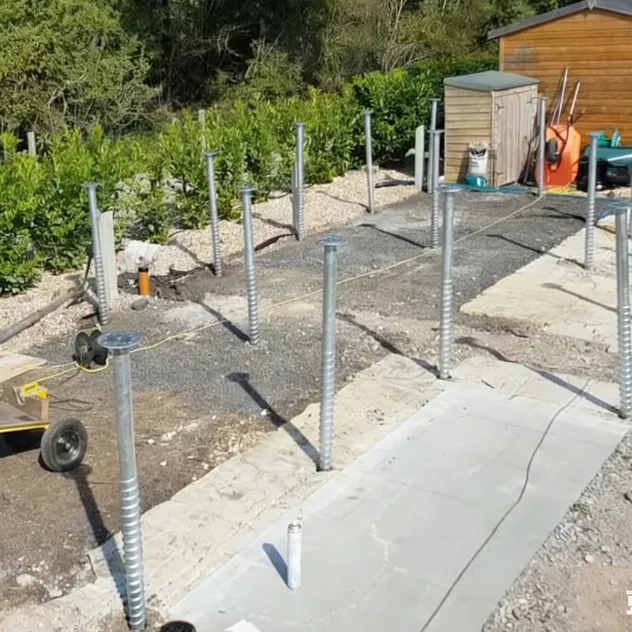

Ideal for low-to-mid-rise foundations such as villas and small commercial buildings. The design allows for quick installation in urban areas with limited space without needing large excavation equipment.

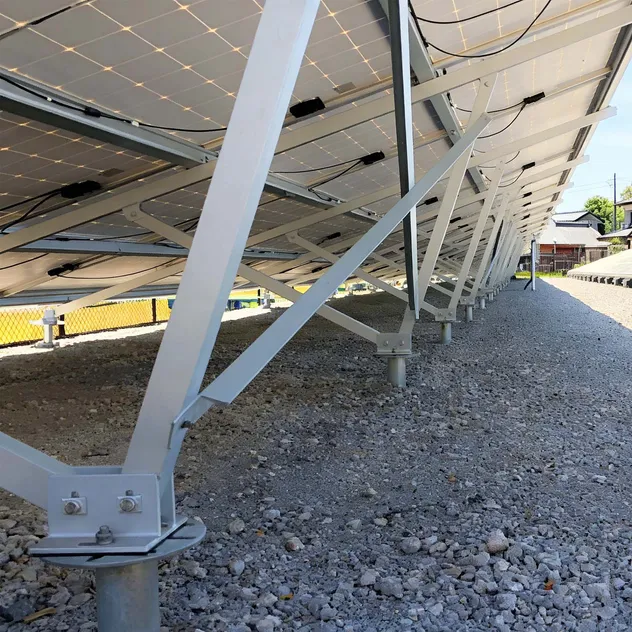

Perfect for large-scale solar power plants. These piles can be screwed directly into various terrains (deserts, slopes) without damaging surface vegetation. Also used for wind turbine auxiliary facilities and plant expansions.
