Sinpometal Custom Solar Carport Parking Structure with Solar Panel Mounting Rail and Ground Mounting Support

Still deciding? Get samples of $ !
Order Sample

Product Description

📊

Basic Information

Model NO.
Solar Carport
Certification
ISO, CE
Application
Commercial
Material
Aluminum Alloy
Type
Roof Bracket
Wind Load
60m/S
Snow Load
1.4kn/M2
Capacity
50000ton/Year
📦

Packaging & Delivery

Package Size
45.50cm * 26.50cm * 37.50cm
Gross Weight
23.600kg
Transport
Shrinking Film, Carton, Wooden Pallet
🚀

Product Description

  • Enables easy, fast and cost-effective installation.
  • Flexible post spacing withstands different wind & snow loads.
  • High quality material in Aluminum and SUS 304.
  • Highly corrosion resistant surface treatment.
  • Screws and nuts go with every components needed.
  • Mechanical calculation and reliability tested to ensure highest product quality.
  • 12-25 years system and structural guarantee.
Technical Specifications
TypeSolar mounting system for metal roof
MaterialAluminum 6000 series
Survival Wind Speed< 60m/s
Design Snow LoadUp to 1.4KN/ Square meters
Solar Panel TypeFramed or Frameless
Design StandardCE; ISO9001; SGS
Quality Warranty12-25 years
DurationMore than 20 years
🛠️

Materials List For 1kw

NO. Name Size (mm) QTY Material
1Clamp-12AL6063-T5
2Rail40*40/30*404AL6063-T5
3Rail Joiner4 set screw2AL6063-T5
4Mid Clamp30-47-606AL6063-T5
5End ClampW40-60-164AL6063-T5
6Hexagon Socket ScrewM8*2524304
7T BoltM8*2512304
8T BoltM8*3510304
🪜

Mounting Steps

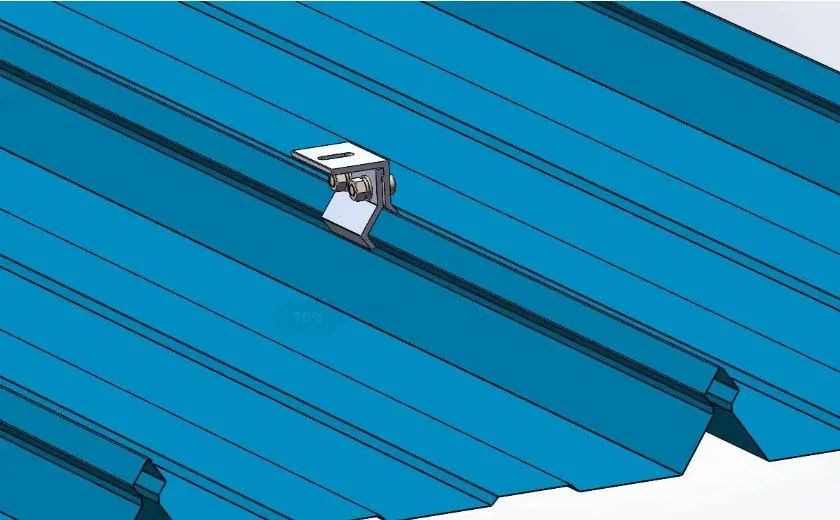

Solar Mounting Step 1

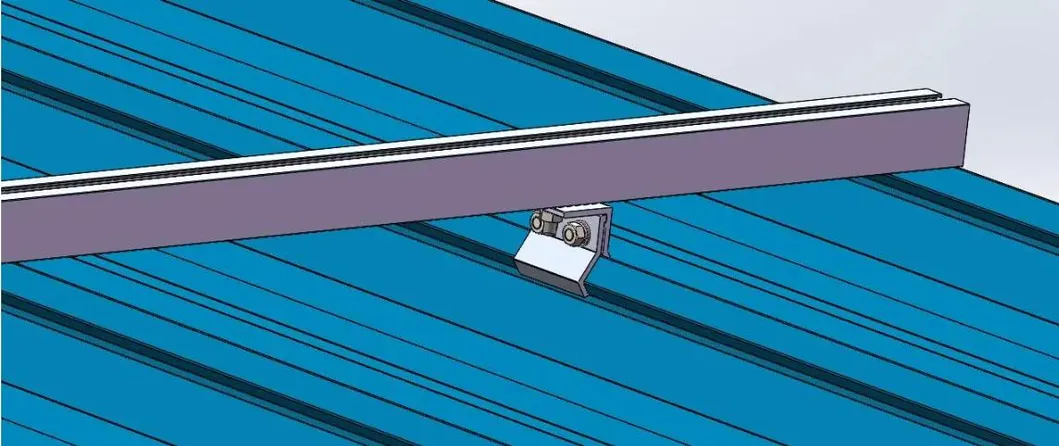

Solar Mounting Step 2

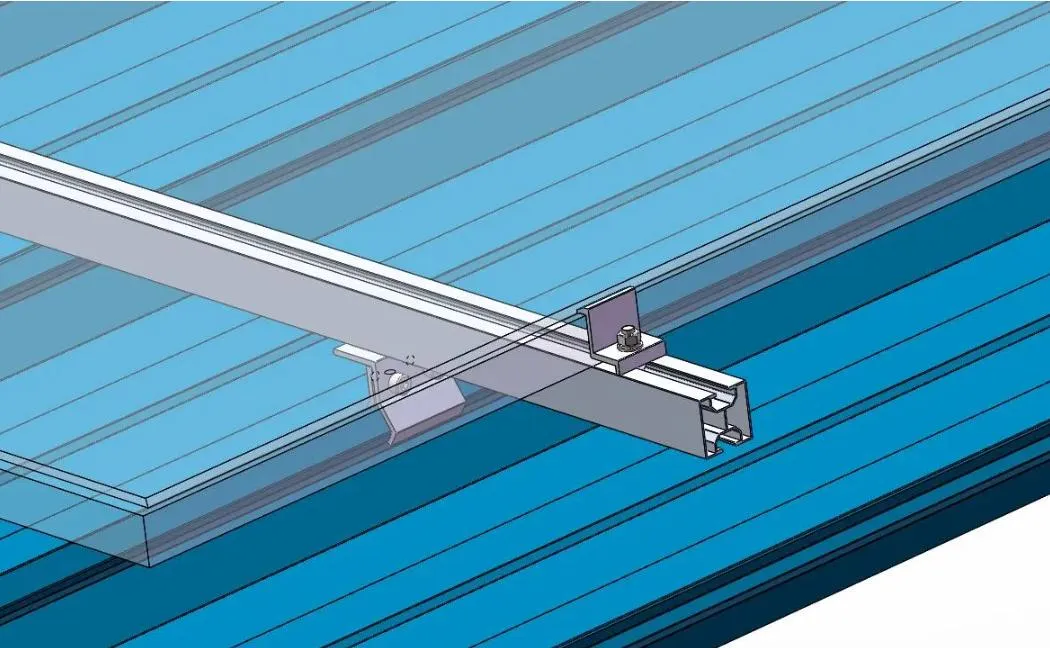

Solar Mounting Step 3

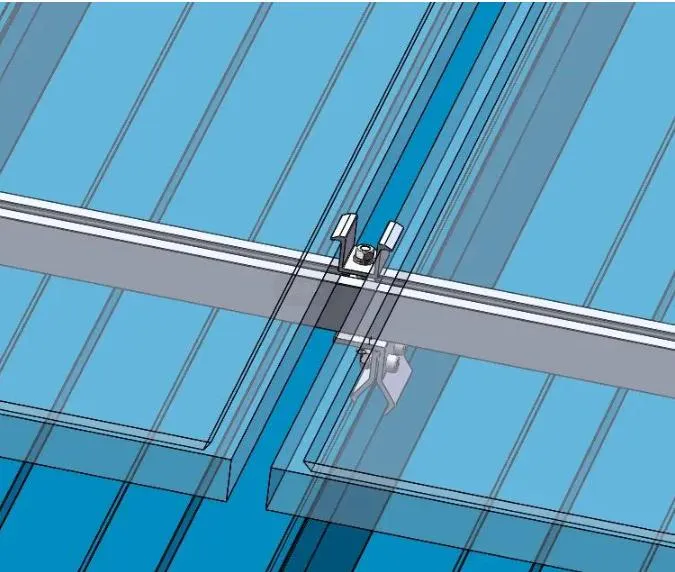

Solar Mounting Step 4

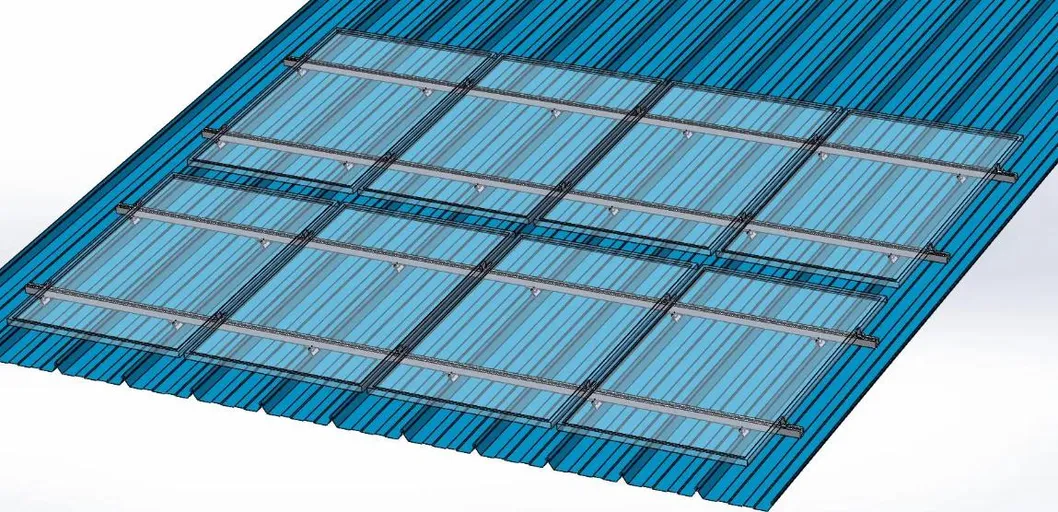

Solar Mounting Step 5
🚢

Packaging & Shipping

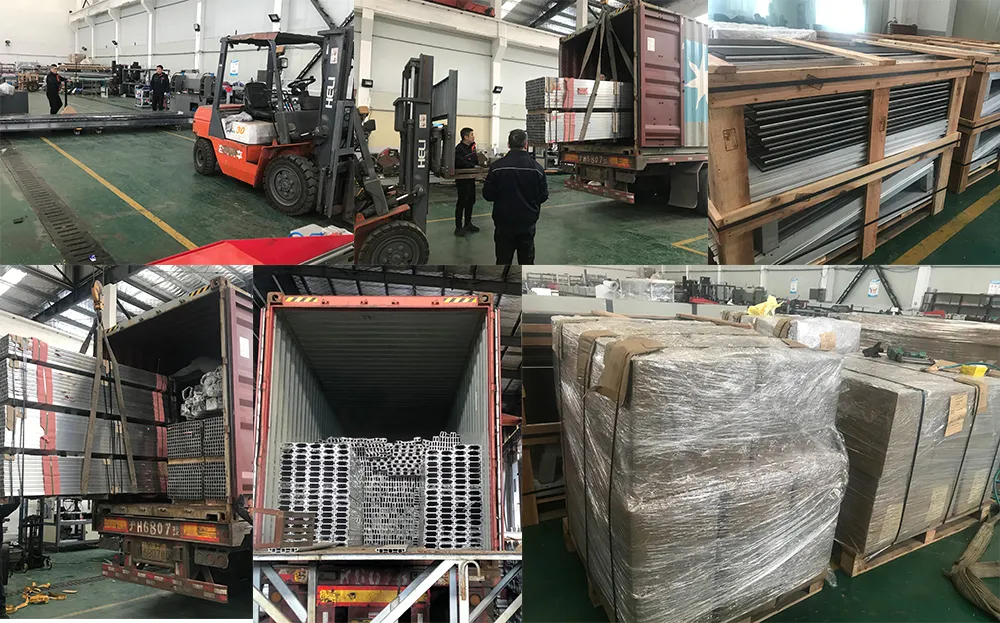

Packaging Detail
Shipping Load
🏭

Factory & Quality Control

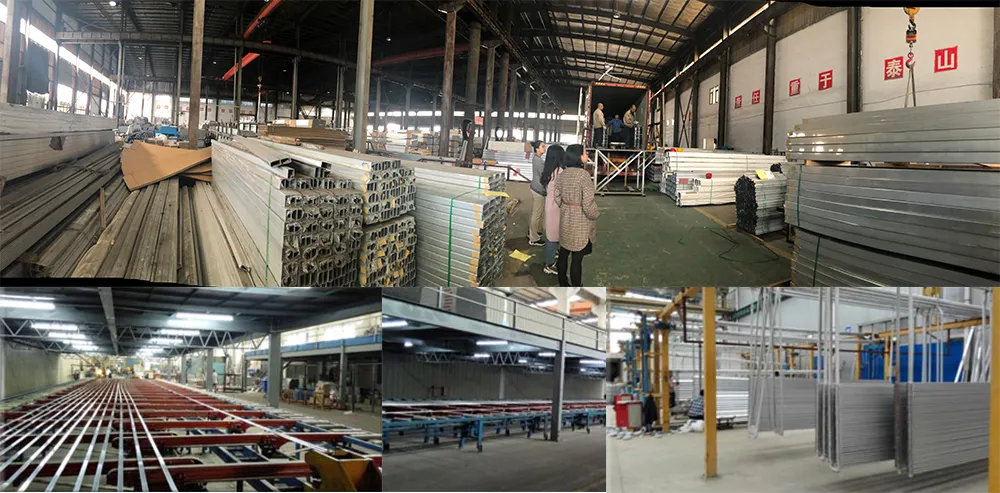

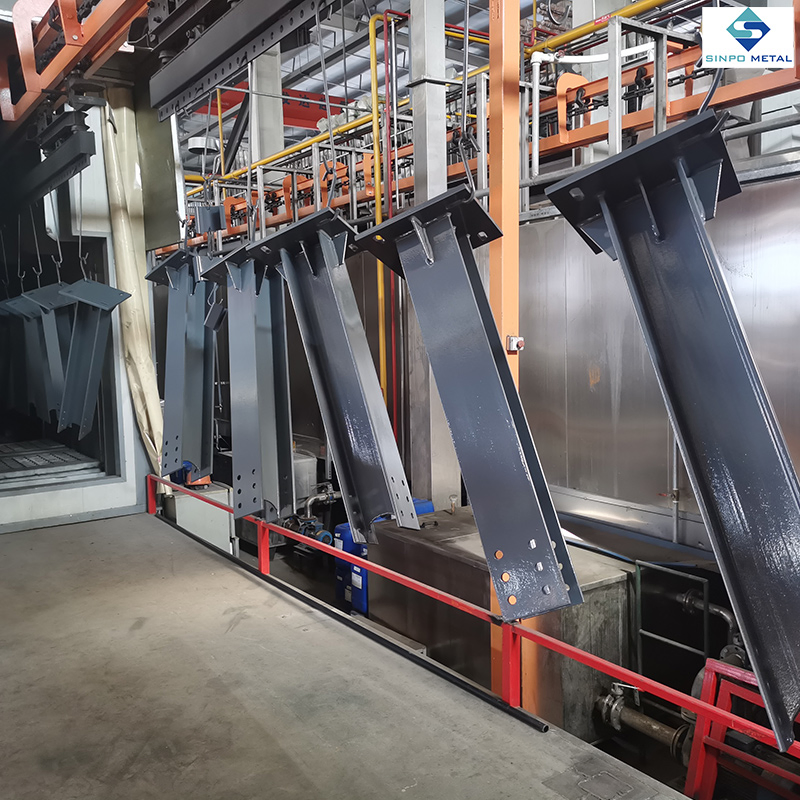

Production Factory

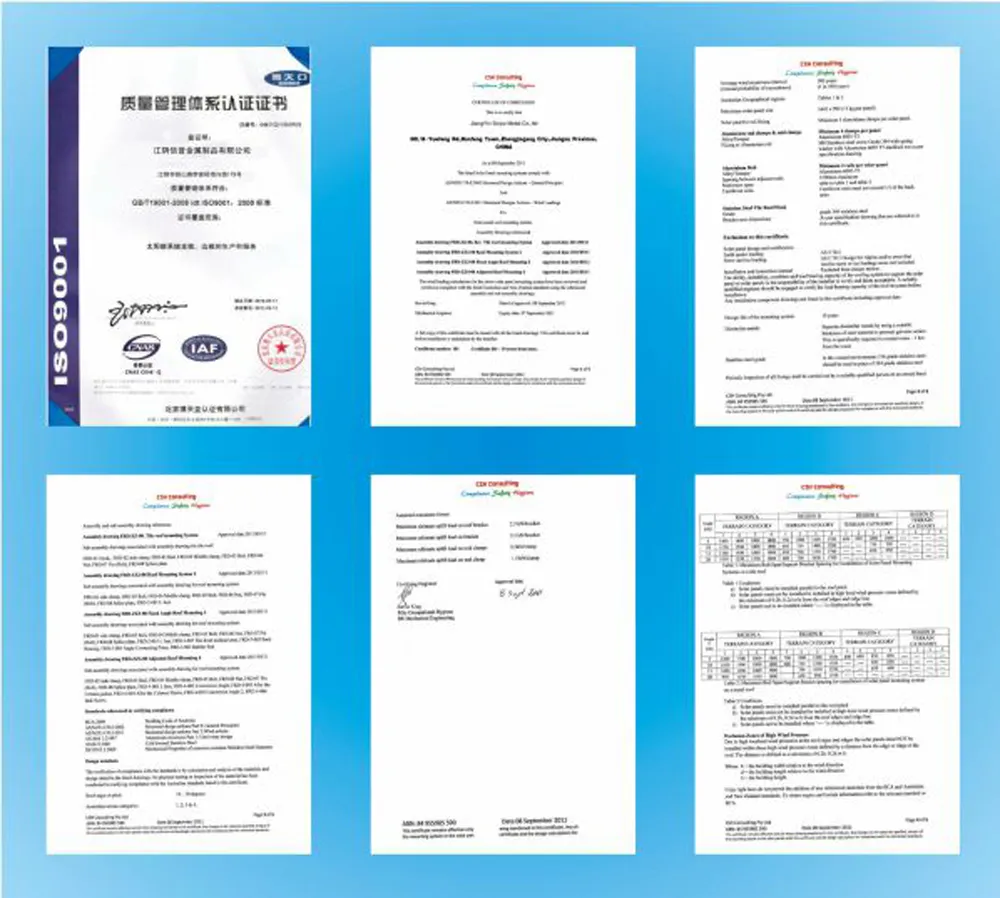

Quality Certifications
Necessary Info for Custom System:
  1. Dimension of solar panels (length*width*thickness)?
  2. Solar panels array?
  3. Where to install (which kind of rooftop or ground)?
  4. Tilt angle?
  5. Any requirements about wind load and snow load?

Frequently Asked Questions

What is your MOQ for these solar products?
500kg for general products. More than 5 tons for new products requiring custom molds.
Can you produce aluminum profiles based on my drawings?
Yes, we have professional engineers to design CAD drawings and establish molds according to your specific requirements.
What certifications and standards do you follow?
We hold ISO certification. Our production standards include DIN, AAMA, AS/NZS, and China GB.
What is the expected delivery time?
It takes 2-3 weeks to open new molds and make samples. Mass production typically takes 3-4 weeks after deposit and order confirmation.
What are your standard packing methods?
Commonly we use shrink films or kraft paper. We can also customize the packaging according to your needs.
What are your accepted payment terms?
Usually by T/T (30% deposit and balance before shipment). L/C is also acceptable.
