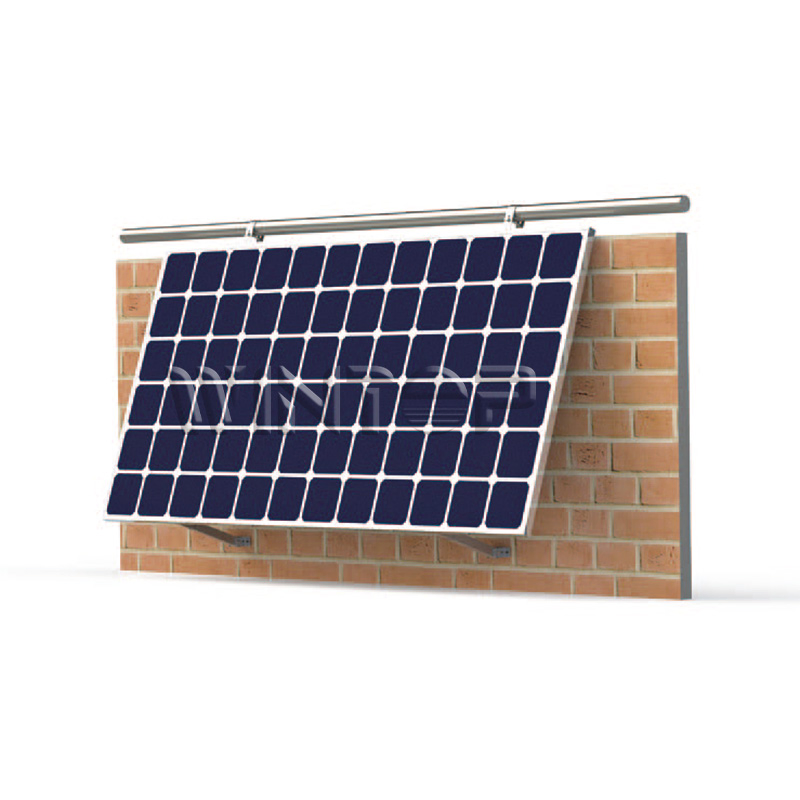

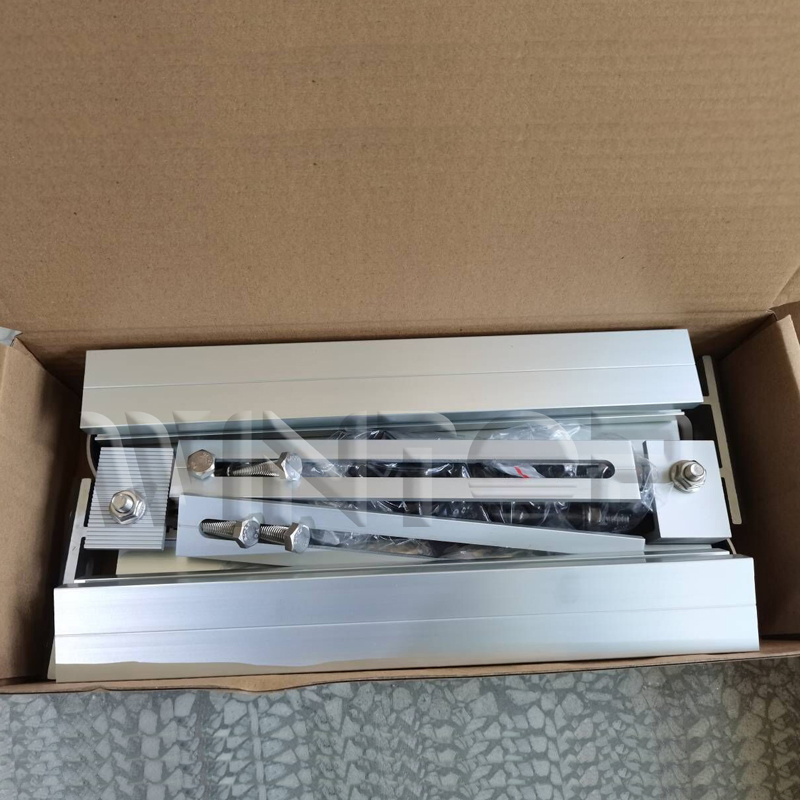

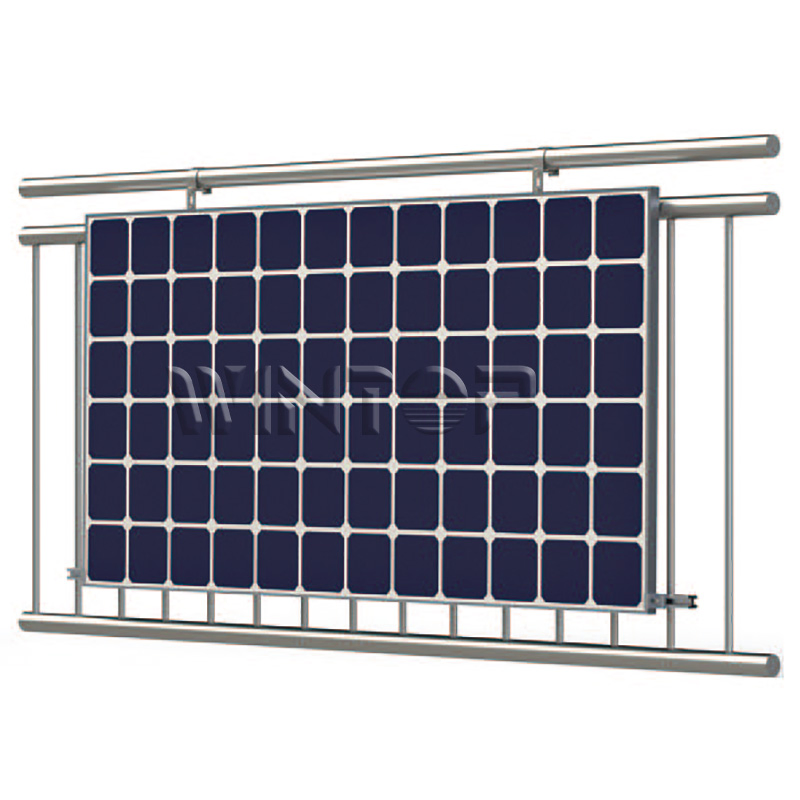

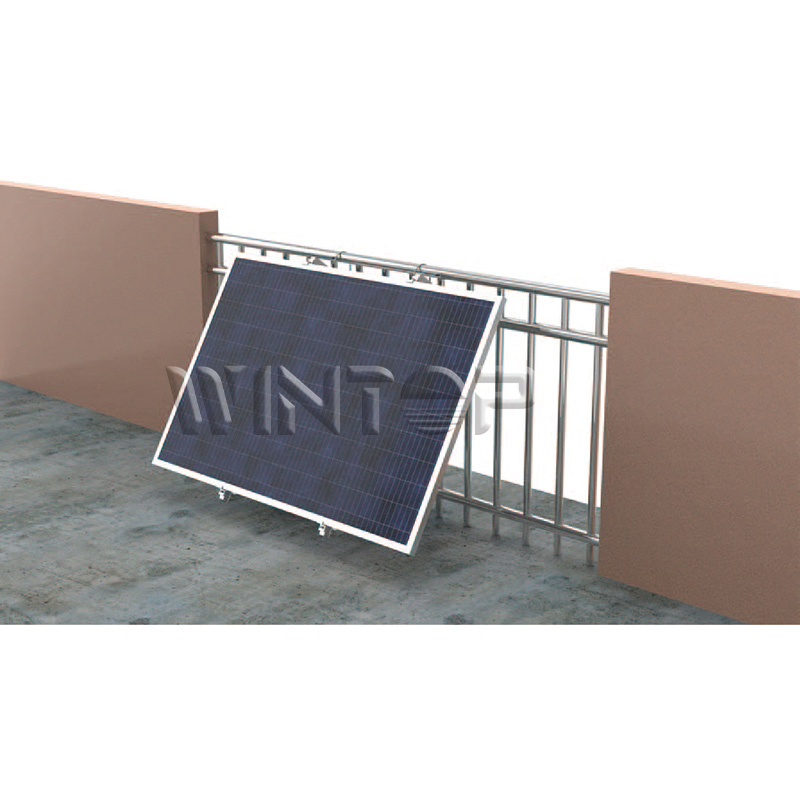

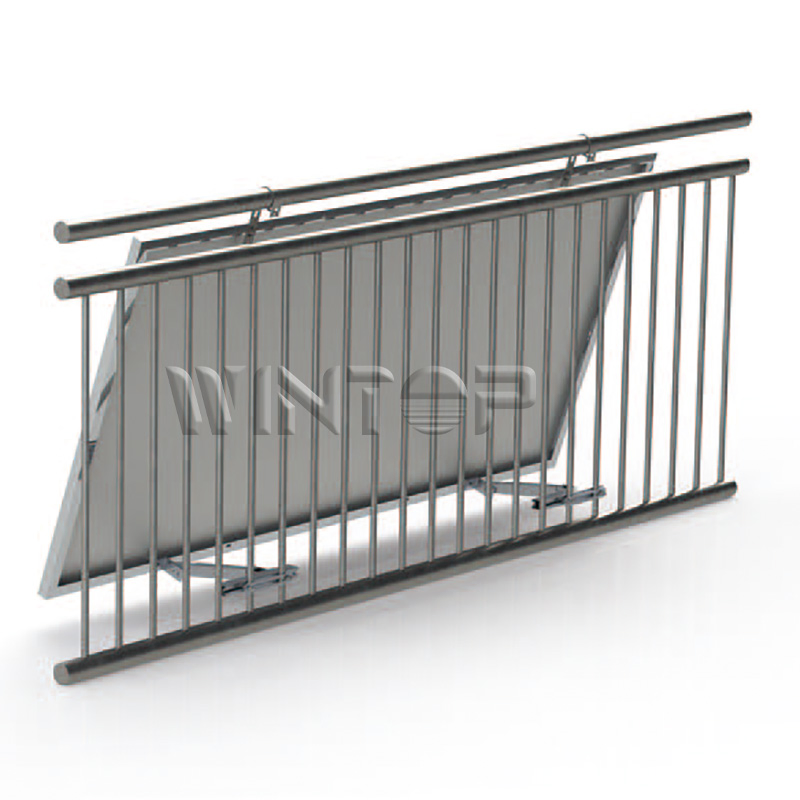

Railing Simple Solar Panel Bracket With Hook

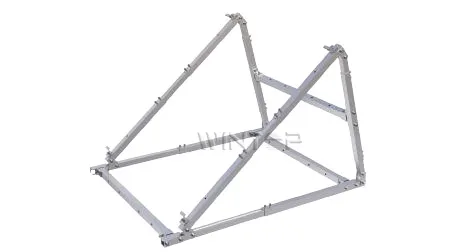

This easy solar panel mount is specially developed to integrate well with solar kits. It is a highly pre-assembled mounting structure for achieving home energy independence. Simply use it combined with a solar panel and micro inverter, designed for multiple scenarios. The tilt angle can be adjusted according to different installation environments and requirements to obtain maximum power generation.

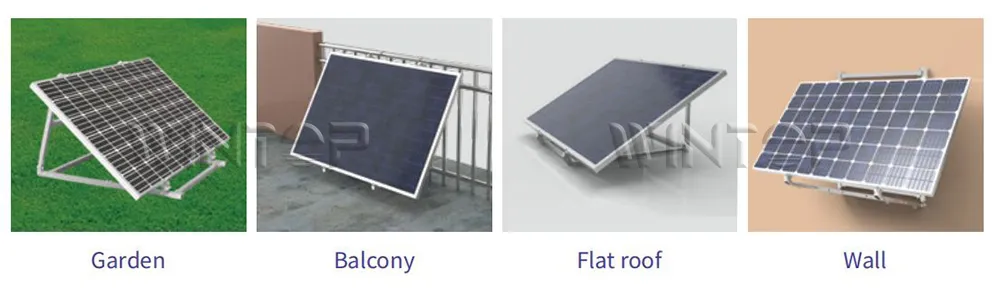

| Installation location | balcony, railing, walls and etc |
| Adjustable Angle Range | 15°-30° |
| Material | AL6005-T5, SUS304, EPDM |
| Gross weight per bracket (kg) | ≈8 |
| Applicable module type | Framed |
| Length of solar module (mm) | ≤2200 |
| Width of solar module (mm) | 751≤A≤1313mm |
| Thickness of solar module (mm) | 30-50 |
| Module orientation | Landscape |
| Warranty | 10 years |
Established in 2016, the enterprise is a high-tech company that integrates R&D, production, and marketing of Solar Mounting Systems for residential, commercial, and utility-scale customers.
