Trope Solar
1 / 5
| Model NO. | PV Connector 1000V 30A MC4 IP67 |

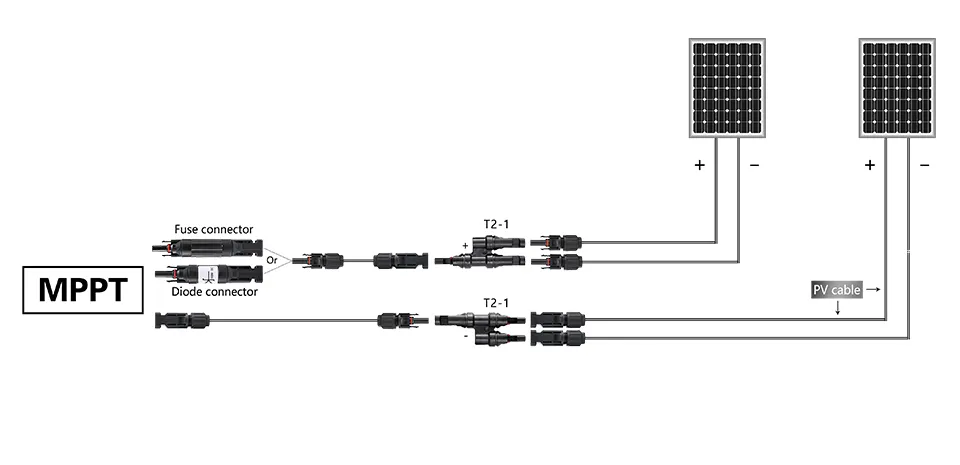

| Application | Solar PV system |

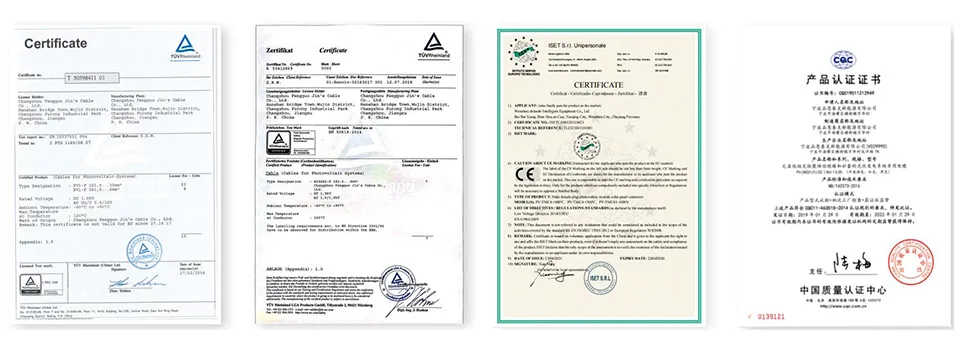

| Certification | CE |
| Protection Level | IP67 |
| Rated Current | 30A / 35A |
| Output Voltage | 1000V / 1500V |
| Safety Class | Class II |
| Installation Site | Solar Installation |
| Warranty | 2 Years |

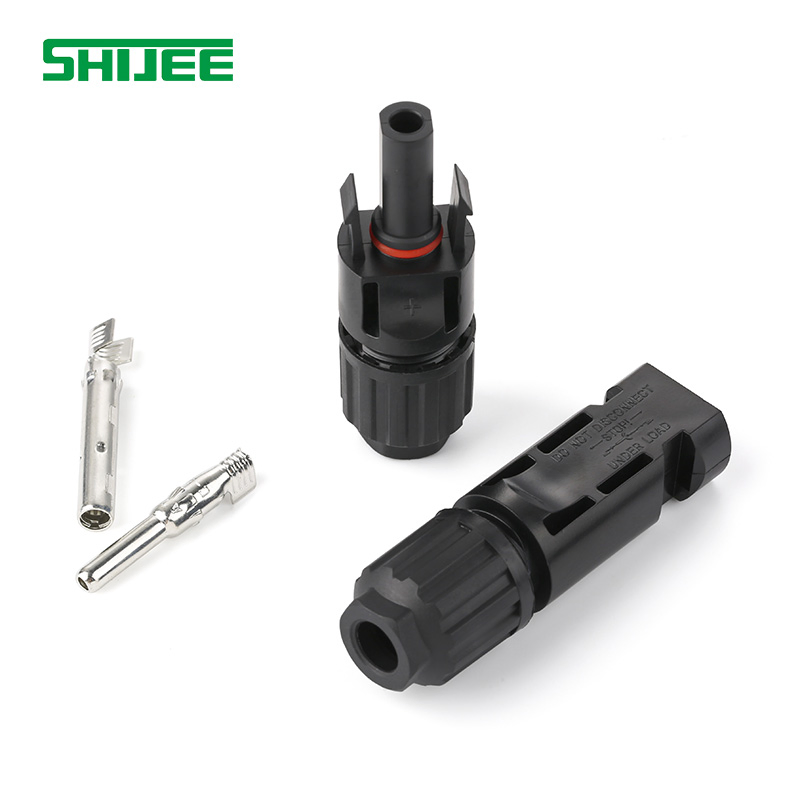

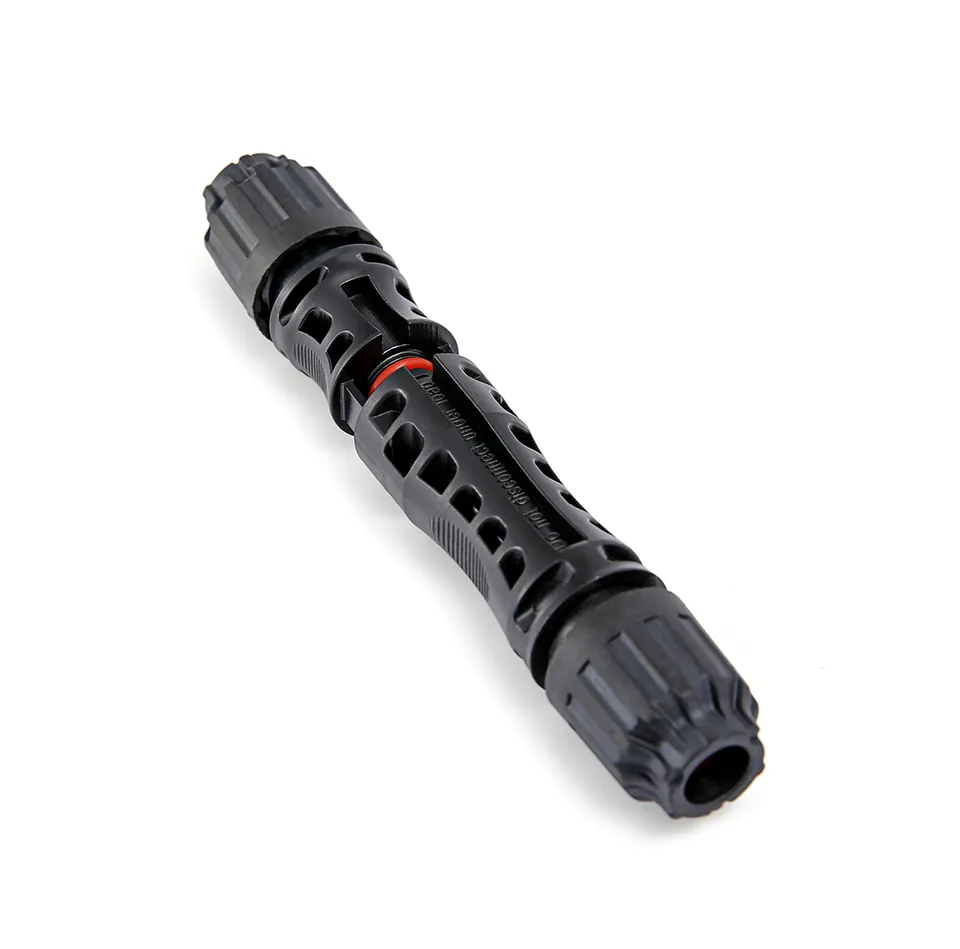

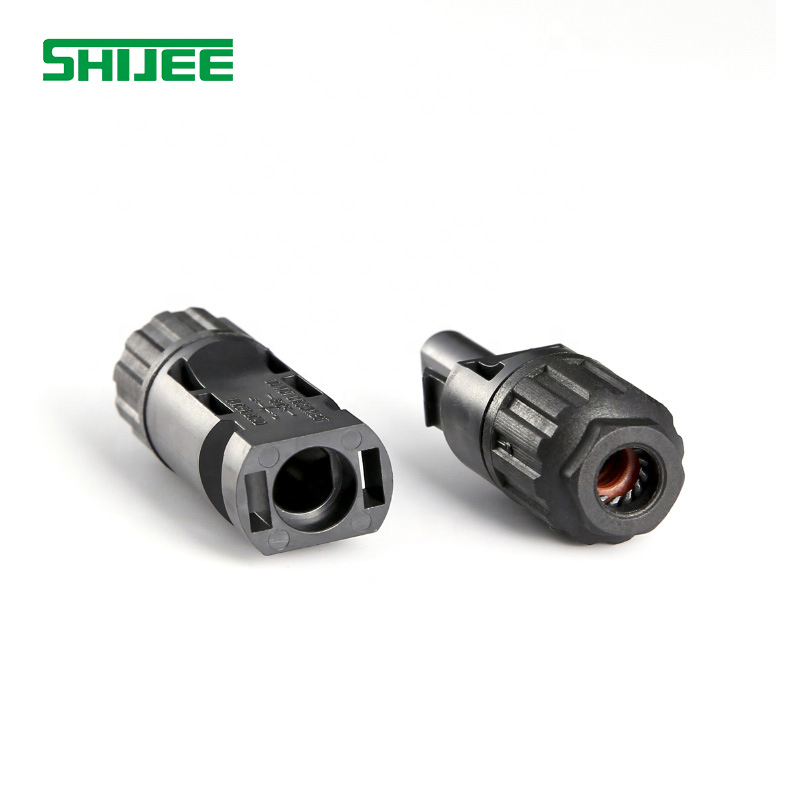

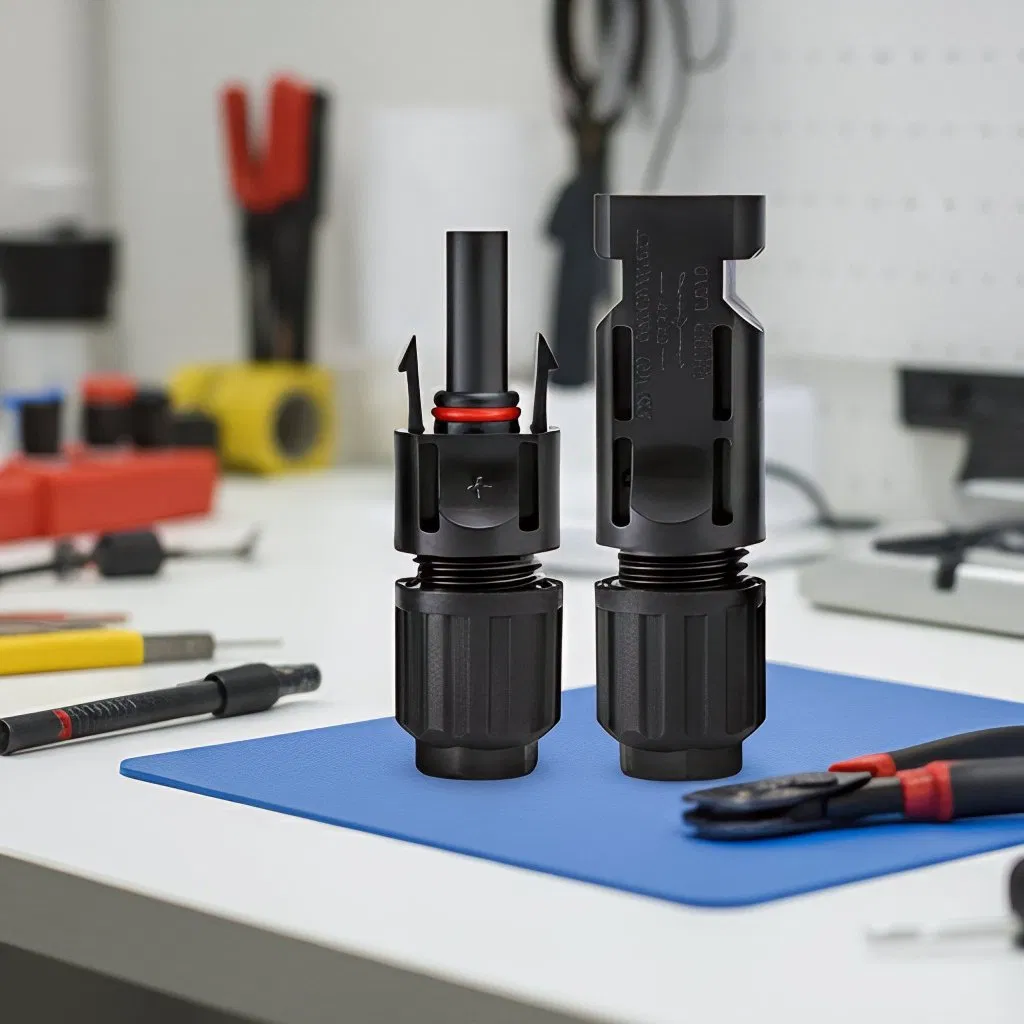

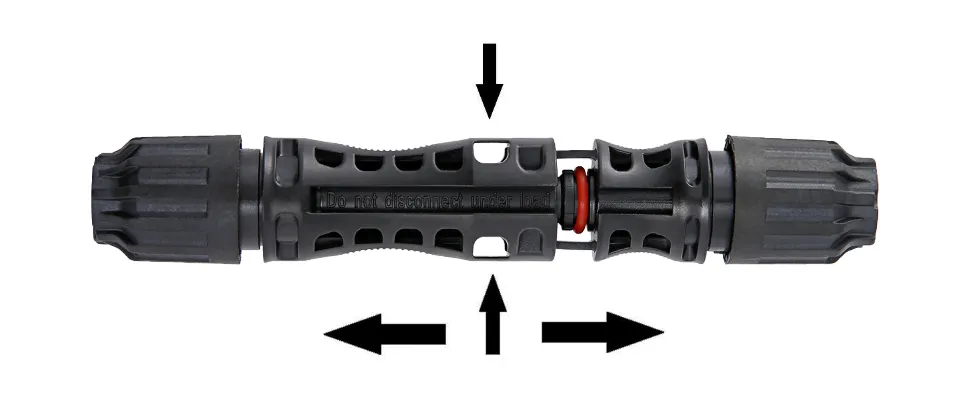

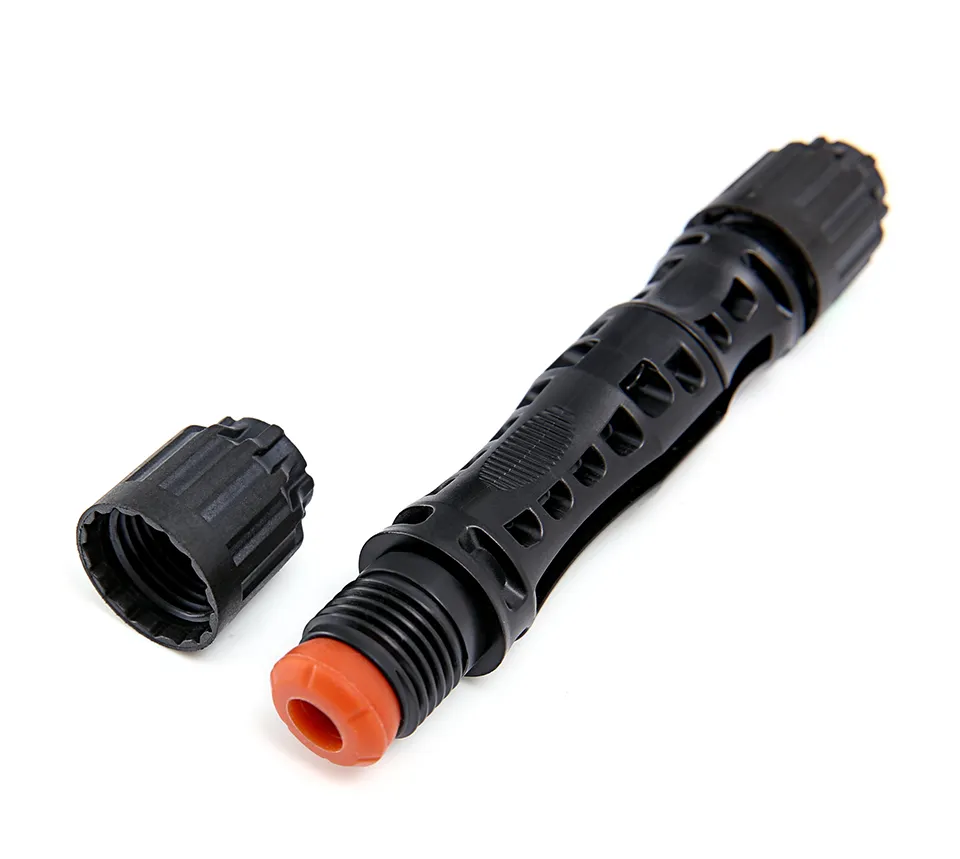

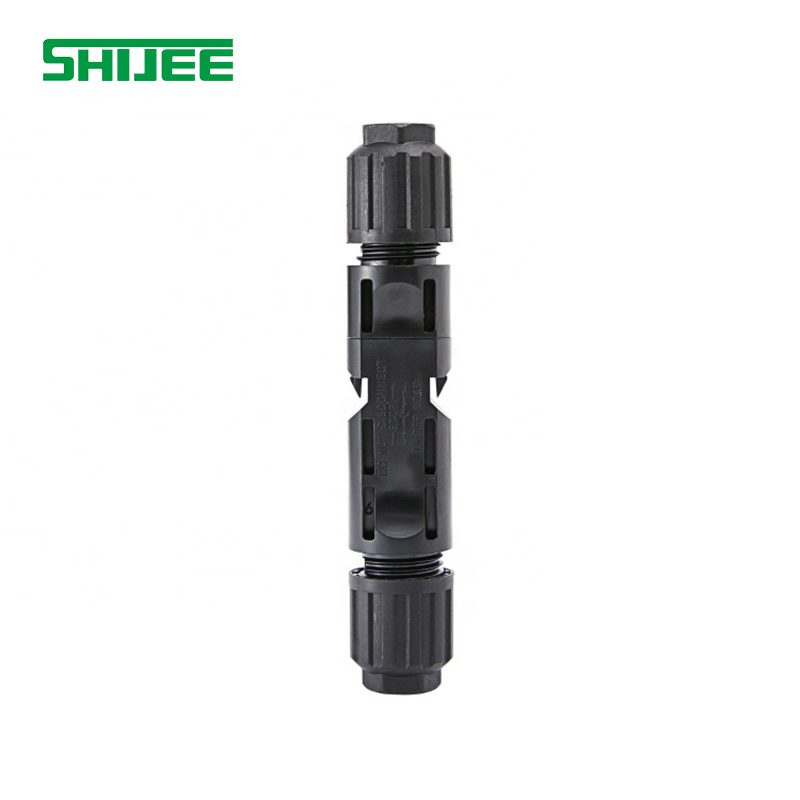

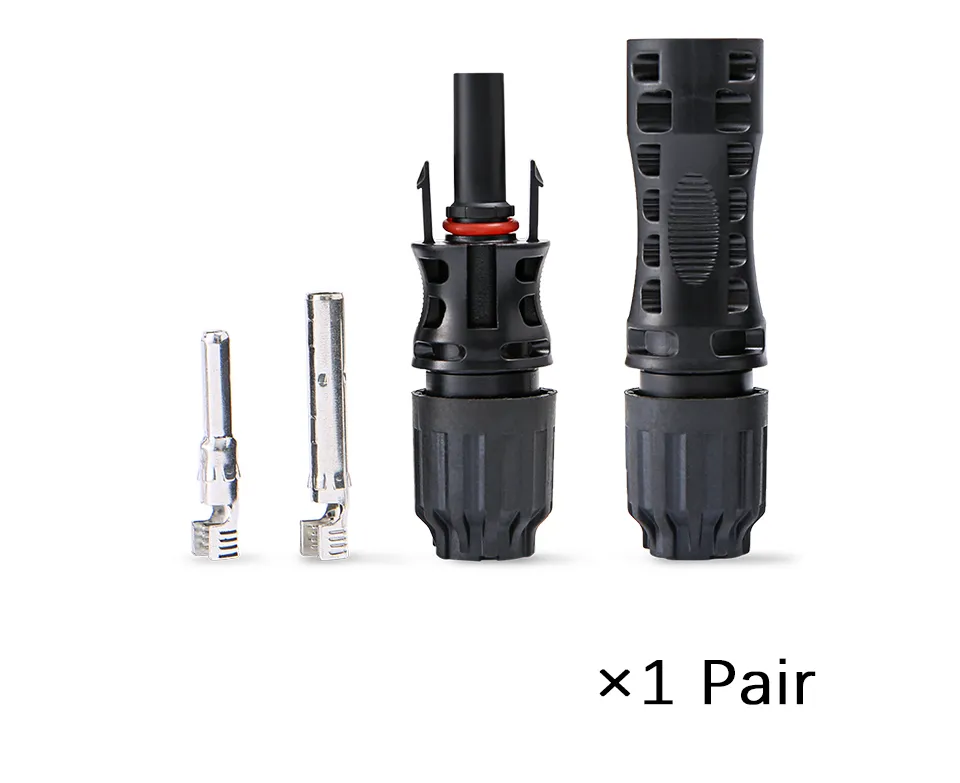

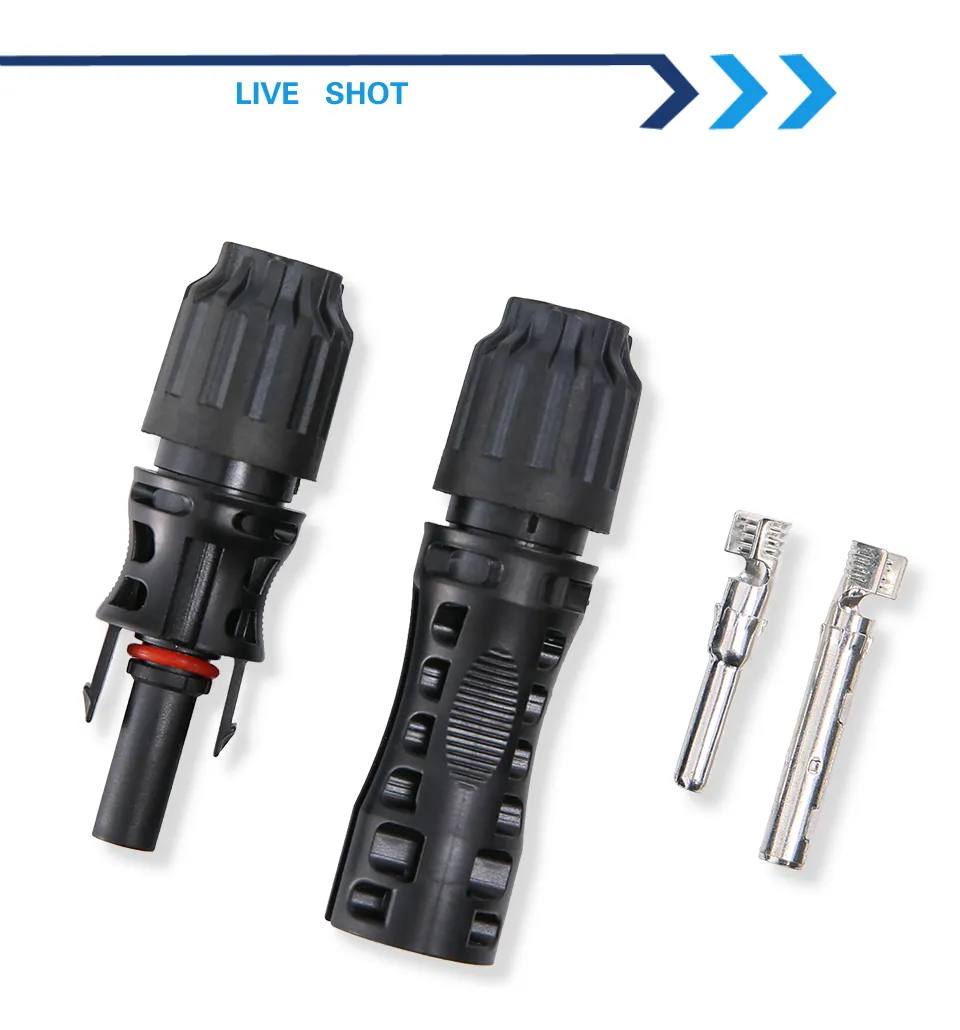

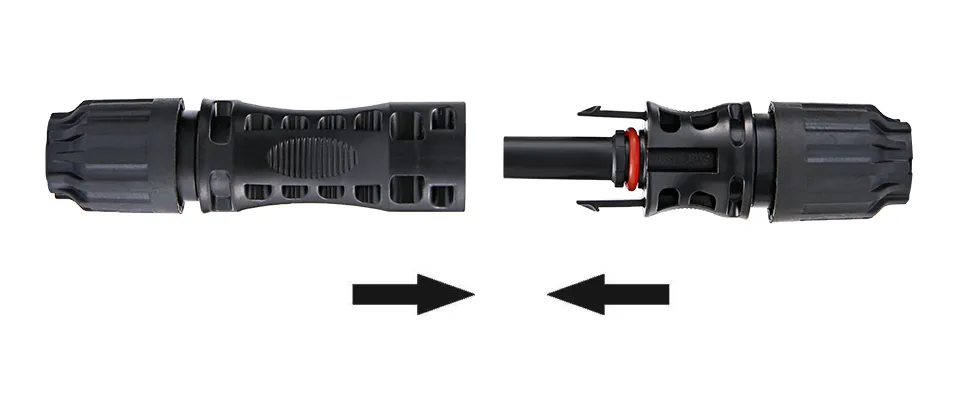

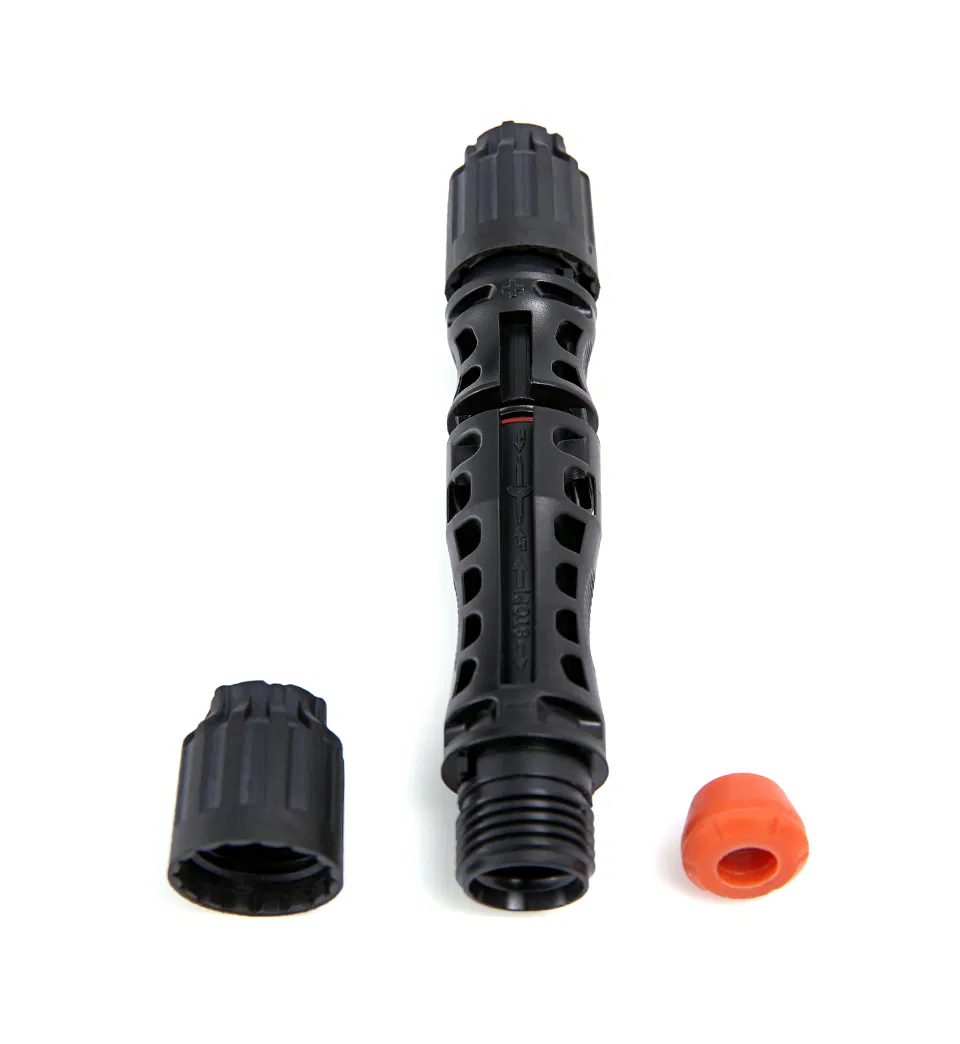

Introducing the high-tier DC1500V 35A IP67 Waterproof Connector that redefines excellence in solar technology. Crafted for optimal performance, this solar panel cable connector is made from superior PPO material, ensuring durability and reliability. With a robust IP67 waterproof rating, it provides unmatched protection against the elements, making it ideal for challenging environments. The 35A DC 1500V capacity coupled with a sophisticated tin-plated finish enhances conductivity and efficiency.
Featuring an insulation material blend of PC/PPO, this connector is engineered for resilience. It supports a rated current of 35A and upholds a Safety Class II standard for assured safety. With an IP67 waterproof level, it withstands harsh conditions efficiently.
| Insulation Material | PC/PPO |
| Rated Current | 35A |
| Safety Class | II |

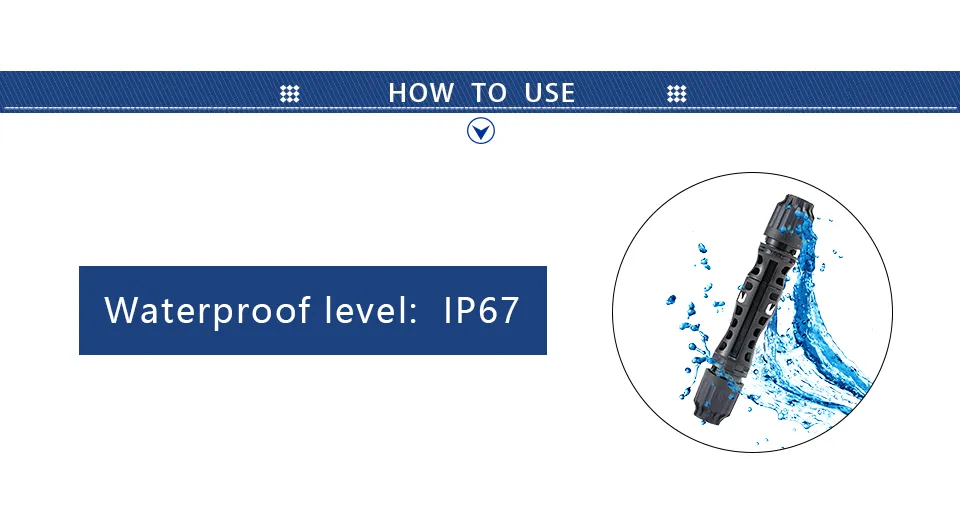

| Waterproof Level | IP67 |
| Ambient Temperature Range | -40~+90℃ (IEC) |
| Upper Temperature Limit | +105℃ |
| Contact Resistance | ≤0.5Ω |
