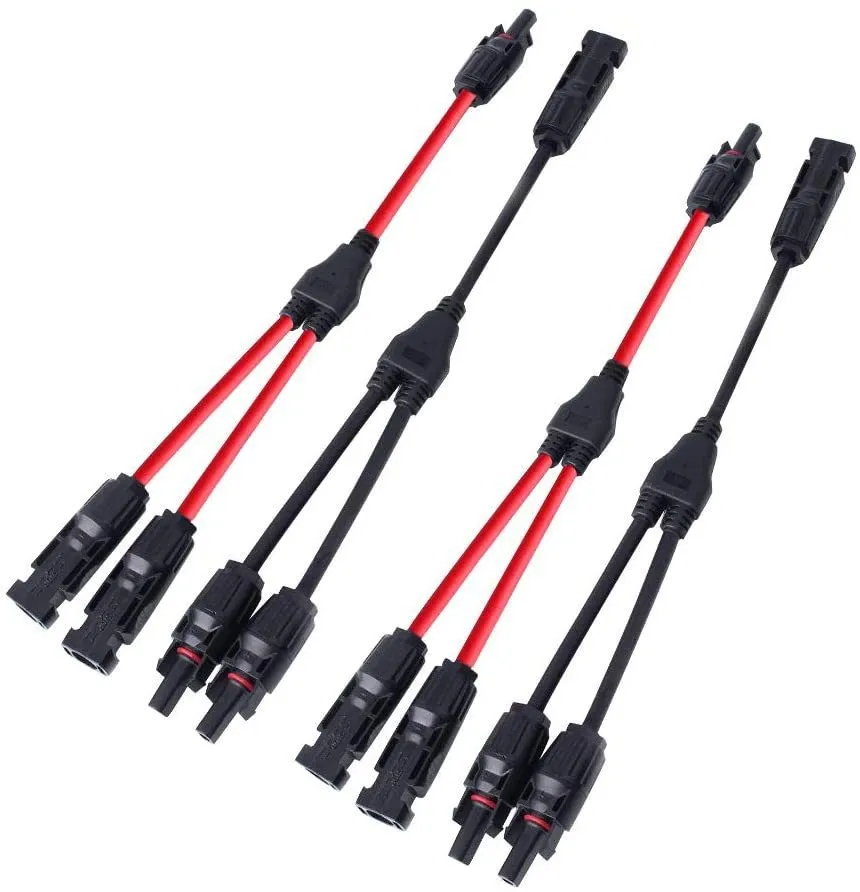

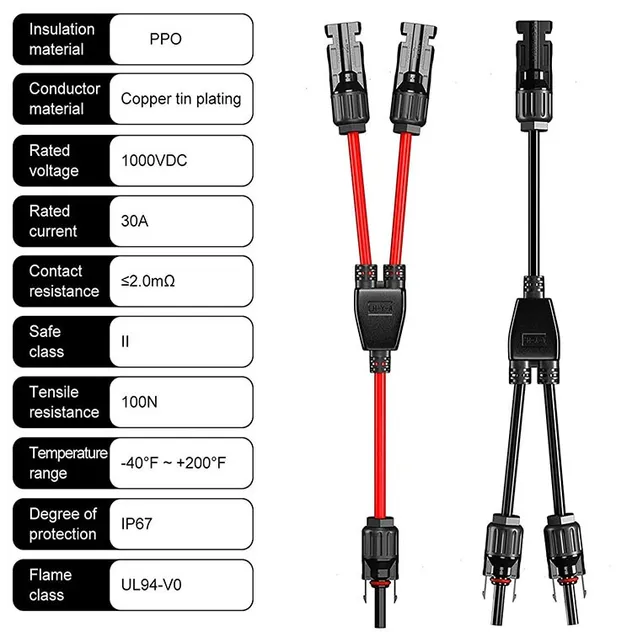

| Model NO. | PV Connector 1000V 30A MC4 IP67 PV |
| Application | Microwave |
| Certification | CE |
| Rated Voltage | 1000V DC |
| Rated Current | 30A |
| IP Rating | IP67 (Waterproof & Dustproof) |
| Connector Type | PV Connector (Copper-Plastic Hybrid) |
| Trademark | SHIJEE |
| Origin | China |
| Package Size | 12.00cm * 8.00cm * 5.00cm |
| Package Gross Weight | 0.100kg |

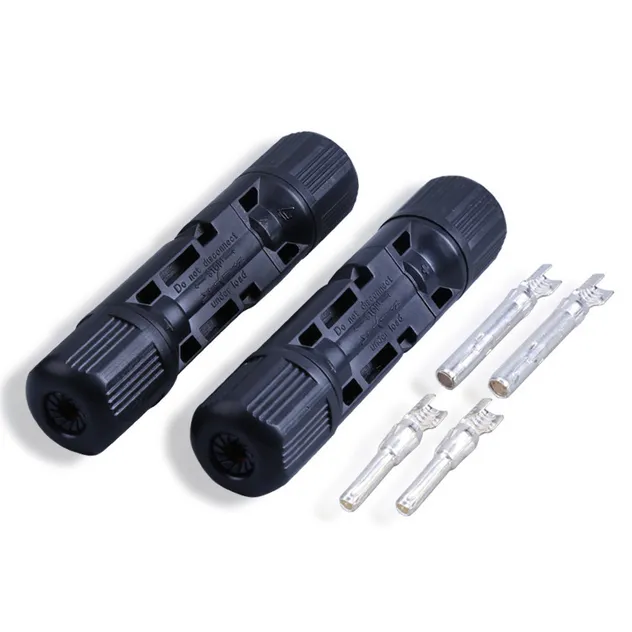

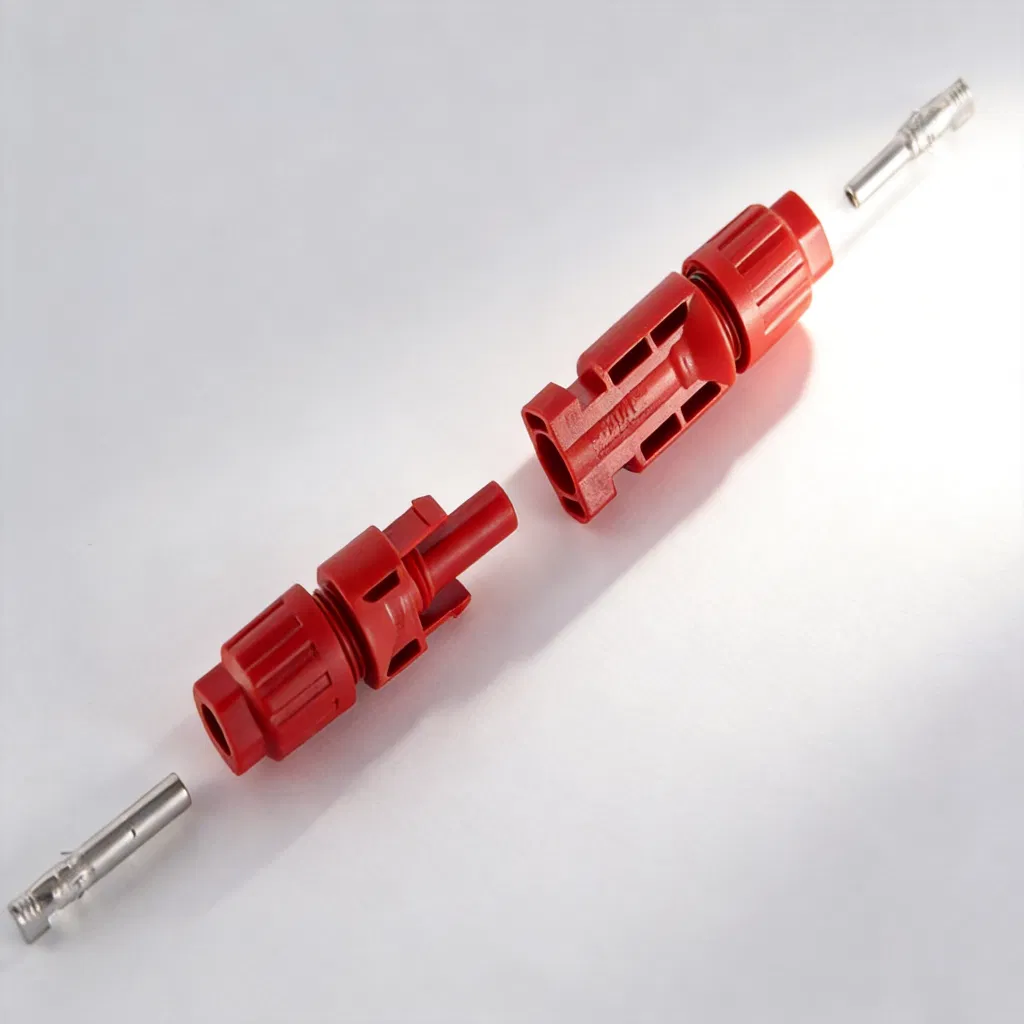

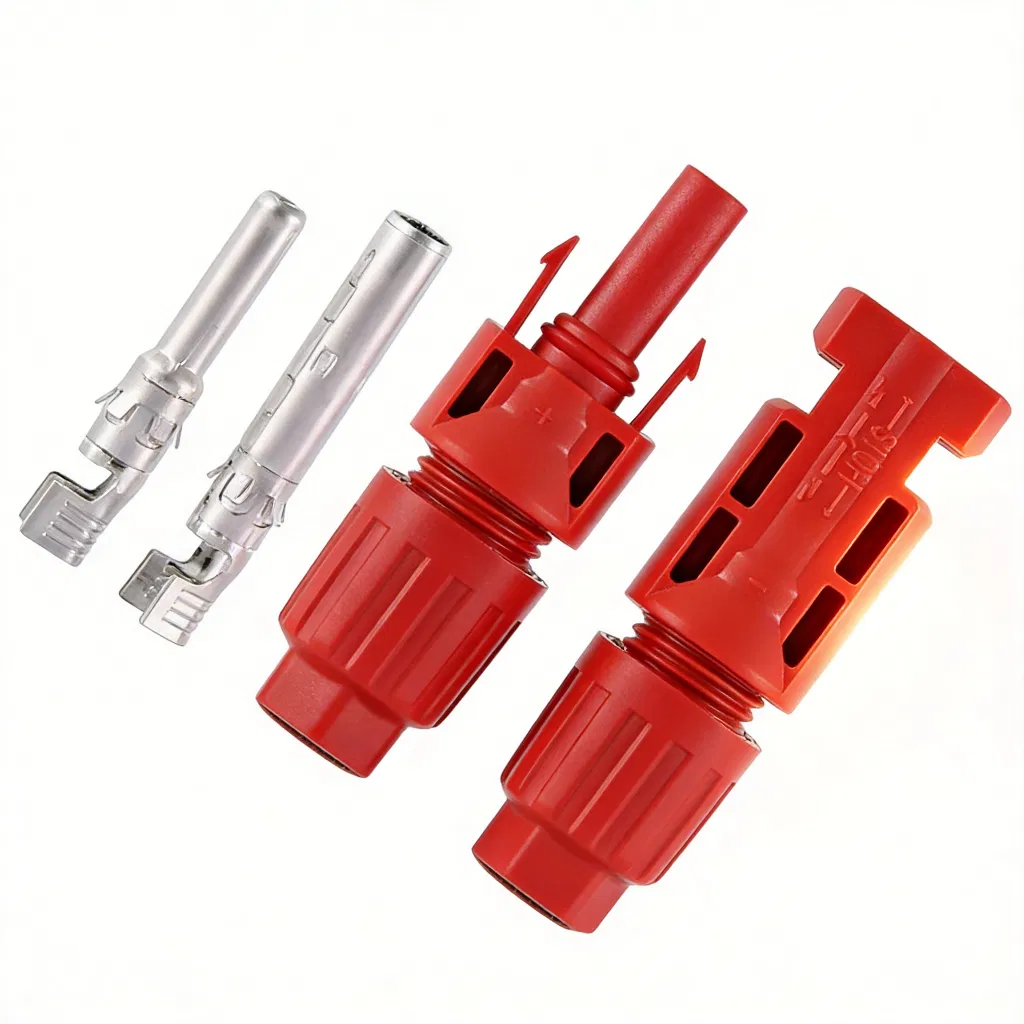

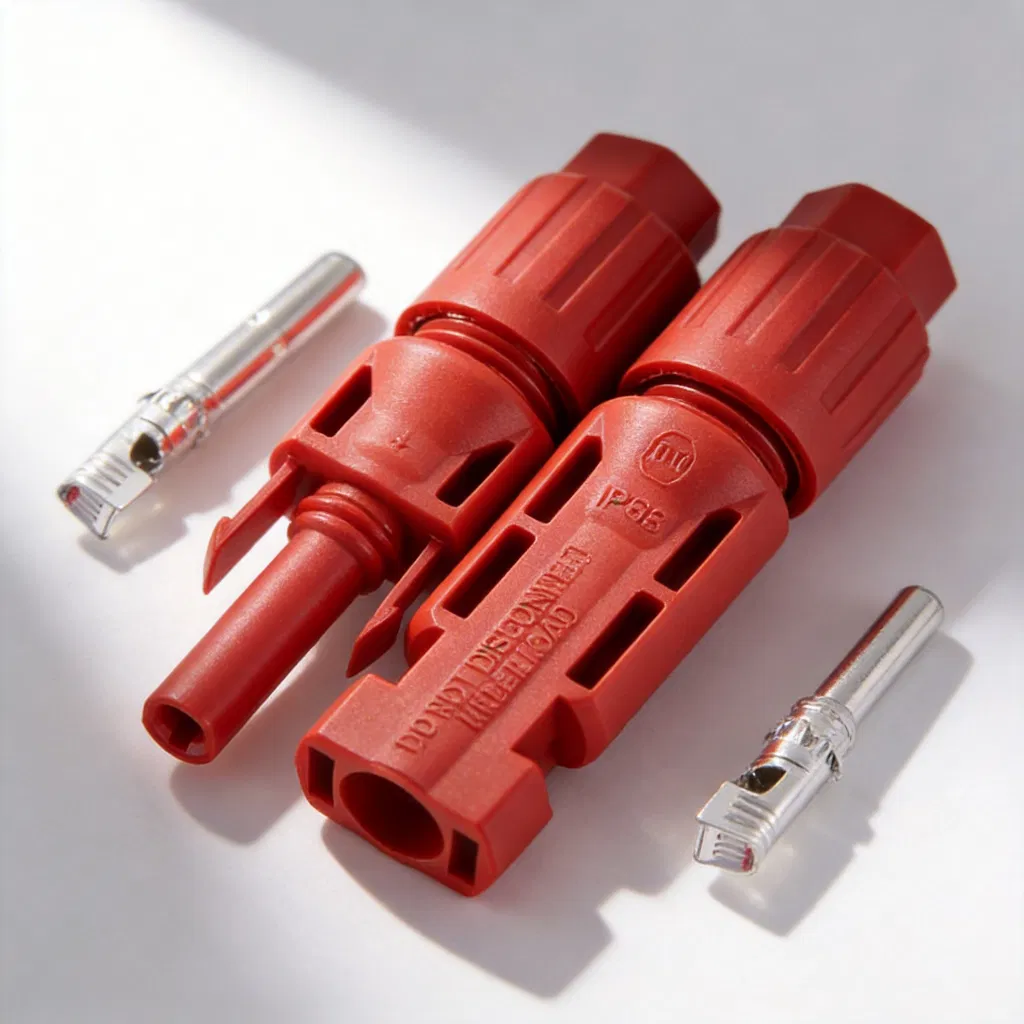

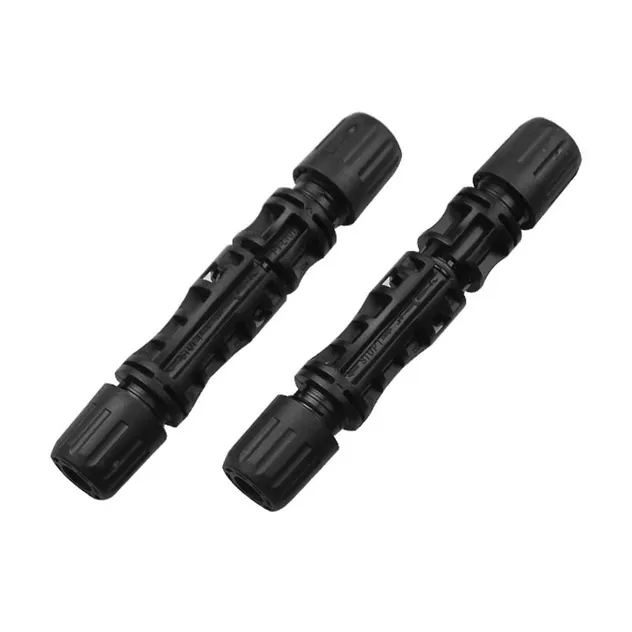

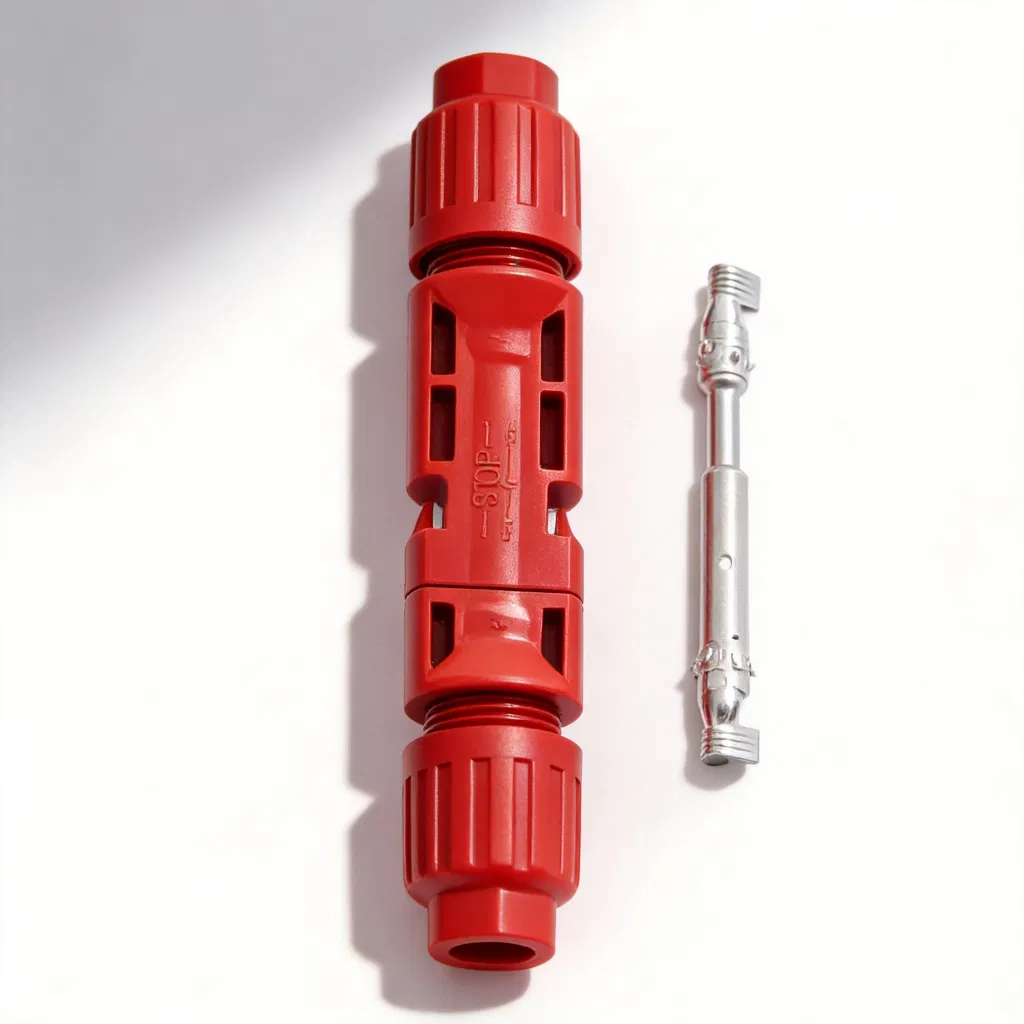

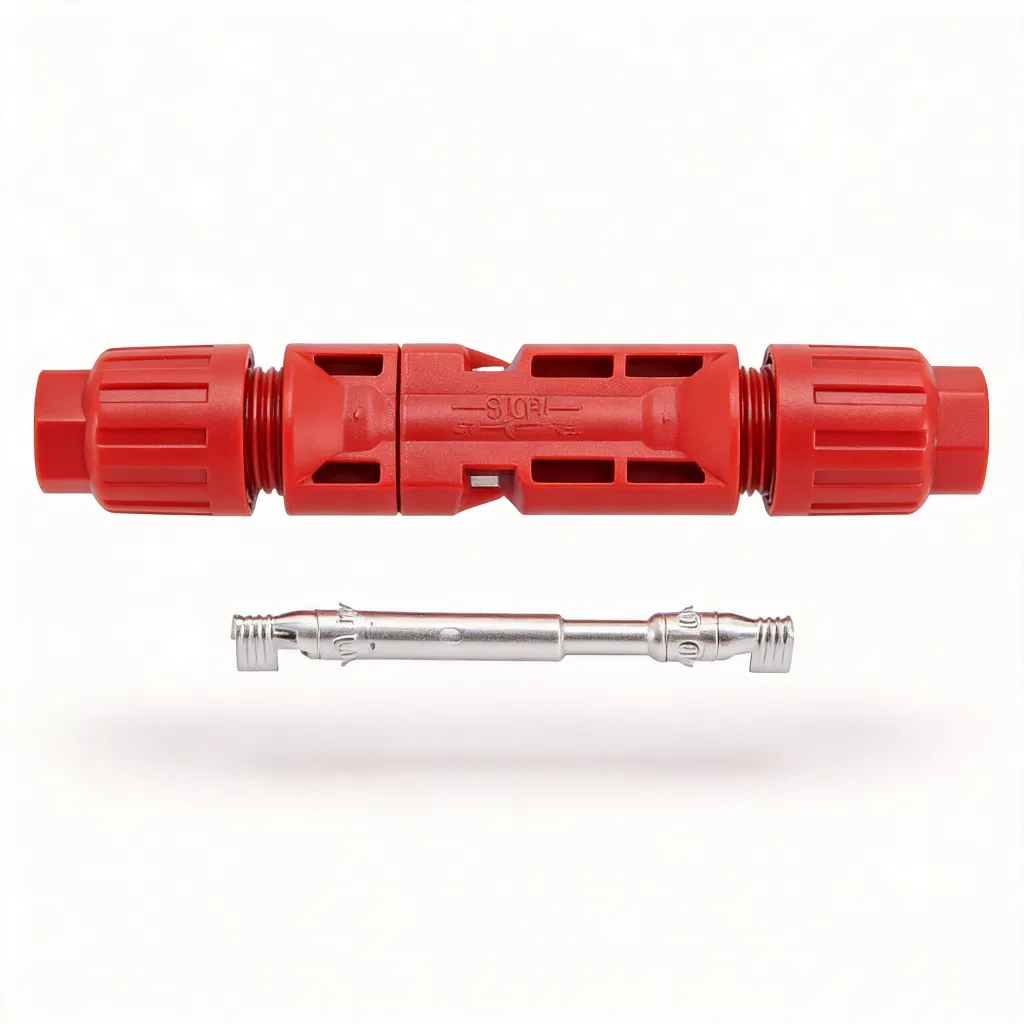

MC4 Solar Panel Mounting Connector: This advanced solar panel mounting connector is engineered for high-voltage photovoltaic systems, supporting up to 1500V DC and 35A current for efficient, stable power transmission. The integrated IP68-rated waterproof connector ensures complete protection against dust, moisture, and harsh environmental conditions, maintaining electrical safety and performance in outdoor installations.
Designed with a 2.5mm pitch for precise alignment, the connector features durable copper contacts and reinforced plastic housing that combine conductivity with mechanical strength, suitable for a wide range of solar panel arrays and mounting configurations. Its corrosion-resistant materials and secure locking mechanism provide reliable, maintenance-free operation across varying temperatures.
| Product Name | Solar Panel Mount Connector |
| Rated Voltage | 1500V DC |
| Rated Current | 35A |
| IP Rating | IP68 (Waterproof & Dustproof) |
| Pitch | 2.5 mm |
| Contact Material | High-Purity Copper (Tin-Plated) |
| Insulation Material | Thermoplastic (PA/PC/PPO, UV Resistant) |
| Operating Temperature | -40°C to +90°C |
| Wire Gauge Compatibility | 2.5 mm² – 6 mm² (AWG 14 – AWG 10) |
| Locking Mechanism | Push-Pull Lock / Screw Lock (Snap-in Design) |
| Fire Rating | UL94 V-0 (Flame Retardant) |
| Certifications | TÜV, UL, IEC 62852, EN 50521 |
