Leader 1500V IP68 TUV Certification UV Resistant Mc4 Solar Connector for Panels Cables
Leader 1500V IP68 TUV Certification UV Resistant Mc4 Solar Connector for Panels Cables
Leader 1500V IP68 TUV Certification UV Resistant Mc4 Solar Connector for Panels Cables
Leader 1500V IP68 TUV Certification UV Resistant Mc4 Solar Connector for Panels Cables
Leader 1500V IP68 TUV Certification UV Resistant Mc4 Solar Connector for Panels Cables
1 / 5
Leader 1500V IP68 TUV Certification UV Resistant Mc4 Solar Connector for Panels Cables
Leader 1500V IP68 TUV Certification UV Resistant Mc4 Solar Connector for Panels Cables
Leader 1500V IP68 TUV Certification UV Resistant Mc4 Solar Connector for Panels Cables
Leader 1500V IP68 TUV Certification UV Resistant Mc4 Solar Connector for Panels Cables
Leader 1500V IP68 TUV Certification UV Resistant Mc4 Solar Connector for Panels Cables

Leader 1500V IP68 TUV Certification UV Resistant Mc4 Solar Connector for Panels Cables

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
PV-BN101A
Application
Solar Power System, Electrical Signals
Character
High Temperature Resistance
Certification
CE, TUV, Retie
Insulation Material
PPO
Rated Voltage
TUV 1500 DC/ UL 600V DC
Protection
IP68 / Class II
Flame Class
UL94-V0
Contact Material
Copper, Tin Plated
Temperature
-40 ~ + 90℃
Contact Resistance
Less Than 0.5 M Ohm
HS Code
8536900000

Product Performance

1500V IP68 UV Resistant Solar Connector for Panels Cables
Secure Locking
Auto-lock enable connection more easy and reliable.
Touch Protection
Connector adopts touch of reed with inner-knob type.
Durability
Waterproof, dustproof, and designed for long-life outdoor use.
Easy Install
Popular figure suits most field installations quickly.
Insulation materialPPO
Rated VoltageTUV 1500 DC/ UL 600V DC
Test voltage6KV(50Hz,1Min)
Contact materialCopper, tin plated
Protection DegreeIP68
Flame ClassUL94-V0
Plug/Withdrawal Force≤ 50N / ≥ 50N
Compatible Sections2.5mm², 4.0 mm², 6.0 mm² (14/12/10 AWG)
Pin Dimension4.0mm

Product Visuals

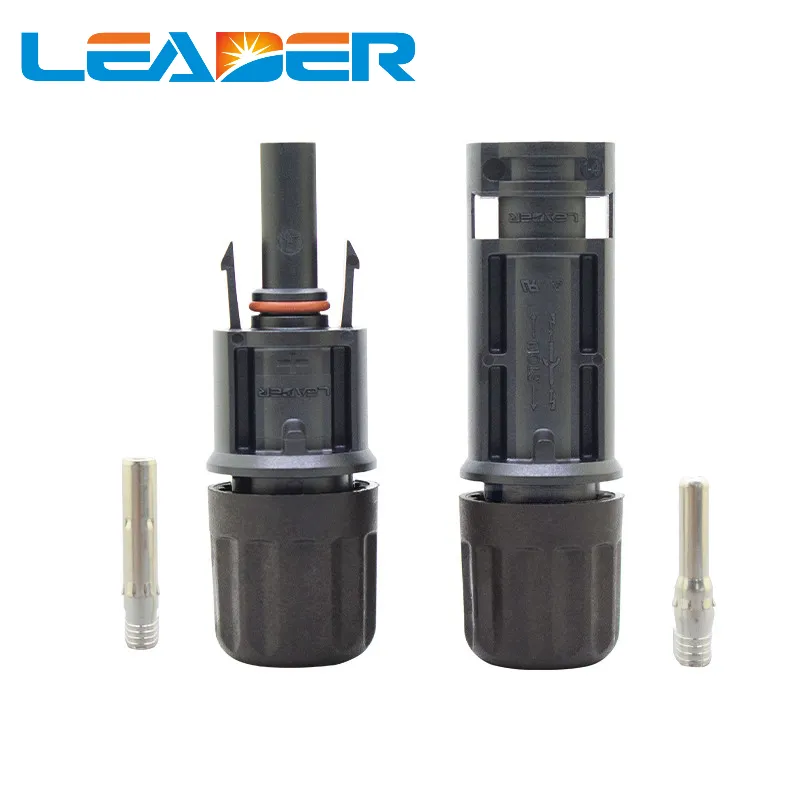

Solar Connector View 1
Solar Connector View 2

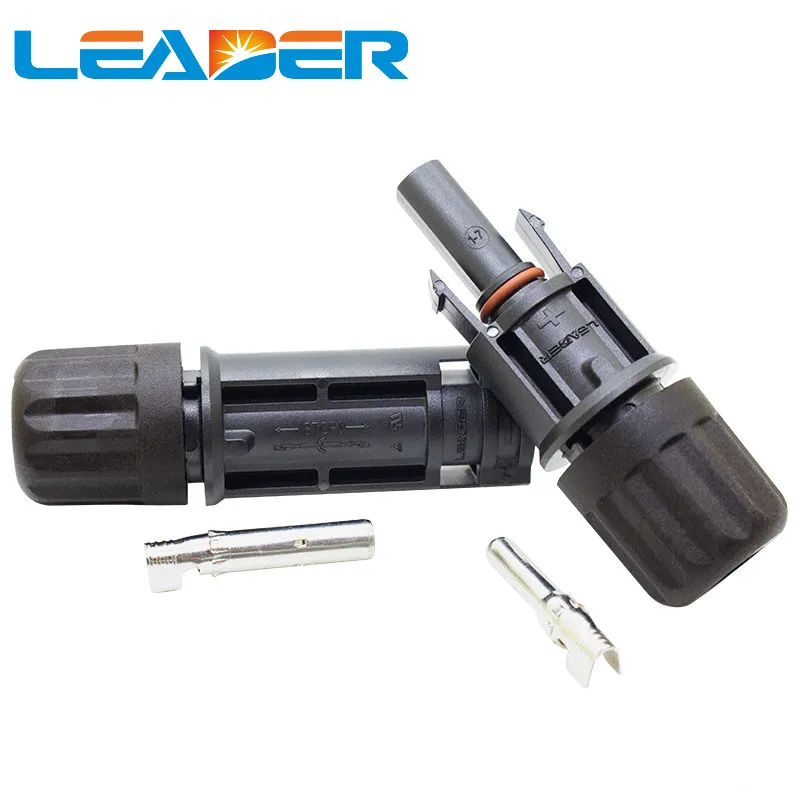

Solar Connector View 3

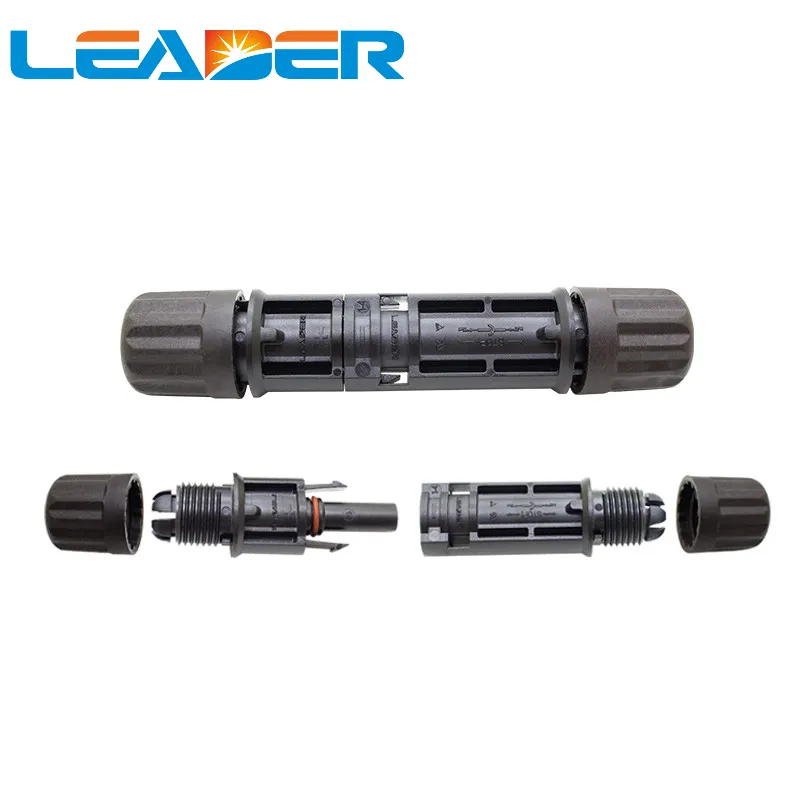

Solar Connector View 4
Solar Connector View 5
Solar Connector View 6

Our Services

We are committed to providing top-tier support and quality assurance:

  • Rapid Response: All inquiries are addressed within 24 hours.
  • Technical Support: Detailed answers to technical specifications and installation queries.
  • Quality Guarantee: Products must be kept intact for any return concerns within 3 days of receipt.
  • Reliable Shipping: Fast, safe, and convenient logistics solutions.

Frequently Asked Questions

What is the maximum rated voltage for this solar connector?
The connector is rated for TUV 1500V DC and UL 600V DC, making it suitable for high-voltage solar power systems.
Is the connector waterproof for outdoor use?
Yes, it features an IP68 protection rating, ensuring complete protection against dust and high-pressure water jets or immersion.
Which cable sizes are compatible with the PV-BN101A?
It is compatible with solar cables with cross-sections of 2.5mm², 4.0mm², and 6.0mm² (equivalent to 14AWG, 12AWG, and 10AWG).
What material is used for insulation and contacts?
The insulation is made of high-quality PPO, and the contact material is tin-plated copper for excellent conductivity and corrosion resistance.
Does this product hold safety certifications?
Yes, the connector is certified by CE, TUV, and Retie, meeting international safety and performance standards.
What is the operating temperature range?
The connector is designed to operate reliably in ambient temperatures ranging from -40°C to +90°C.
