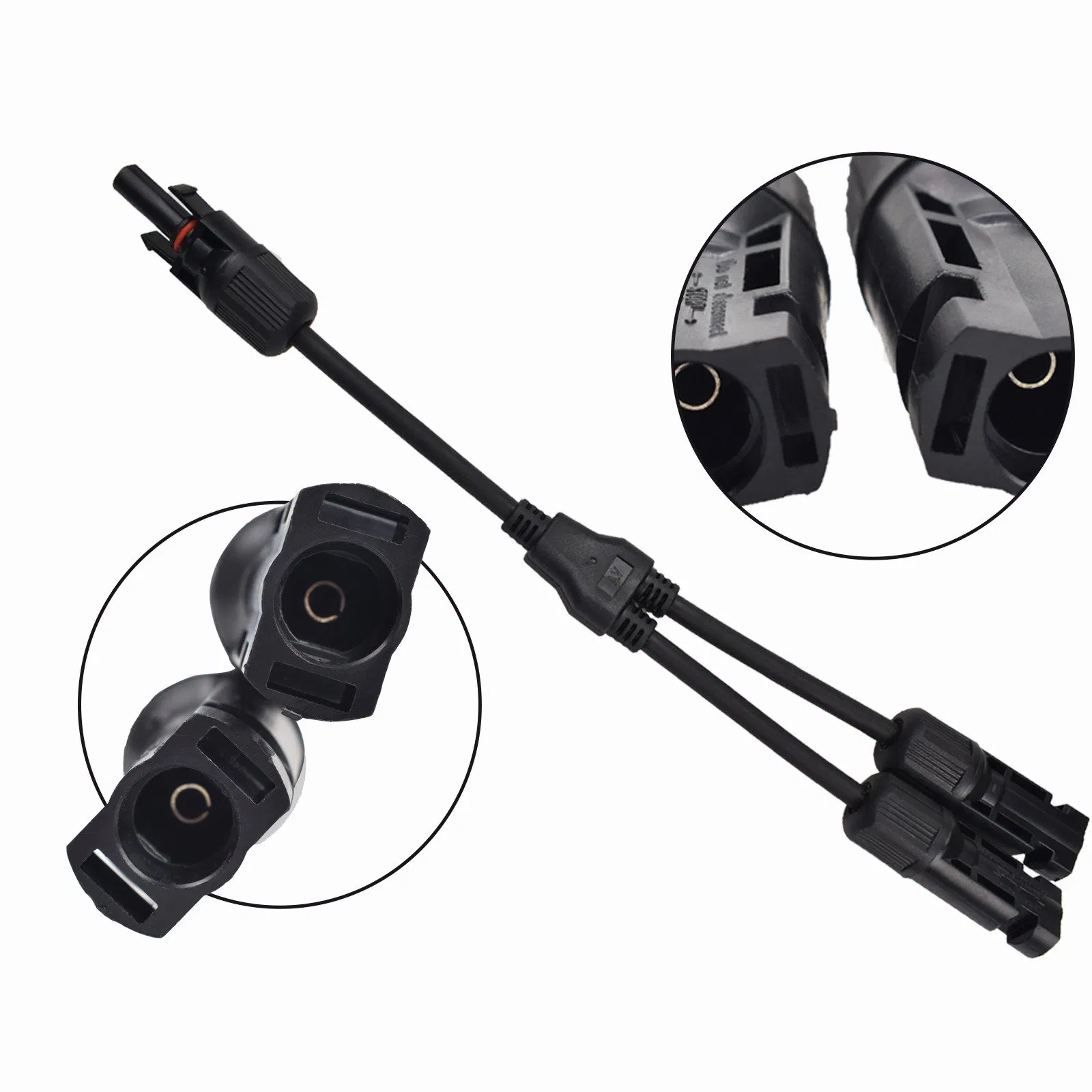

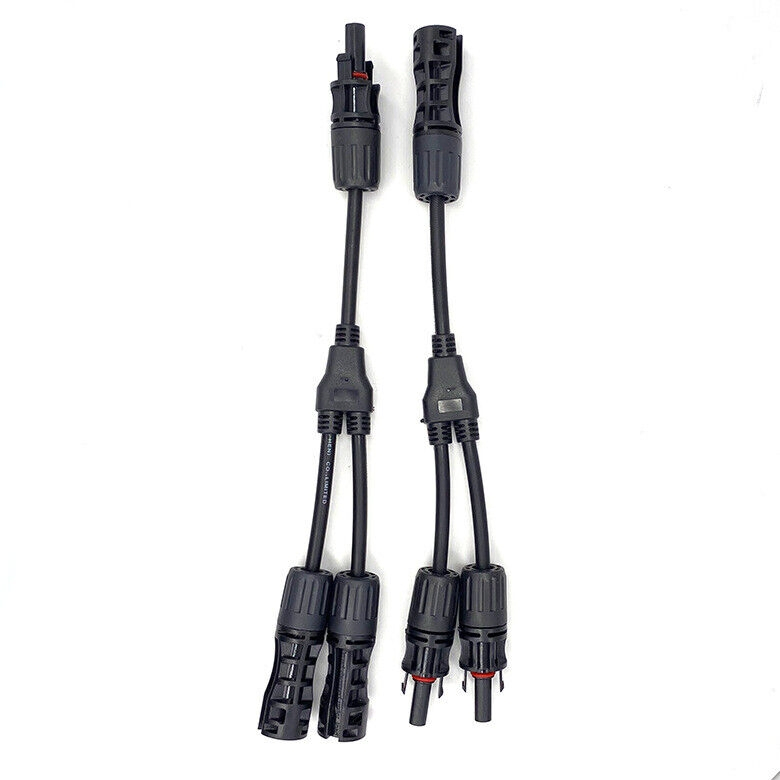

IP67 Waterproof 1000V Connection 2 in 1 Y Branch Y2 DC PV Mc4 Solar Energy Cable Wire Power Connector for Solar System

Still deciding? Get samples of $ !
Order Sample

Product Description

1

Product Overview & Basic Info

Model NO.
Y Type 2 IN 1
Product Name
Solar Connector
Terminal Material
Copper Galvanized
Protection Level
IP67
Rated Voltage
1000V
Insulation Material
PPO
Temperature Range
-40℃ ~ +125℃
Cable Size
2.5mm2/4mm2/6mm2
Housing Material
PC
Feature
Flame Retardant, Waterproof, Dustproof
2

Detailed Product Display

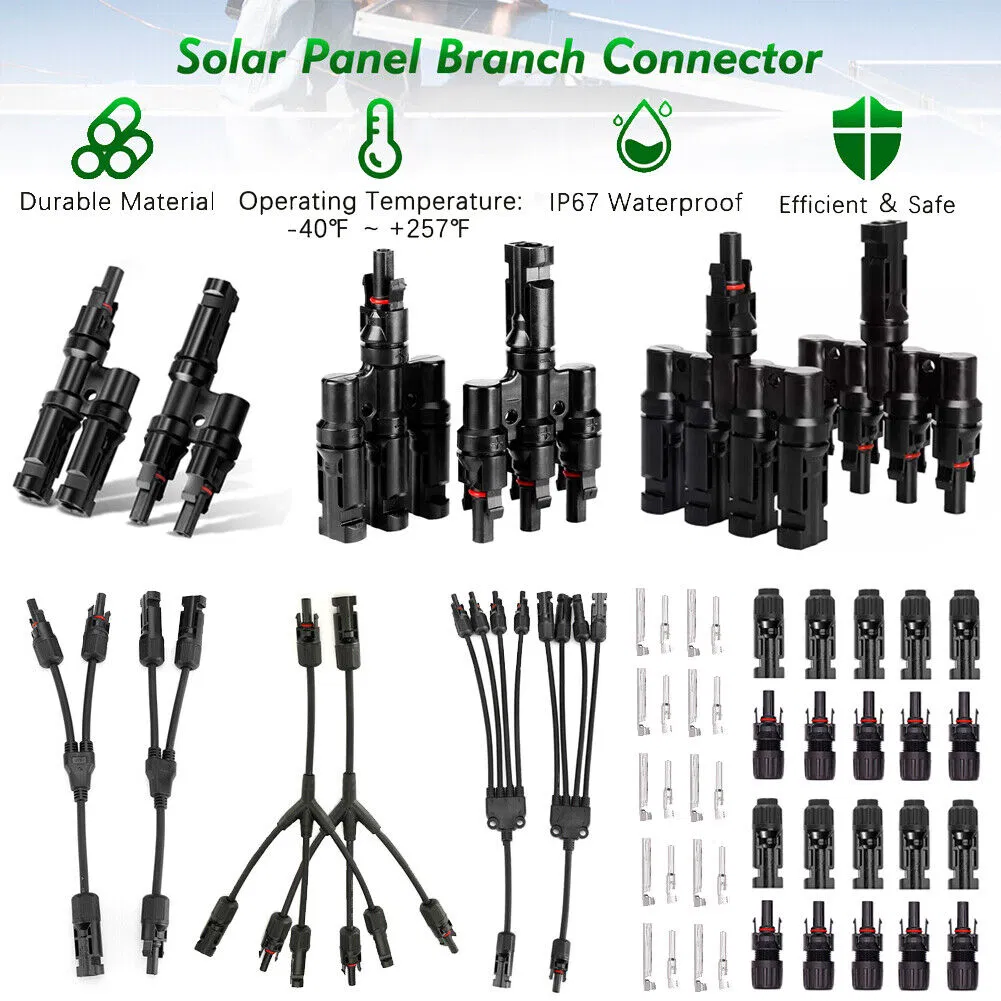

Solar Connector Display 1

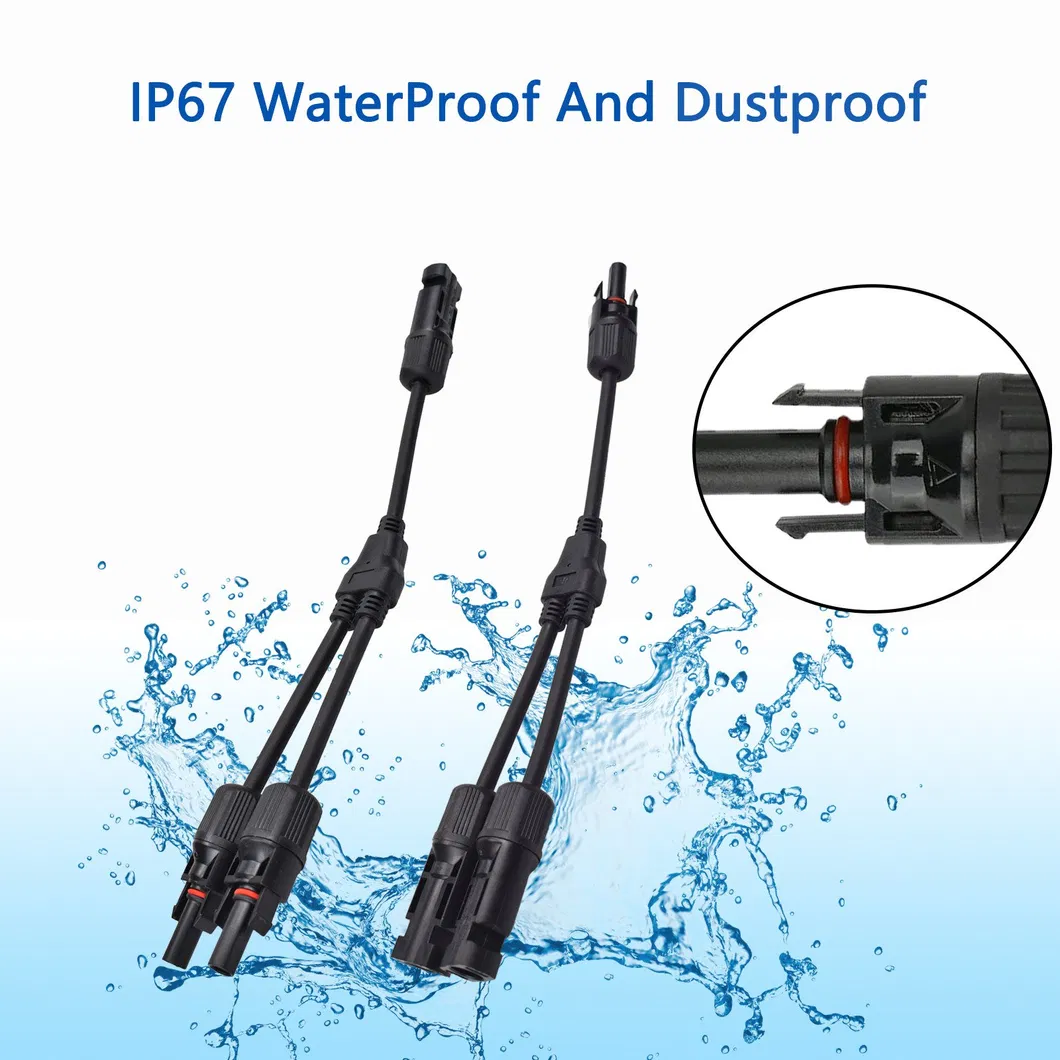

Solar Connector Display 2

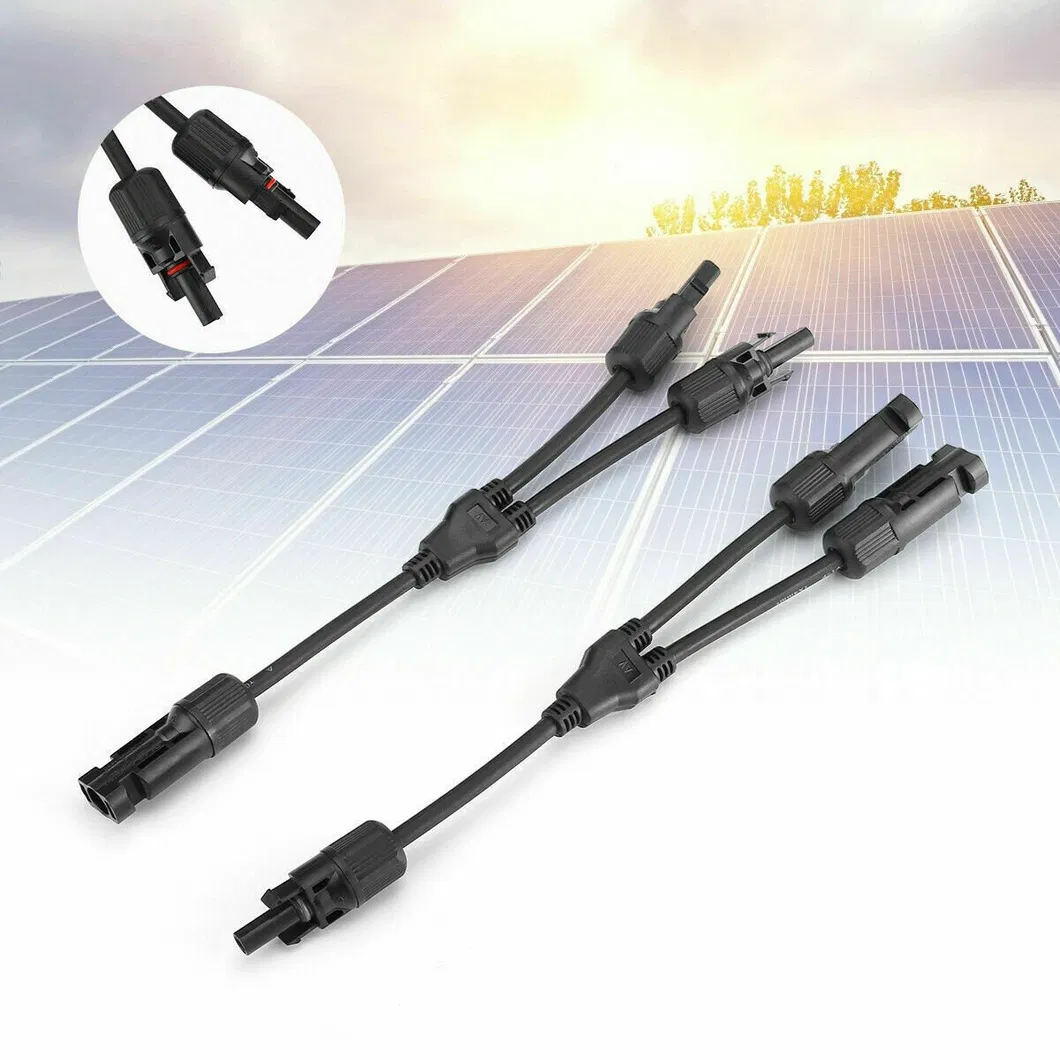

Solar Connector Display 3

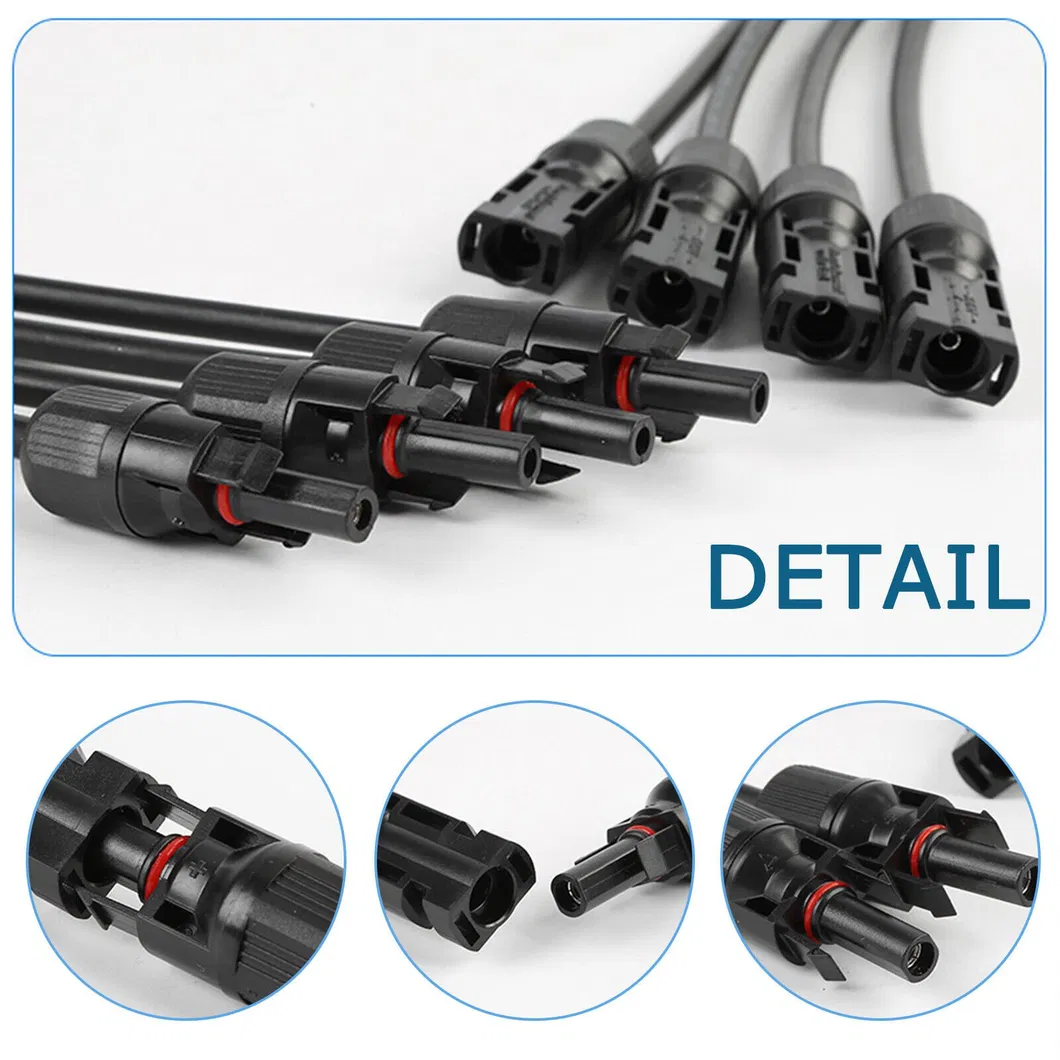

Solar Connector Display 4
3

Technical Specifications

MODEL PCS/CTN G.W.(KG) CTN BOX SIZE(CM)
MC4 30A 1500V (2.5-6mm²) 1000 22 42*42*30.5
4

Key Advantages & Benefits

High Reliability and Safety Strong resistance to environmental interference. Using weather-resistant materials like PA66/PBT, it withstands temperatures from -40ºC to +105ºC. IP67 waterproof and dustproof protection ensures stable long-term operation.
Efficient Installation Plug-and-play design with snap-on locking structure. Rapid deployment for large-scale photovoltaic projects without special tools, significantly reducing labor costs.
Superior Compatibility Standardized interfaces ensure strong adaptability across various brands of PV modules and inverters. Flexible scalability for series or parallel arrays.
Long Service Life Anti-UV and anti-aging materials provide a service life of over 25 years. Silver/gold plated terminals enhance oxidation resistance and electrical stability.
Application Detail

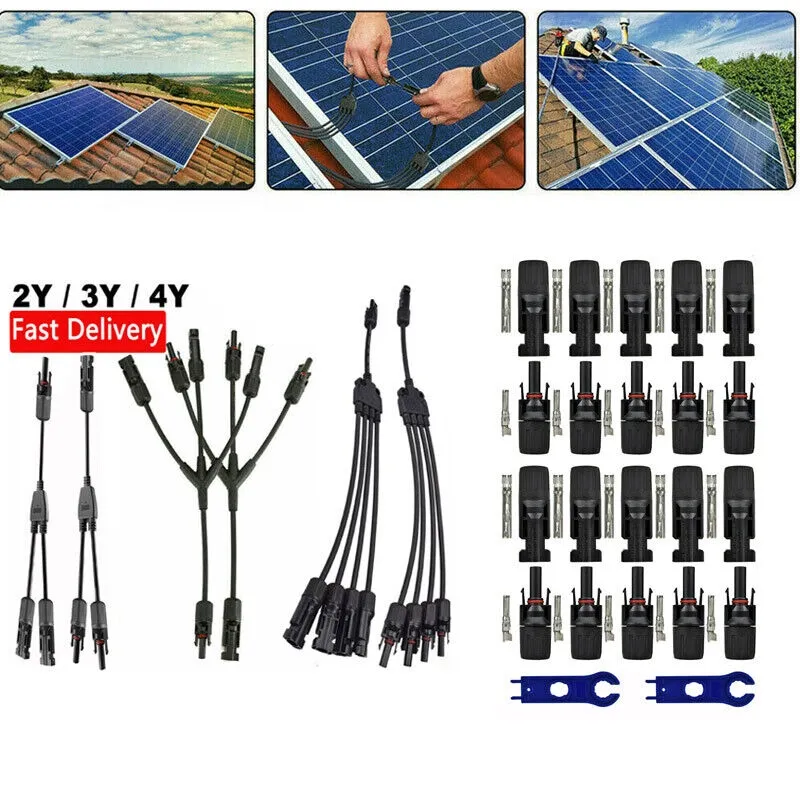

Mechanical Detail
5

Production Capacity & Quality Control

Our facility spans 5000m² and is equipped with advanced production lines and high-tech testing equipment. With over 25 years of industry experience, we maintain strict quality control through ISO9001 and ISO14001 standards.

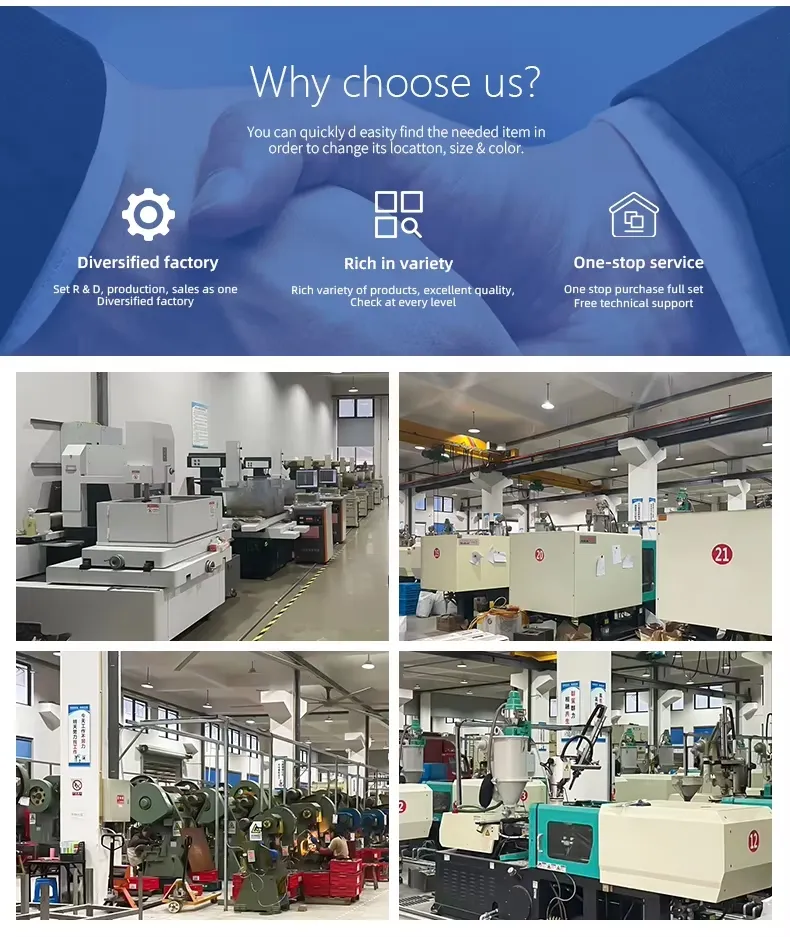

Production Capacity Chart
Factory Overview
6

International Certifications

Certificates 1
Certificates 2
?

Frequently Asked Questions

What are the main advantages of these solar connectors?
They offer high reliability, IP67 waterproof protection, quick plug-and-play installation, and a long service life of over 25 years due to UV-resistant PPO materials.
Are the connectors compatible with different cable sizes?
Yes, our solar connectors are compatible with 2.5mm², 4mm², and 6mm² photovoltaic cables.
How do you guarantee product quality?
We perform a pre-production sample check before mass production and a final 100% inspection before shipment. Our products are CE, TUV, and ROHS certified.
What is the rated voltage and current for this model?
This Y-branch connector is rated for 1000V DC and typically handles up to 30A current, depending on the specific cable configuration.
Can these connectors be used in extreme weather conditions?
Absolutely. They are designed for a temperature range of -40℃ to +125℃ and feature flame retardant, waterproof, and dustproof properties for harsh outdoor environments.
What other electrical products do you provide?
In addition to solar connectors, we manufacture distribution boxes, junction boxes, circuit breakers, industrial plugs and sockets, and cable glands.
