Product Description

Overview - Basic Info

Shape	Cube	Material	HDPE
Color	Gray	Certification	CE, ISO
Other Colors	Blue, Gray, Orange, Black	Weight	7.0kg/PCS
Buoyancy	350kg/ M2	Application	Floating Dock, Fish Farm, etc
Service Life	10-15 years	Wall Thickness	5-6mm
Usage	Fire Fighting	Production Capacity	5000PCS/Month

Product Description

HDPE Modular Pontoon Floating Dock Plastic Cube Docks

MODULAR FLOATING PONTOON

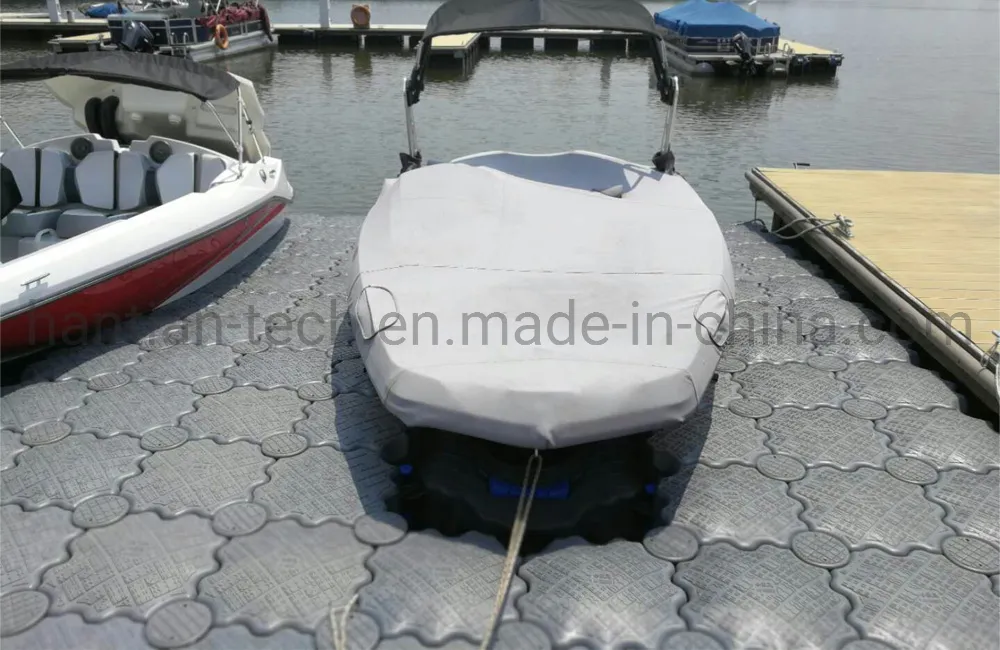

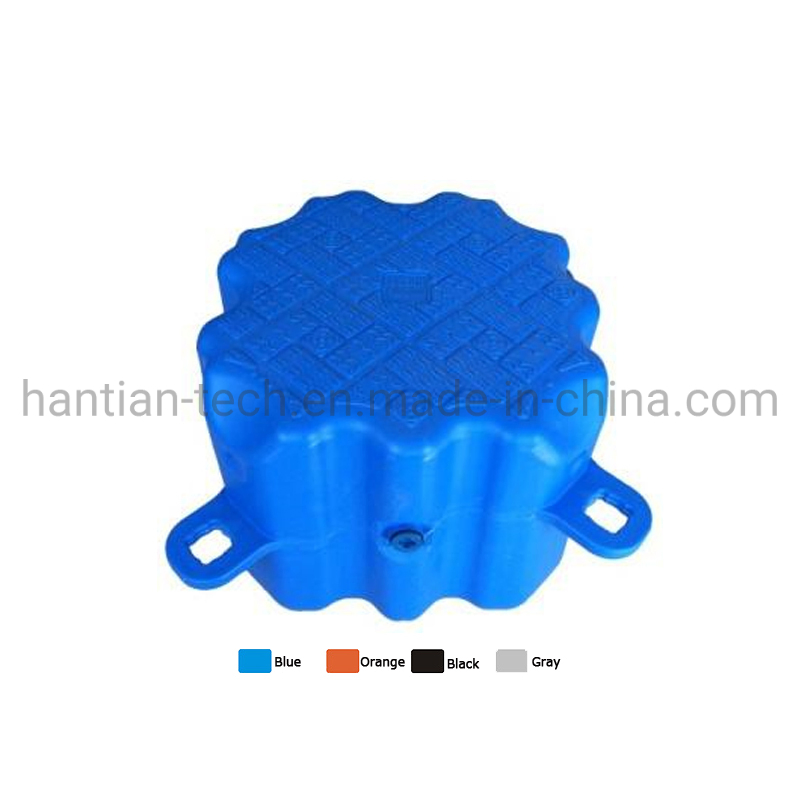

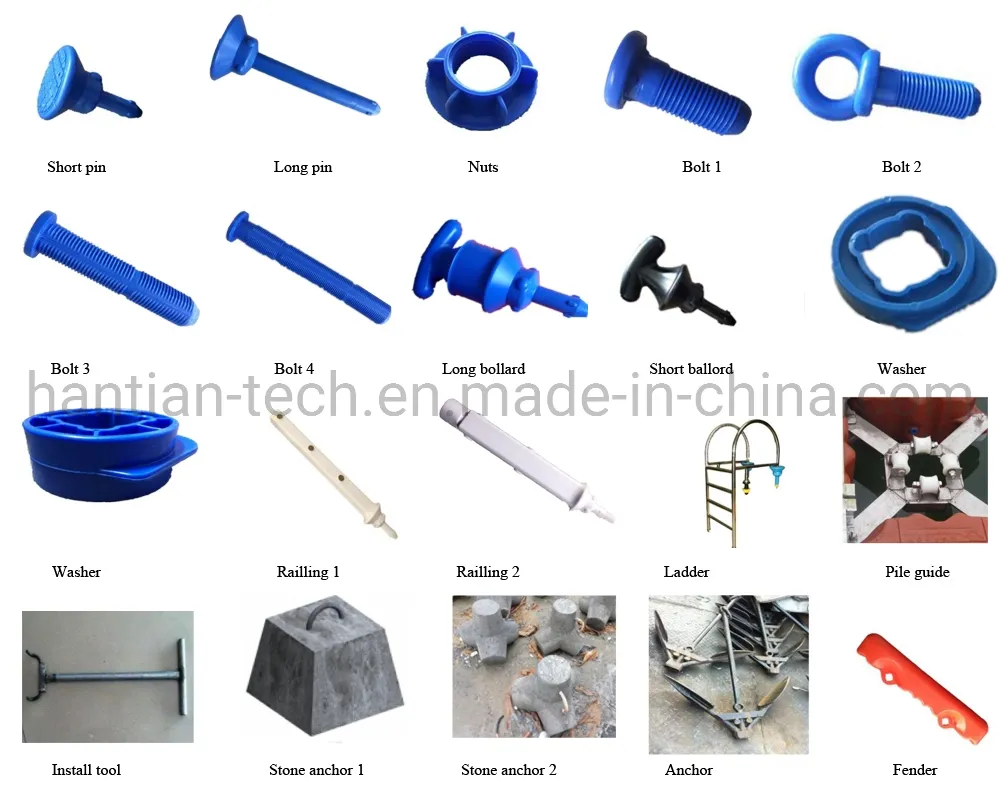

A modular dock made of floating cubes has the particularity of being very flexible and robust at the same time. In addition, you can customize it very easily with a wide range of accessories, gangways and railings. Modular floating cube is made of high density polyethylene, blow molded. Available in blue, grey, black and orange.

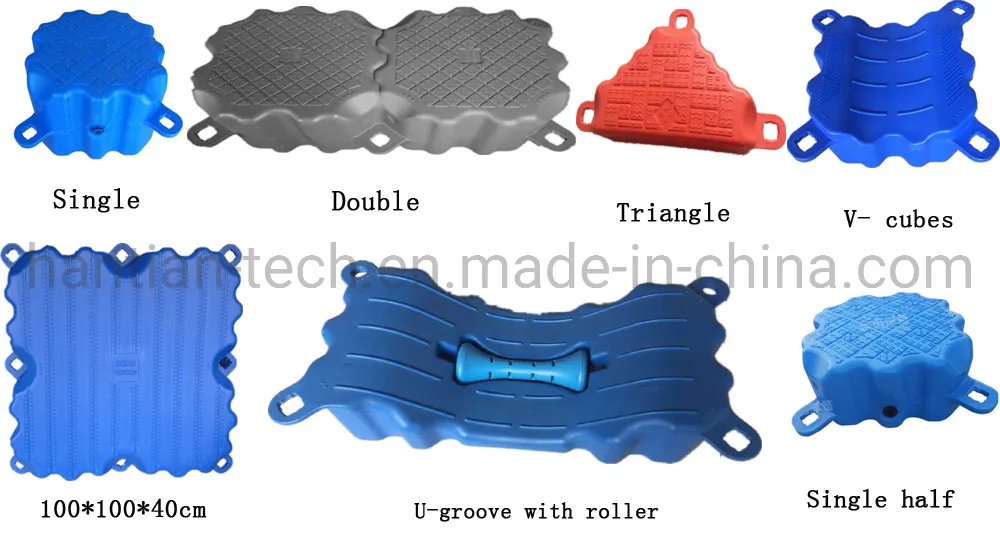

Type	Dimensions (cm)	Weight (kg)	Flotation (kg)
A	505040	7.0	87.5

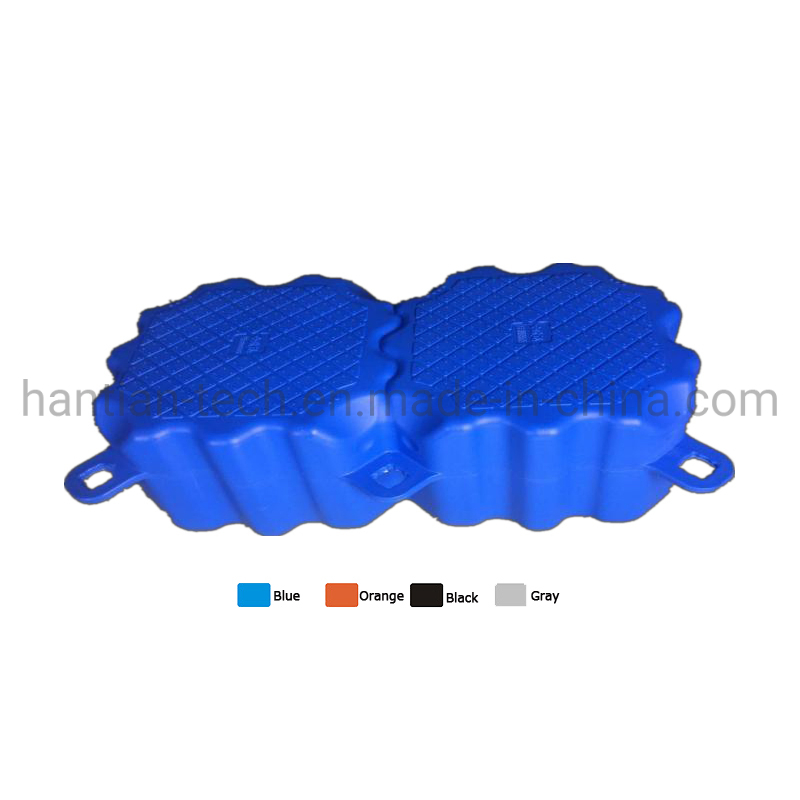

B	1005040	11.8	175.5
C	505025	5.3	43.5

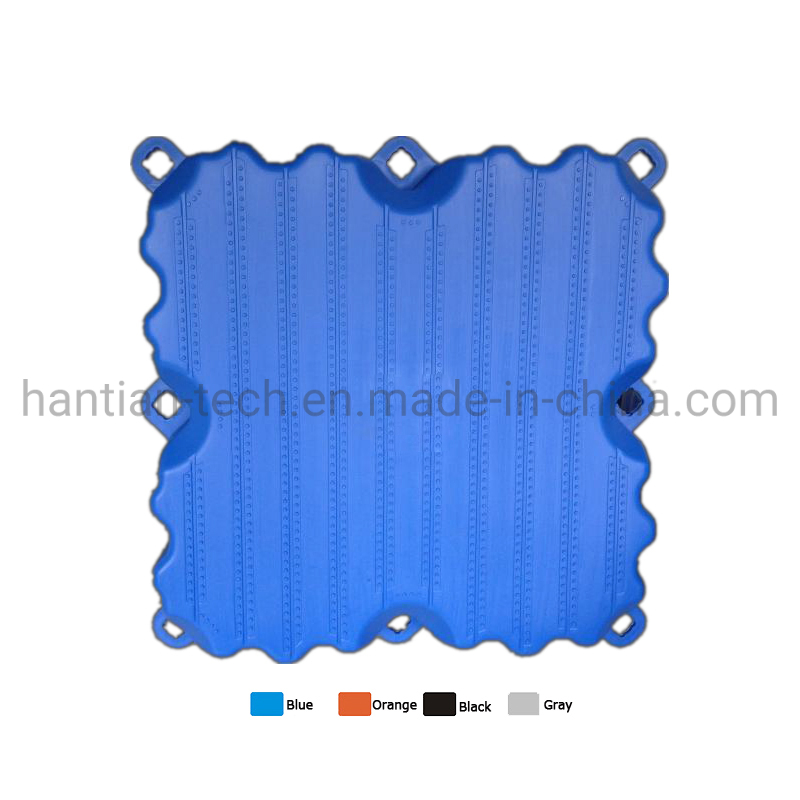

D	10010040	19.3	351.5
E	504071	5.0	44.0

Product Parameters

Material	HMW HDPE

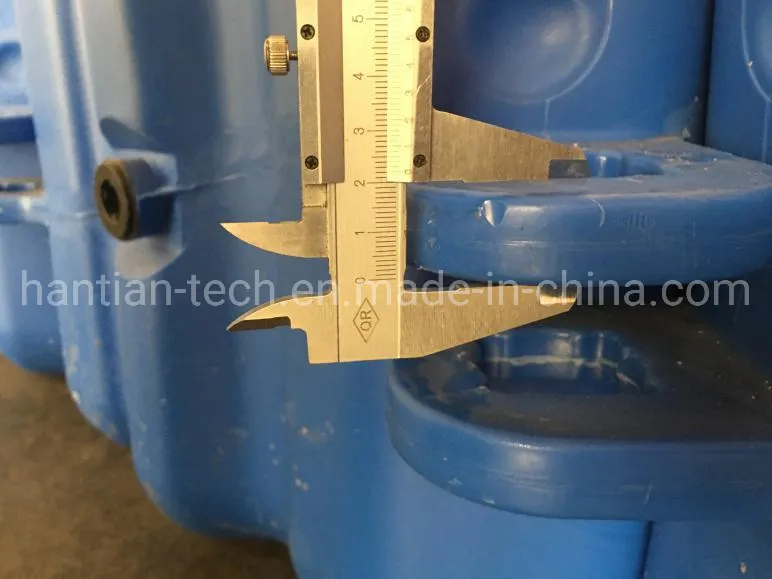

Structure	Corrugated edges for strength, lug thickness 20mm for close connection.
Buoyancy	Single float: 350kg/sqm; Double layer: 720kg/sqm.
Diagonal Tension	Can bear > 2500kg pulling force without deformation.
Performance	Temperature: -60°C to 80°C; Anti-corrosion, anti-freeze, anti-UV.
Bearing Capacity	Light draught: 2cm; Loaded 250KG-350KG: 26cm-36cm.

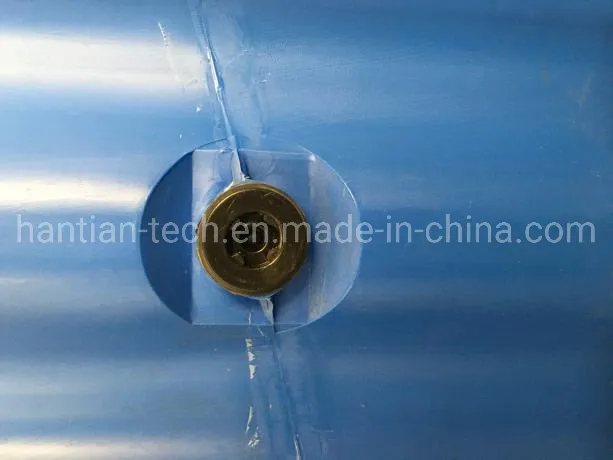

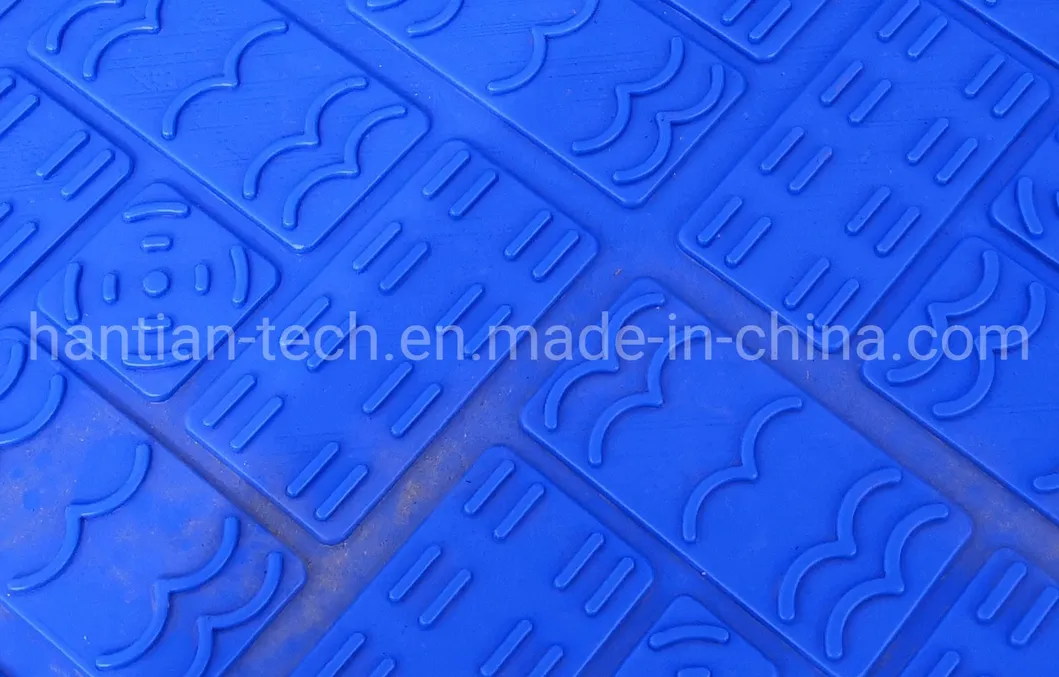

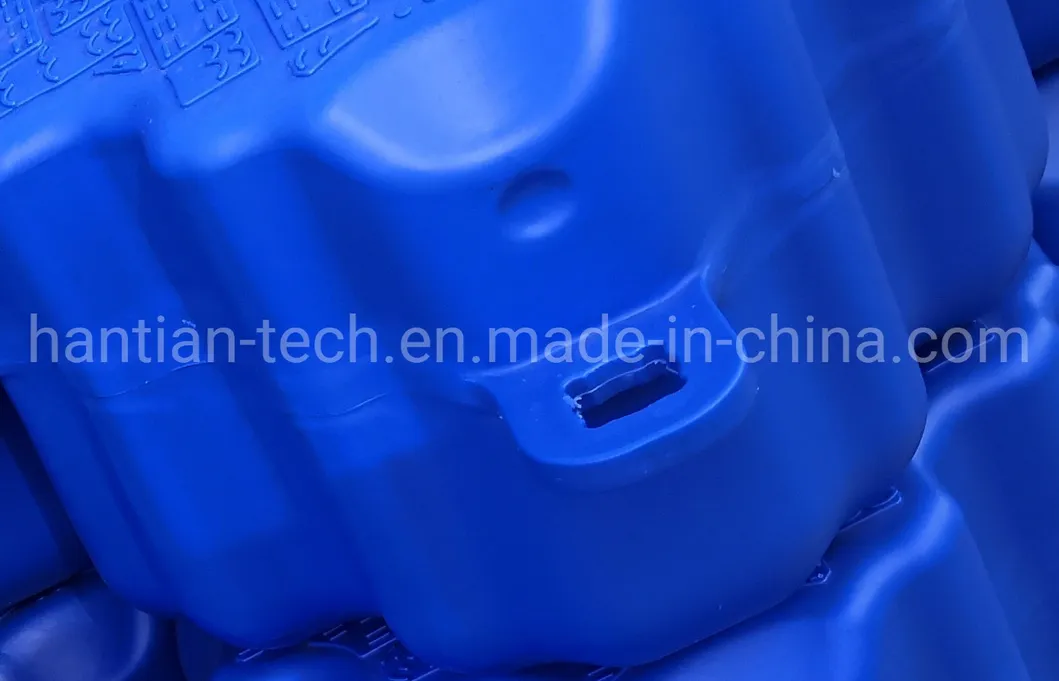

Detailed Photos

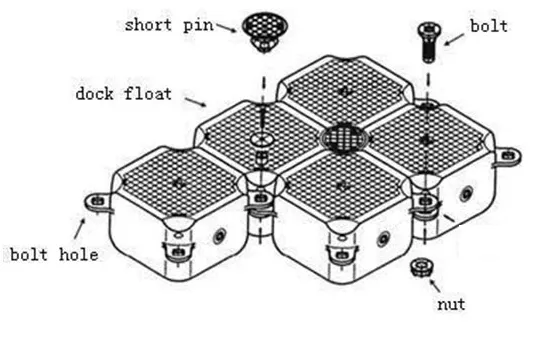

Installation Instructions

Step 1

Each pontoon has four lugs marked 1, 2, 3, 4. Align pontoons in the same direction.

Step 2

Insert connecting pin into the hole of over-lapping lugs.

Step 3

Use a rubber hammer to knock it into place and a wrench to turn the pin 45 degrees.

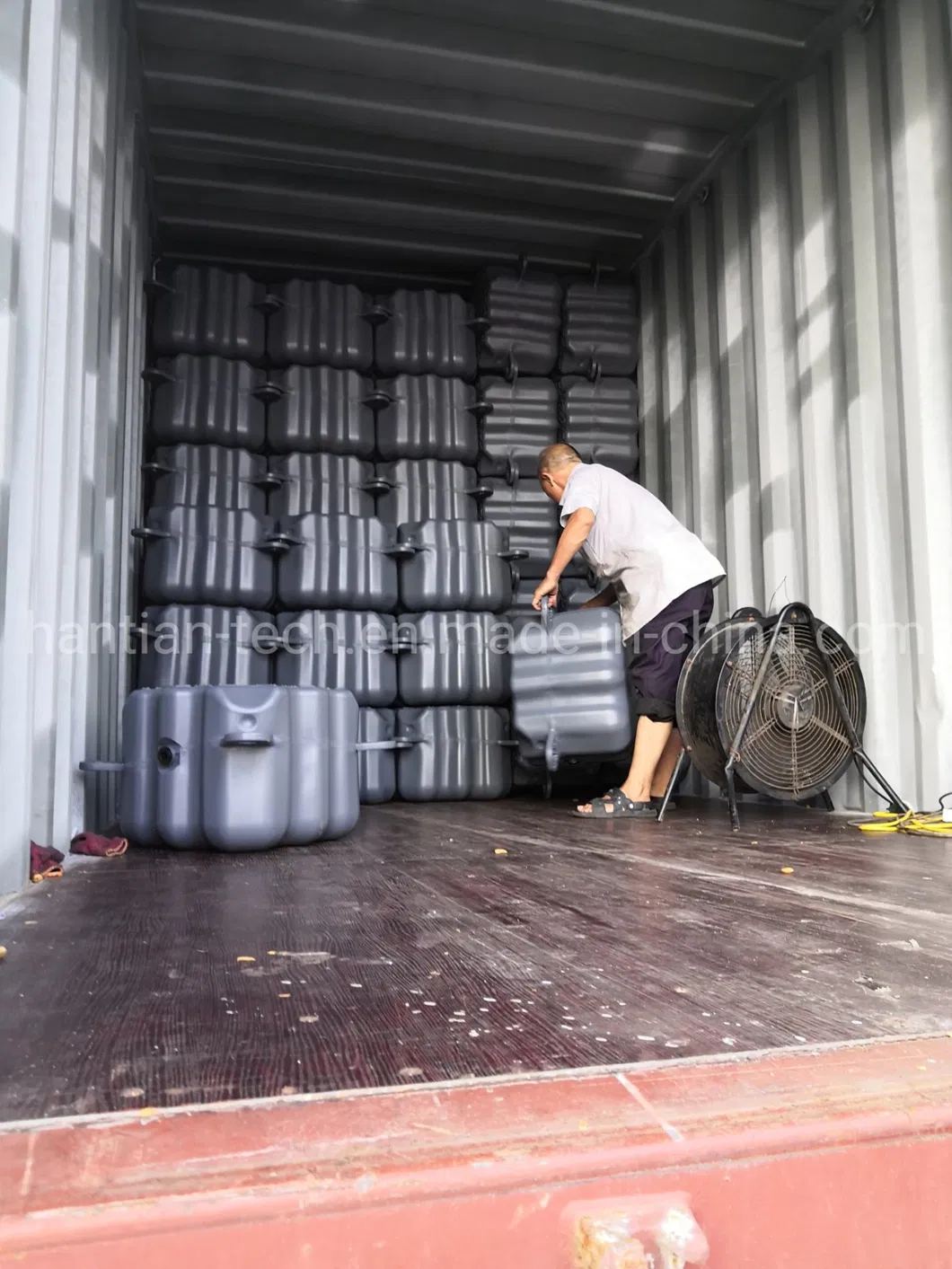

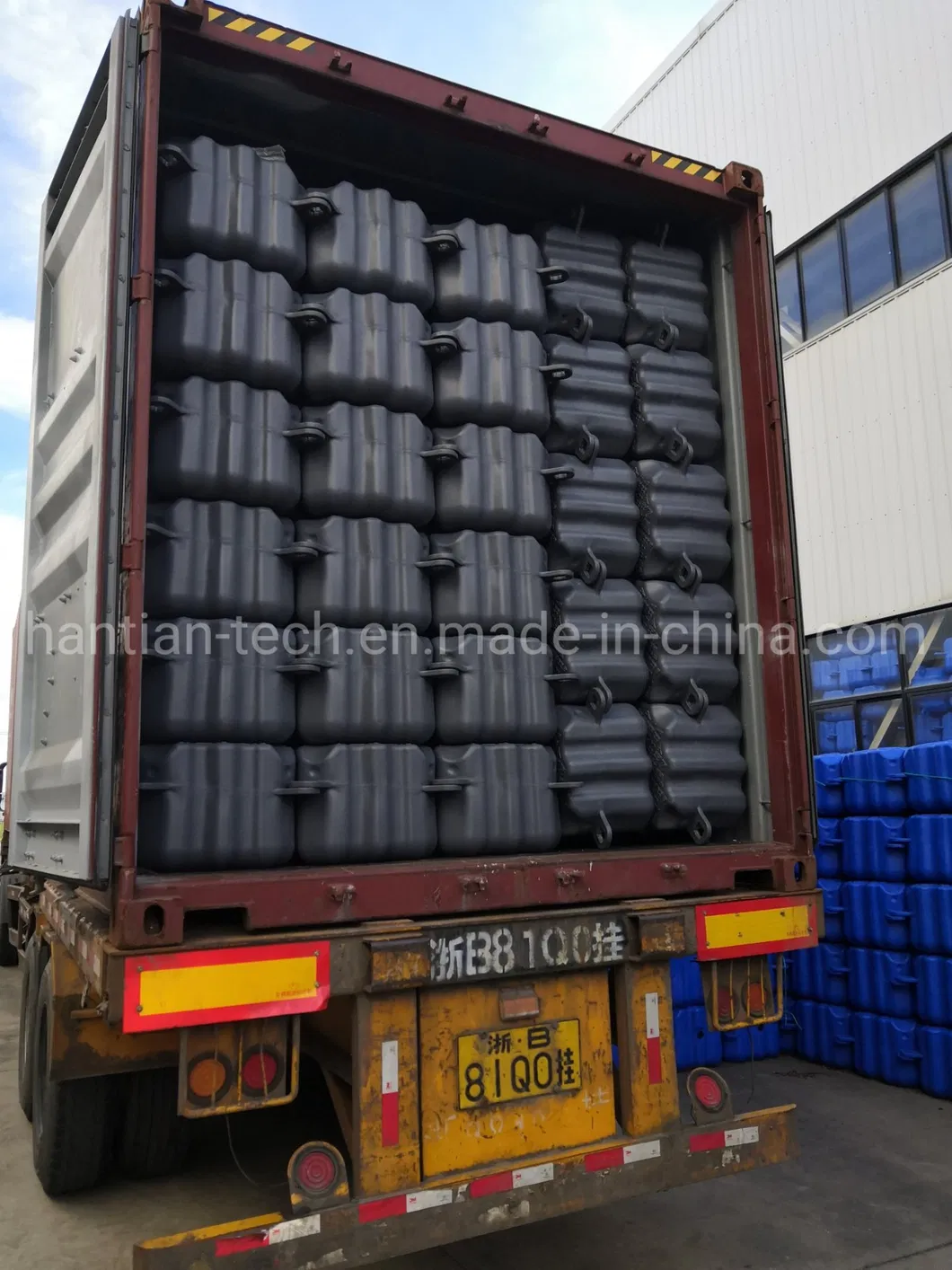

Packaging & Shipping

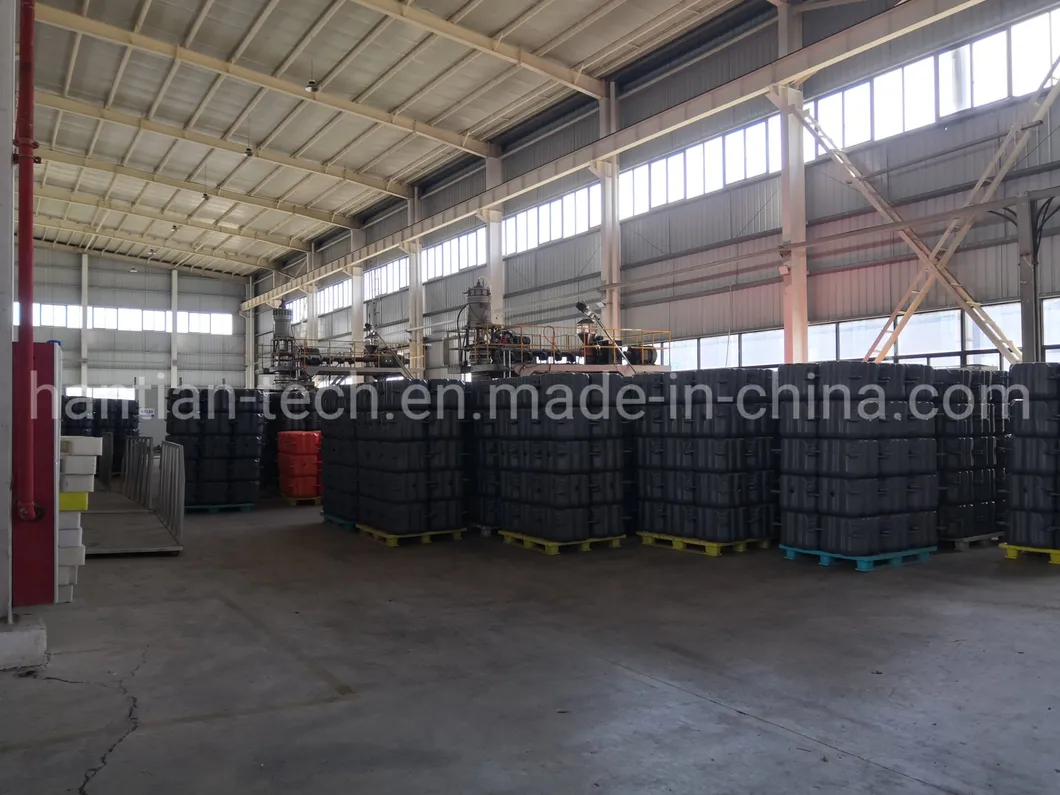

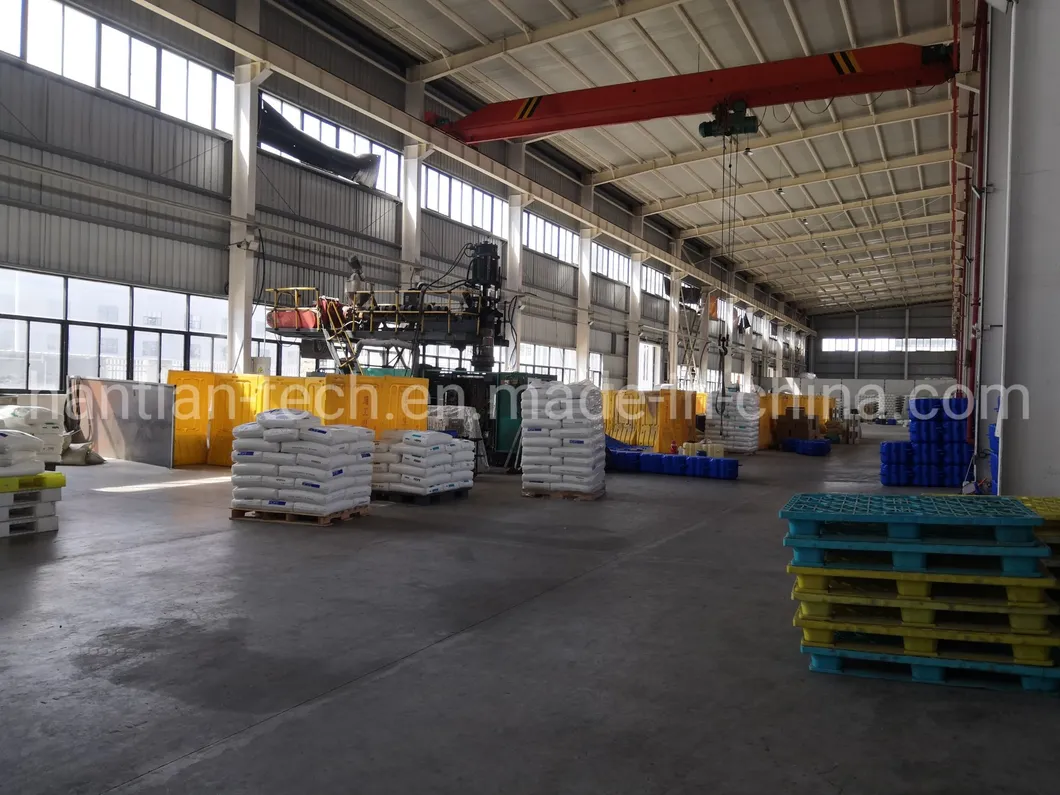

Factory & Workshop

Frequently Asked Questions

Q1: What material is used for the modular floating pontoons? A: The pontoons are made of High-Density Polyethylene (HDPE), which is 100% recyclable and environmentally friendly.

Q2: What is the buoyancy capacity of a single floating cube? A: A single standard cube (Model A) has a load capacity of 87.5kg, offering a total buoyancy of 350kg per square meter.

Q3: Can these floating docks withstand extreme temperatures? A: Yes, the pontoons are designed to work effectively in temperatures ranging from -60°C to 80°C.

Q4: How long is the expected service life of the HDPE cubes? A: With anti-corrosion, anti-freeze, and anti-UV properties, the expected service life is approximately 10-15 years.

Q5: Are the pontoons resistant to chemicals and seawater? A: Yes, the material is inert and resistant to seawater, chemicals, oil stains, and aquatic organisms.

Q6: Is it easy to install the floating platform? A: Yes, it uses a simple pin-and-lug system. Every 50cm, a connecting pin is inserted and locked with a 45-degree turn using a wrench.
