⚙️ Basic Info
Precision
P1-P5 & Customized
Maximum Dynamic Load
160kN
Production Capacity
10,000 PCS/Year
📄 Product Description

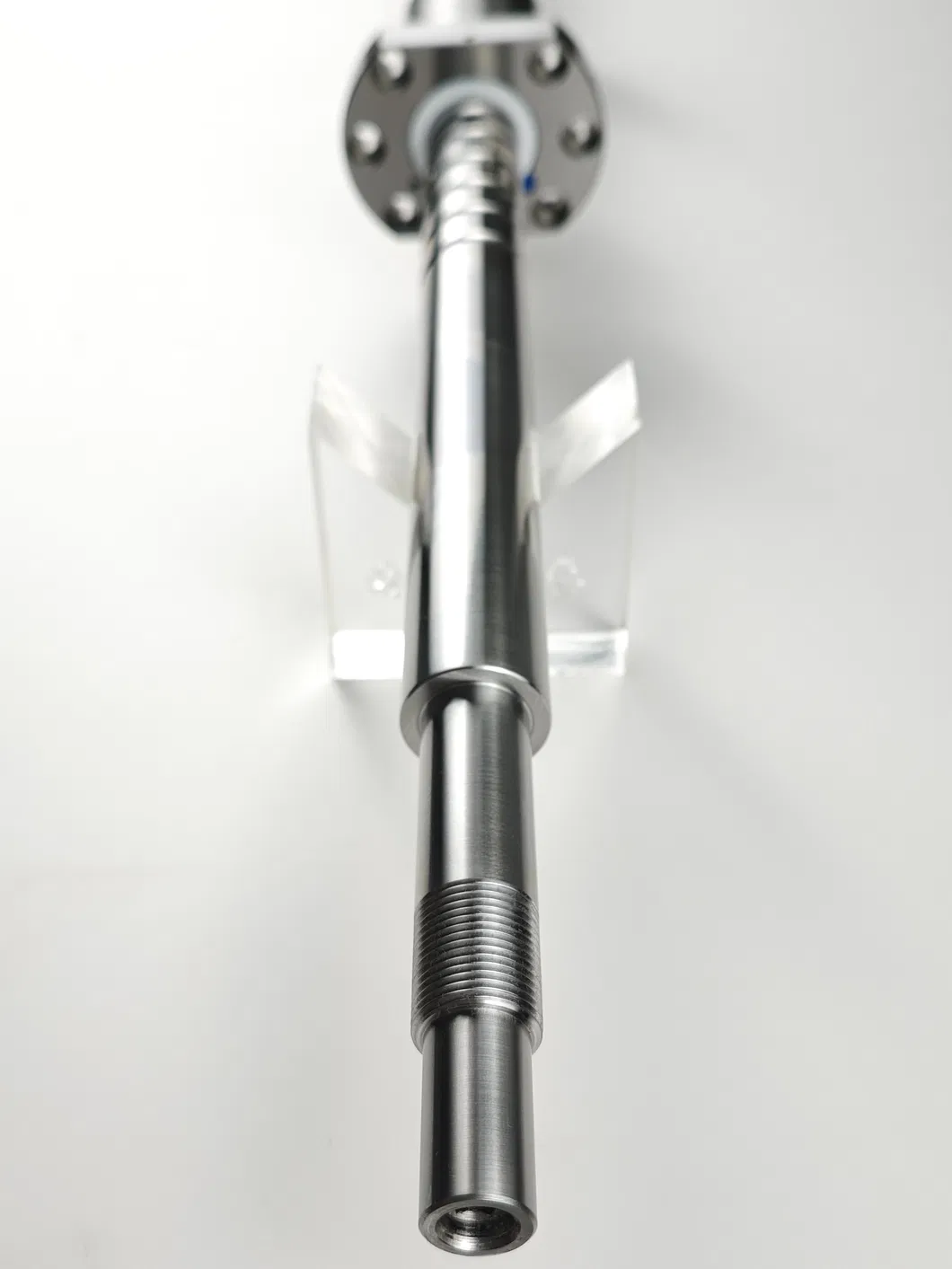

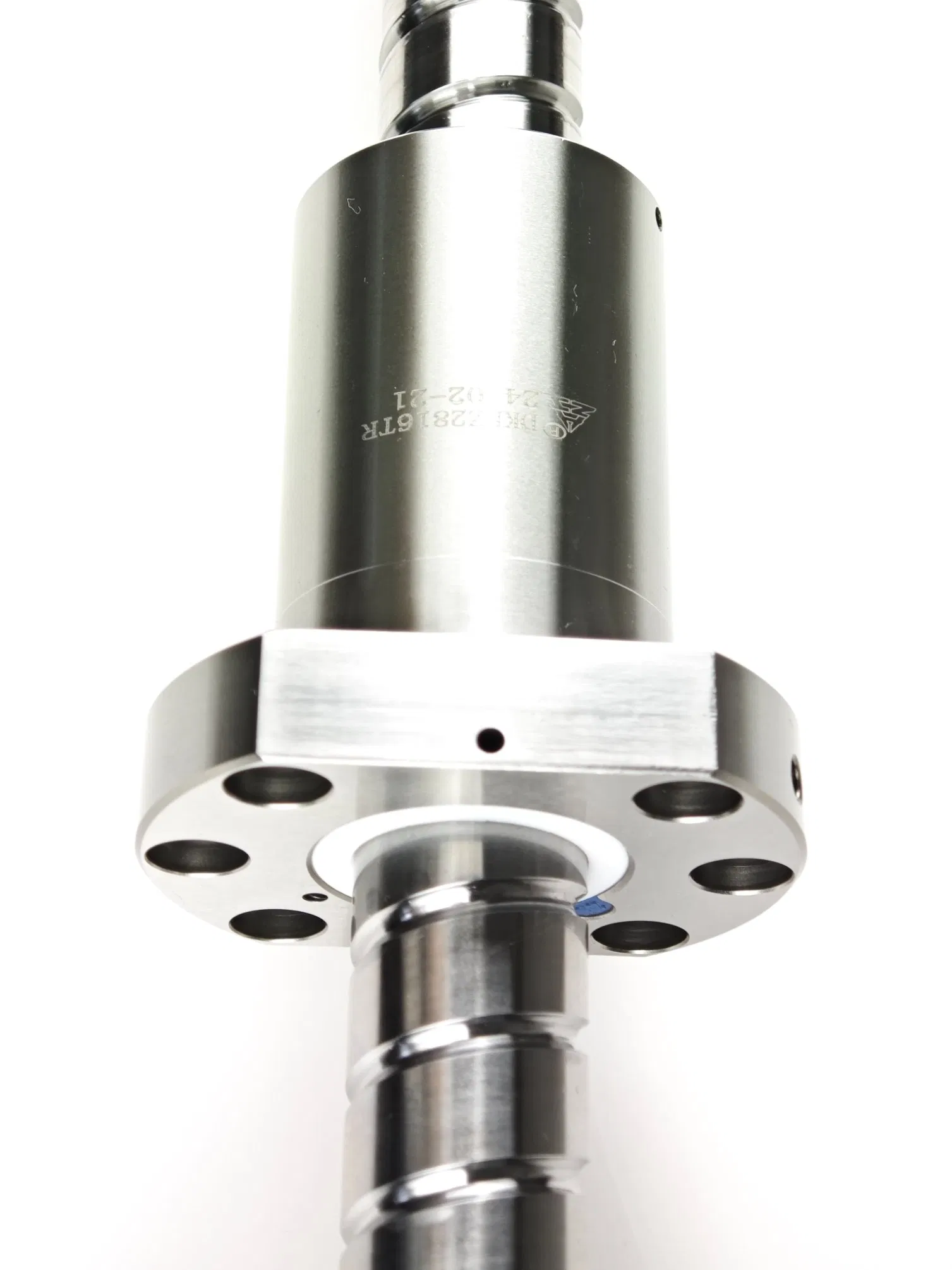

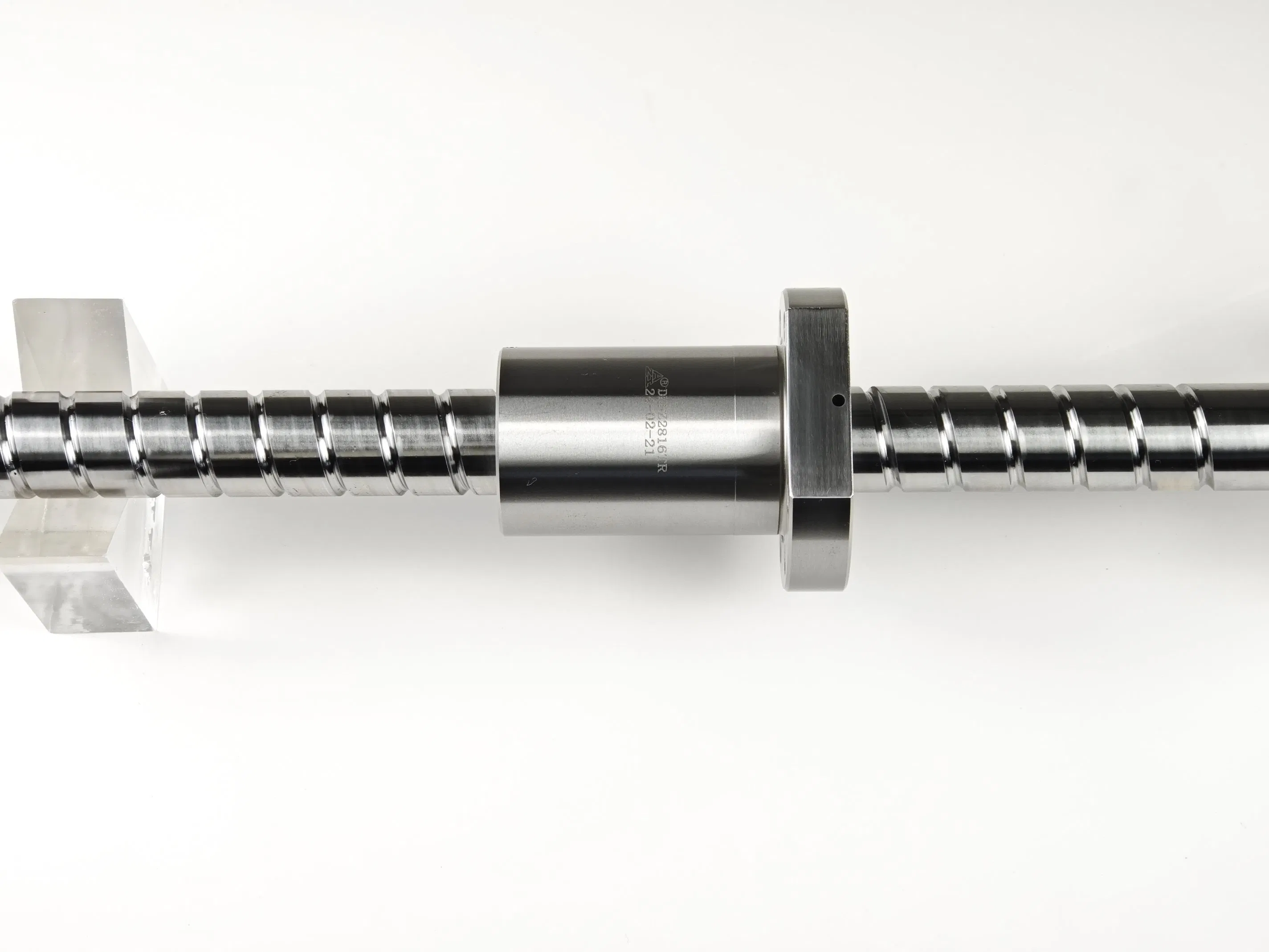

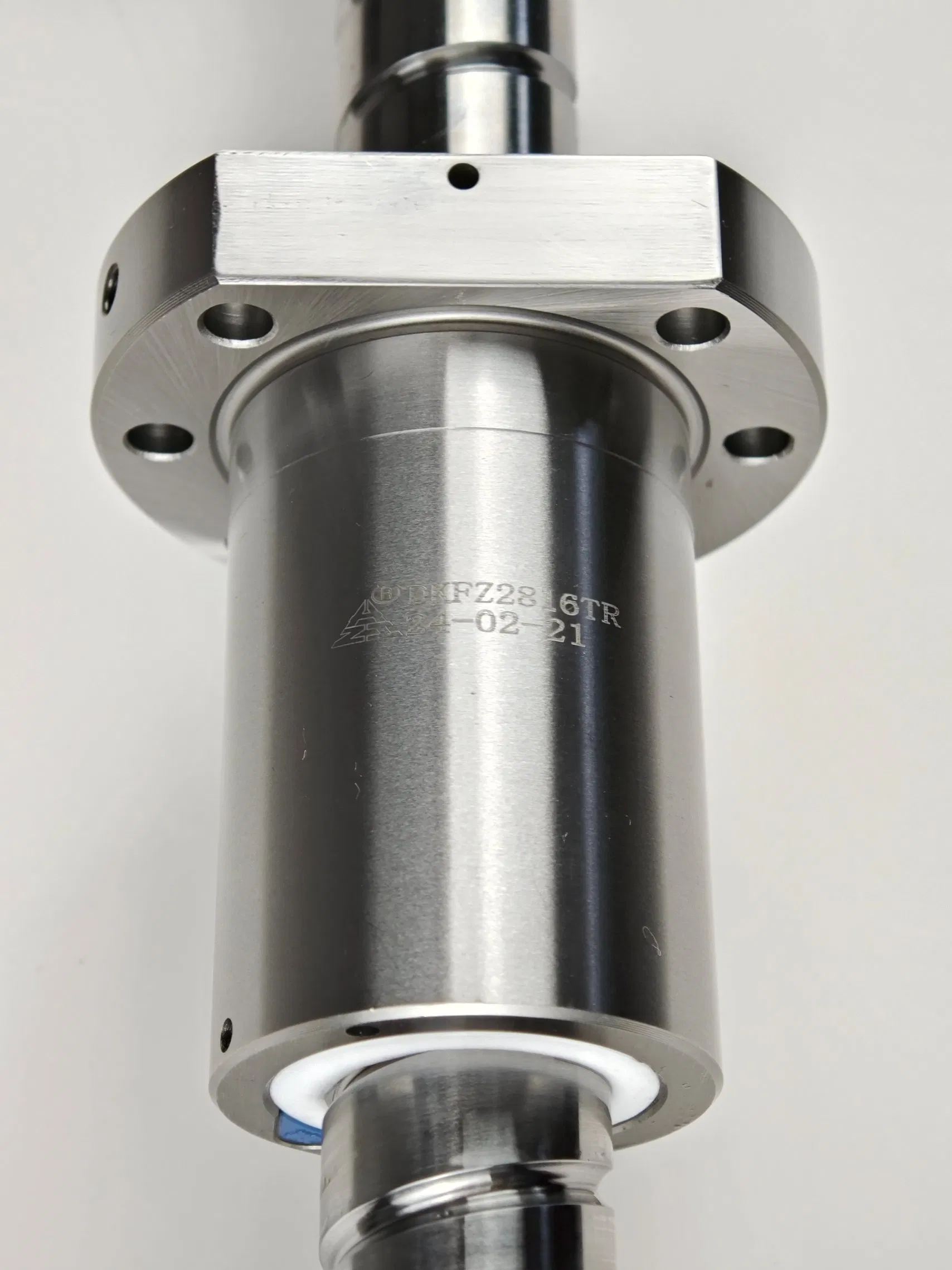

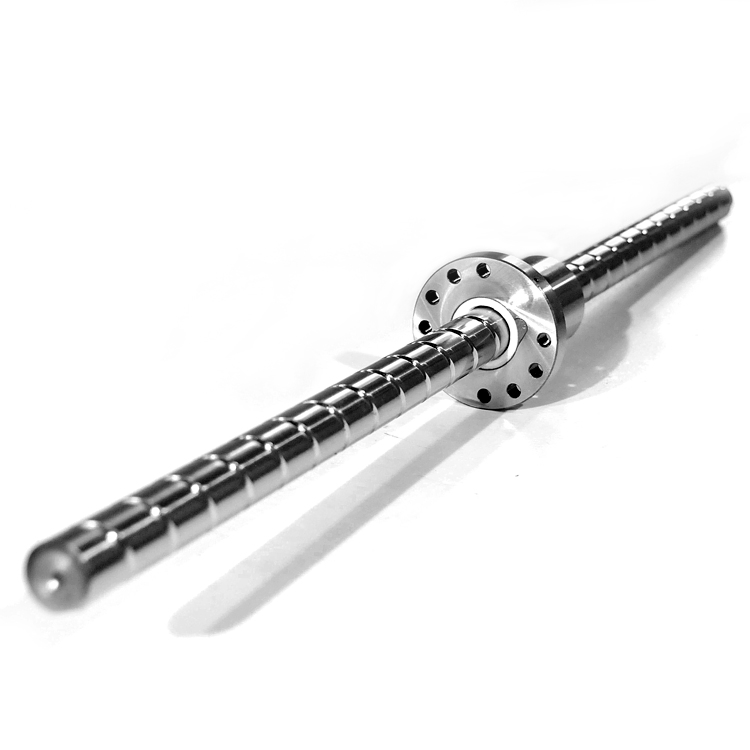

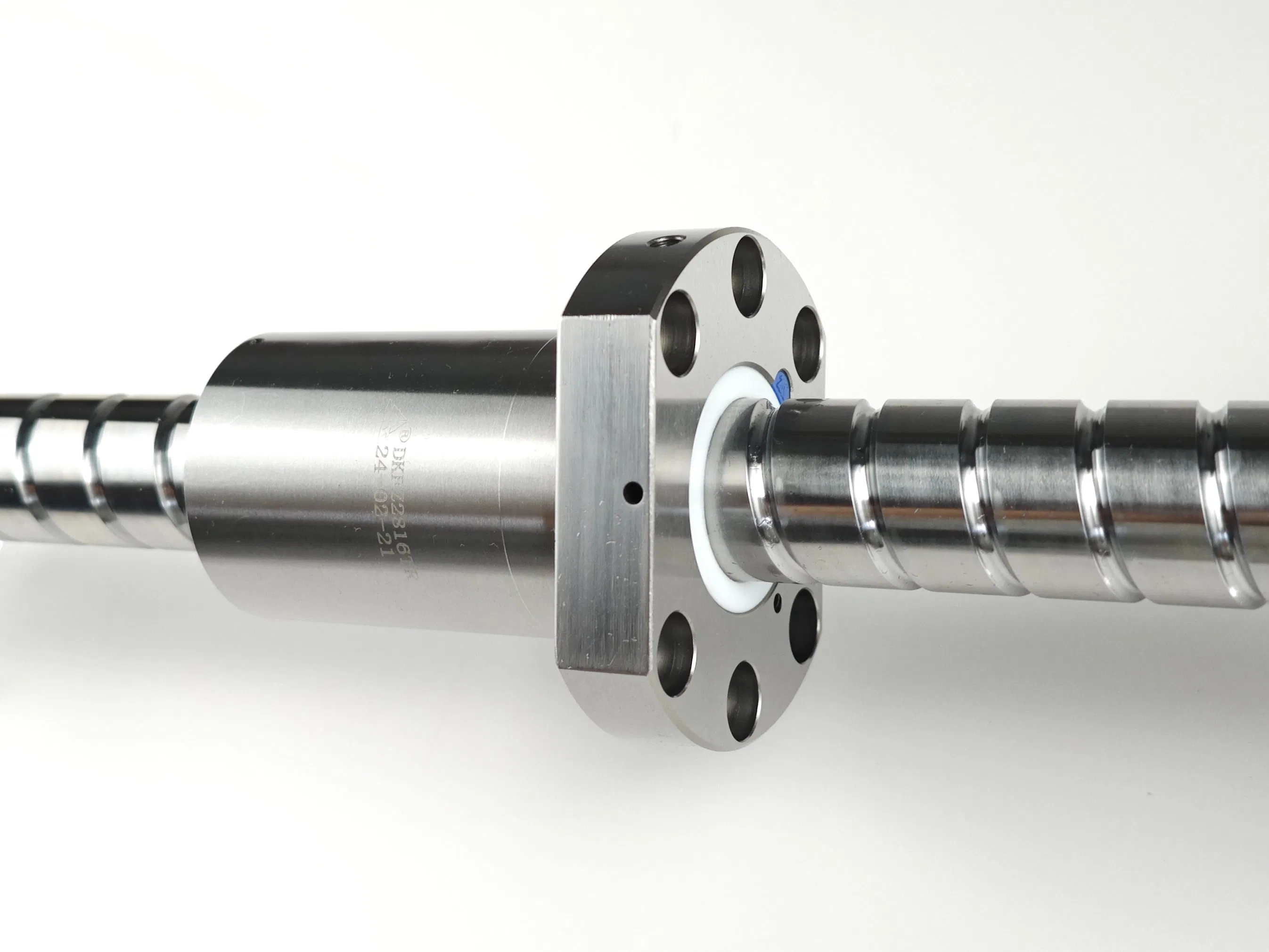

Ball screw assembly is consisted of ball screw nut and rod. The function is transfer the rotary motion into linear motion or transfer the linear motion into rotary motion. Ball screw is widely used for all kinds of industrial equipments and precision instrument.
| Product name |
Model |
Dia (mm) |
Lead (mm) |
Accuracy |
Feature |
| Ball screw |
DKF, JF, FF, FFB |
12, 16, 20, 25, 32, 40, 50, 63, 80 |
5, 6, 8, 10, 16, 20, 25, 32, 40 |
P1, P2, P3, P4, P5, P7, P10 |
High speed, low noise |
- ✅ Ball type: ø8 - ø200
- ✅ High transmission rate
- ✅ Transmission reversibility
- ✅ Long service life
- ✅ Good synchronicity
- ✅ Max capacity: 376 tons
📊 Product Parameters

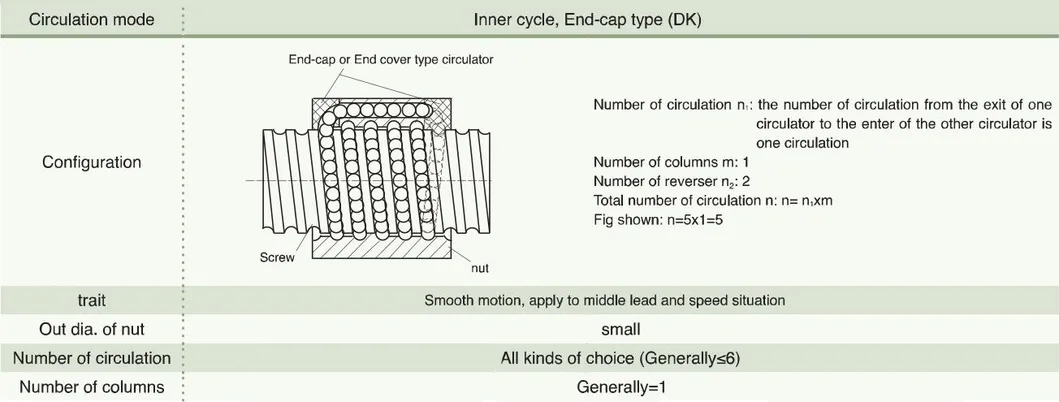

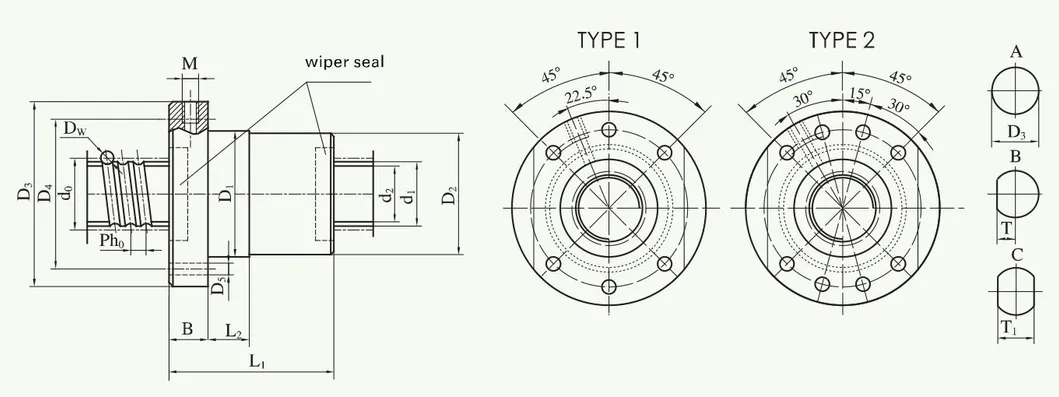

Structure:
Scope of application:
Machining center, NC Lathe machine, Grinding machine, Heavy machine.
DKF Size Specifications:
| Spec. |
Nominal dia. (d0) |
Basic lead (Ph0) |
Ball dia. (Dw) |
Dynamic load (Ca) kN |
Static load (Coa) kN |
Stiffness N/μm |
| DKF2010-3 | 20 | 10 | 3.175 | 10.8 | 19.6 | 269 |
| DKF2510-3 | 25 | 10 | 3.969 | 15.7 | 29.3 | 318 |
| DKF3210-4 | 32 | 10 | 3.969 | 23.3 | 52.7 | 525 |
| DKF4010-5 | 40 | 10 | 6.35 | 58.9 | 130.0 | 813 |
| DKF5016-5 | 50 | 16 | 6.35 | 65.2 | 164.0 | 990 |
| DKF6320-5 | 63 | 20 | 9.525 | 124.7 | 307.3 | 1253 |
| DKF8040-3 | 80 | 40 | 12.7 | 165.4 | 414.3 | 1176 |
If you have any needs, please feel free to contact us for our full catalog.
❓ Frequently Asked Questions
Why choose our products?

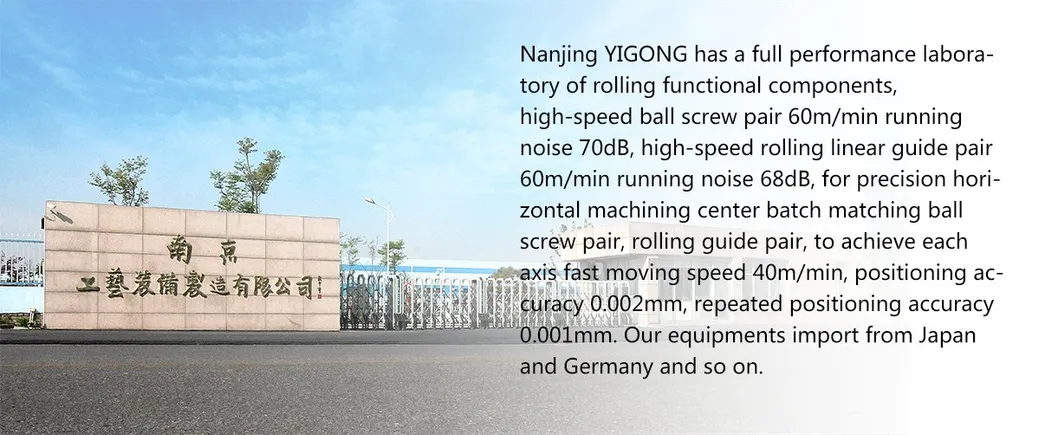

With more than 70 years of production experience, we maintain one of the largest rolling functional parts R&D and manufacturing bases.
What are your main products?
We specialize in high-precision Ball Screws, Linear Guides, and Ball Splines for industrial machinery.
Do you offer customization (OEM/ODM)?
Yes, simply send us your technical drawings or specific requirements for a custom-made solution.
How long does it take to receive a quotation?
We usually provide a formal quote within 24 hours of receiving your inquiry.
Can I request a sample?
Yes, we can provide samples based on your specific engineering drawings.
What are the standard payment terms?
For orders under 1000 USD, 100% pre-payment is required. For orders over 1000 USD, terms are 30% deposit and 70% before delivery.
