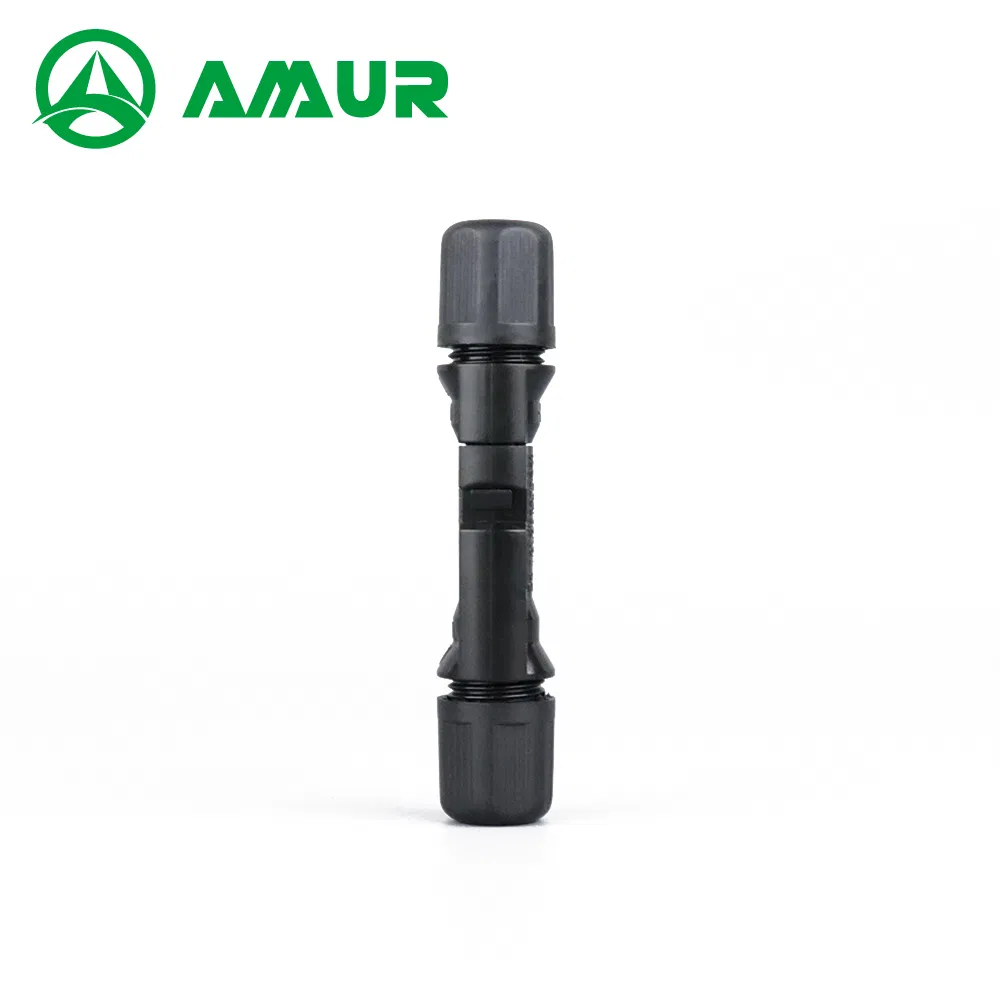

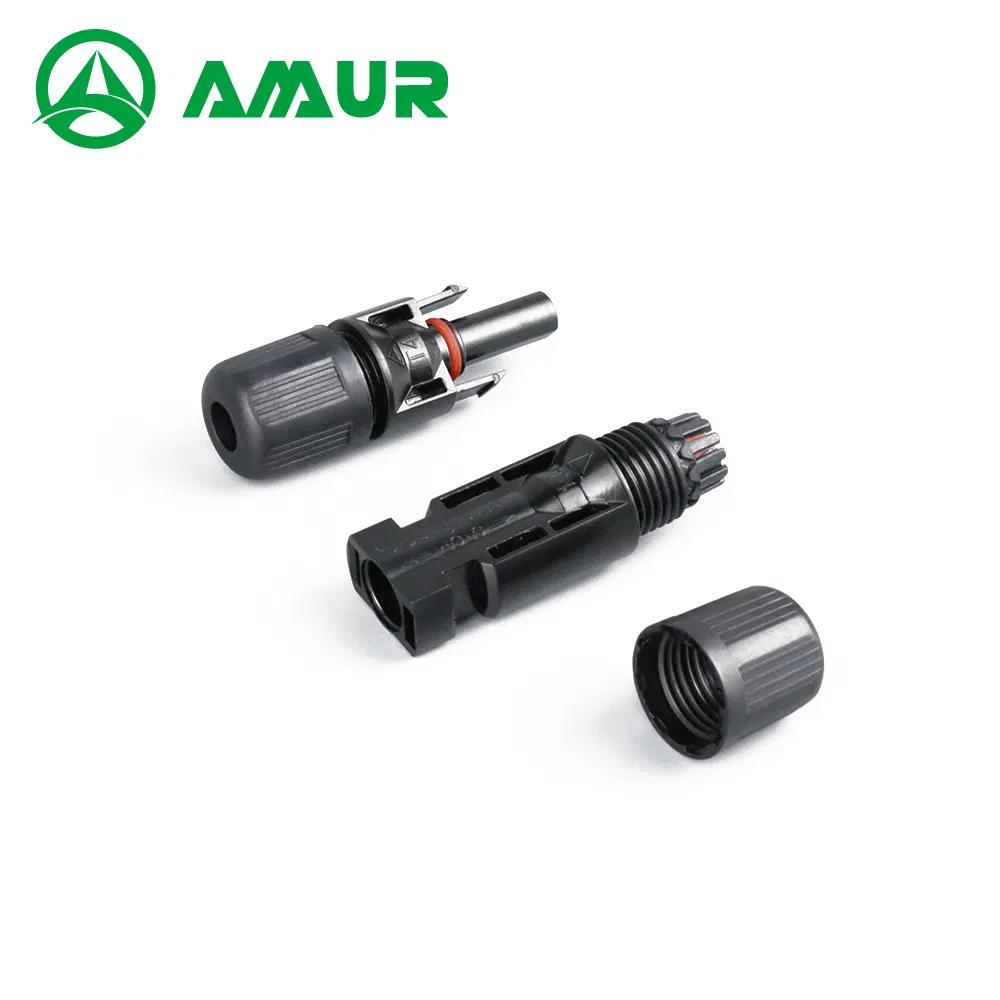

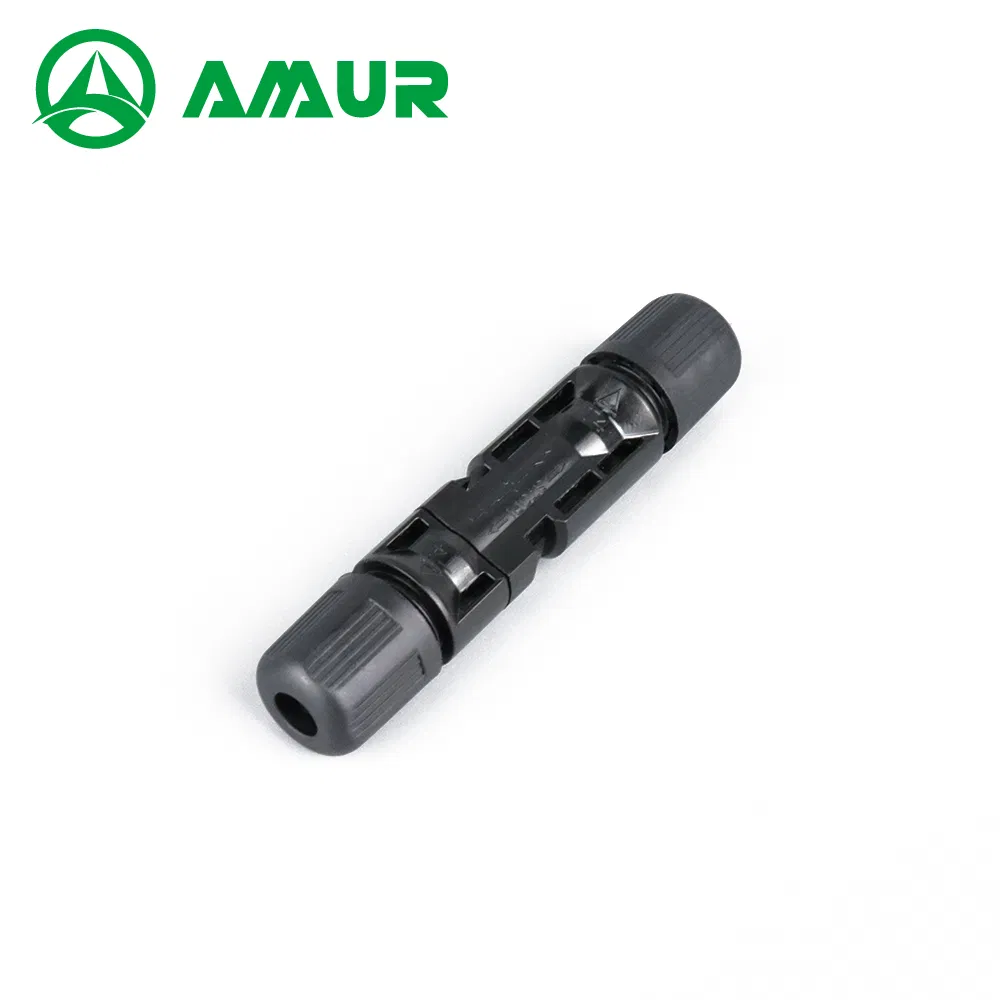

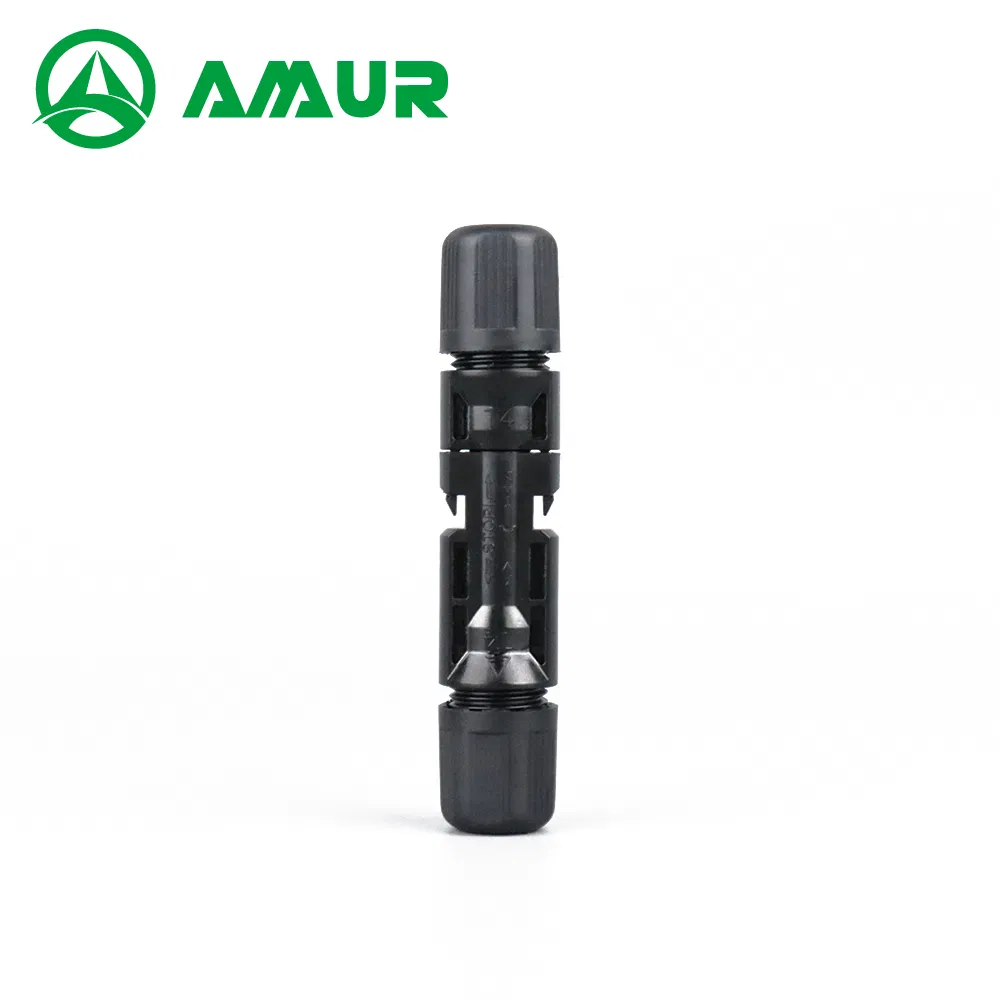

Amul 1000V 30A Female Male Cable Connector Mc4 Solar Connectors
Amul 1000V 30A Female Male Cable Connector Mc4 Solar Connectors
Amul 1000V 30A Female Male Cable Connector Mc4 Solar Connectors
Amul 1000V 30A Female Male Cable Connector Mc4 Solar Connectors
Amul 1000V 30A Female Male Cable Connector Mc4 Solar Connectors
1 / 5
Amul 1000V 30A Female Male Cable Connector Mc4 Solar Connectors
Amul 1000V 30A Female Male Cable Connector Mc4 Solar Connectors
Amul 1000V 30A Female Male Cable Connector Mc4 Solar Connectors
Amul 1000V 30A Female Male Cable Connector Mc4 Solar Connectors
Amul 1000V 30A Female Male Cable Connector Mc4 Solar Connectors

Amul 1000V 30A Female Male Cable Connector Mc4 Solar Connectors

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊

Basic Product Information

Model NO. MC4-30A Current 30A
Voltage 1000V Package Size 20.00cm * 10.00cm * 15.00cm
Transport Package 10 PCS/Box Gross Weight 1.500kg
HS Code 853650009
⚙️

Technical Parameters

✔
Contact Material: Copper Alloy, tin plated
✔
Insulation Material: PC/PV
✔
Ambient Temp Range: -40ºC to +90ºC (IEC)
✔
Upper Limiting Temp: +105ºC (IEC)
✔
Protection Degree: IP67 (Mated) / IP2X (Unmated)
✔
Contact Resistance: 0.5mΩ
📷

Detailed Photos

Cable Connector Mc4 Solar Connectors Side View

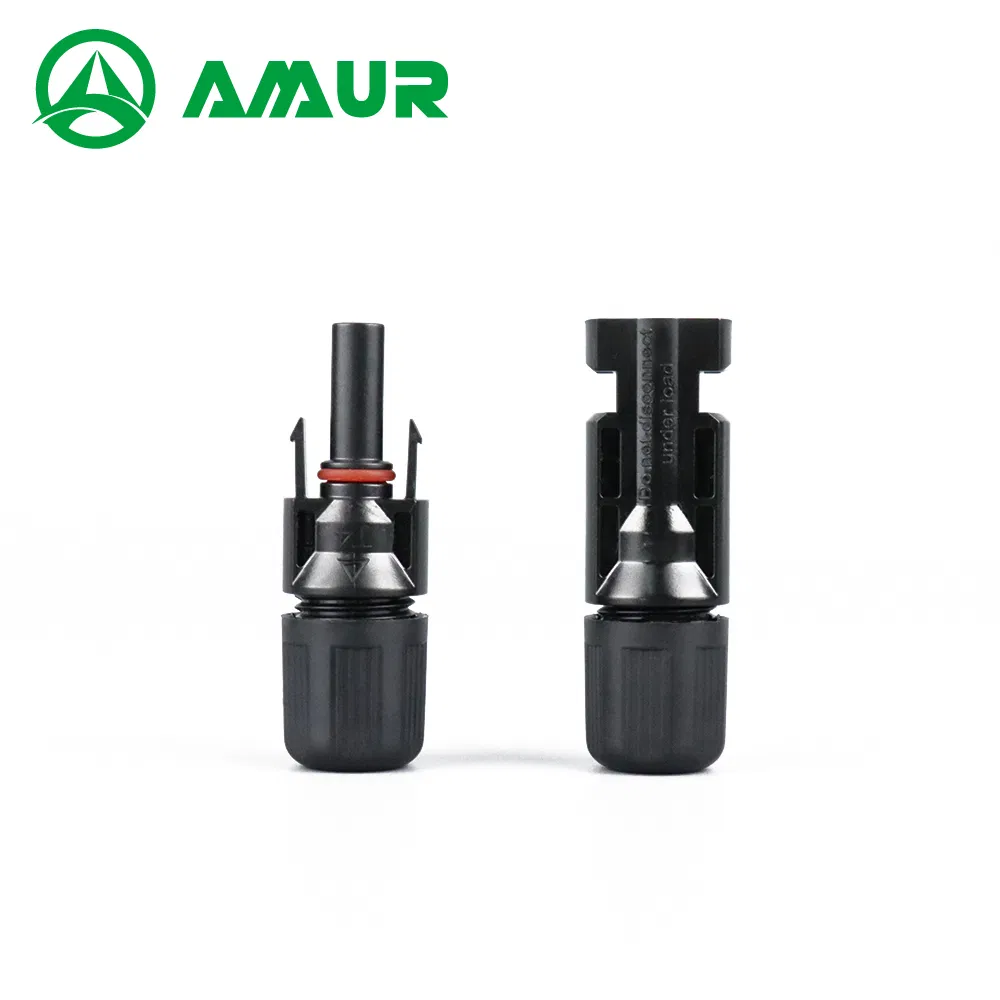

Cable Connector Mc4 Solar Connectors Front View
📐

Specification Details

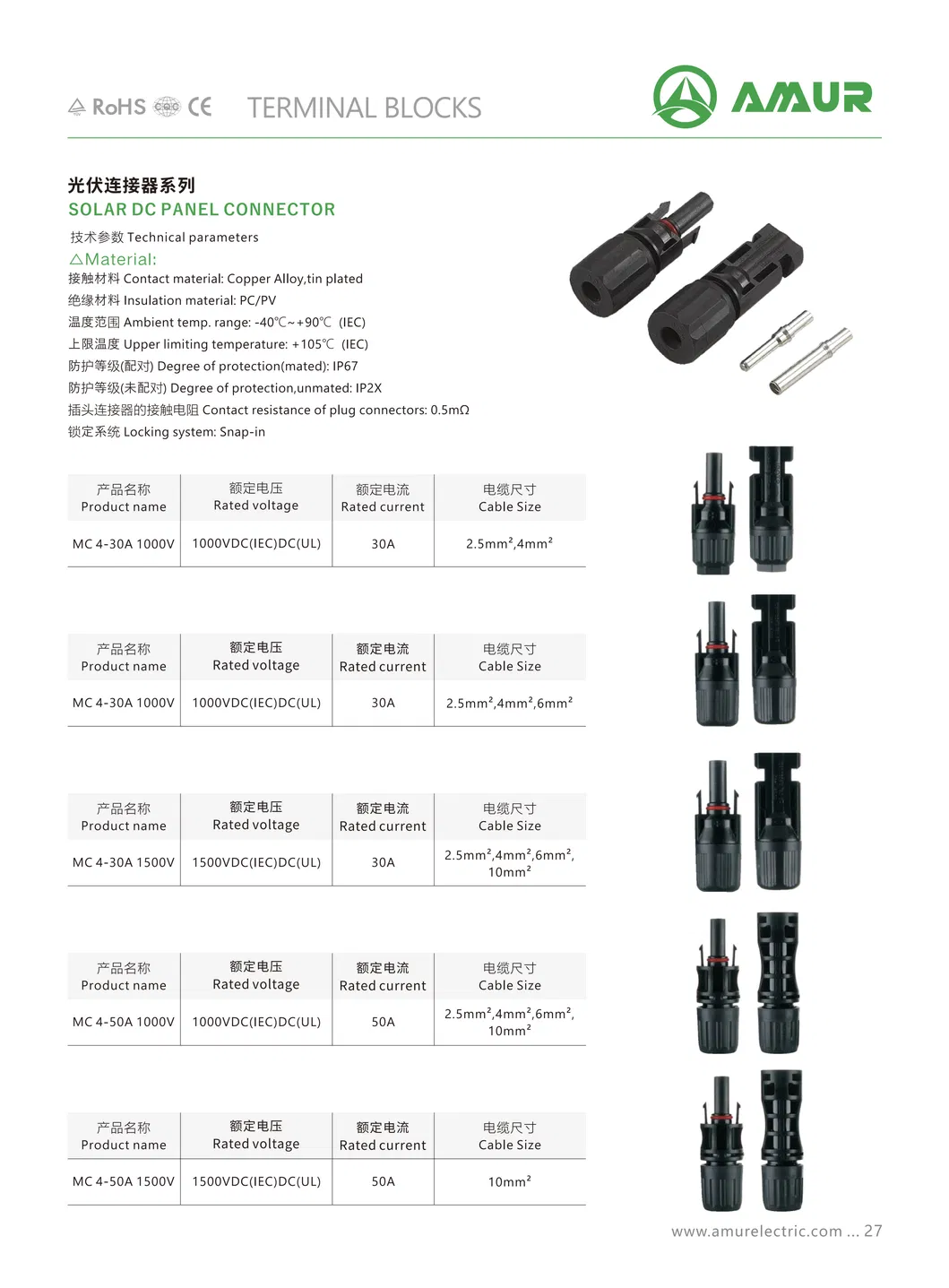

Solar Connector Specifications Chart Solar Connector Installation Diagram
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3

Frequently Asked Questions

❓ What is the rated voltage and current for this MC4 connector?
The MC4-30A connector is rated for a maximum voltage of 1000V and a current of 30A, making it suitable for most standard solar PV installations.
❓ Is this connector waterproof for outdoor use?
Yes, it features an IP67 protection rating when mated, providing excellent resistance against dust and water immersion in outdoor environments.
❓ What materials are used for the contacts?
The contacts are made from a high-quality Copper Alloy with tin plating to ensure low contact resistance (0.5mΩ) and superior conductivity.
❓ What is the operating temperature range?
The connector can operate safely in ambient temperatures ranging from -40ºC to +90ºC, with an upper limiting temperature of +105ºC.
❓ How many pieces are included in a single package?
Each standard box contains 10 pieces of the MC4 solar connectors.
