FAQ
Frequently Asked Questions

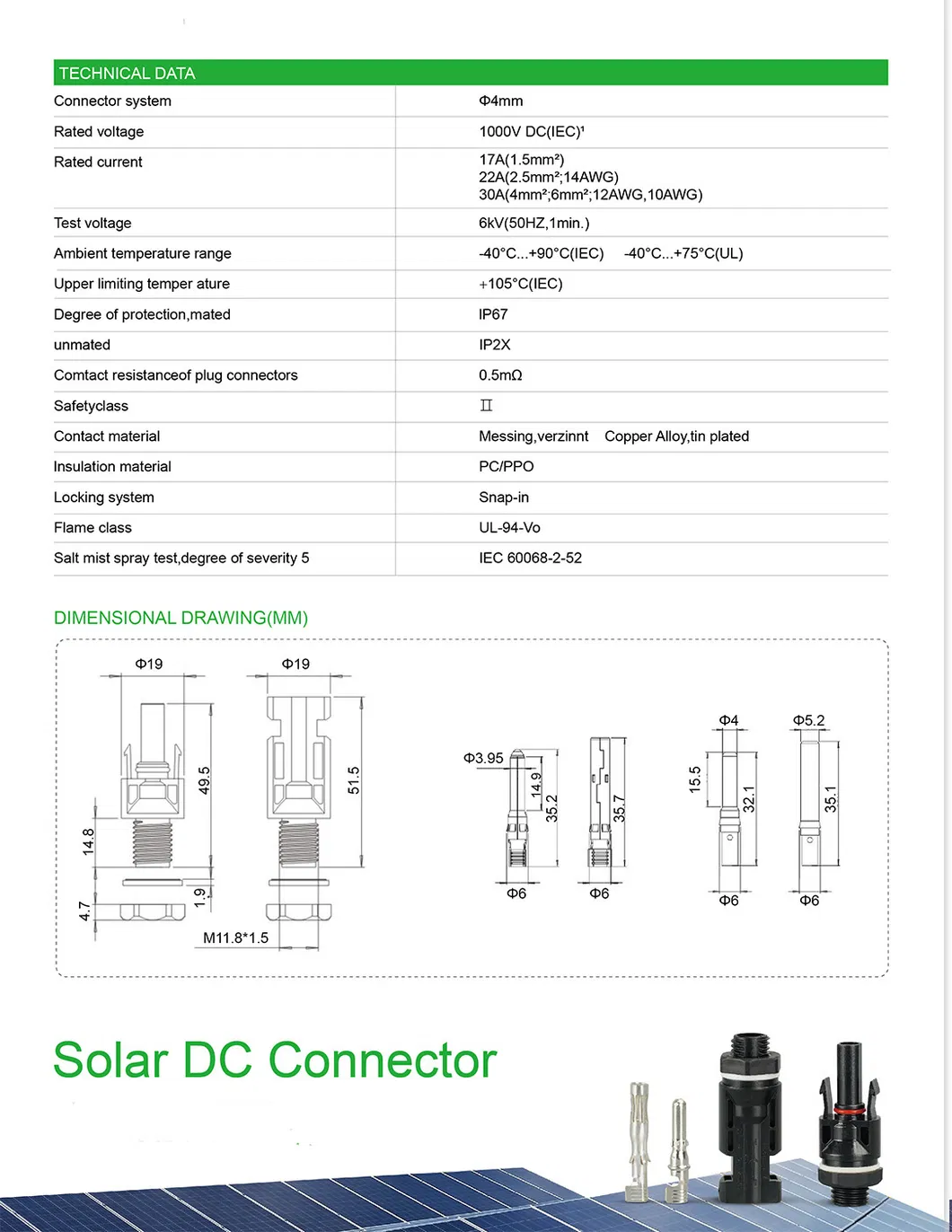

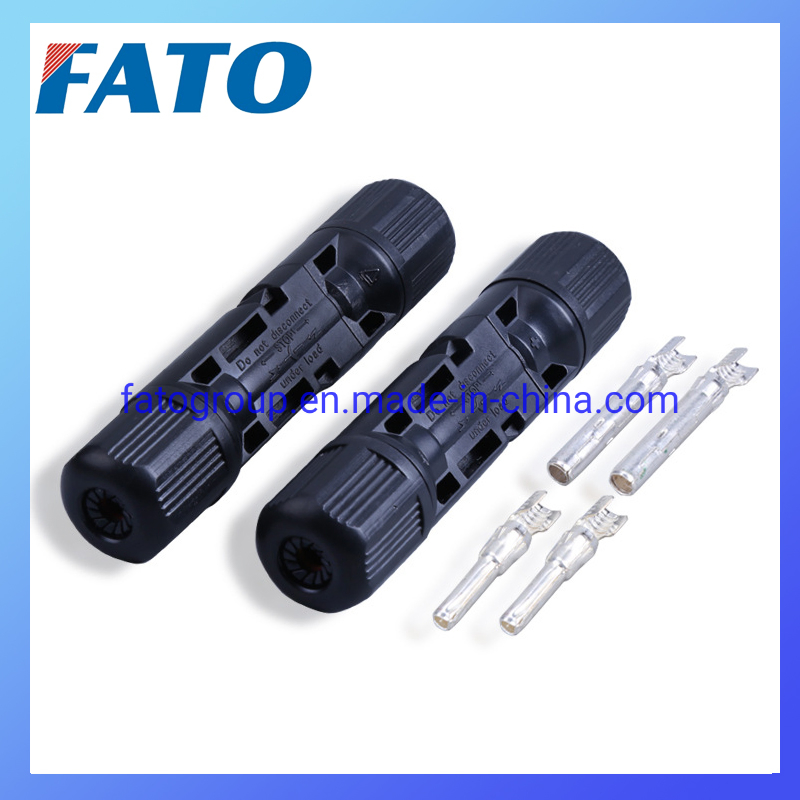

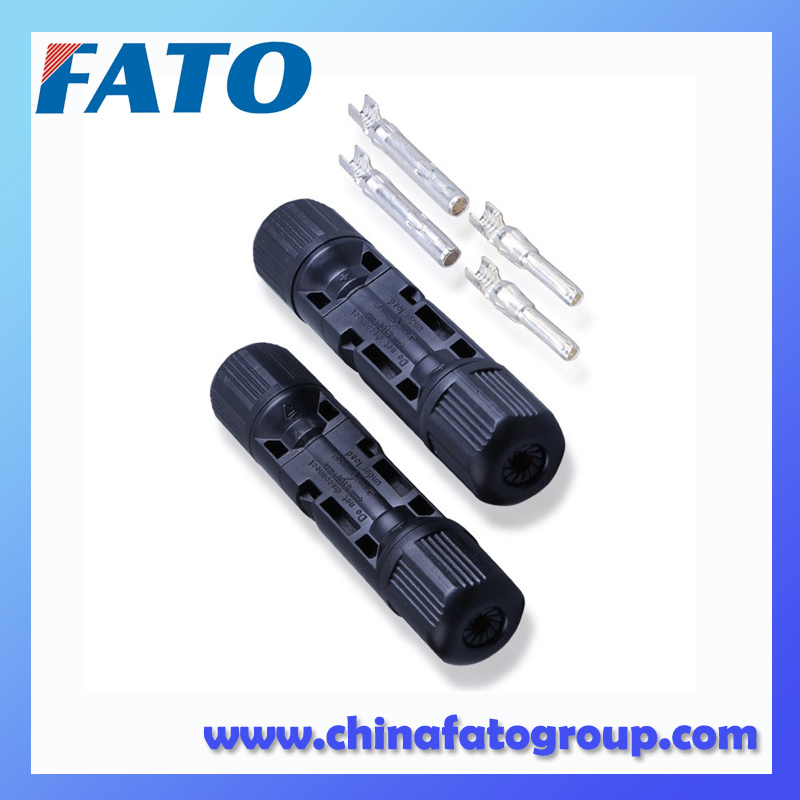

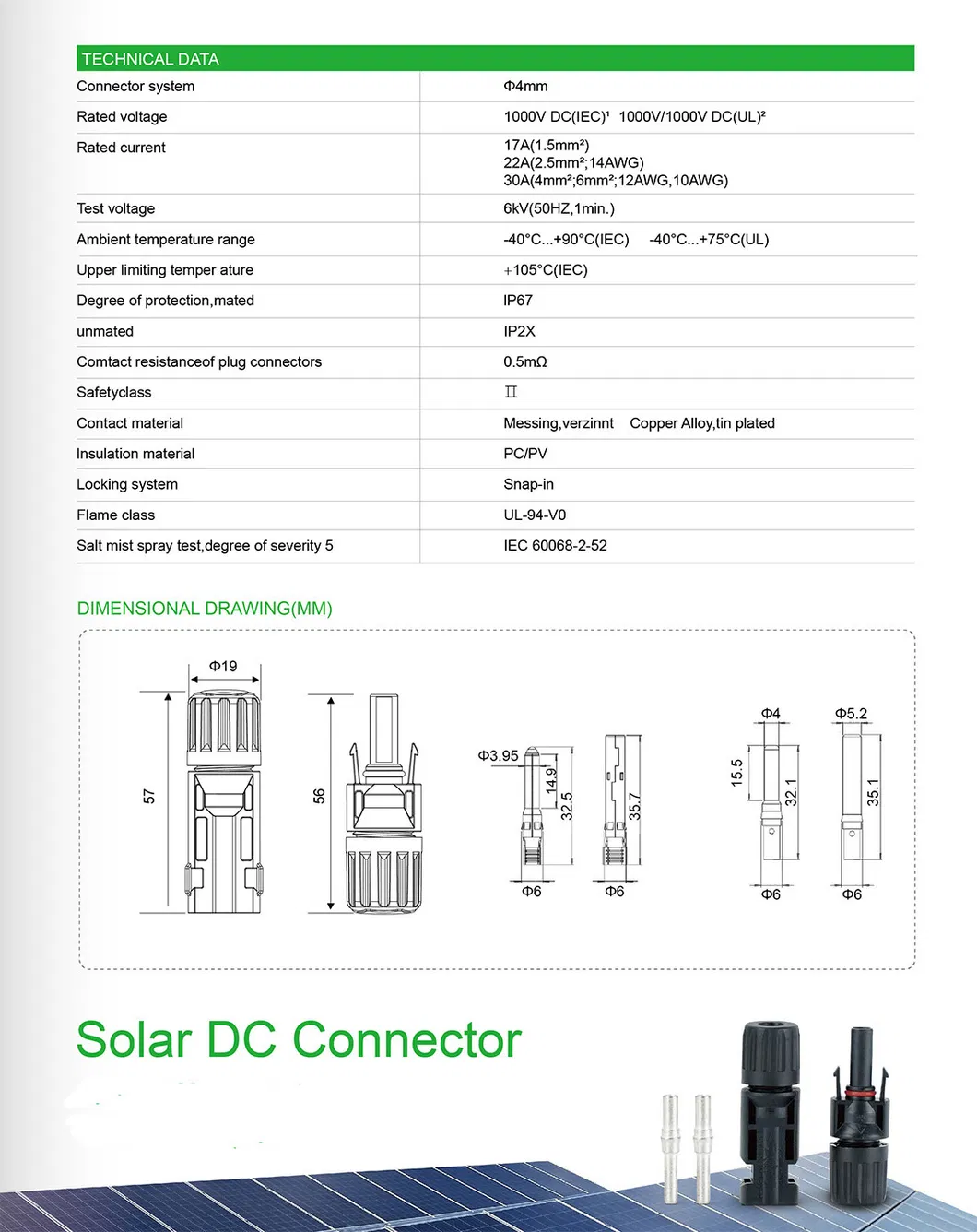

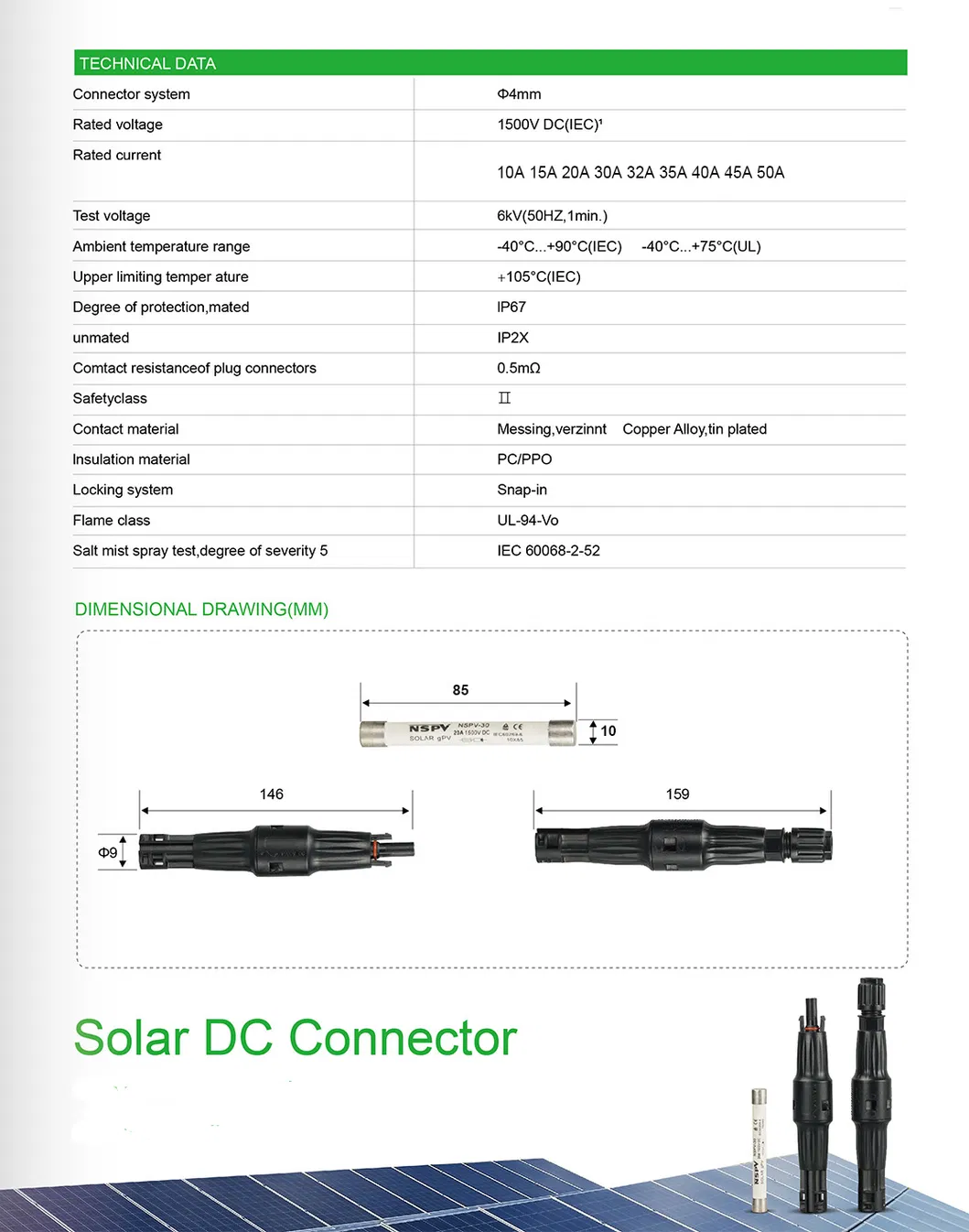

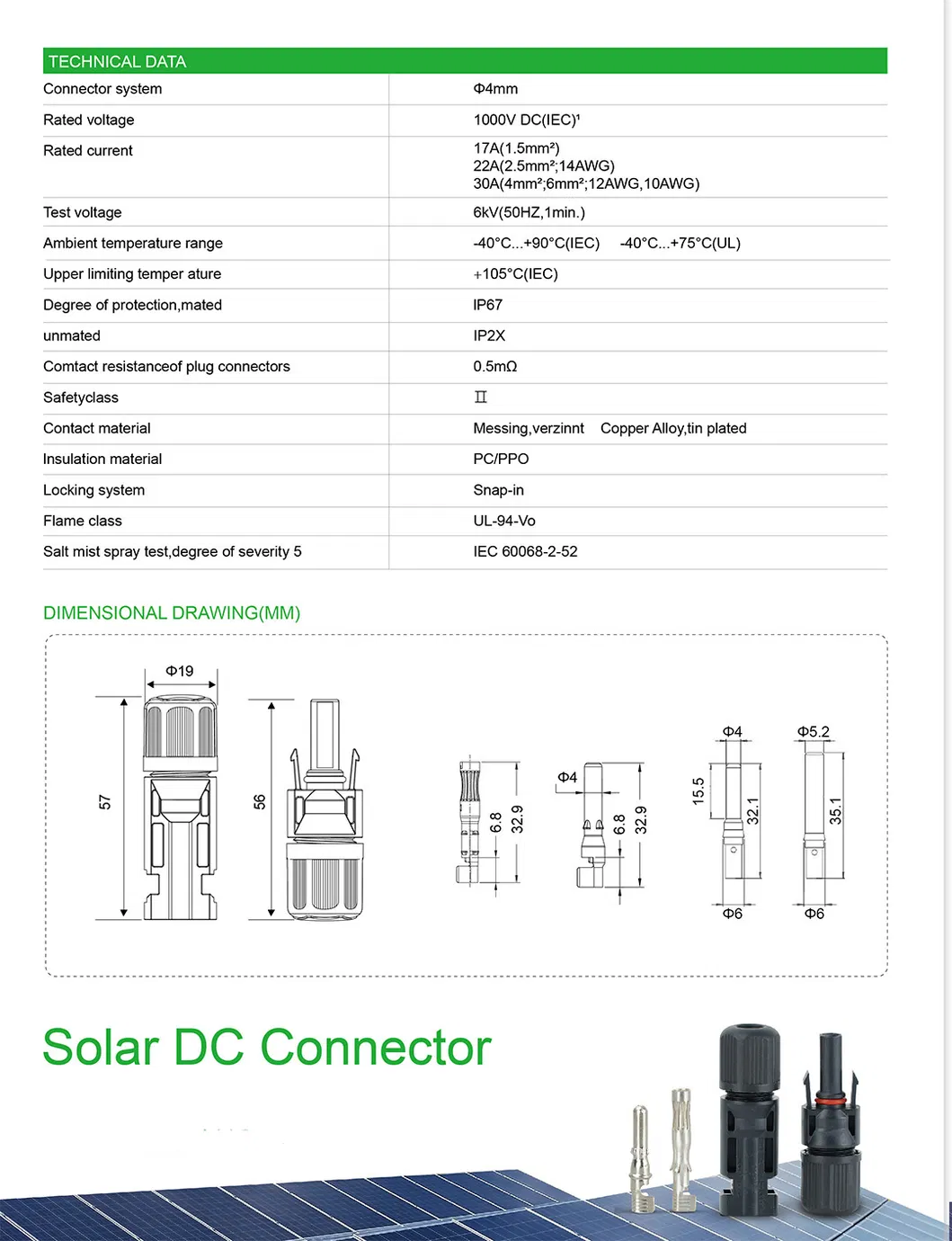

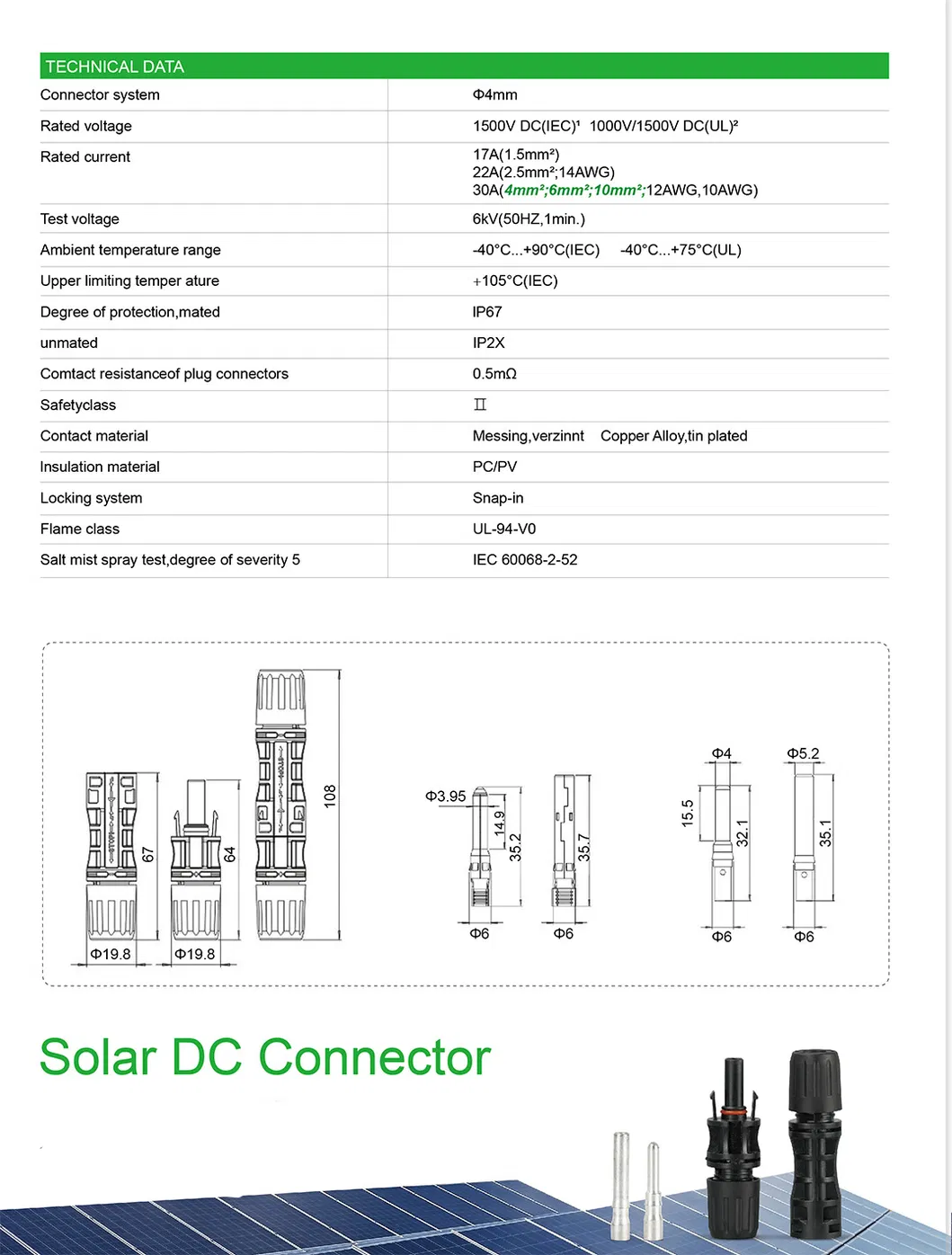

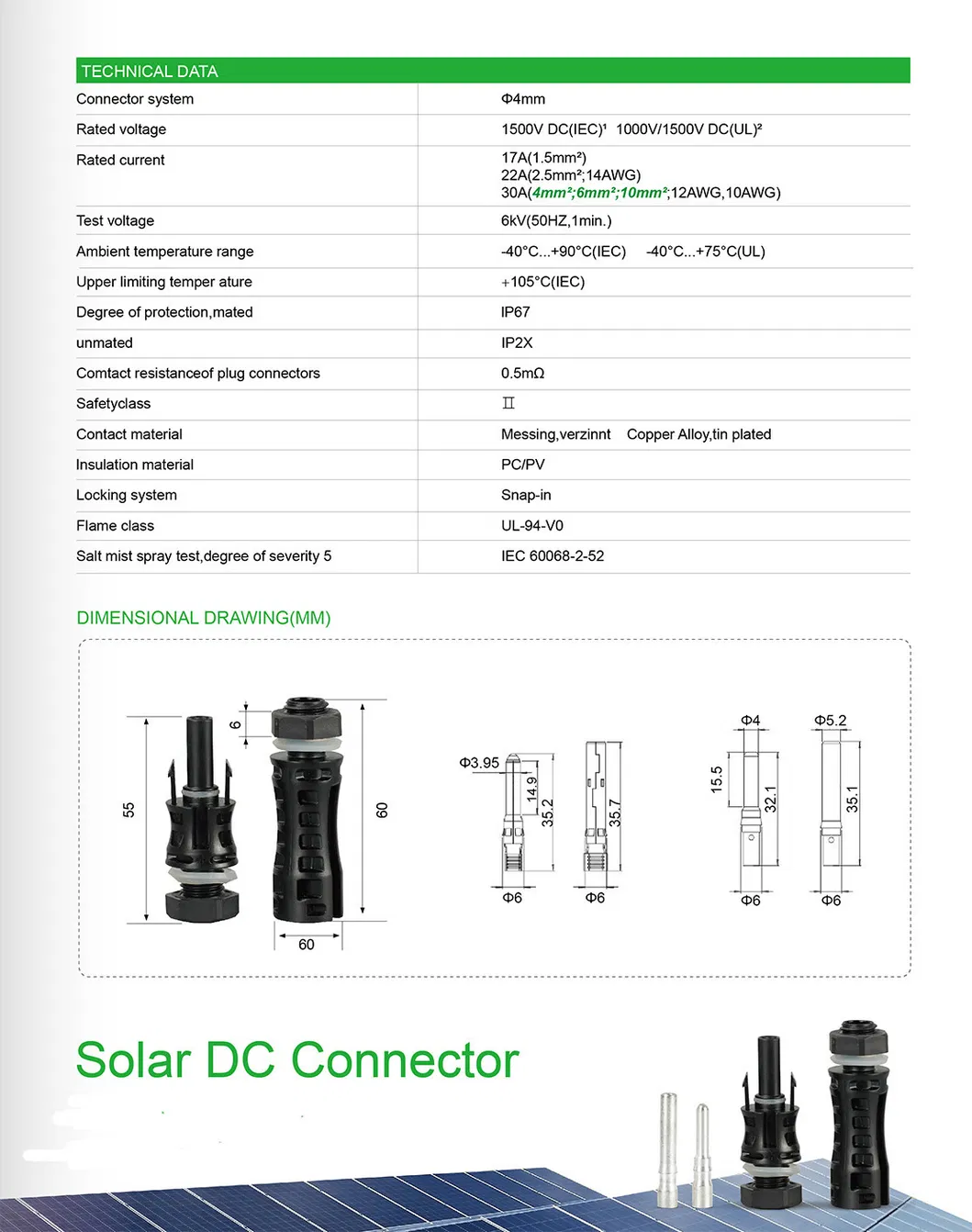

What is the rated voltage for these solar connectors?
The connectors are designed to handle rated voltages of 1000V and 1500V, making them suitable for most modern solar energy systems.
What is the waterproof rating of the Mc4 model?
Depending on the specific test environment, these connectors offer IP67 to IP68 waterproof protection, ensuring reliable performance in harsh outdoor conditions.
Which cable sizes are compatible with this connector?
These connectors are compatible with 2.5mm², 4mm², and 6mm² solar cables (equivalent to AWG 14/12/10).

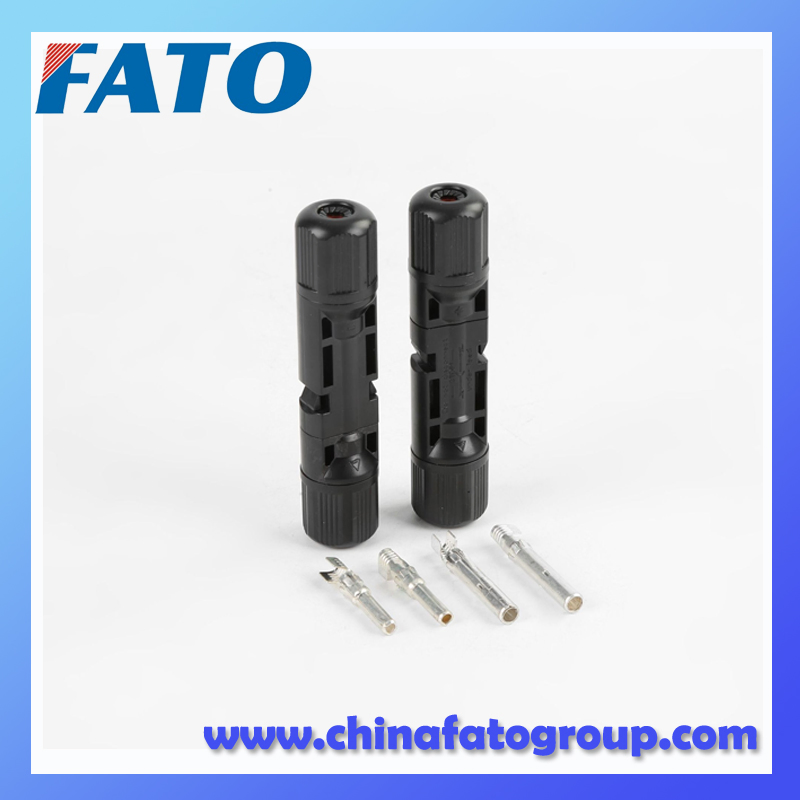

What materials are used for insulation and contacts?
The insulation is made of high-quality PPO material, and the contacts are constructed from copper with silver plating for optimal conductivity.
Are these connectors safe for industrial use?
Yes, they feature a Safe Class 2 rating and a UL94-V0 flame resistance class, making them suitable for home, industrial, and commercial applications.
How secure is the connection once installed?
The connectors utilize a "Snap-in" locking system with an insertion and withdrawal force of ≥50N, ensuring a stable and secure connection.
